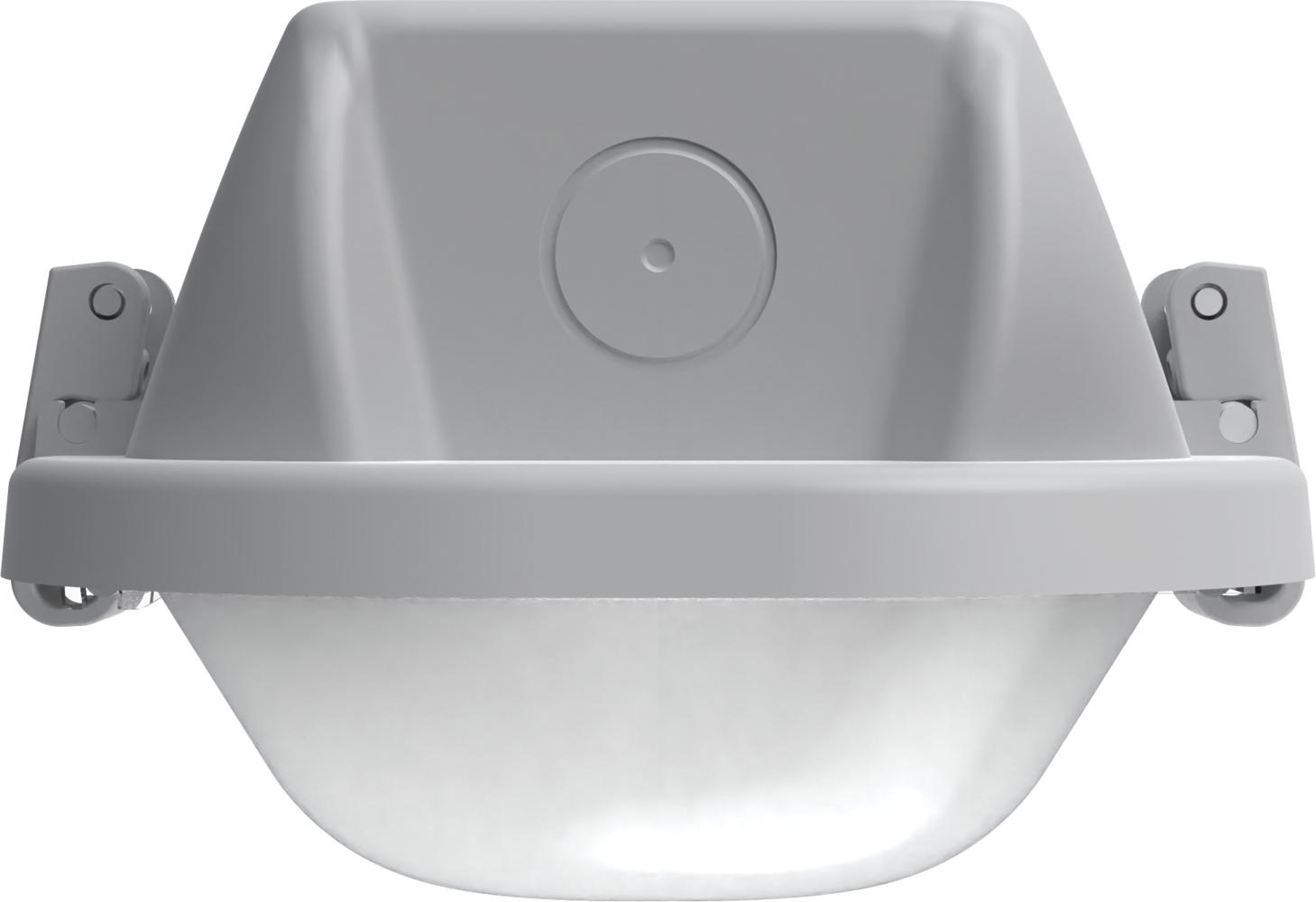

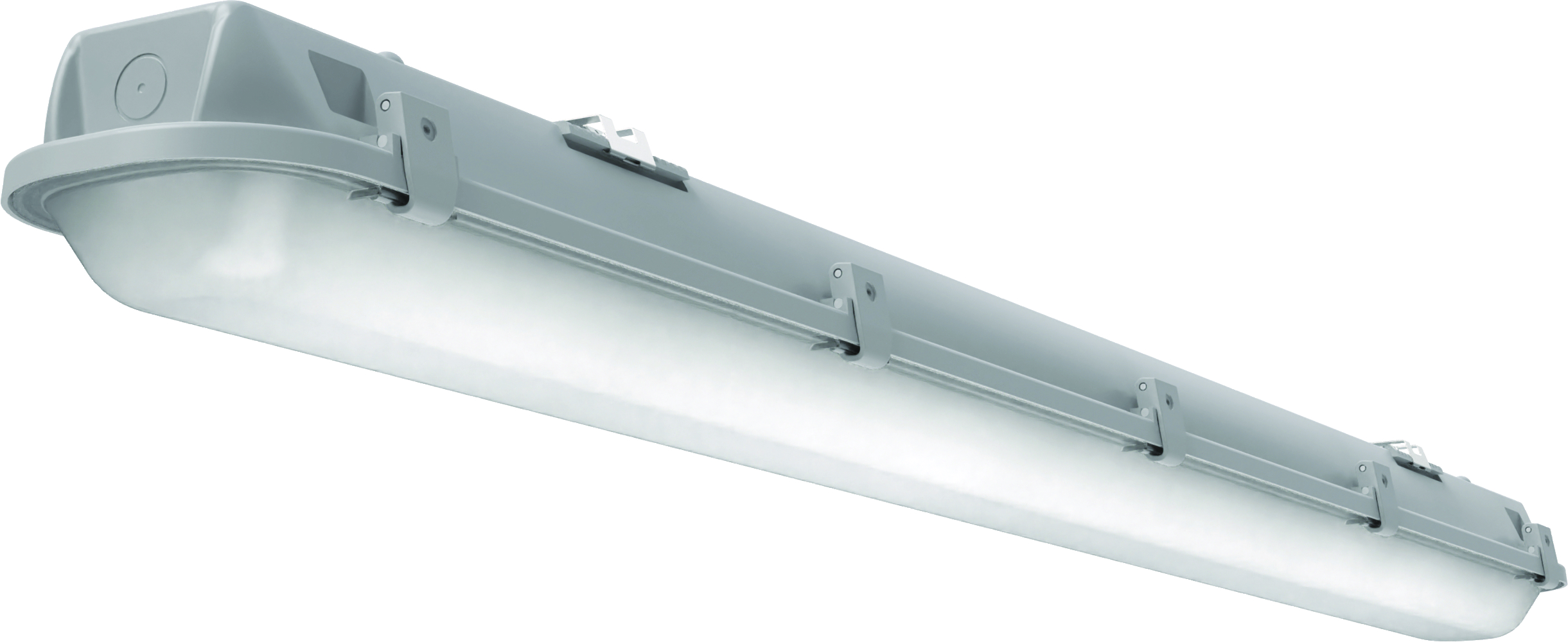

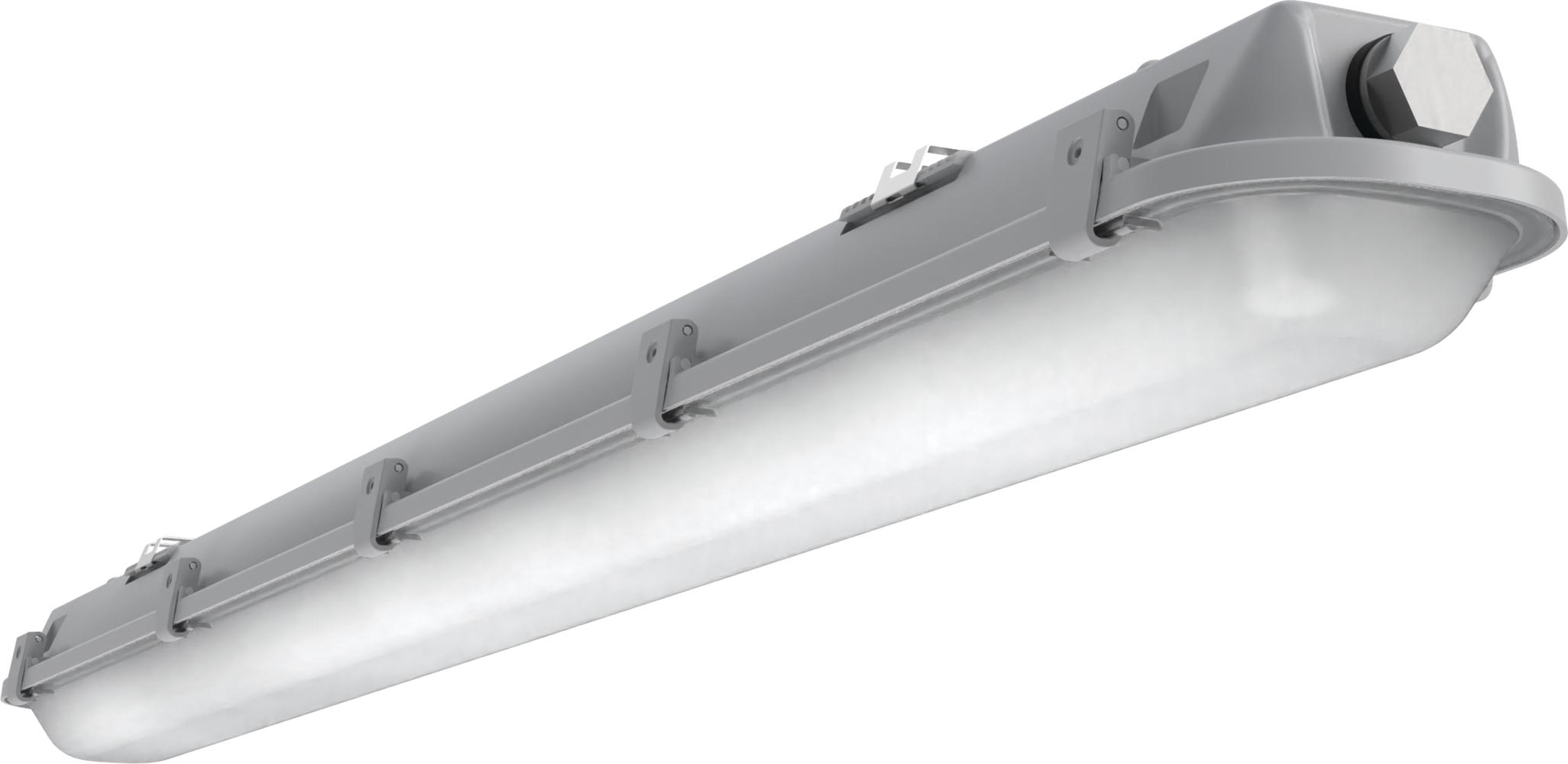

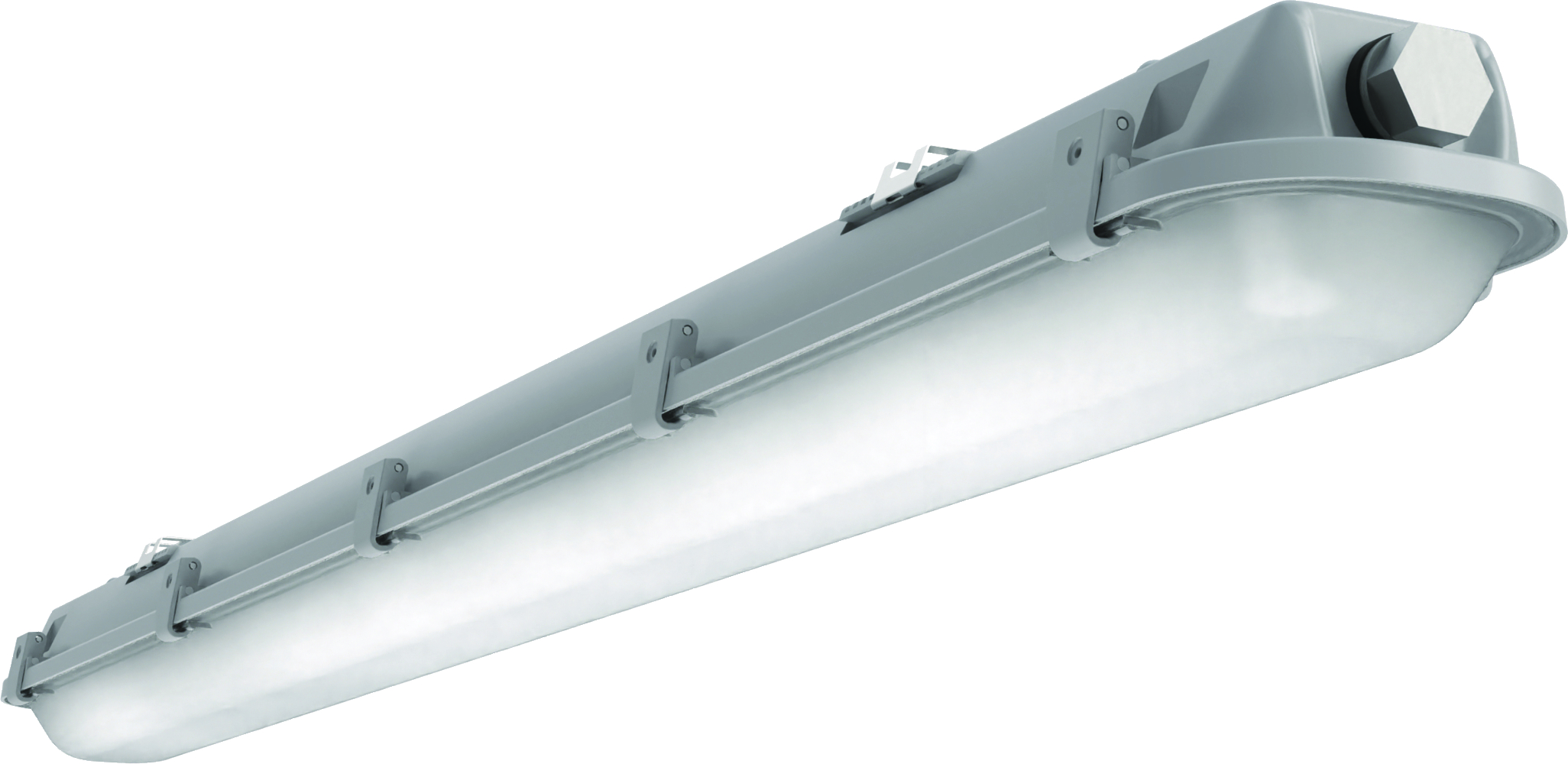

CONTRACTOR SELECT LED VAPORTIGHT, 96IN,

Manufacturer: Lithonia Lighting | Catalog # CSVT L96 10000LM MVOLT 40K 80CRI | Electrozad South Part # 380371
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

Technical Information

Aperture Size
8 ft
Applications

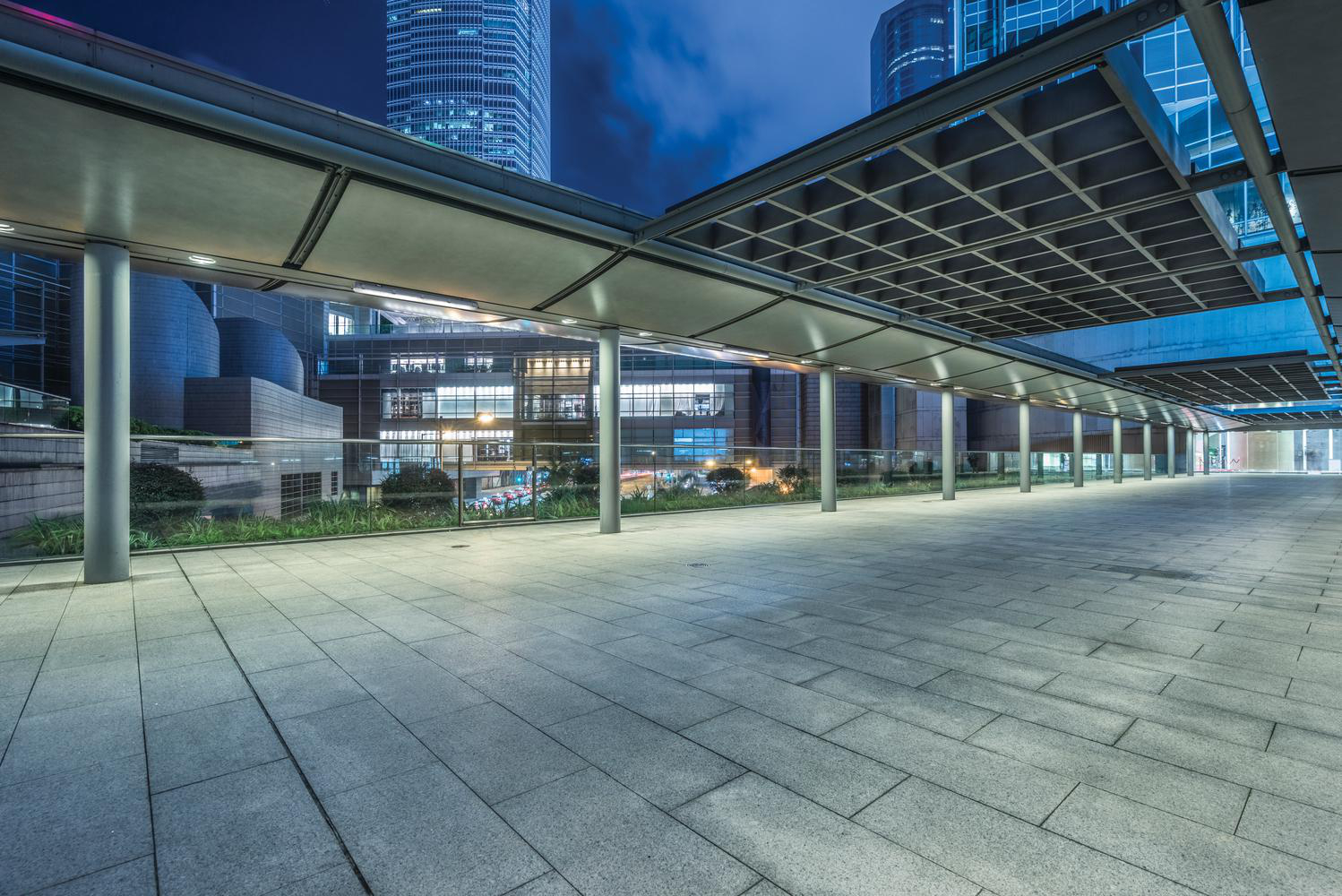

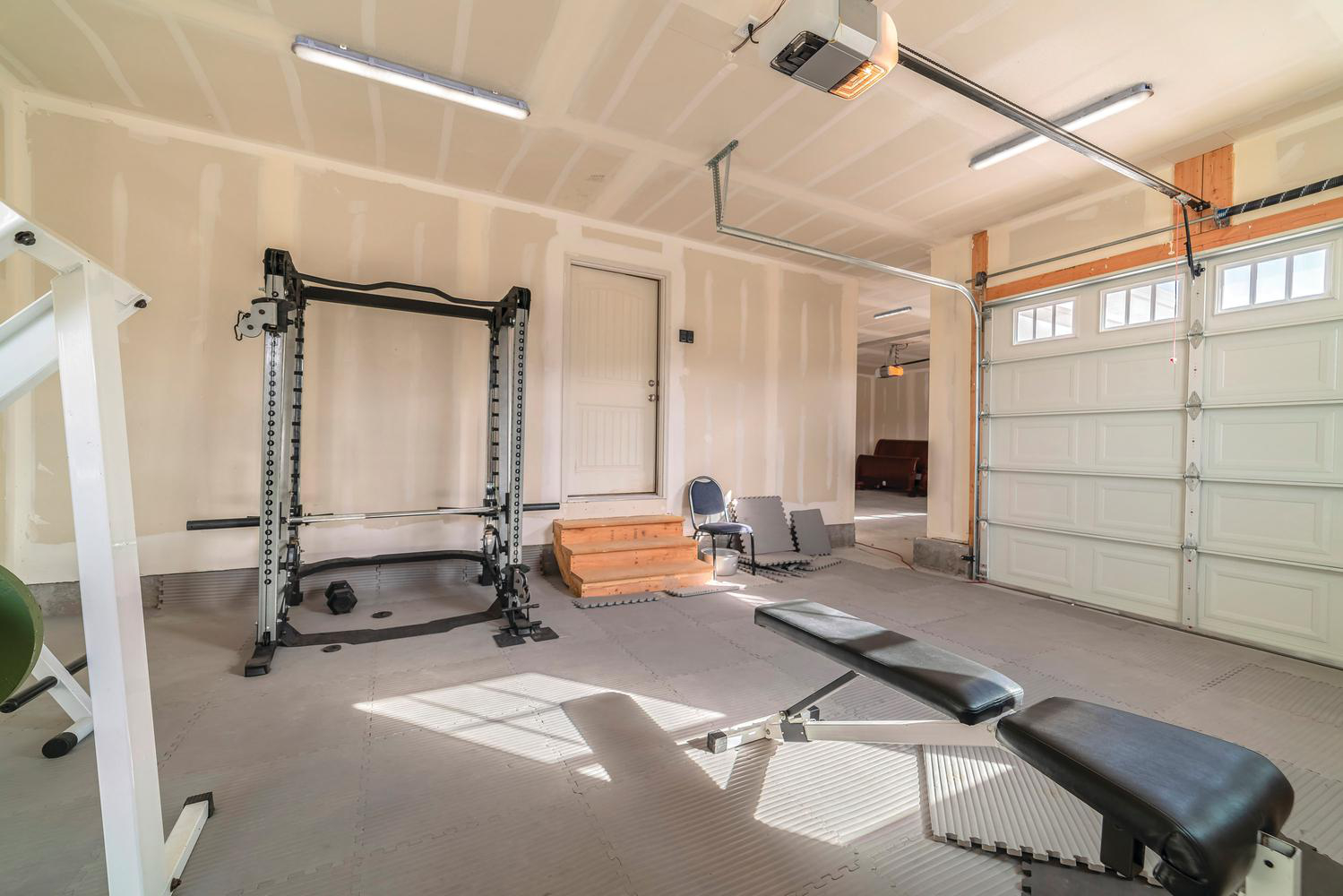

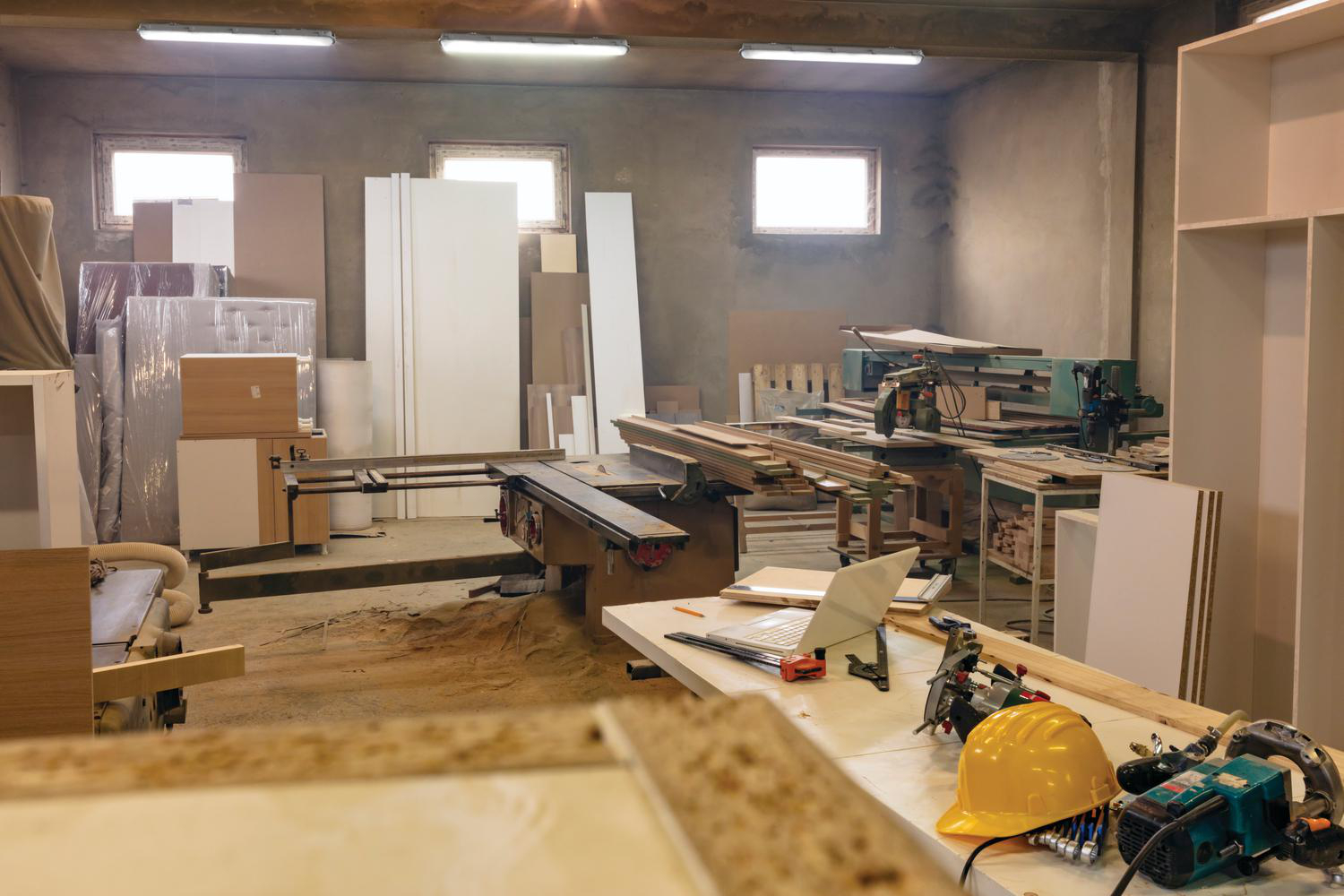

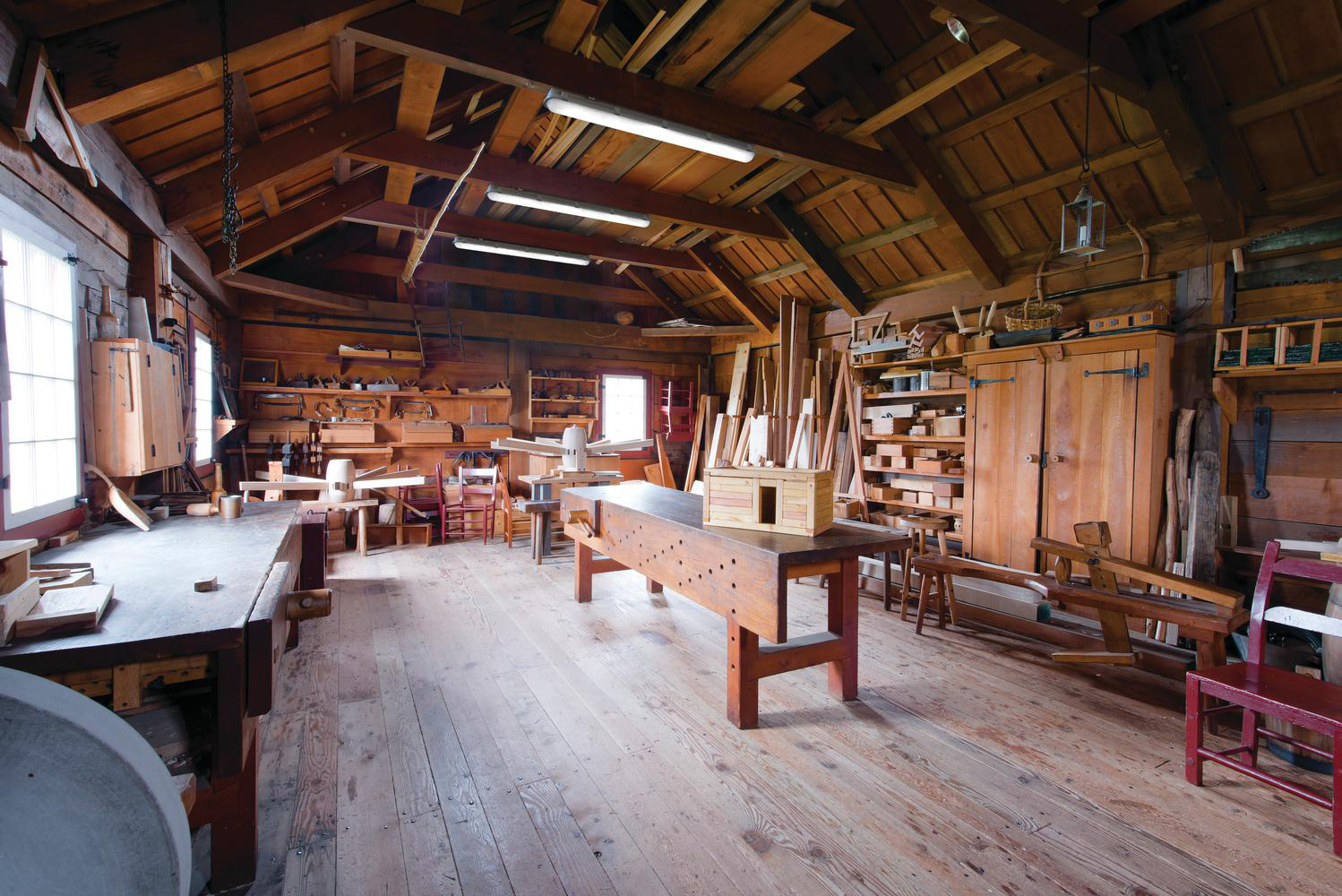

Manufacturing,Parking Garage,Sports And Recreation,Warehouses
Average Rated Life
54,000 hr
Color Rendering Index
80 CRI
Color Temperature
4000 K
Dimmable?
Yes
Lamp Type
LED - Static
Lens Color
White
Lens Material
Polycarbonate
Lumens
10, 000 lm
Material
Polycarbonate
Mounting Type
Pendant,Surface,Suspended
Power Source
Hardwired
Style
Traditional
Type
Low Bay
Voltage
120 V
Wattage
95.000 W

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194995280858
Color
Gray
Construction
New Construction,Remodel
Environment
Demanding,Indoor,Outdoor
Environmental Conditions
Demanding,Indoor,Outdoor
GTIN
00194995280858
Product UPC
19499528085
Shape
Rectangular
Weight
18 lb

Dimensions

Height
3.8 in
Length
98.3 in
Width
5.4 in

Certifications & Compliance

Country of Origin
Mexico,Mexico
Overview
  • WARRANTY: 5-year limited warranty
  • VOLTAGE: MVOLT (120-277V) & 347V
  • INSTALLATION: Surface (wall, ceiling) or suspended (chain, cable) using standard brackets
  • DIMMING: 0-10V Dimming standard
  • TECHNOLOGY: Ideal for damp/wet locations such as outdoor venues, canopies and locker rooms. Not for use or installation in direct outdoor sunlight
  • ENERGY SAVINGS: High Efficiency LEDs meet DLC Standard
  • HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 120,000 hours (L70>120,000)
  • BATTERY: This product does not include an emergency back up supply
  • DIMENSIONS: (l x w x h) 98.3 in x 5.4 in x 3.8 in
  • RATINGS: CSA Certified to UL & C-UL Standards for wet location, IP65 and IP66 rated, NSF splash zone rated
