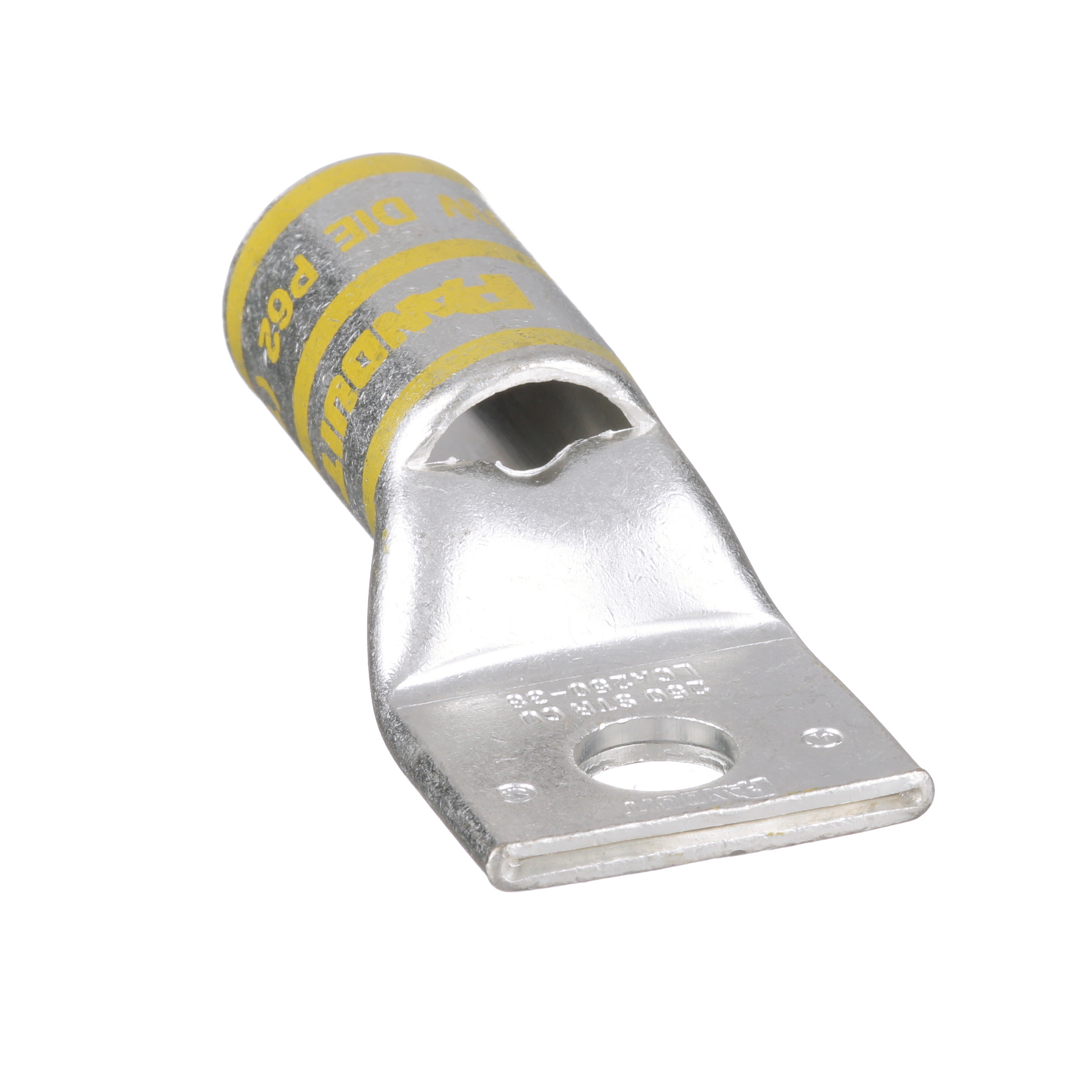

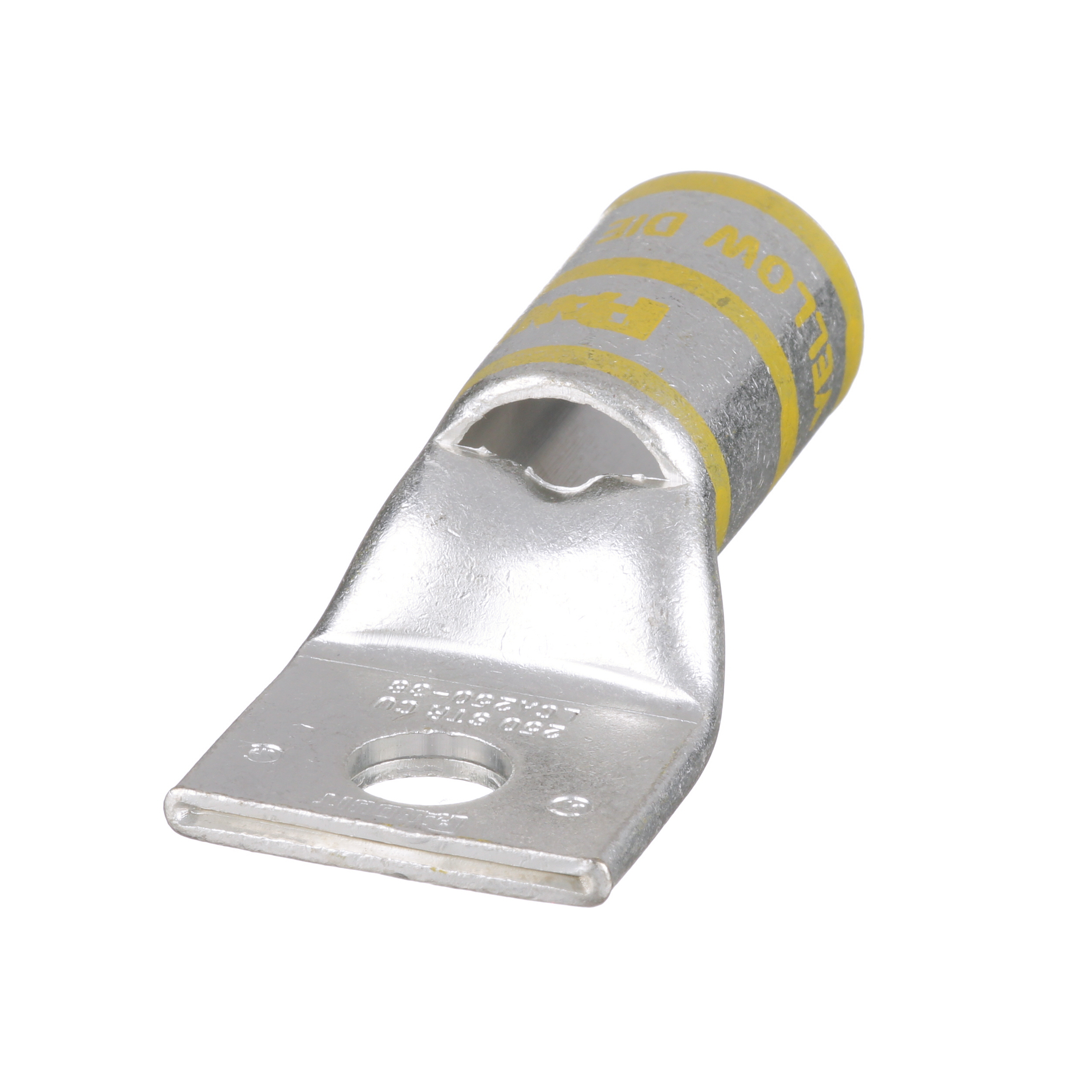

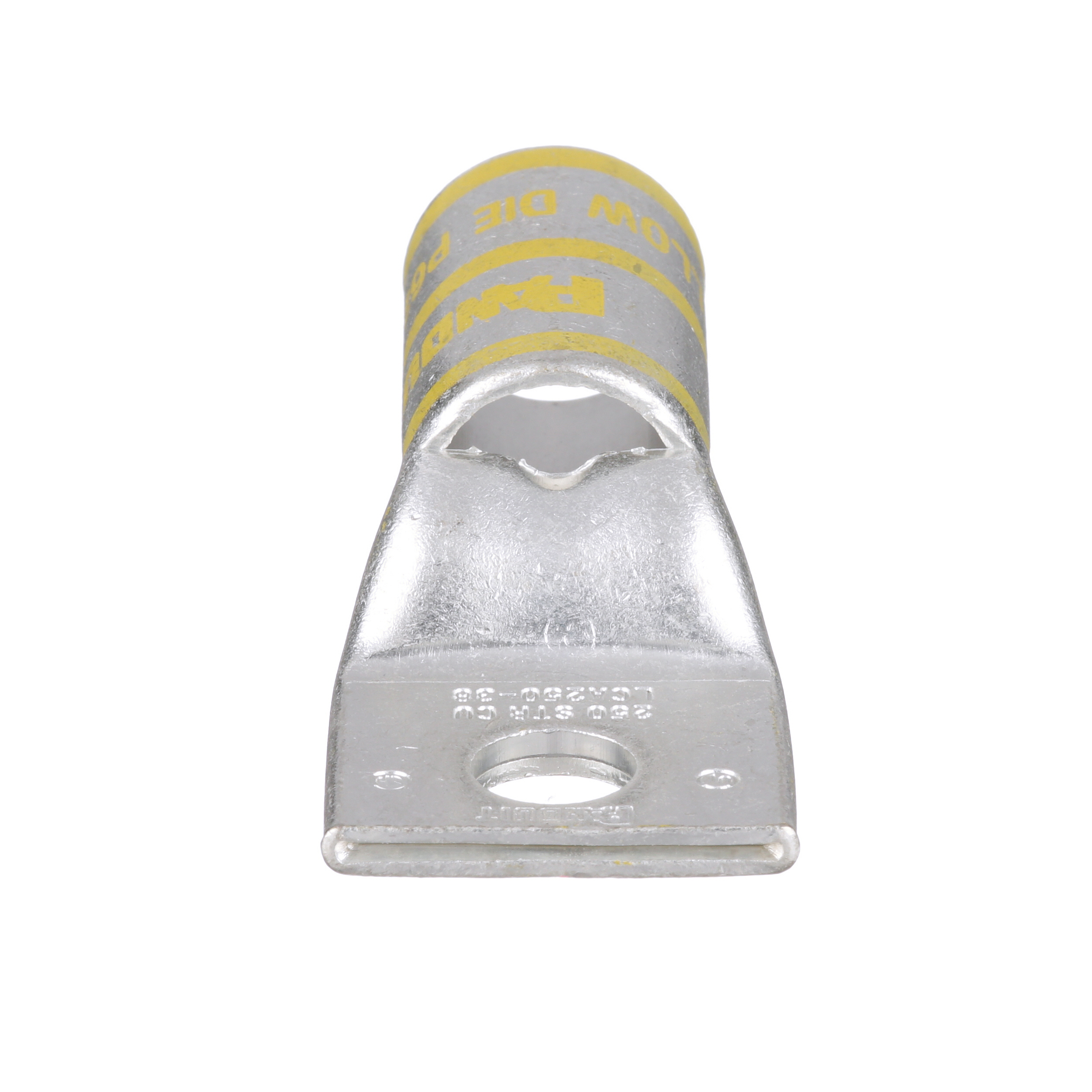

Lug window 1-hole standard-barrel copper 250KCMIL yellow 3/8"

Manufacturer: Panduit | Catalog # LCA250-38-X | Electrozad South Part # 3804
$2,271.62 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Window lug with standard-barrel, one-hole for use with stranded copper conductors. Colour-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. Inspection window to visually assure full conductor insertion. Tin-plated to inhibit corrosion. Temperature rated to 90..C when crimped with Panduit and specified competitor crimping tools and dies.

Technical Information

Angle
Straight
Barrel Length
1.25 in
Barrel Type
Standard
Cable Size
AWG
Color Coding
Yellow
Material
Copper
Number of Holes
1
Size
250 kcmil Code
Stud Size
3/8 in
Tongue Thickness
0.14 in
Tongue Type
Standard
Tongue Width
1.17 in
Type
Preterminated Copper Trunk, Category 6

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983901944
Color
Black on Yellow
GTIN
00074983901944
Product UPC
07498390194

Dimensions

Outer Diameter
0.77 in
Overall Length
2.55 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
