HUB GFHW23005 HW GFCI 30A 240V MAN

Manufacturer: Hubbell Wiring Devices | Catalog # GFHW23005 | Electrozad South Part # 382749
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual

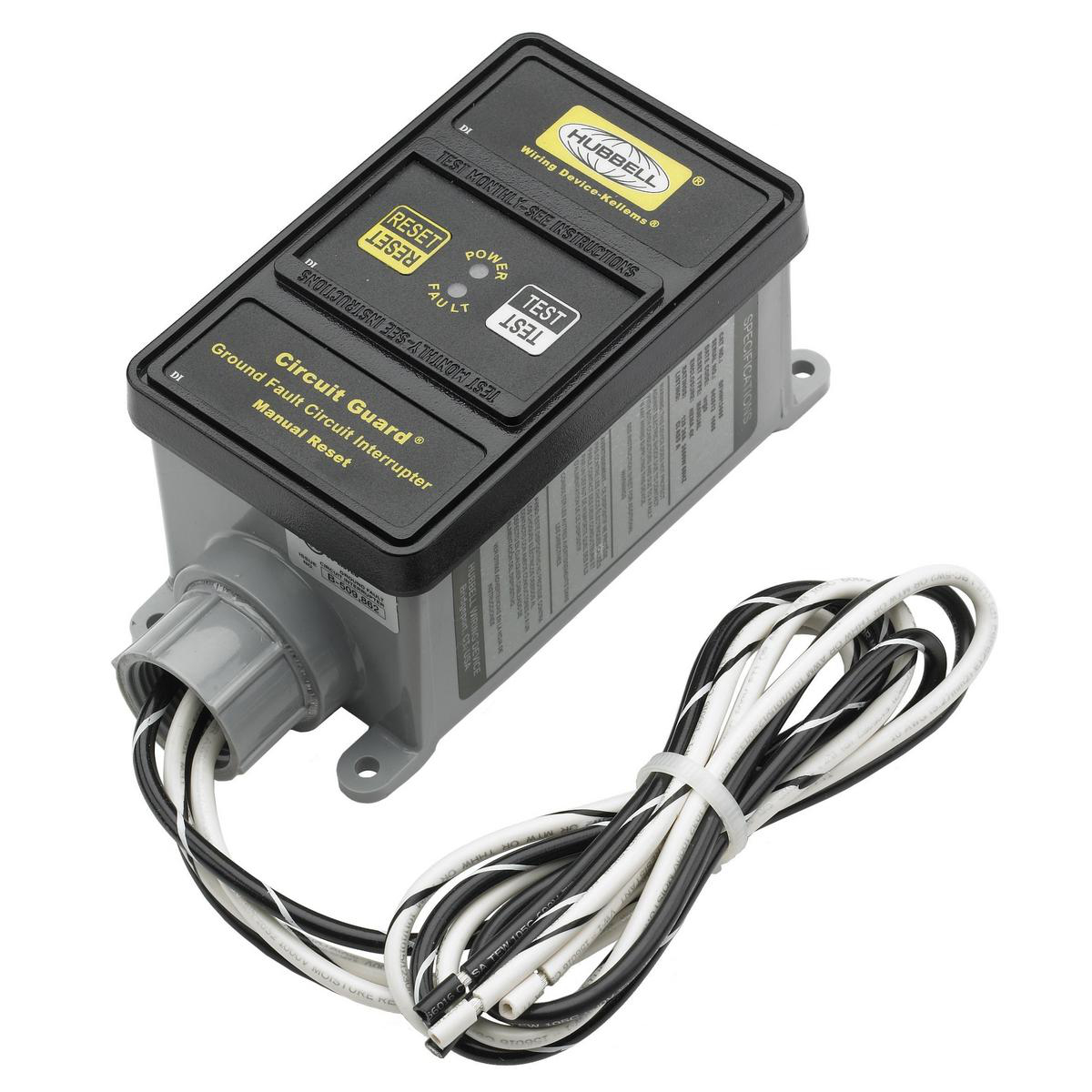

Circuit Guard® Hard Wired 30 Ampere GFCI. UL Type 4X housing. Industrial grade design. Class A GFCI. Operating Temperature: -35..C to +66..C.

Technical Information

Amperage
30 A
Applications
Wire Into Circuit
Conductor Material
Copper
Conductor Size
10 AWG
Conductor Type
Copper
Current
30 A
Frequency
60 Hz
Insulation Material
Thermoplastic
Number of Conductors
3
Operating Temperature
-30 To 150 degrees F
Reset Type
Manual
Standard
UL
Style
Manual Set
Temperature Rating
-35 degrees C to 66 degrees C
Type
Fabricated, Industrial Grade
Voltage
240 V

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Hard Wired 30A GFCI

General Product Info

12-Digit UPC
783585005218
Color
Black
Construction
Fabricated
GTIN
00783585005218
Housing Material
Thermoplastic
Product Series
Extra Heavy Duty
Product UPC
78358500521
Weight
1.6 lb

Dimensions

Height
9.700 in
Length
3.200 in
Width
5.7 in

Certifications & Compliance

Country of Origin
USA
