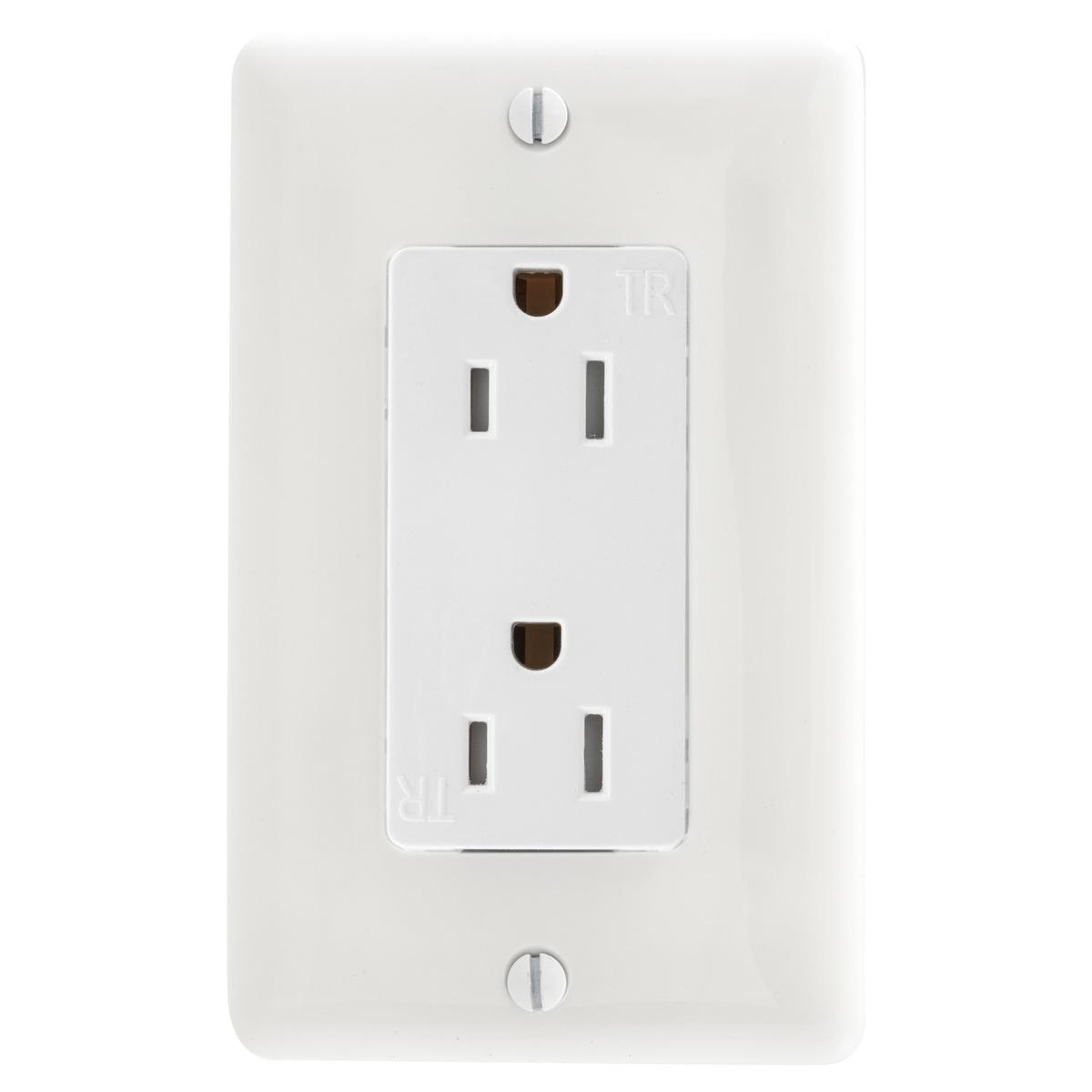

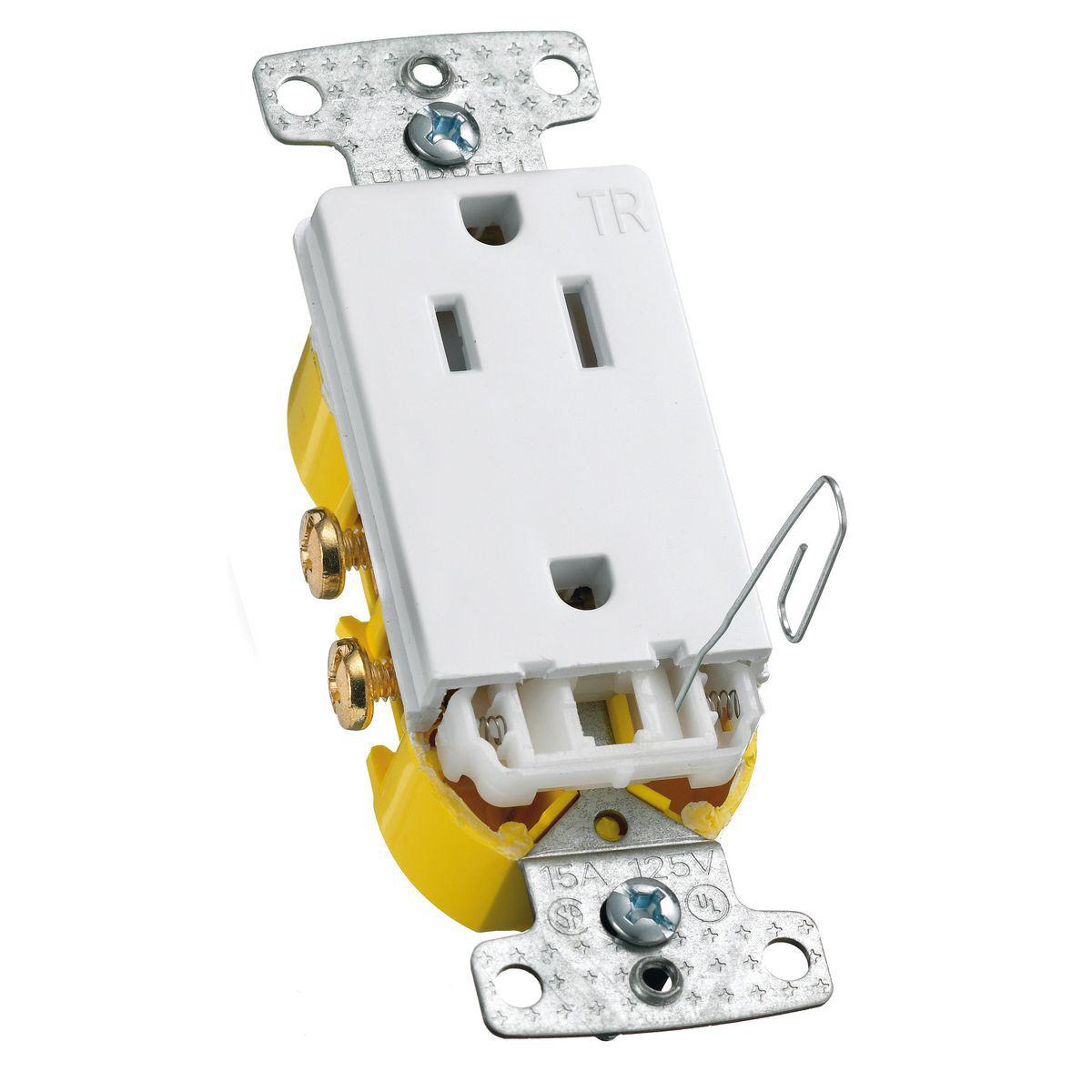

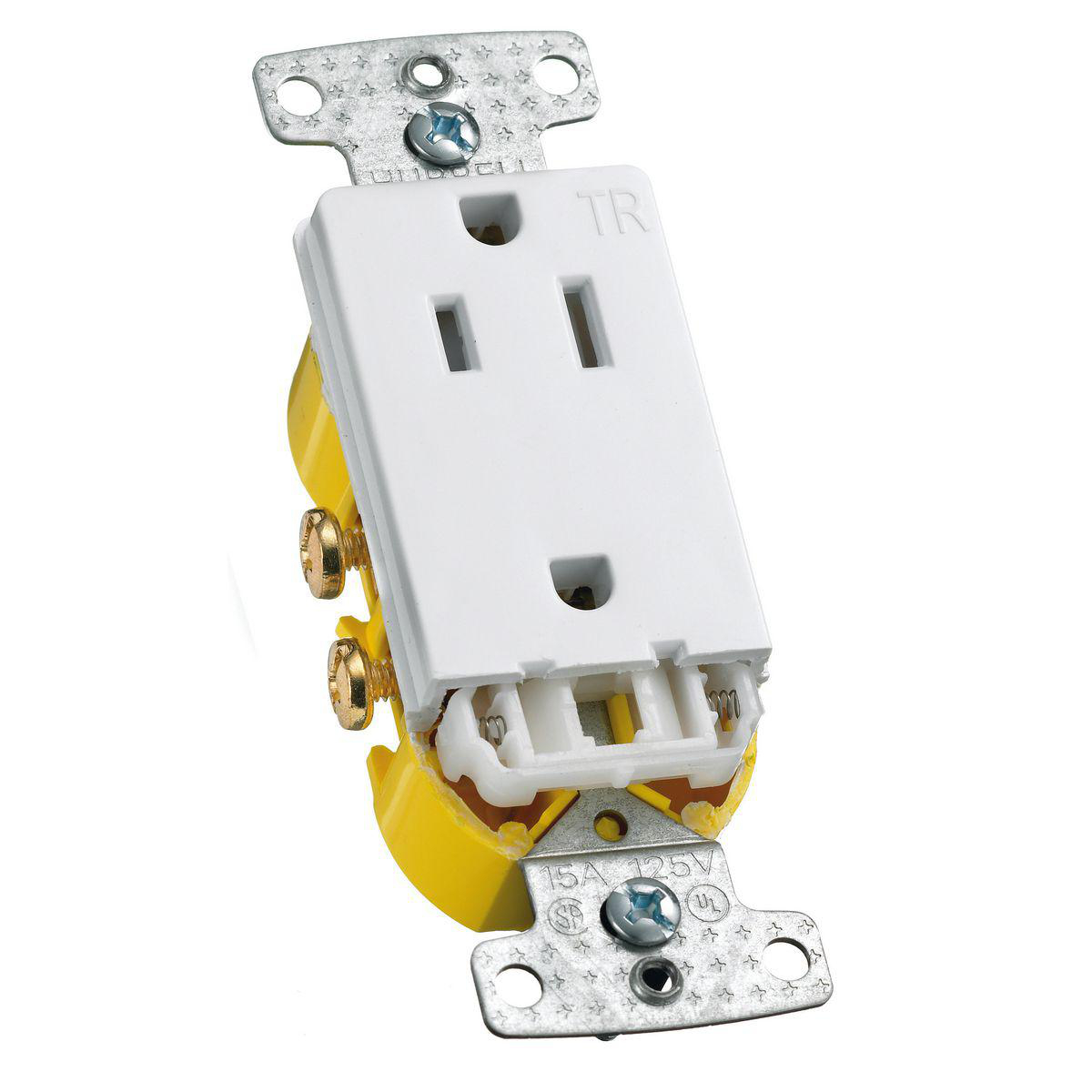

Receptacle duplex decorator 2 pole 15A 125V white

Manufacturer: Hubbell Wiring Devices | Catalog # RRD15SWTR | Electrozad South Part # 383194
$6.79 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL P WARRANTY URL
Receptacle duplex, self-grounding, push and side wire.

Technical Information

Amperage
15 A
Applications
Residential Receptacles
Conductor Size
14-12 AWG
Connection Type
Push and Side Wire
Current
15 A
Grade
Residential
Material
Thermoplastic
Mounting Type
Screw, Flush
Number of Poles
2
Number of Wires
3-Wire Grounding
Size
Standard
TC Connection
Push and Side Wire
Type
Decorator Tamper-Resistant, Self Grounding
Wattage
1875 W
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Trade-Select™

General Product Info

12-Digit UPC
883778301681
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00883778301681
Product UPC
88377830168

Dimensions

Height
1.1 in
Length
4.200 in
Width
1.580 in

Certifications & Compliance

Country of Origin
China
