60AJ MODULAR FUSEHOLDER 3 POLE

Manufacturer: Bussman Cooper Fuses | Catalog # CH60J3 | Electrozad South Part # 384983
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure

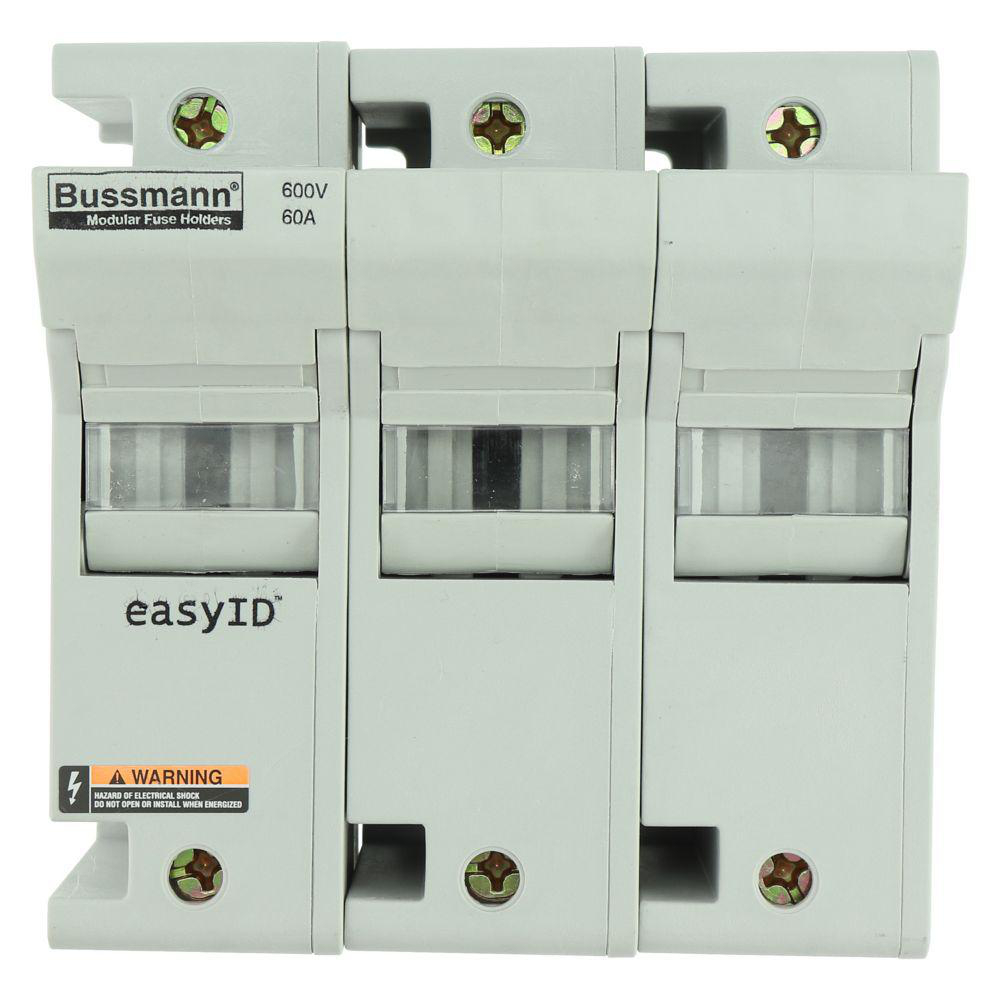

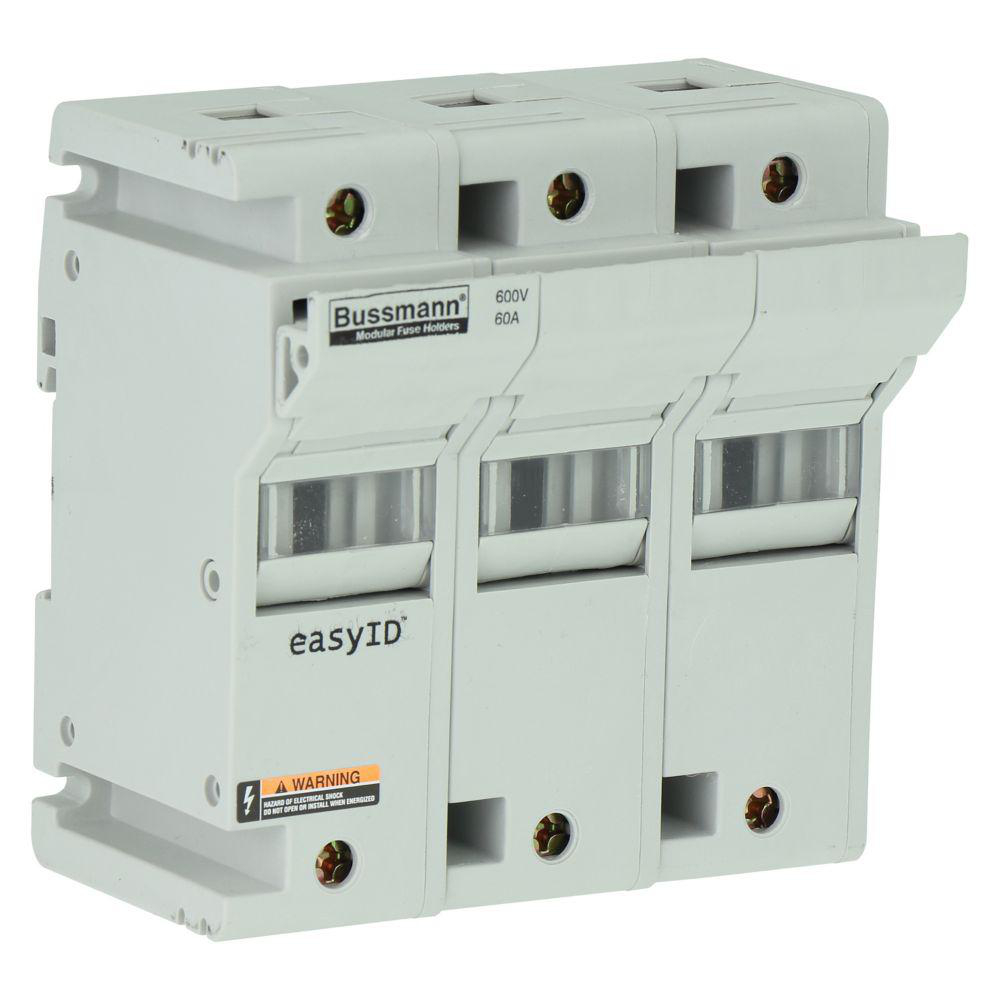

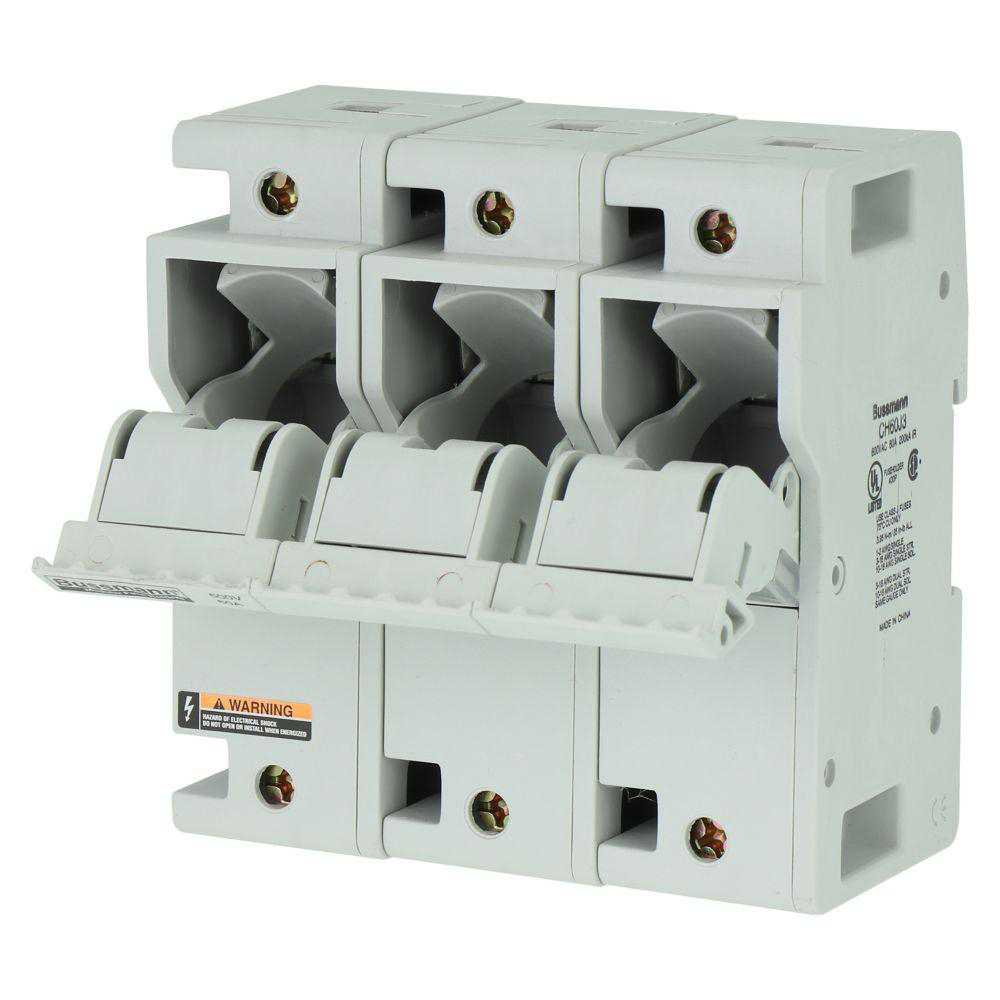

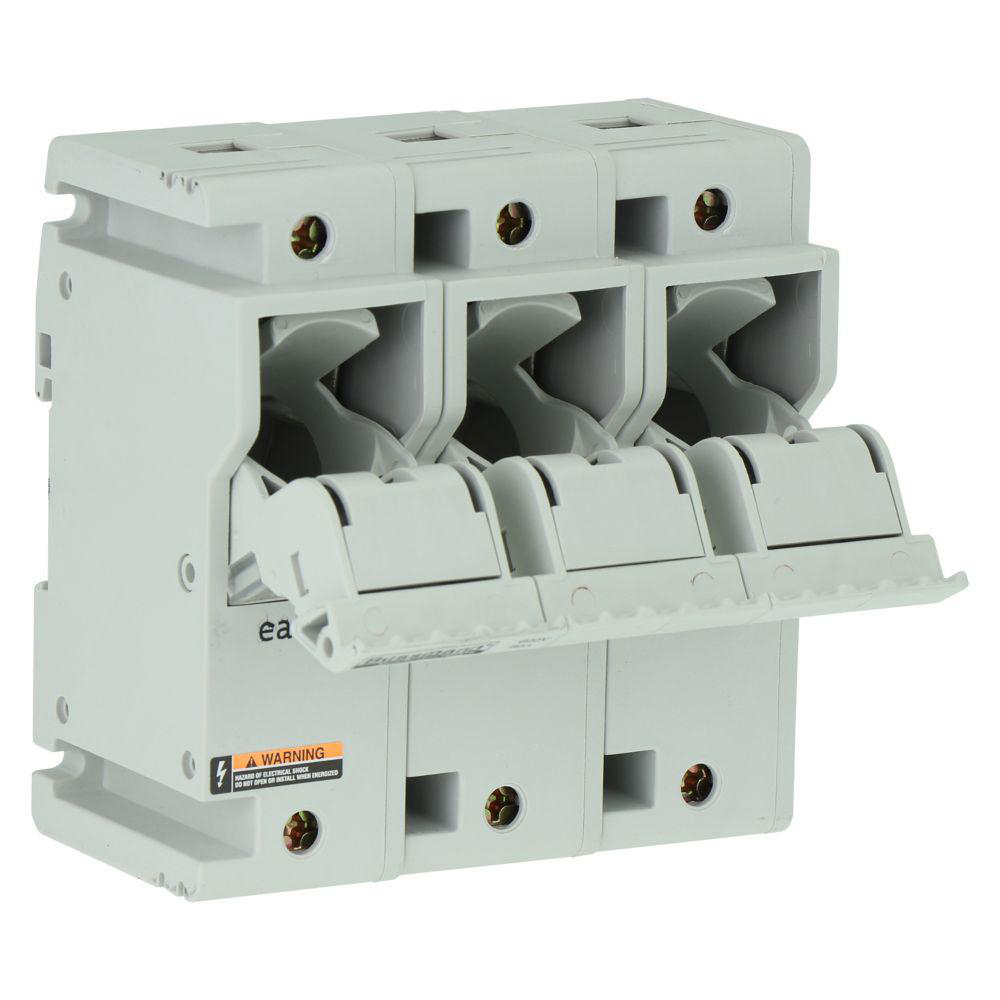

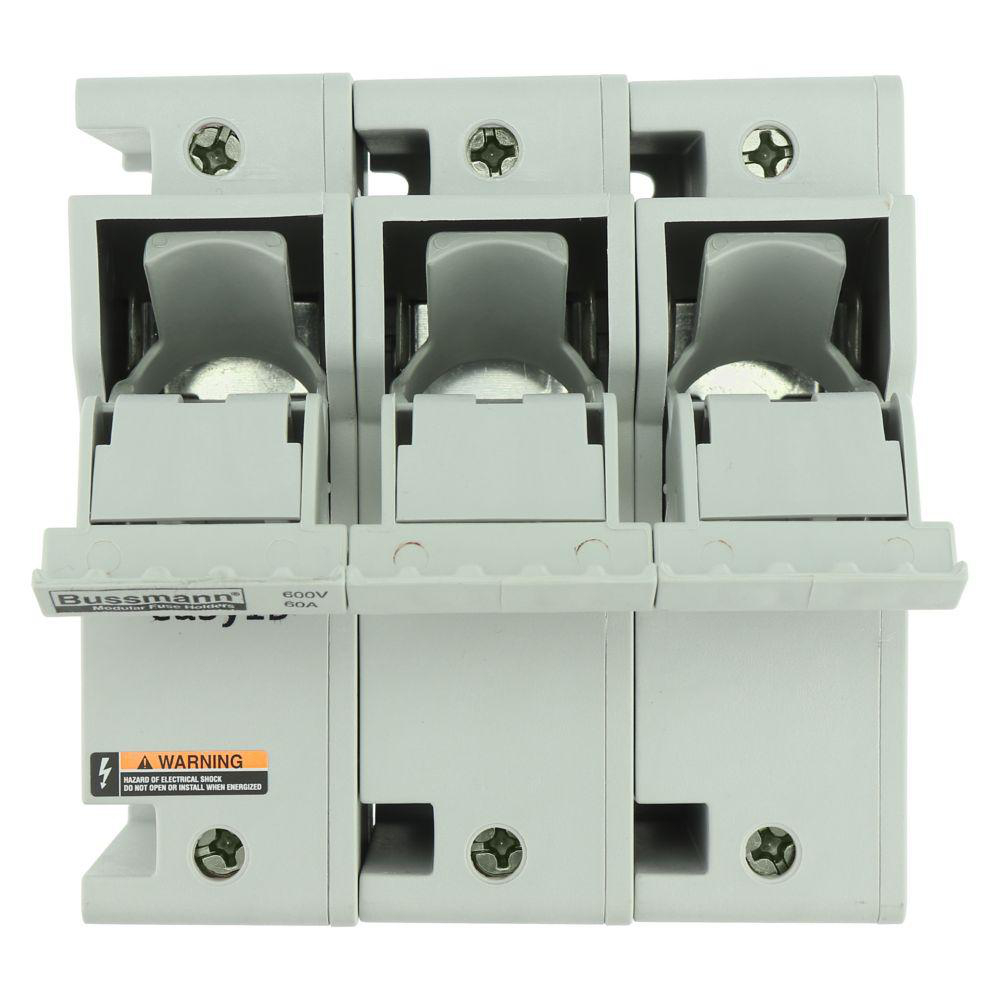

Eaton Bussmann series CH modular fuse holder, 60 A, Three-pole, Class J, Tin-plated copper clip, Thermoplastic housing, Panel, 35 mm DIN rail, 600 Vac/dc

Technical Information

Amperage
60 A
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Material
Tin-plated Copper Clip
Mounting Type
35 mm
Operating Temperature
85 degrees C
Size
4.72 In Length X 3.31 In Width X 4.88 In Height
Type
Modular Fuse Holder
Voltage
600 V
Wattage
85°C

Manufacturer Information

Brand
Edison
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712630931
Class
J
GTIN
00051712630931
Product UPC
51712630931
Weight
1.536 lb

Dimensions

Height
2.5 in
Length
5 in
