30A 600V 3 POLE DISC SW W/NEMA 3R

Manufacturer: Hubbell Wiring Devices | Catalog # HBL13R89 | Electrozad South Part # 385245
$123.48 /ea
pc
Log in or register to view your price, purchase history, and more!
40 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL

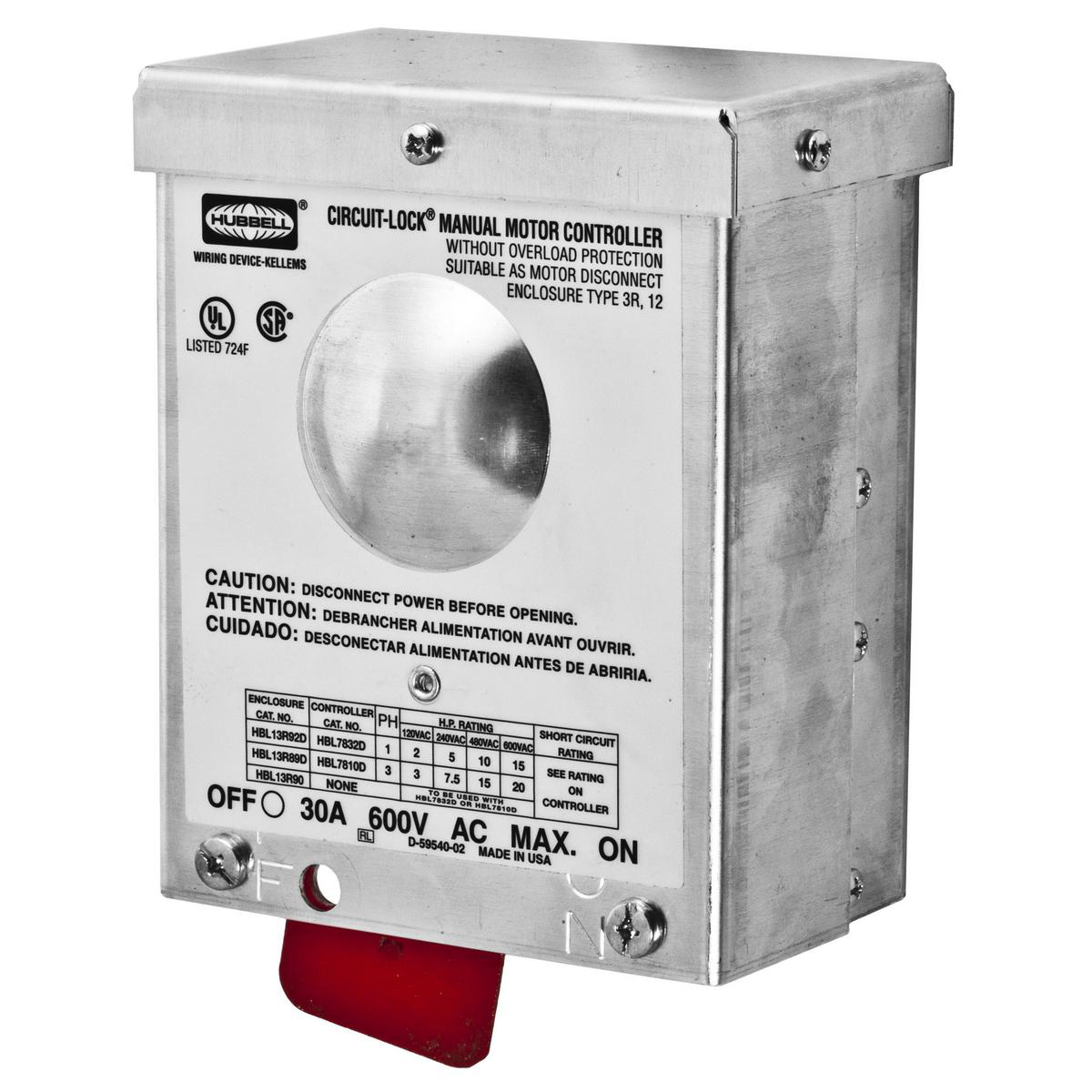

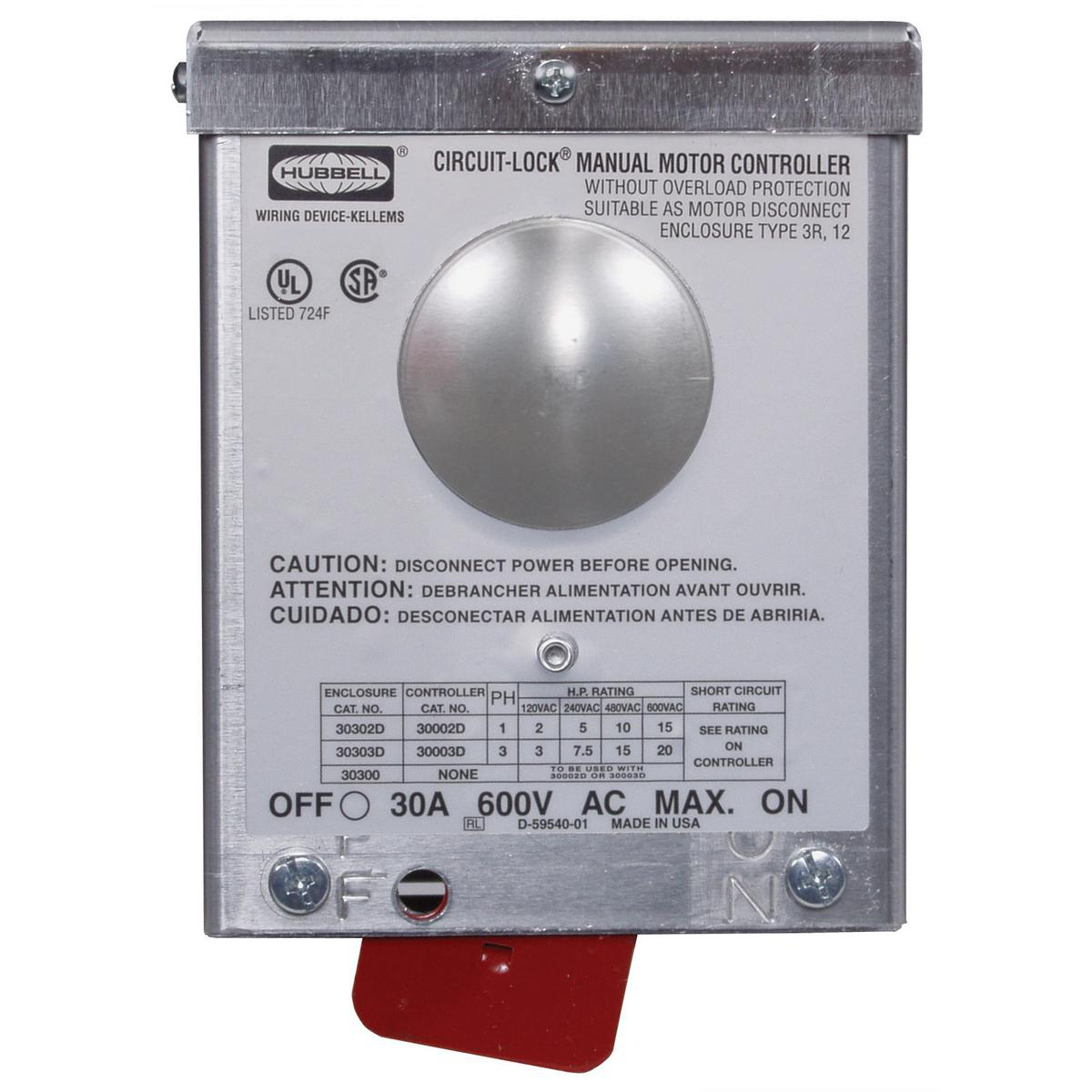

Circuit-Lock® NEMA 3R Enclosure Switch Disconnect, 3-Pole, 30A 600V AC, Aluminum

Technical Information

Actuator
Toggle
Amperage
30 A
Applications
For Motor Disconnect, Indoor and Outdoor Use
Conductor Size
10 AWG
Current
30 A
Enclosure Type
NEMA 3R
Grade
Industrial
Horsepower
20 hp
Number of Poles
3
Operating Cycles
10000
Size
5.52 in x 4.4 in x 3.3 in
Type
Non-Fused, Standard-Duty
Wattage
18000 W

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Circuit-Lock®

General Product Info

12-Digit UPC
783585680972
Color
Aluminum
GTIN
00783585680972
Product UPC
78358568097
Weight
1.55 lb

Dimensions

Height
3.3 in
Length
5.52 in
Width
4.4 in

Certifications & Compliance

Country of Origin
China
Overview
  • Ideal for use on outdoor equipment
  • All aluminum cover and base
  • Flip-lid enclosure
  • Surface mount control
