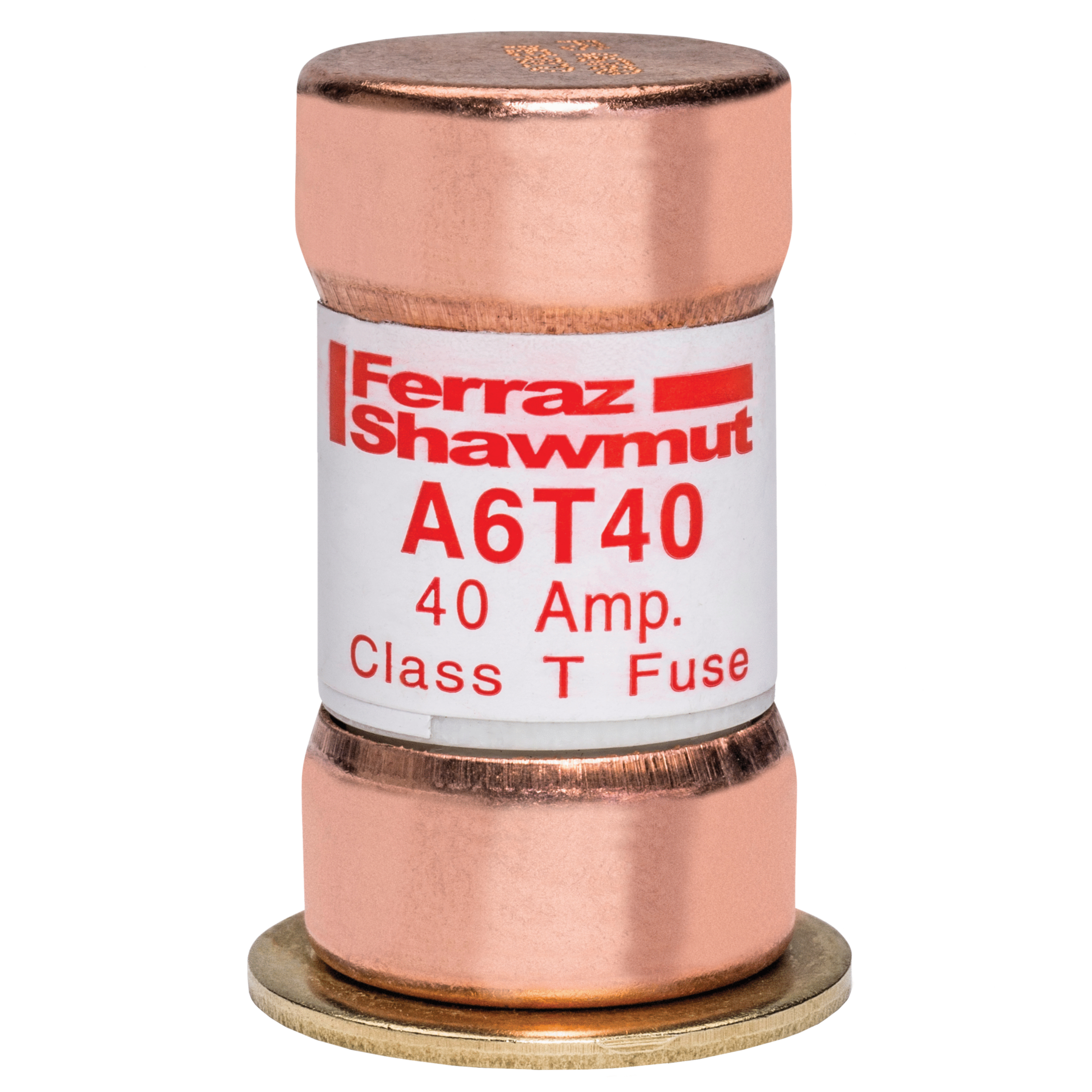

MERSEN A6T40 FUSE HRC-T 40A 600VAC 300VDC FAST ACTING NON TIME DELAY

Manufacturer: Ferraz Shawmut Mersen | Catalog # A6T40 | Electrozad South Part # 38556
$66.66 /ea
ea
Log in or register to view your price, purchase history, and more!
7 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet

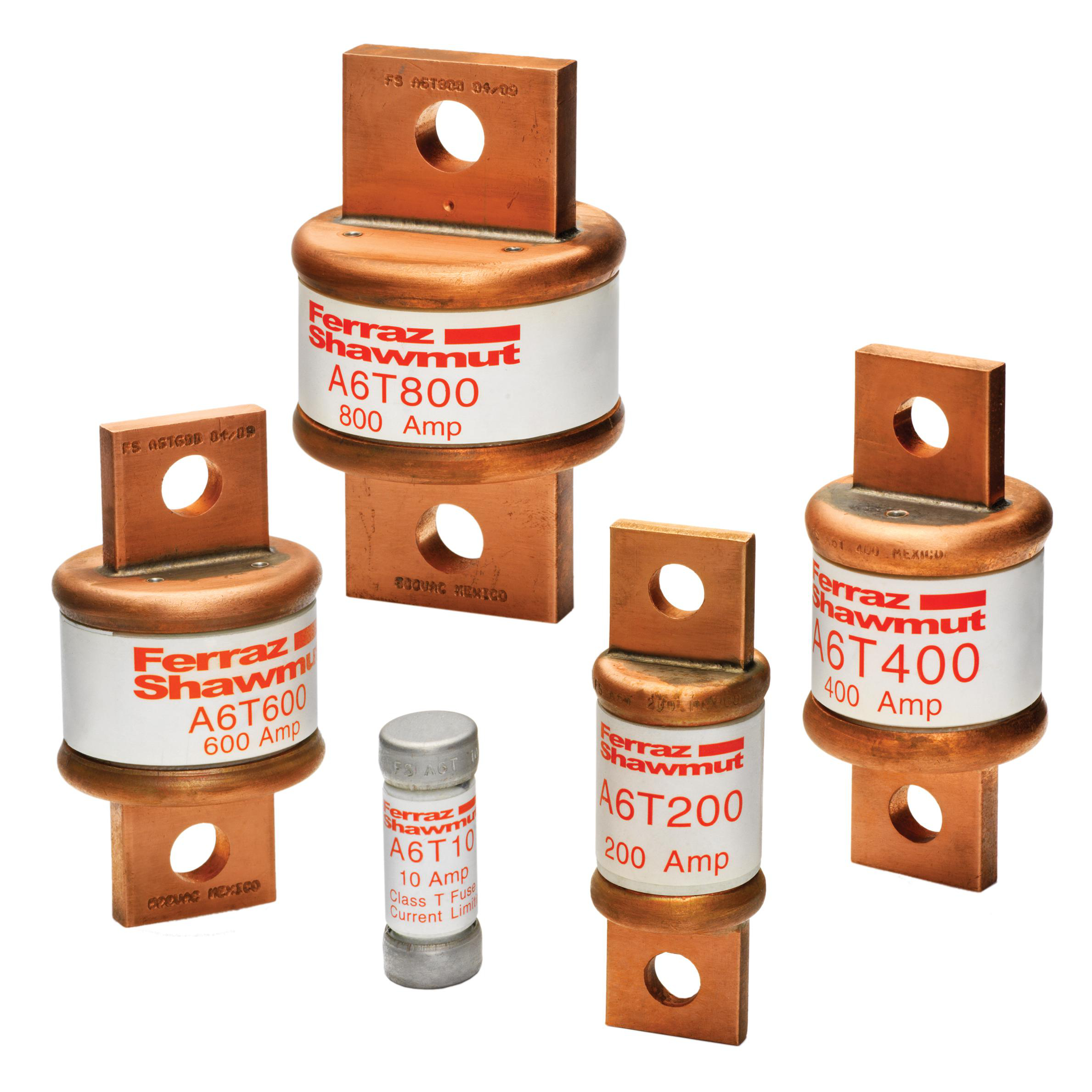

Fast-acting A6T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Technical Information

Amperage
40 A
Applications
For Load Centers, Panelboards, Switchboards, Circuit Breakers, Metering Centers
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class T
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
300 V
TC Connection
Ferrule
Terminal Material
Copper
Terminal Type
Ferrule
Type
North American Power Fuses

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001891084
Class
T
GTIN
30782001891085
Product UPC
78200189108
Weight
0.083 lb

Dimensions

Diameter
0.81 in
Length
1.57 in
