Electrical Tester Kit with Dual-Range NCVT and GFCI Receptacle Tester

Manufacturer: Klein Tools | Catalog # NCVT5KIT | Electrozad South Part # 386307
$58.74 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL

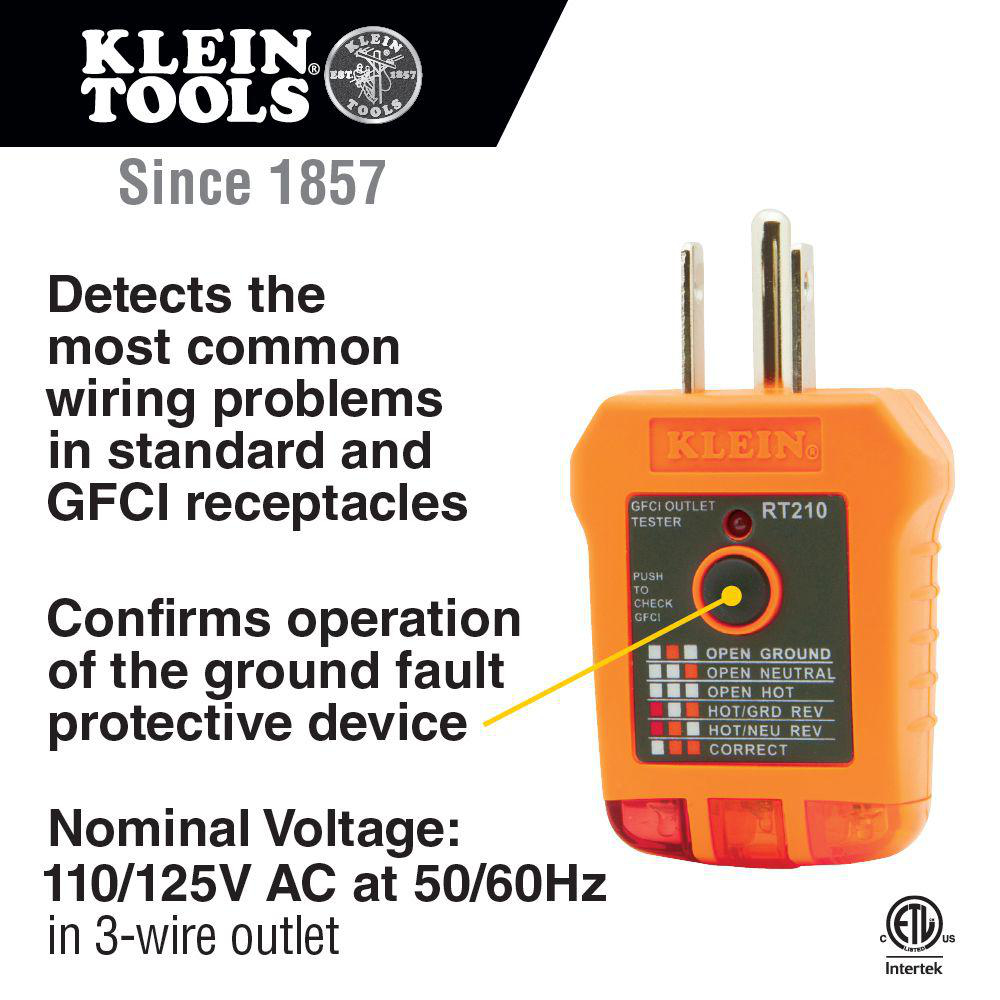

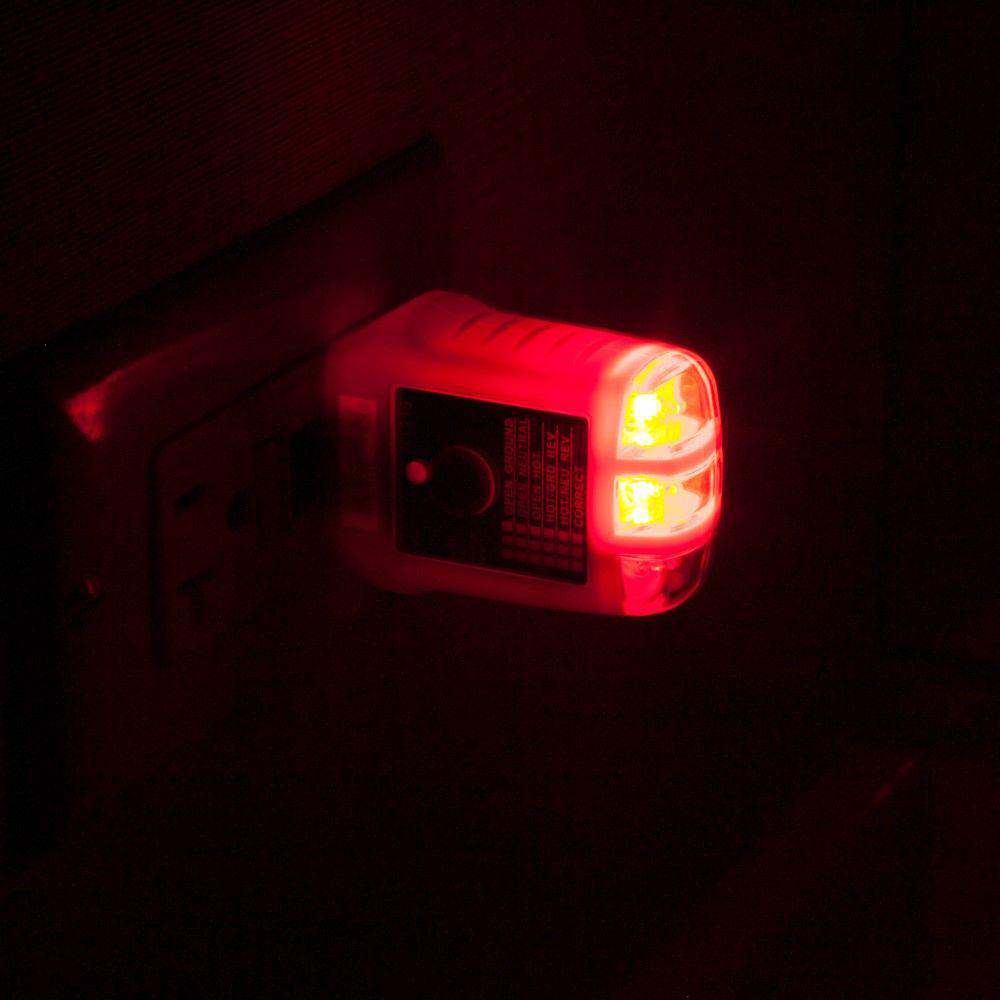

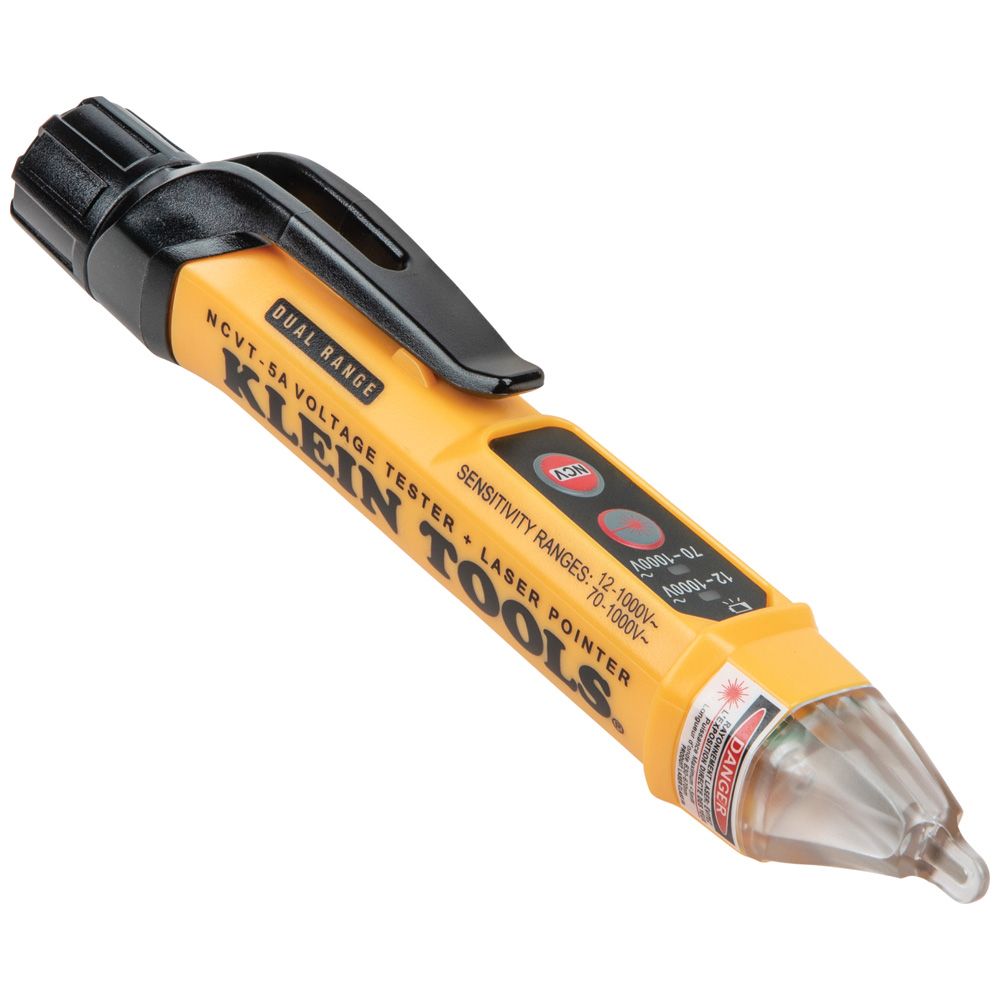

The NCVT5KIT includes a dual-range non-contact voltage tester with laser pointer and a GFCI receptacle tester. The NCVT-5A automatically detects and indicates voltage (12 - 1000V) allowing broad application. The RT210 will troubleshoot the most common wiring problems in standard and GFCI receptacles.

Technical Information

Applications
Dual-Range Non-Contact Detection of the Presence of AC Voltage from 12 - 1000 VAC or From 70 - 1000 VAC
Battery Life
25 hr
Battery Type
2 X AAA
Frequency
500 Hz
Material
Plastic
Power Supply
Battery
Type
Non-Contact, Dual Range
Voltage
1000 V

Manufacturer Information

Brand
Klein Tools

General Product Info

12-Digit UPC
092644692369
Environmental Conditions
2° Pollution
GTIN
00092644692369
Product UPC
09264469236
Weight
0.288 lb

Dimensions

Depth
9.600 in
Diameter
1.16 in
Height
0.96 in
Overall Length
6 in
Width
1.16 in

Certifications & Compliance

Country of Origin
China
Overview
  • Works on GFCI outlets and confirms operation of the ground fault protective device
  • NCVT-5A delivers simultaneous visual and audible voltage indicators when AC voltage is detected

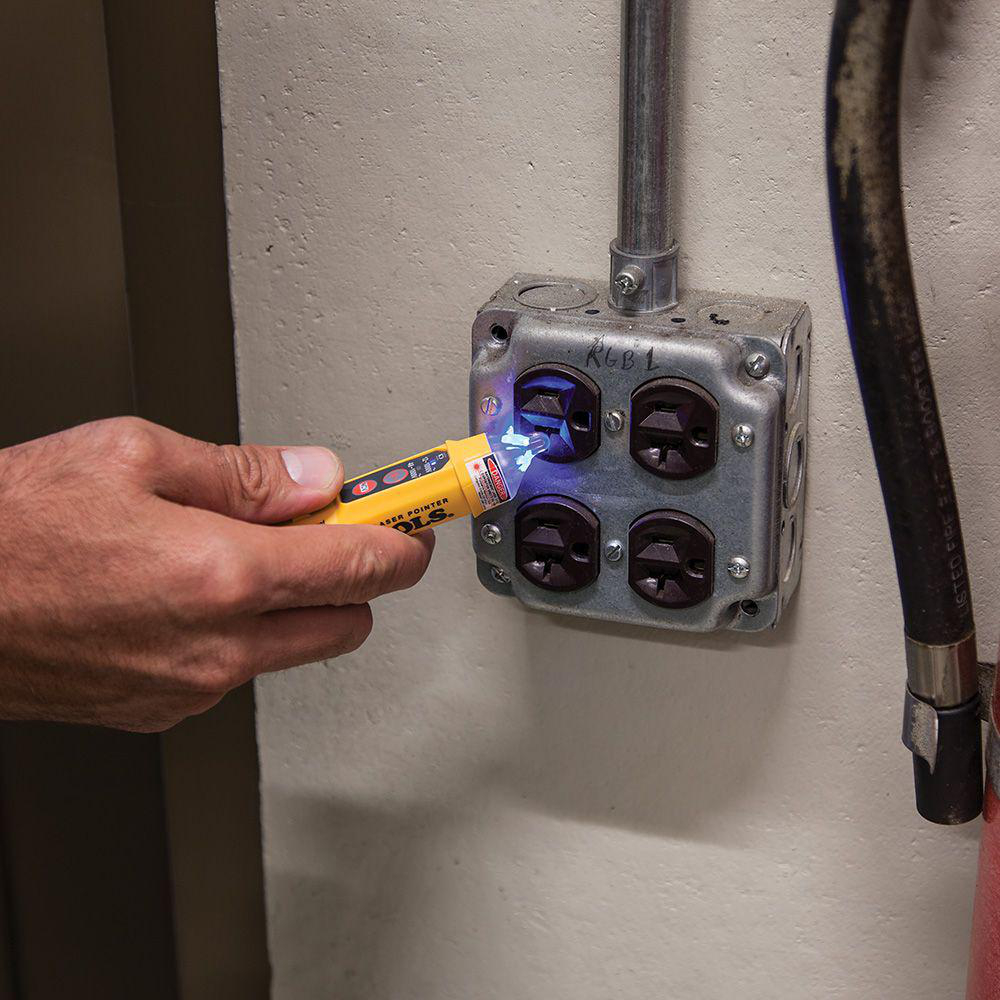

  • NCVT-5A provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, as well as AC voltage in security, entertainment, communications, environmental control and irrigation systems
  • Conditions the RT210 indicates: open ground, reverse polarity, open hot, open neutral, hot/ground reversed
  • Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source it is
