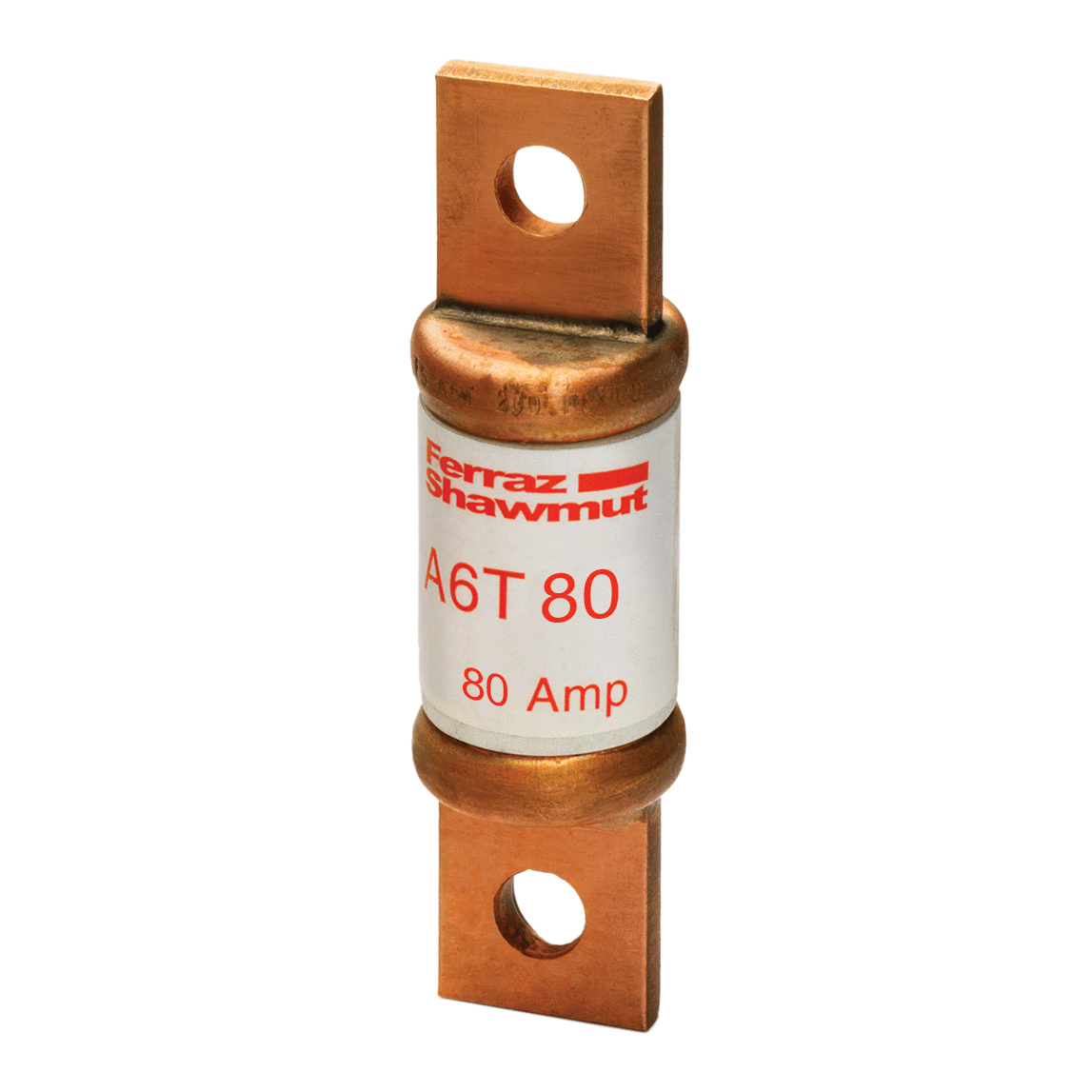

MERSEN A6T80 FUSE HRC-T 80A 600VAC 300VDC FAST ACTING NON TIME DELAY

Manufacturer: Ferraz Shawmut Mersen | Catalog # A6T80 | Electrozad South Part # 38729
$95.36 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Fast-acting A6T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Technical Information

Amperage
80 A
Applications
Load Centers Panelboards Switchboards Circuit Breakers Metering Centers
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class T
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Bolt-On
Rated Voltage AC
600 V
Rated Voltage DC
300 V
TC Connection
Blades
Terminal Material
Copper
Terminal Type
Blade
Type
North American Power Fuses

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001891411
Class
T
GTIN
30782001891412
Product UPC
78200189141
Weight
0.104 lb

Dimensions

Diameter
0.82 in
Length
2.95 in
