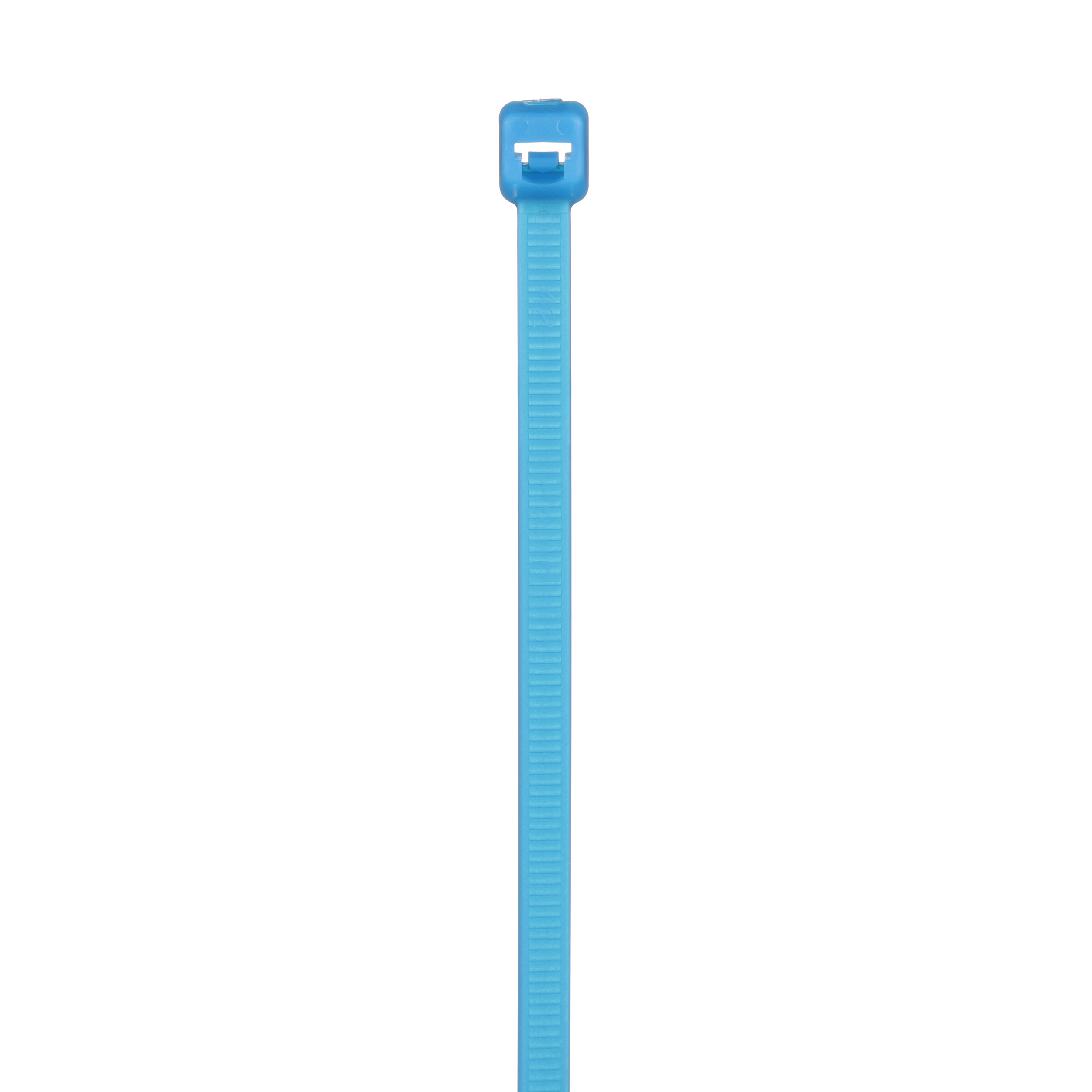

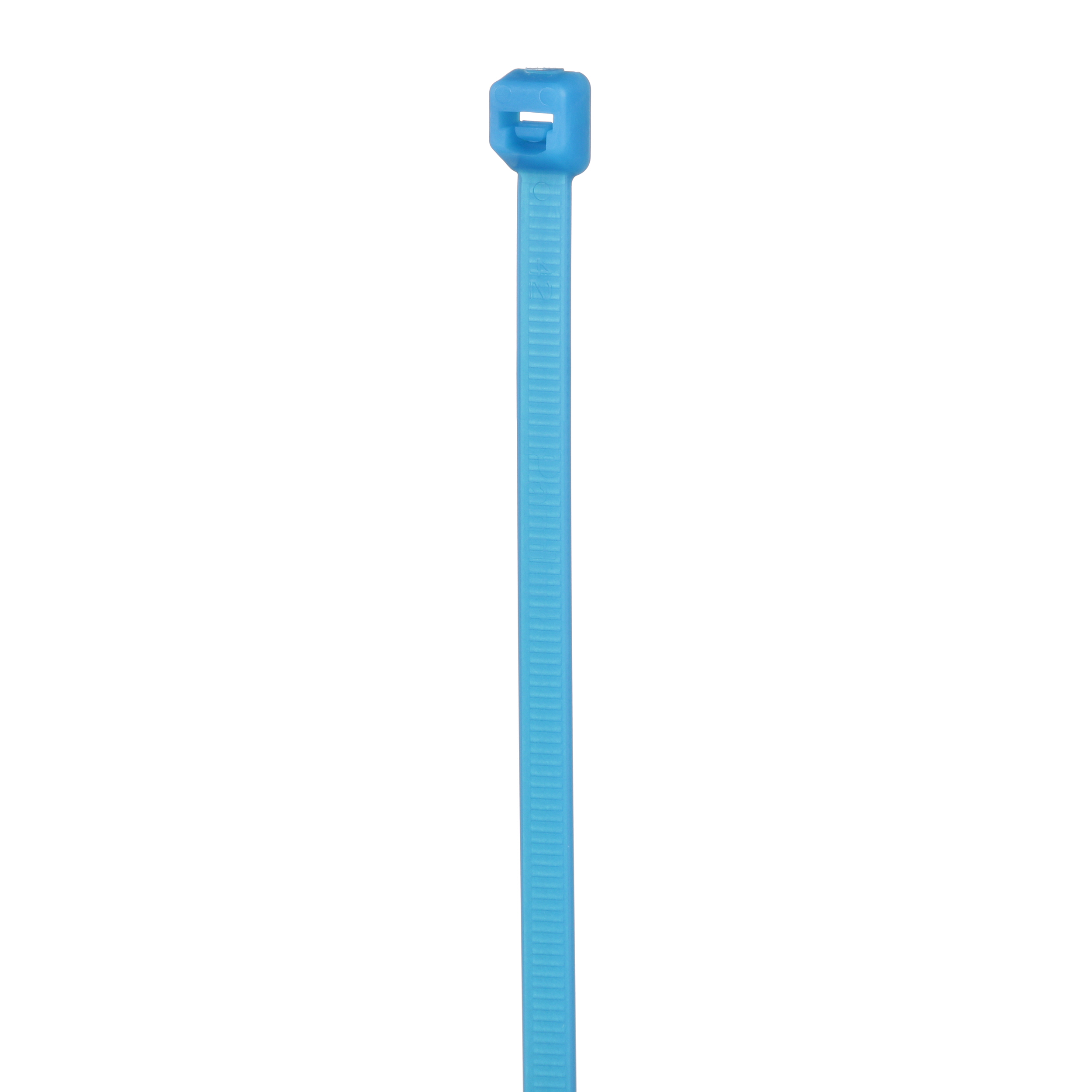

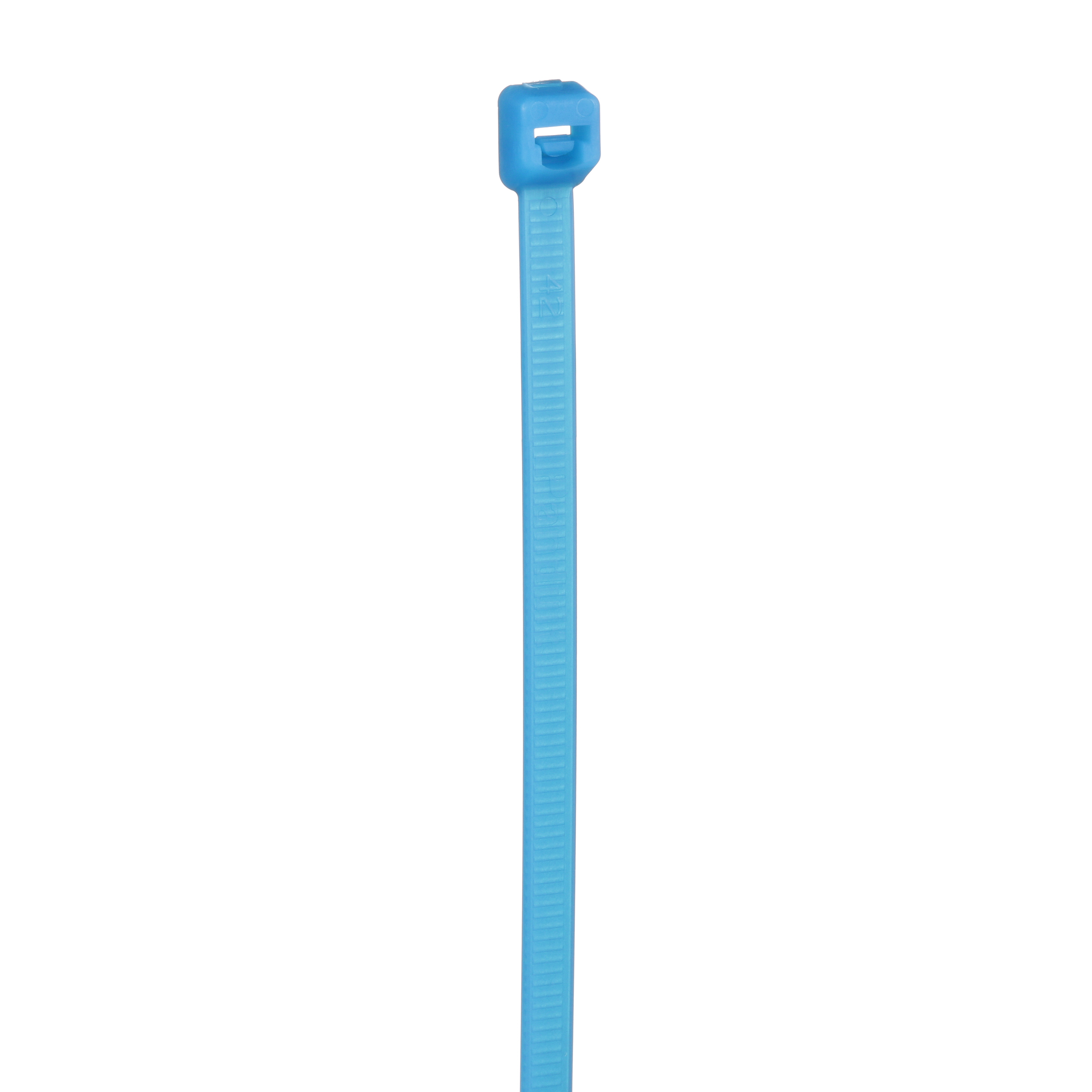

PANDUIT PLT4S-C76 PAN-TY CABLE TIE AQUA TEFZE

Manufacturer: Panduit | Catalog # PLT4S-C76 | Electrozad South Part # 387901

$400.39 /c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Pan-Ty® Locking cable tie with standard cross section and tefzel construction. For 0.13 to 4 inch bundle diameter. 50 lbs Minimum loop tensile strength. It features one-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. -60 to 170..C Operating temperature range. For radiation resistant applications. Ideal for applications requiring resistance to environmental stresses such as chemical attack, gamma radiation, ultraviolet radiation and extreme high and low temperatures. Ideal for use in nuclear power facilities and chemical processing plants and meets the requirements of IEEE 383.Low smoke density and excellent flammability rating of UL 94V-0. Lowest threading force of any one-piece cable tie in the industry. Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation. For indoor or outdoor use.

Technical Information

Applications
Radiation Resistant
Body Thickness
0.059 in
Body Width
0.19 in
Bundle Diameter
4 in
Material
Tefzel
Max Operating Temperature
170 degrees C
Minimum Operating Temperature
-60 degrees C
Standard
CSA,E2186,UL
Temperature Rating
-60 to 170 degrees C
Tensile Strength
50 lb
Type
Locking, Internal Toothing, Standard

Packaging

Package Qty
100
Standard Packaging Qty
100/Pack

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Ty

General Product Info

12-Digit UPC
074983540938
Color
Aqua
Environment
Indoor,Outdoor
GTIN
00074983540938
Product UPC
07498354093

Dimensions

Length
14.6 in
Overall Length
371 mm
Thickness
0.059 in
Width
0.19 in

Certifications & Compliance

Country of Origin
Costa Rica
