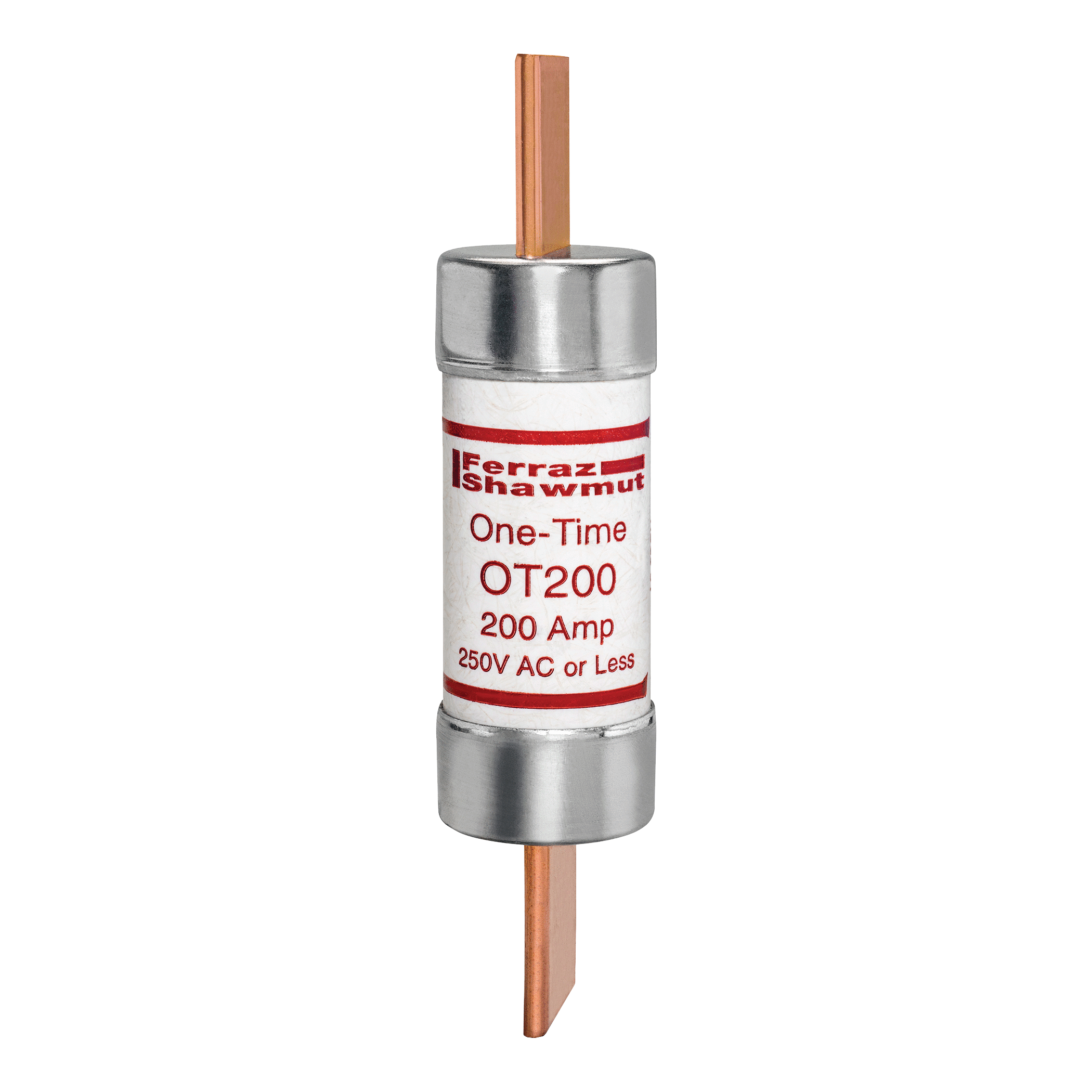

MERSEN OT200 FUSE SUPER 200A CLASS K5 250V ONE TIME FAST ACTING

Manufacturer: Ferraz Shawmut Mersen | Catalog # OT200 | Electrozad South Part # 39026

$62.09 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
One-Time OT and OTN general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OT and OTN fuses will safely interrupt available short-circuit currents up to 50,000 amperes in all ratings. OT and OTN fuses are not rejection fuses and care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses. OTN(15-60) satisfy the Canadian electrical code requirement for Type P low melting-point, non-time-delay fuses.

Technical Information

Amperage
200 A
Applications
Feeders Resistive Heating Residential and Small Commercial Installations
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class K5
Insulation Material
PolyTube
Interrupt Rating
50 kA
Mounting Type
Clip
Rated Voltage AC
250 V
Rated Voltage DC
250 V
TC Connection
Blade
Terminal Material
Tin-Plated Copper
Terminal Type
Blade
Type
North American Power Fuses

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001700379
Class
K-5
GTIN
10782001700376
Product UPC
78200170037
Weight
0.733 lb

Dimensions

Diameter
1.56 in
Length
7.13 in
