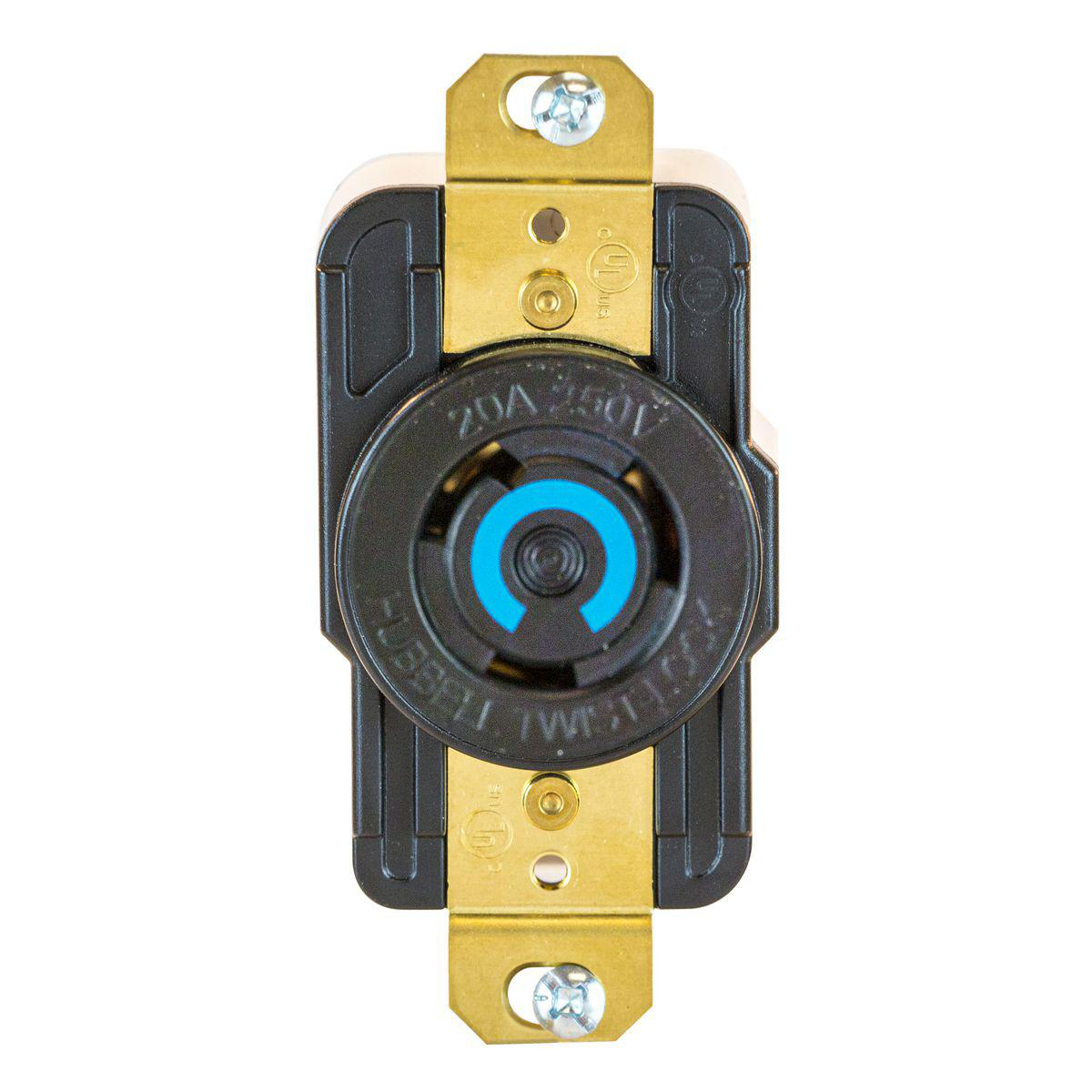

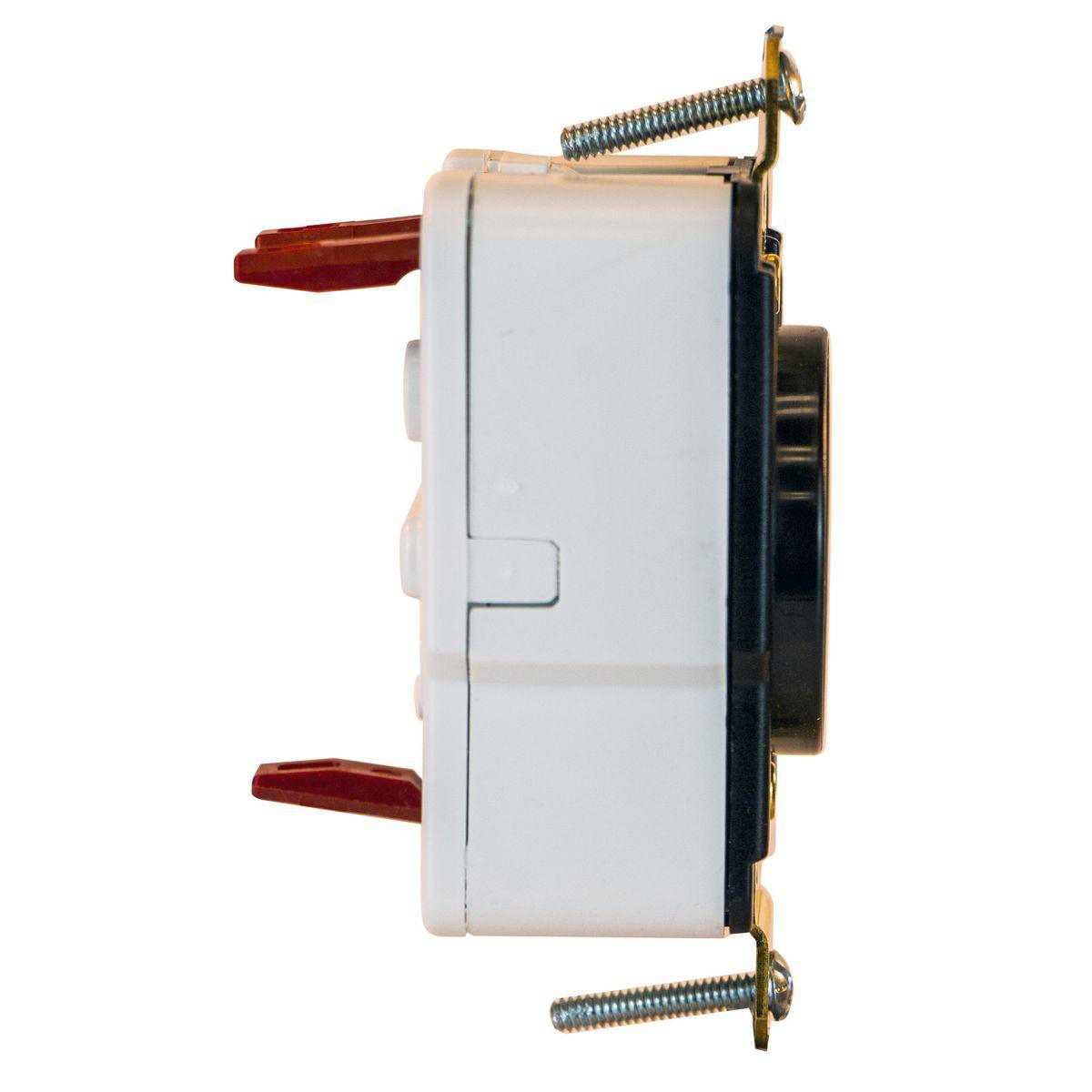

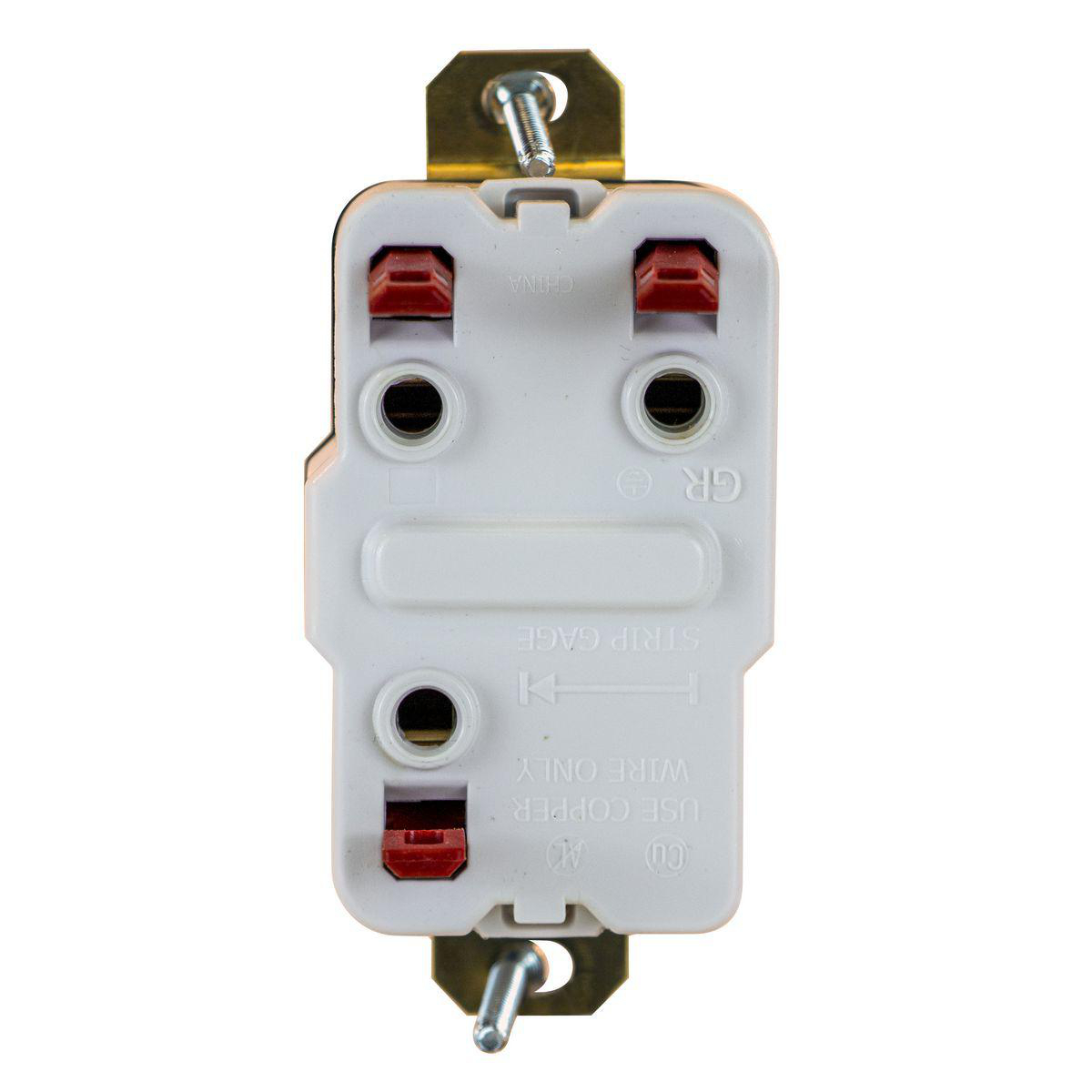

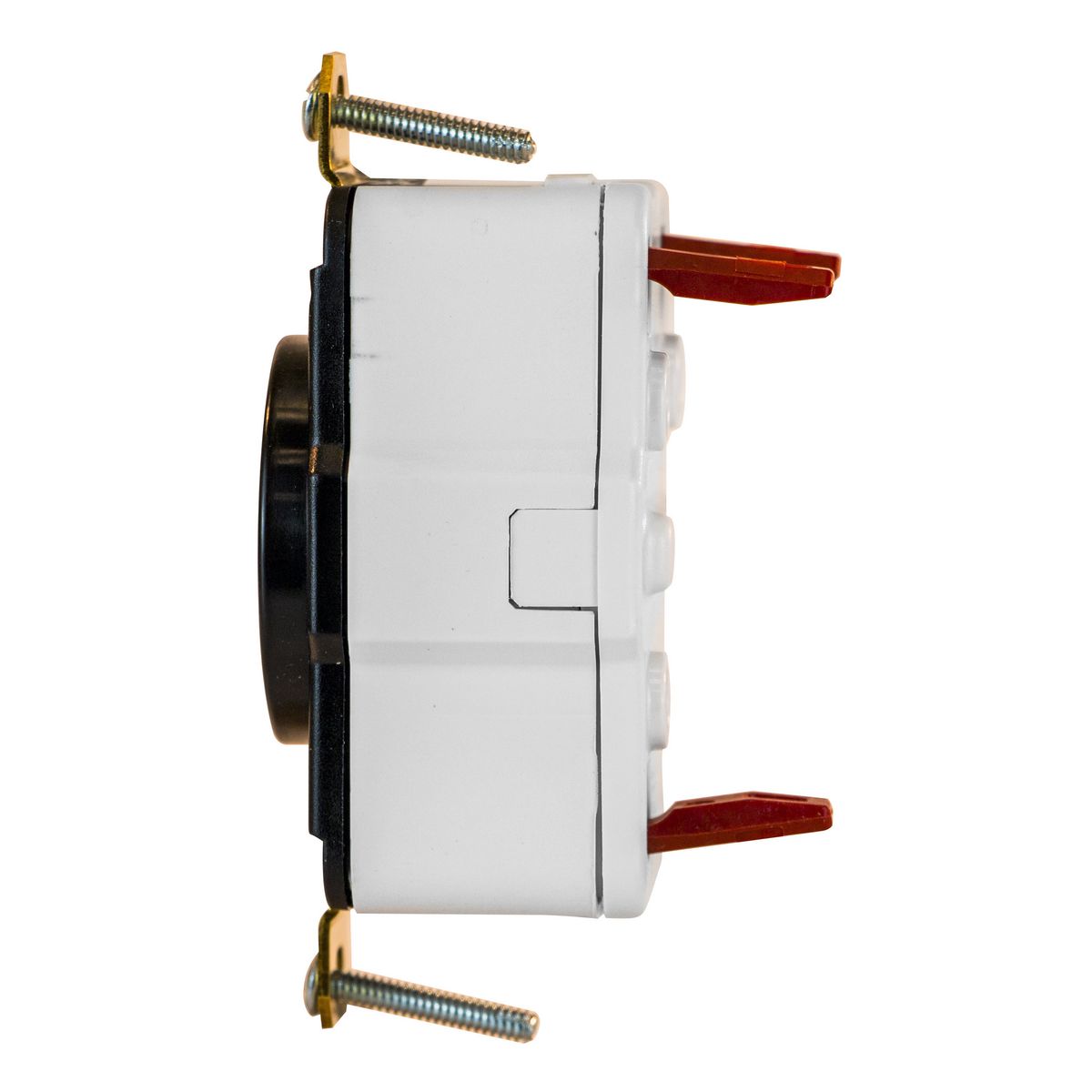

Product image for HUB HBL2320ST RECEPTACLE TWIST LOCK 20A 250V L6-20R W/ SPRING TERMINATION BLACK
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

HUB HBL2320ST RECEPTACLE TWIST LOCK 20A 250V L6-20R W/ SPRING TERMINATION BLACK

Manufacturer: Hubbell Wiring Devices | Catalog # HBL2320ST | Electrozad South Part # 392946
$23.03 /ea
pc
Log in or register to view your price, purchase history, and more!
5 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual
20A, 250V EdgeConnect™ Twist-Lock® Receptacle with Spring Termination

Technical Information

Applications
Heavy Duty Industrial
Conductor Size
14-10 AWG Solid, 14-8 AWG Stranded
Connection Type
Spring Terminal
Current
20 A
Dielectric Strength
2000 V
Grade
Industrial
Material
Nylon
Mounting Type
Screw
Number of Poles
2
Number of Wires
3
Size
Standard Sized Product
Standard
C22.2 No. 42,CSA,UL,UL 498
TC Connection
Spring Termination
Temperature Rating
-40 degrees C (Minimum), 75 degrees C (Maximum Continuous)
Type
Heavy-Duty, Standard
Wattage
5000 W
Wire Size
10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
EdgeConnect™ Twist-Lock®

General Product Info

12-Digit UPC
783585569550
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585569550
Product UPC
78358556955

Dimensions

Height
1.47 in
Length
3.28 in
Width
1.70 in

Certifications & Compliance

Country of Origin
China
