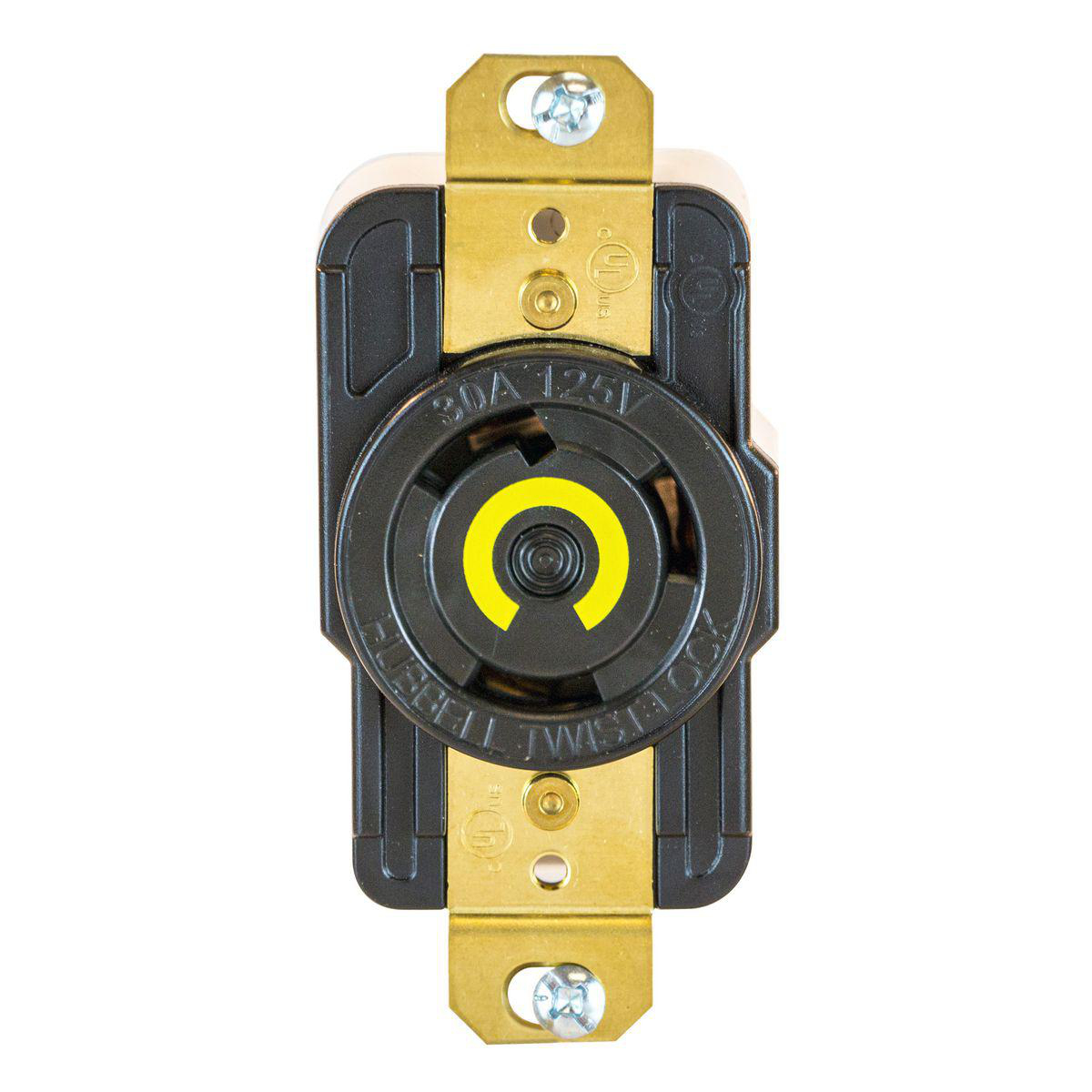

Image thumbnail 1
Image thumbnail 2

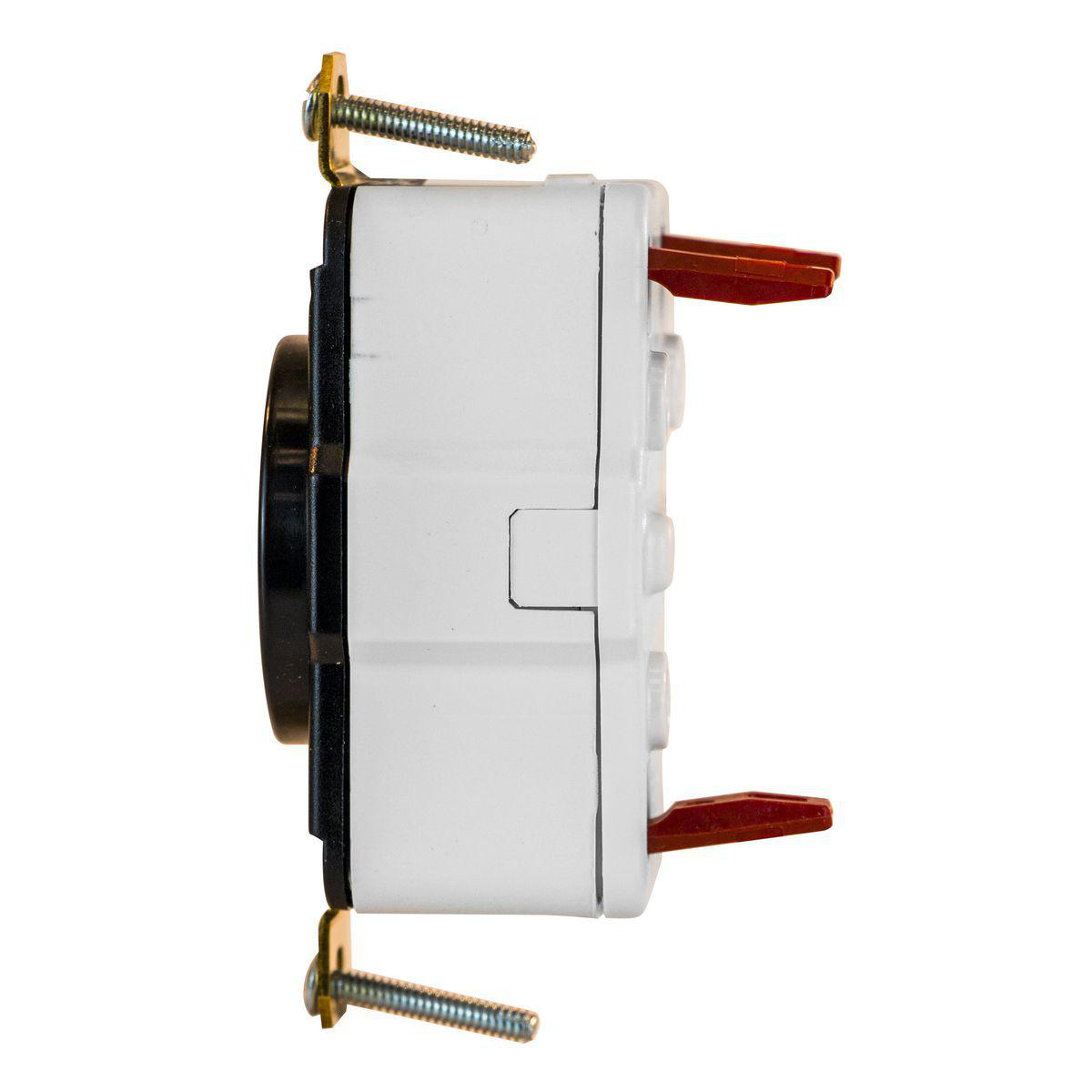

Image thumbnail 3
Email

LKG RCPT, 30A 125V, L5-30R, BK, SPRING T

Manufacturer: Hubbell Wiring Devices | Catalog # HBL2610ST | Electrozad South Part # 392952
$40.94 /ea
pc
Log in or register to view your price, purchase history, and more!
7 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
30A, 125V EdgeConnect™ Twist-Lock® Receptacle with Spring Termination

Technical Information

Applications
Heavy Duty Industrial
Current
30 A
Dielectric Strength
Withstands 2,000V Minimum
Material
Nylon
Number of Poles
2,2
Number of Wires
3,3
Size
3.28 in x 1.70 in x 1.47 in;Standard Sized Product
Standard
C22.2 No. 42,CSA,UL,UL 498
TC Connection
Spring Termination
Temperature Rating
Maximum Continuous 75degrees C; Minimum -40degrees C (w/o impact)
Wattage
3750 W
Wire Size
10 AWG

Manufacturer Information

Brand
Hubbell

General Product Info

12-Digit UPC
783585569567
Color
Black
Environmental Conditions
Indoor Dry unless protected by additional means
GTIN
00783585569567
Product UPC
78358556956

Dimensions

Height
1.47 in
Length
3.28 in
Width
1.70 in

Certifications & Compliance

Country of Origin
China
Overview
  • Face color coding by voltage facilitates locating and mating of proper devices
  • Spring Termination eliminates strand relaxation
  • Faster termination time
  • No need for screwdriver and torque wrench
  • High-impact, abuse-resistant nylon face
