ESXF4, ADJUSTABLE LIGHT OUTPUT, SWITCHAB

Manufacturer: Lithonia Lighting | Catalog # ESXF4 ALO SWW2 UVOLT YS DDB M2 | Electrozad South Part # 395824
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

Technical Information

Applications
Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
Average Rated Life
50,000 hr
Color Rendering Index
80 CRI
Color Temperature
3000 ,4000 ,5000 ,Variable K
Dimmable?
Yes
Lamp Type
LED
Lumens
15, 500 lm
Material
Aluminum
Mounting Type
Tenon Slipfitter,Yoke
Number of Lamps
Not Applicable
Power Rating
150
Size
17.66 x 10.54 x 3.12 IN
Standard
C-UL-USDLC Premium
Style
Contemporary
Type
Floodlight
Voltage
120 V
Wattage
150 W

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
196182393297
Color
Bronze
Environment
Outdoor
Environmental Conditions
Indoor and Outdoor
Finish
Gloss
GTIN
00196182393297
Product Type
Floodlight
Product UPC
19618239329
Shape
Rectangular
Weight
8.43 L

Dimensions

Height
3.12 in
Length
17.66 in
Warranty Length
5 yr
Width
10.54 in

Certifications & Compliance

Country of Origin
Vietnam,Vietnam
Overview
  • WARRANTY: Five-year limited warranty
  • VOLTAGE: UVOLT (120-347V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90% and THD <20%

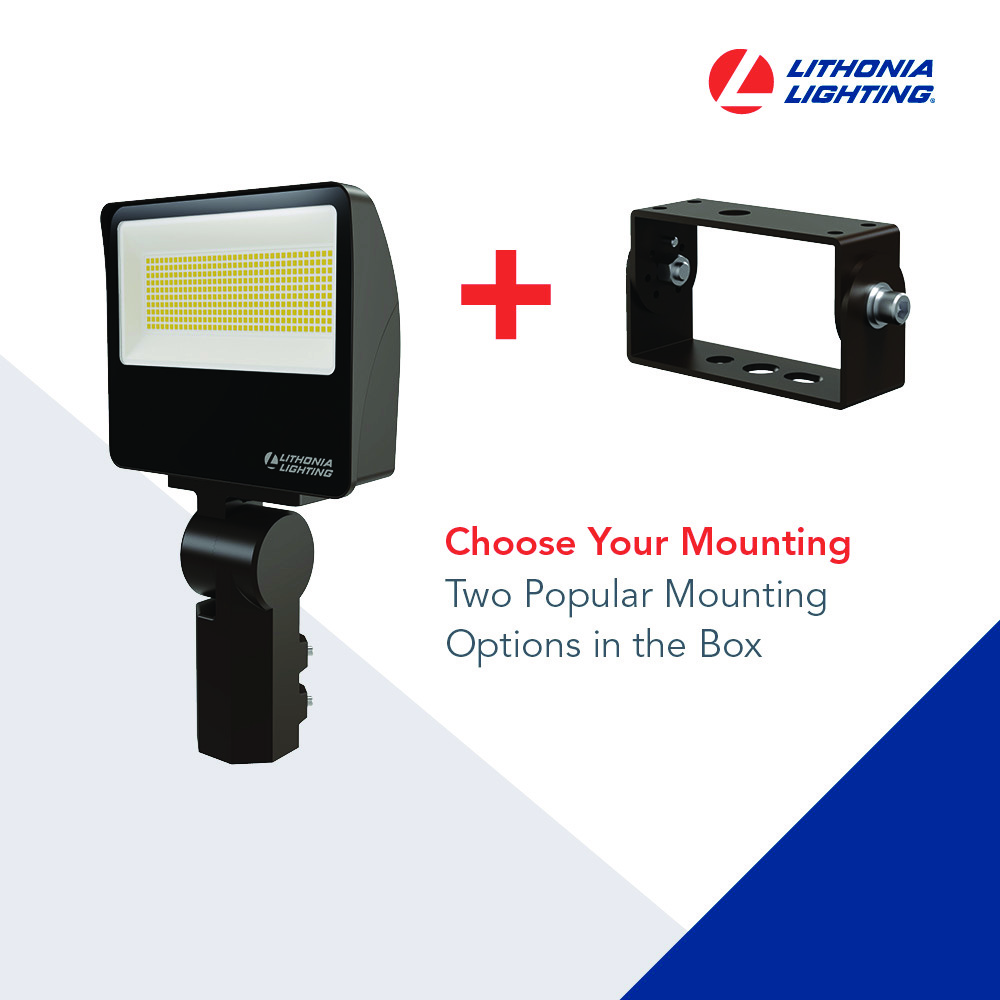

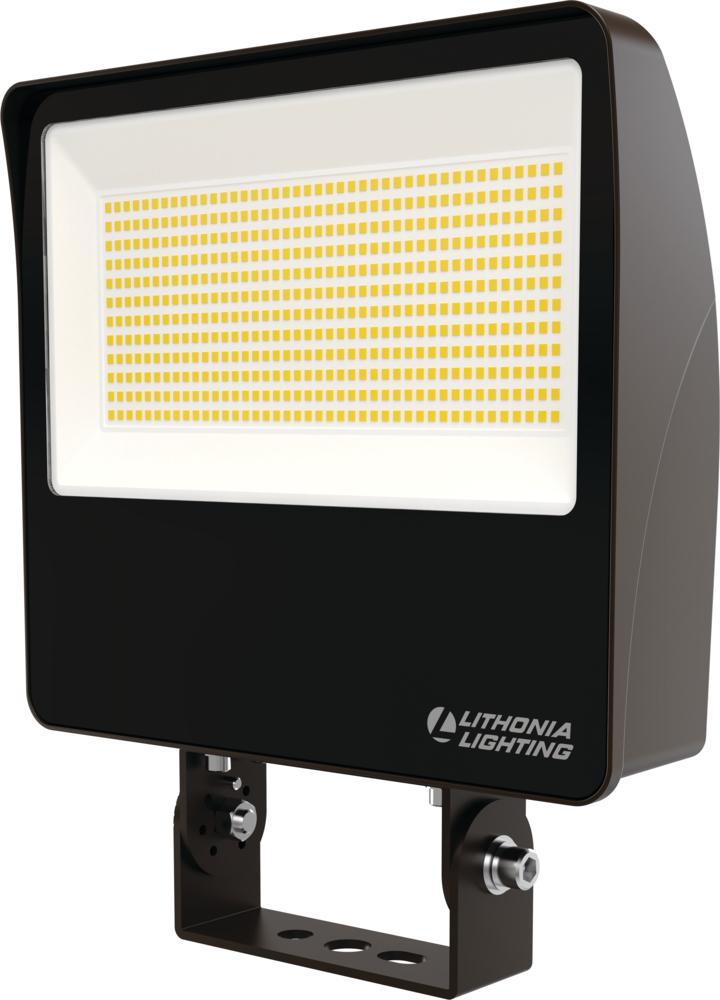

  • INSTALLATION: Include a yoke mount for solid surface mounting and an integral slipfitter that mates with standard 2 3/8\" tenons for pole-top mounting, models ship standard with 18❠SO cord
  • SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell

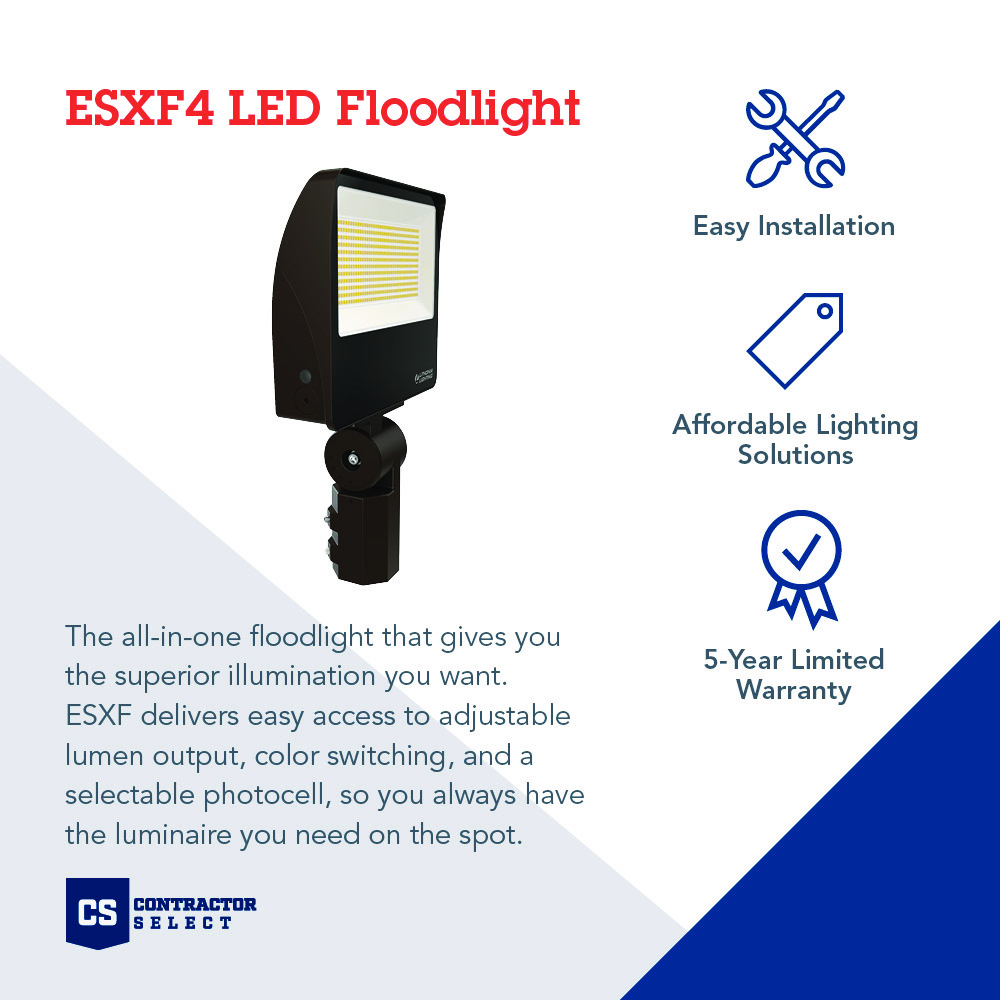

  • DESIGN: The Lithonia Lighting® ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell
  • ENERGY SAVINGS: Energy-efficient LEDs with lumen output of 16000, 18000, and 20000 lumens
  • INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources
  • CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
  • DIMENSIONS: 9.55 in. x 10.54 in. x 3.22 in.
  • RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards
