Tone & Probe Test and Trace Kit

Manufacturer: Klein Tools | Catalog # VDV500-705 | Electrozad South Part # 396555
$64.62 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL

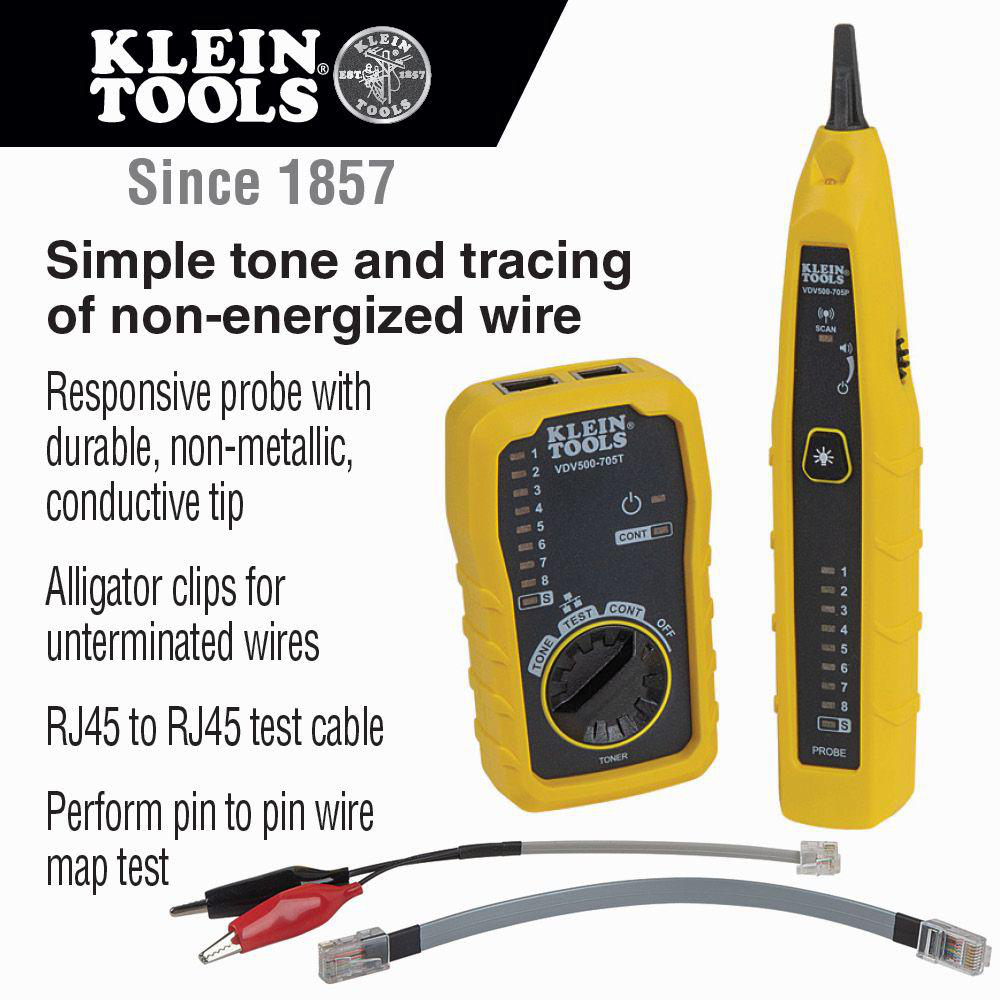

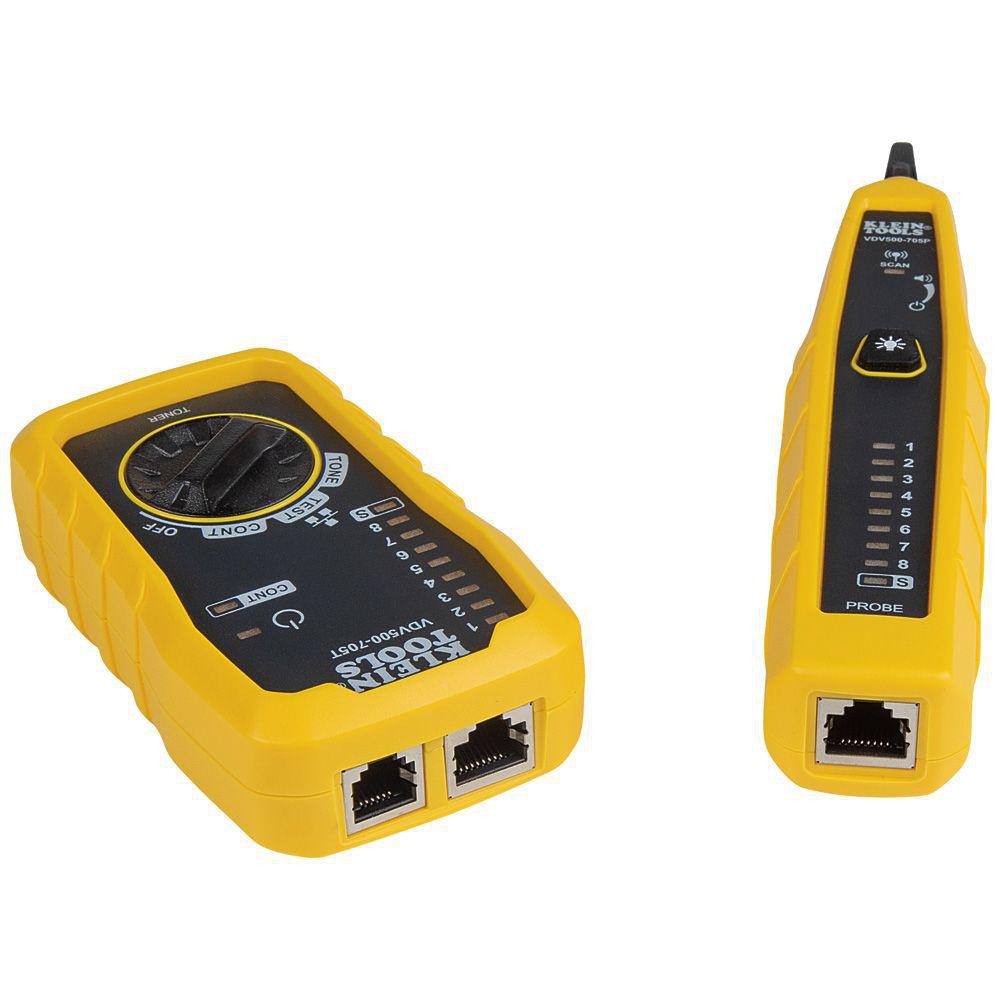

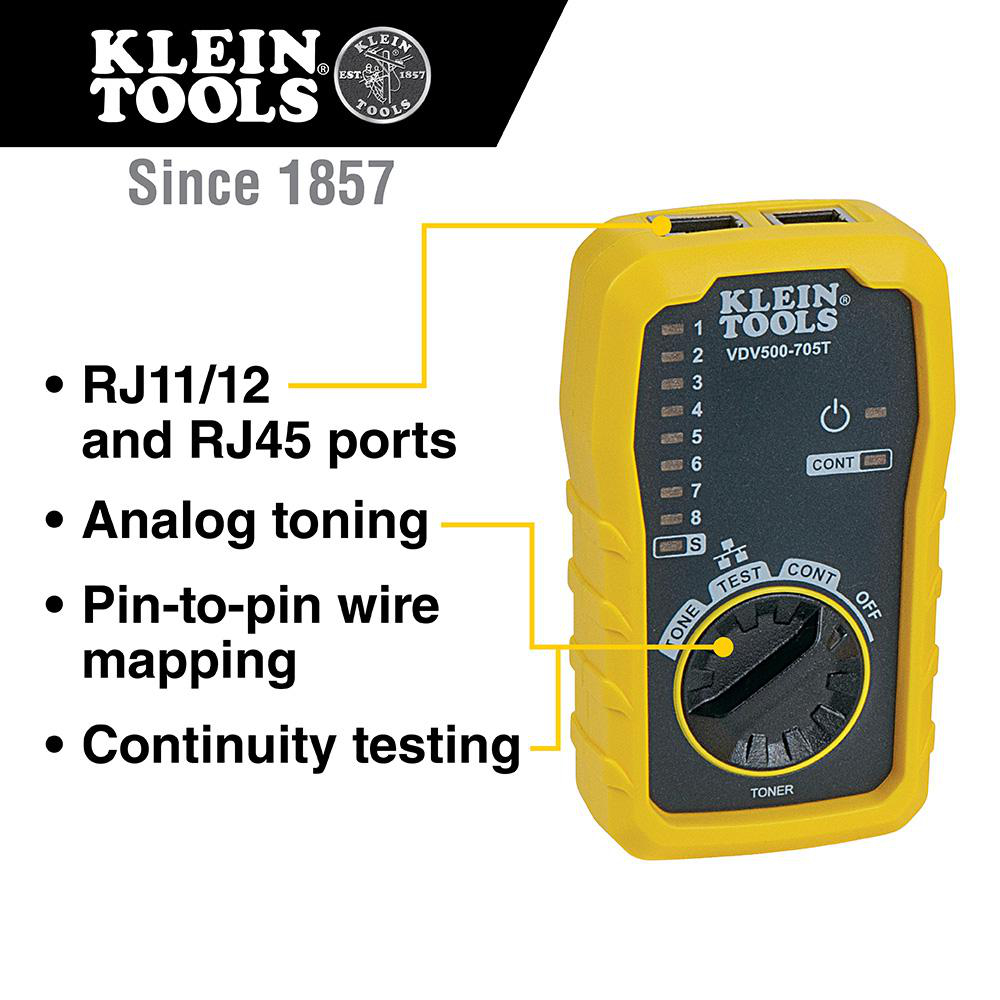

The Tone & Probe Test and Trace Kit provides simple toning and tracing of non-energized wire. The easy-to-use tone generator traces wire when used with the included probe. Alligator clips are provided for unterminated wires and an RJ45 to RJ45 cable to tone or test data cables. The responsive probe is a tone tracer with a durable, non-metallic, conductive tip, a speaker with audible output and headphone jacks for use in noisy environments (headphones not included). The worklight on the probe illuminates dark spaces. The toner and probe together perform pin to pin wire map test.

Technical Information

Applications
For Wire Toning and Tracing
Battery Type
4 X AAA
Material
ABS
Number of Rows
1
Type
Tone Generator Tracing Probe

Manufacturer Information

Brand
Klein Tools

General Product Info

12-Digit UPC
092644582943
GTIN
00092644582943
Product UPC
09264458294
Weight
0.700 lb

Dimensions

Depth
10.500 in
Height
1.6 in
Length
10.6 in
Overall Length
10.6 in
Width
6.9 in

Certifications & Compliance

Country of Origin
China
Overview
  • Replaceable test cables available (Cat. No. VDV770-855)

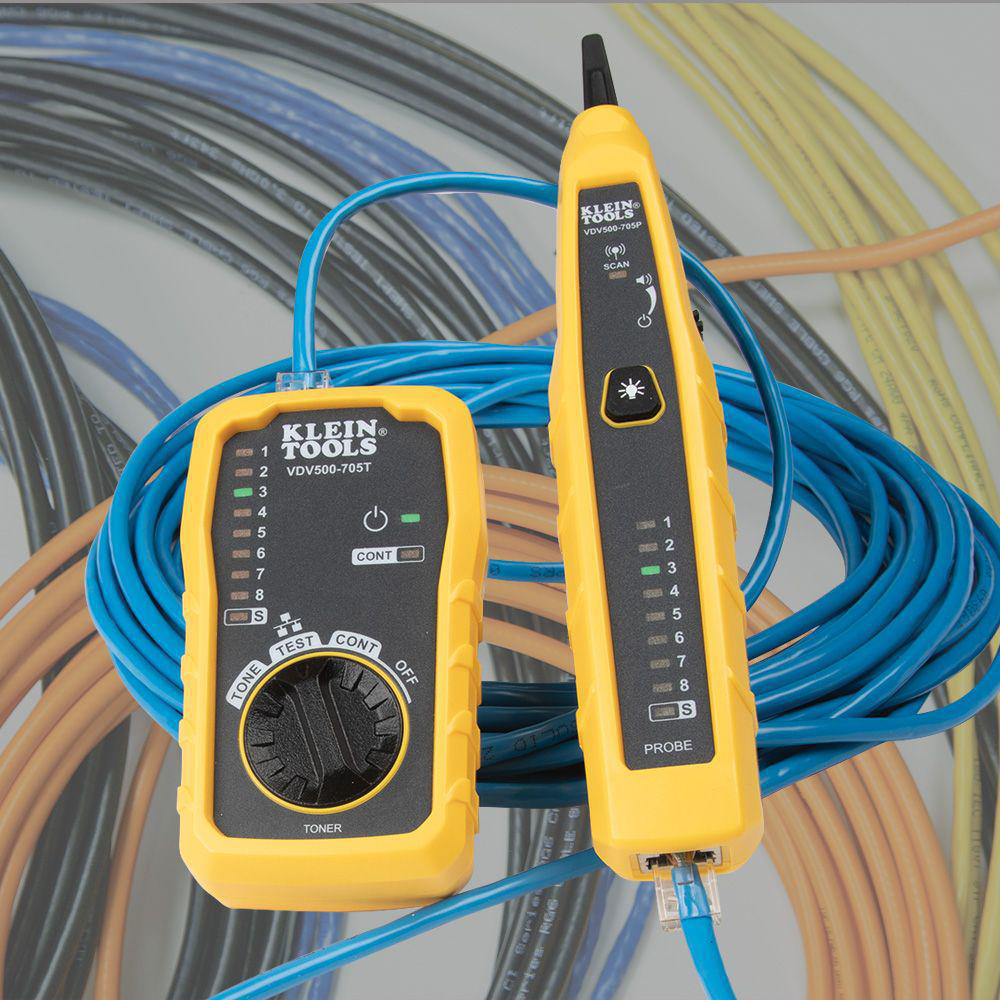

  • Toner and probe together perform pin to pin wire map test
  • Adjustable volume control

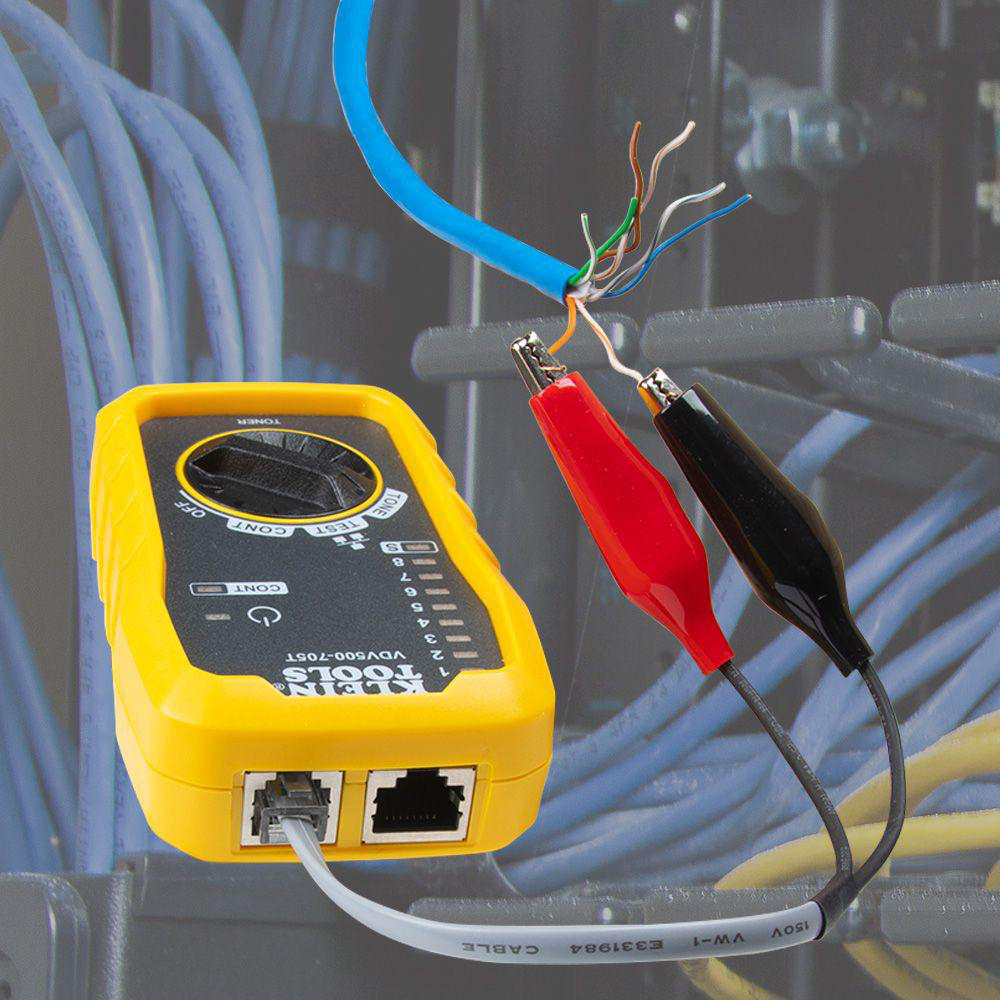

  • Alligator clips for unterminated wires
  • Simple analog tone generator and wire tracing probe for open-ended non-active wire runs

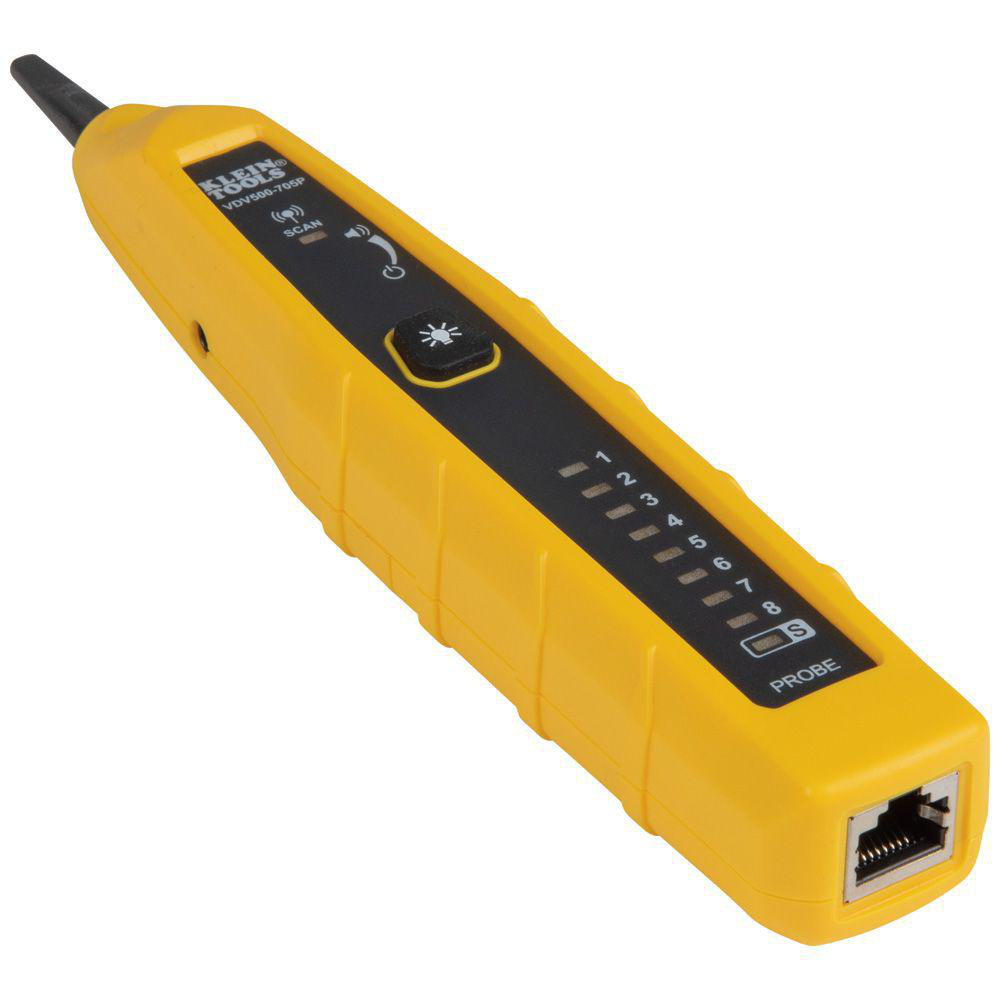

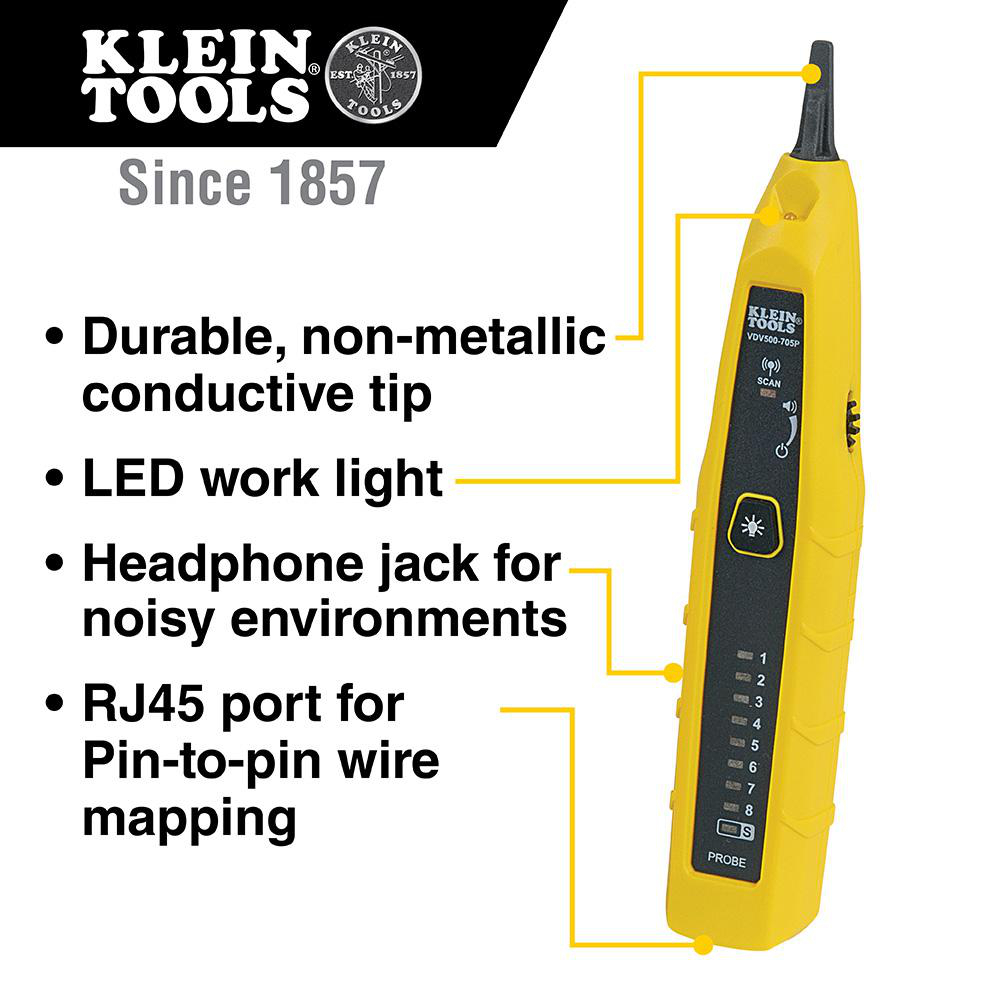

  • Responsive probe with durable, non-metallic, conductive tip

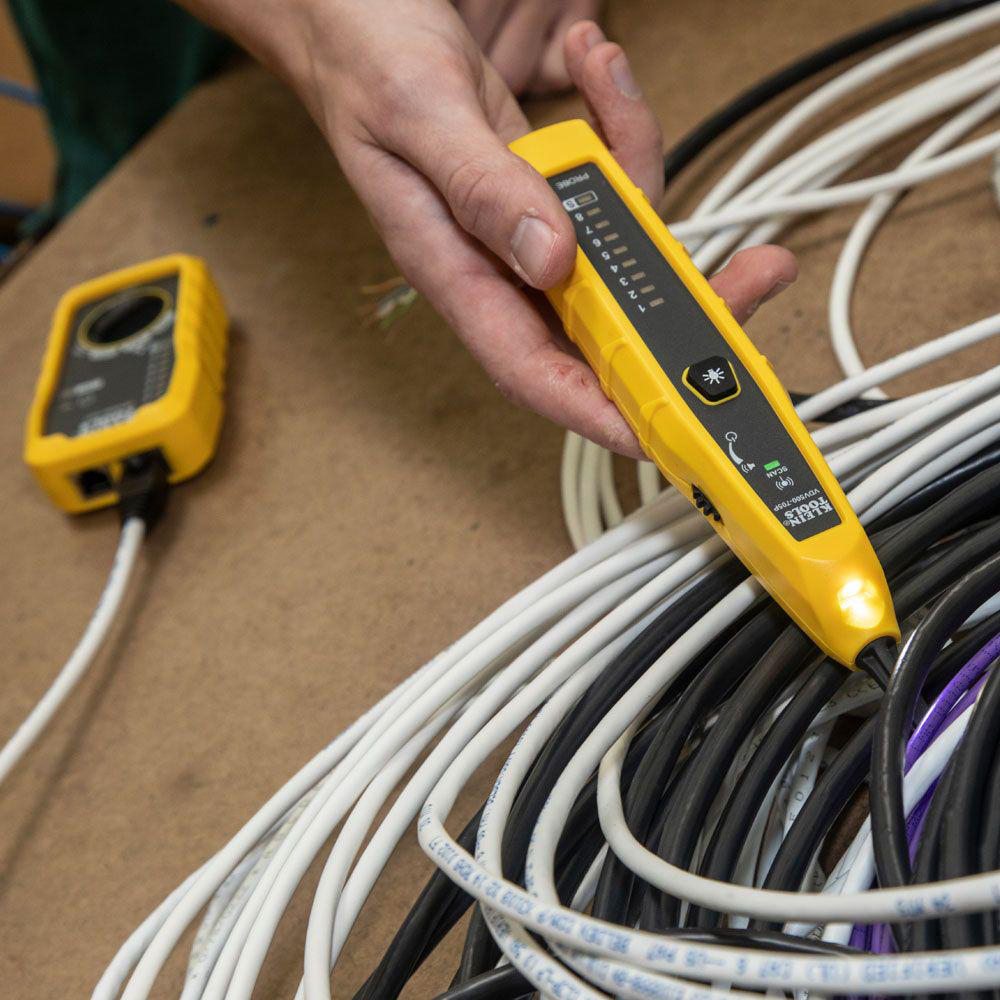

  • Work light on probe tip for use in dark spaces
  • AAA batteries (included)
  • Headphone jack for noisy environments (headphones not included)

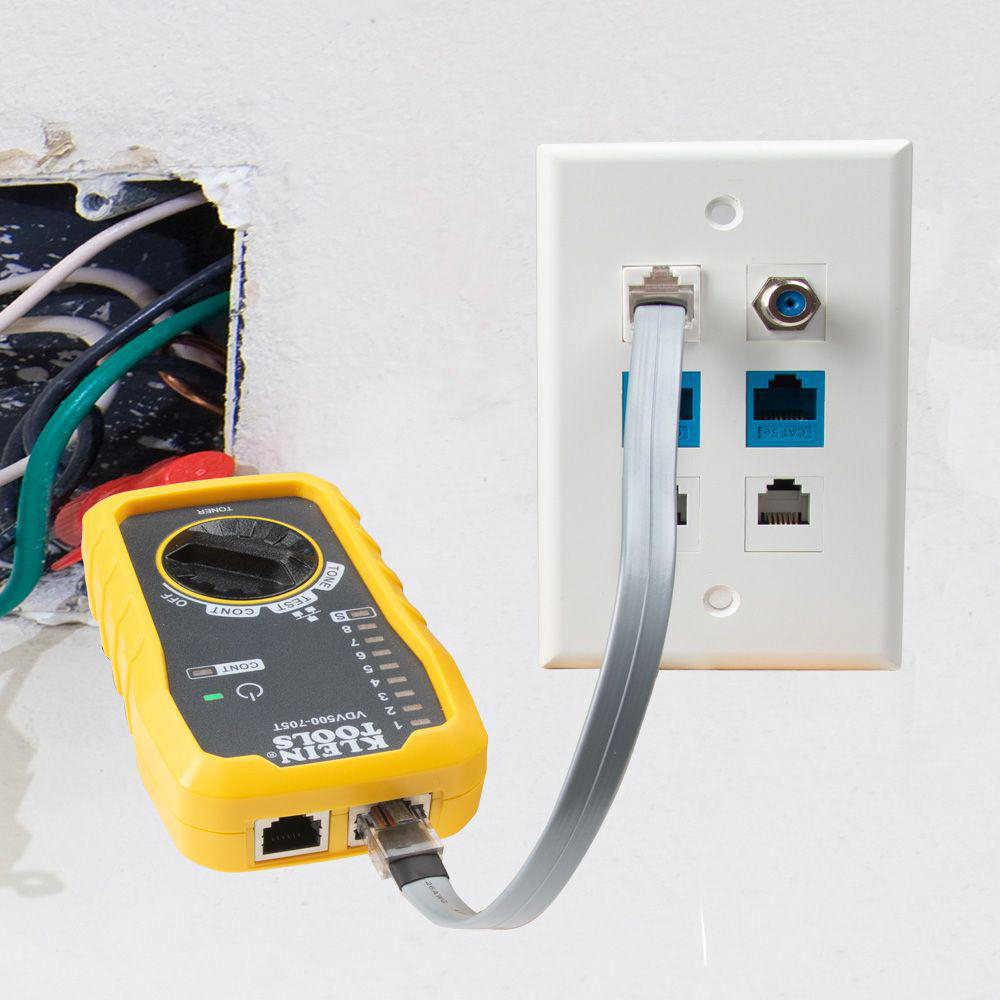

  • RJ45 to RJ45 test cable
