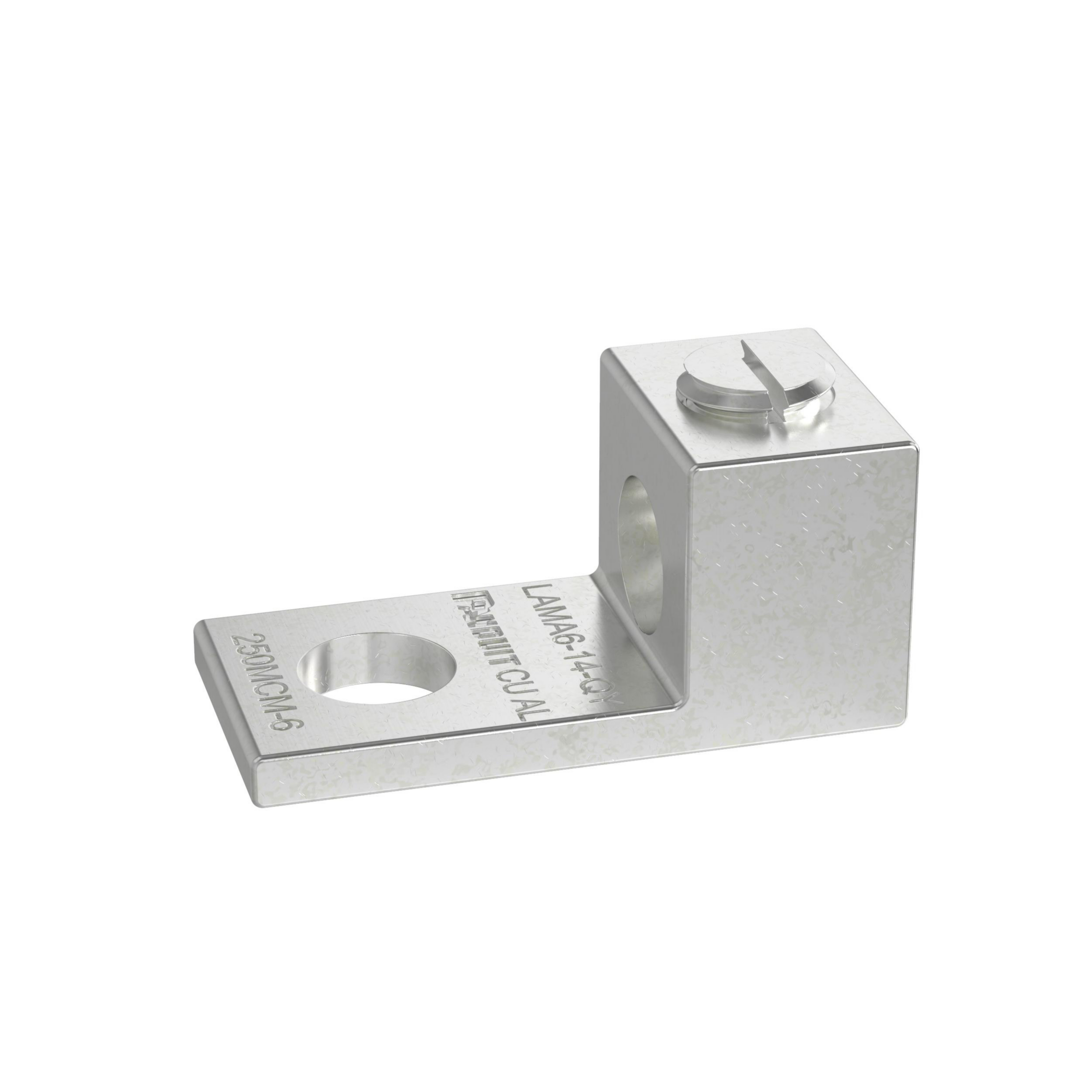

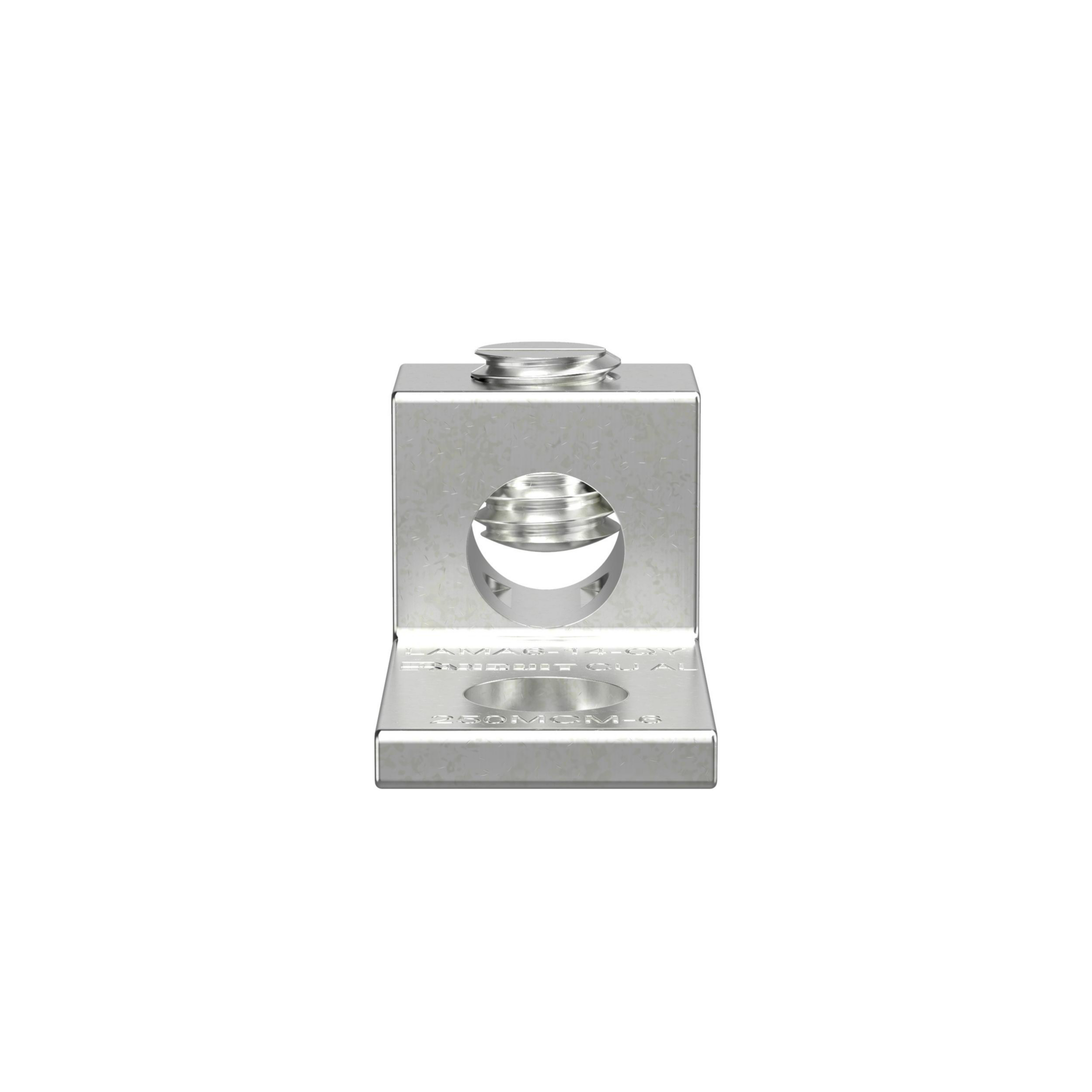

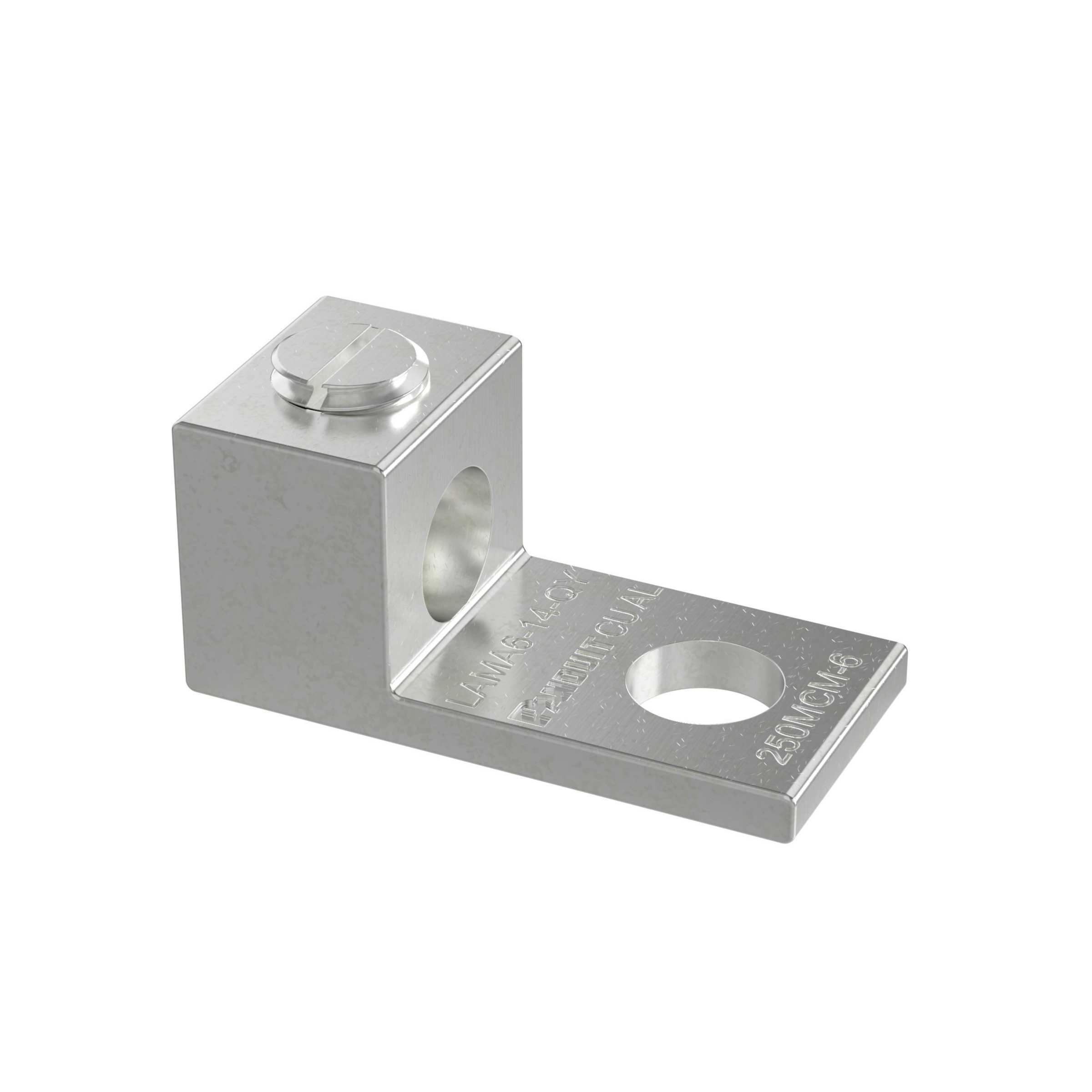

PANDUIT LAMA6-14-C LUG #6G- #14G 1HOLE 1BARREL ALUMINUM MECHANICAL LUG 1/4"STUD

Manufacturer: Panduit | Catalog # LAMA6-14-C | Electrozad South Part # 398445
$184.08 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
136 available

For Delivery

Not in local stock *
Check another branch
Installation / Instruction Manual
The LAMA6-14-C Tin-Plated Aluminum Mechanical Lug, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and Lug. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.

Technical Information

Applications
Stranded Aluminum or Copper Code Conductor
Barrel Length
0.37 in
Cable Size
AWG
Material
Aluminum
Number of Holes
1
Stud Size
1/4 In.
Tongue Thickness
0.09 in
Tongue Type
Straight
Tongue Width
0.5 in
Type
Mechanical Lug

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
613056878501
GTiN
00613056878501
Product UPC
61305687850

Dimensions

Height
0.5 in
Overall Length
1.06 in
Width
0.5 in

Certifications & Compliance

Country of Origin
India
