Cat 6A 28 AWG Shielded Patch Cord, 3m, Blue

Manufacturer: Panduit | Catalog # STP28X3MBU | Electrozad South Part # 400202
$44.73 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

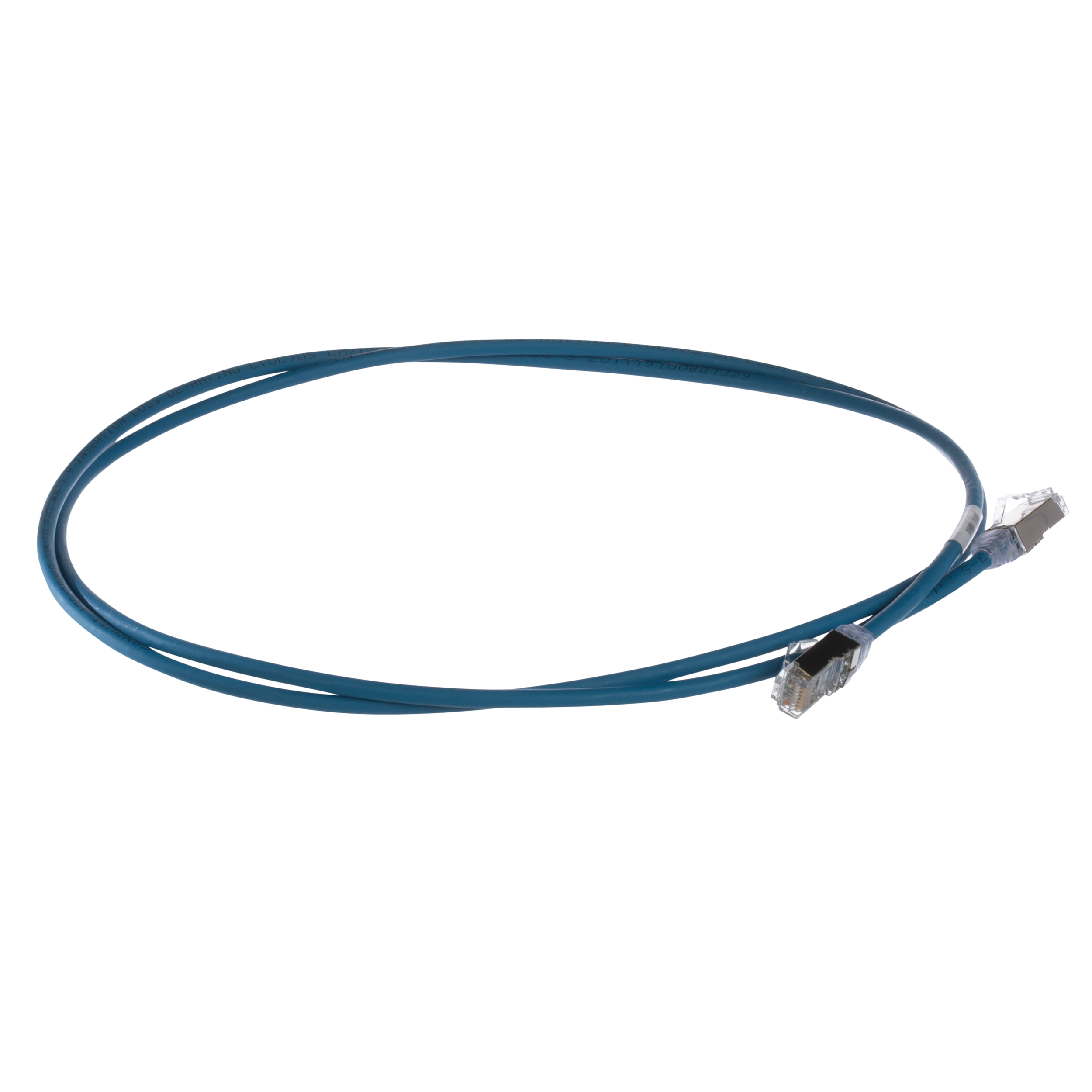

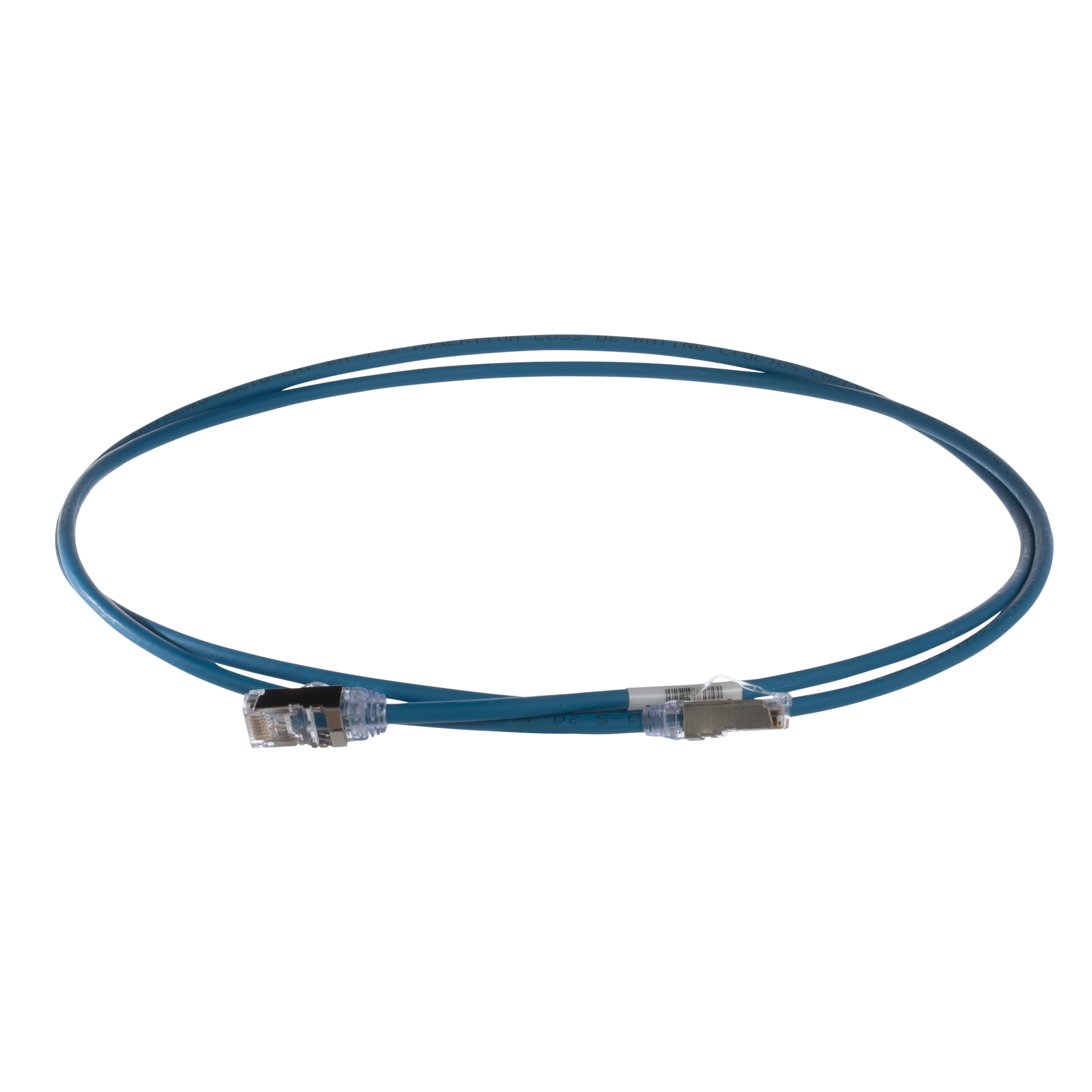

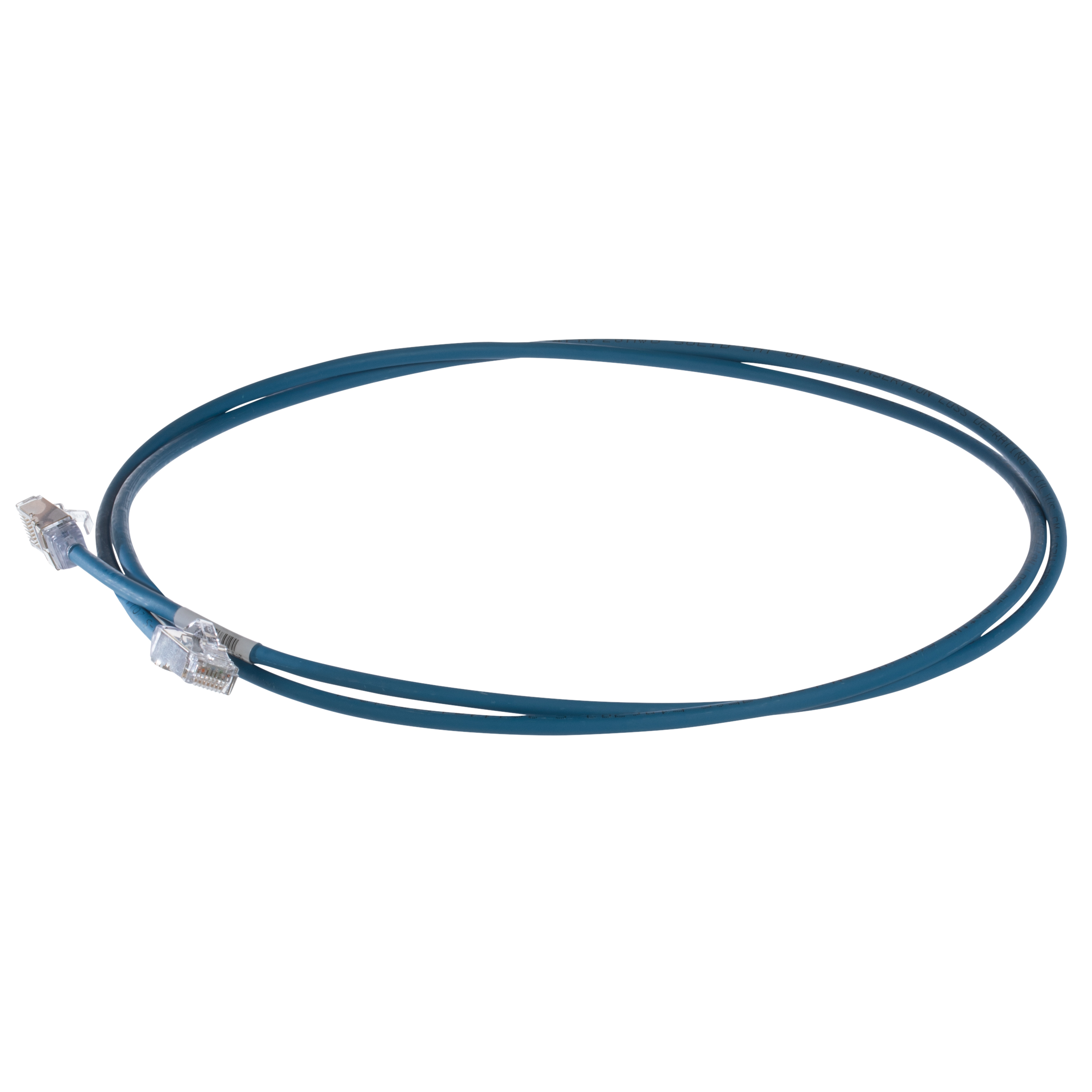

The TX6A-28™ 10Gig Cat 6A STP Patch Cord is a 3-Meter, 0.185-inch (4.7mm) diameter, Blue cord constructed of 28 AWG, shielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Technical Information

Applications
Shielded
Boot Color
Black
Cable Type
28 AWG F/UTP
Conductor Material
Copper
Conductor Size
28 AWG
Conductor Type
Solid
Connector Type
Modular Plug
Max Operating Temperature
167 degrees F
Minimum Operating Temperature
-10 degrees C
Performance Level
Category 6
Plug Type
Modular Plug
Standard
ANSI\IEEE (Category C-62.41, C-62.45),CULus Listed (1449),NEMA
Type
Category 6A, Shielded
Wire Size
28

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983002672
Color
Blue
GTIN
00074983002672
Jacket Material
LSZH Material
Product UPC
07498300267

Dimensions

Cable Length
3 m
Length
9.84 ft
Outer Diameter
4.7 mm
Outside Diameter
4.7 mm
Overall Length
9.8 ft

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
China,Mexico,Romania
