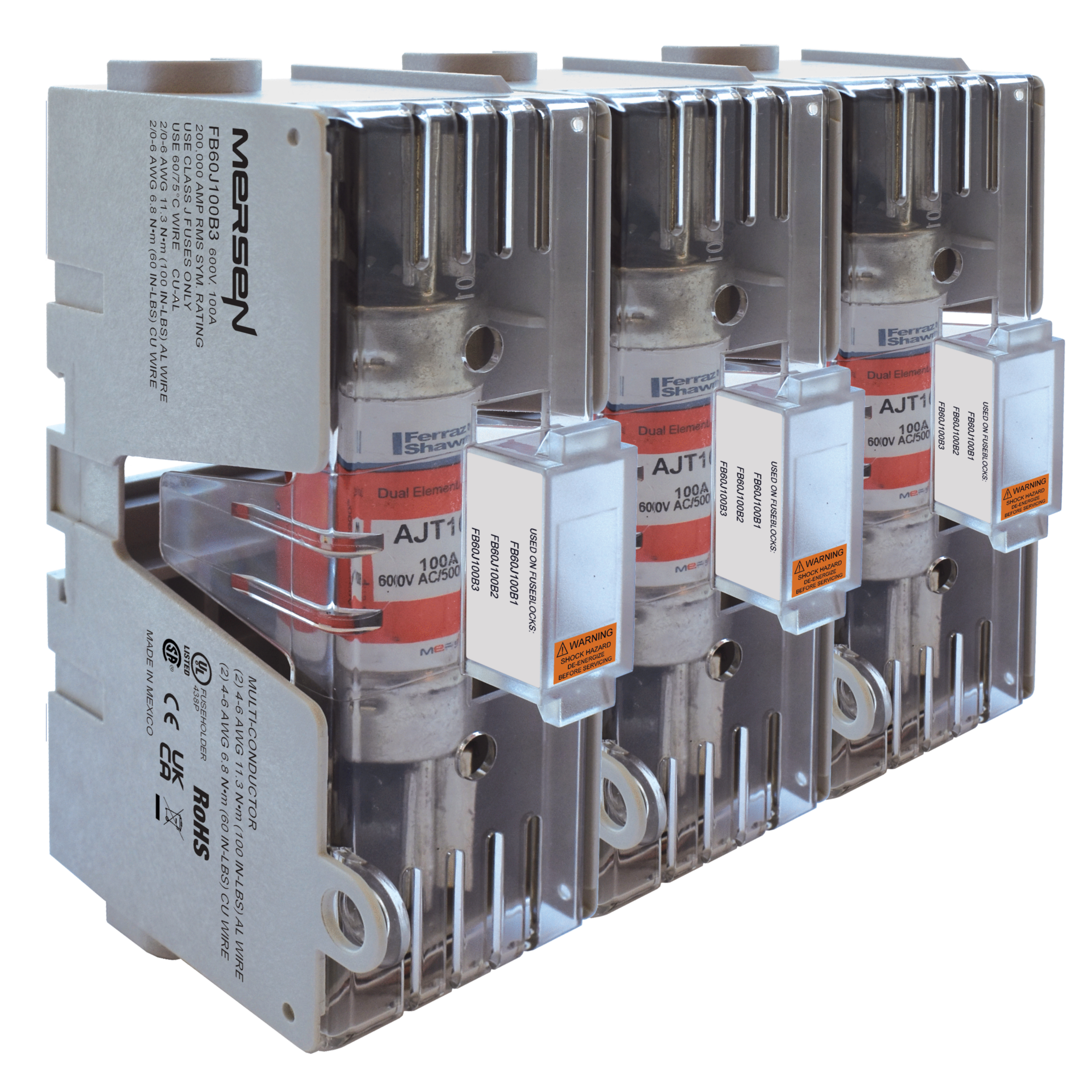

MERSEN FB60J100B3 FUSE BLOCK 3POLE 100A J-TYPE

Manufacturer: Ferraz Shawmut Mersen | Catalog # FB60J100B3 | Electrozad South Part # 401794
$111.92 /ea
ea
Order in multiples of 3 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet

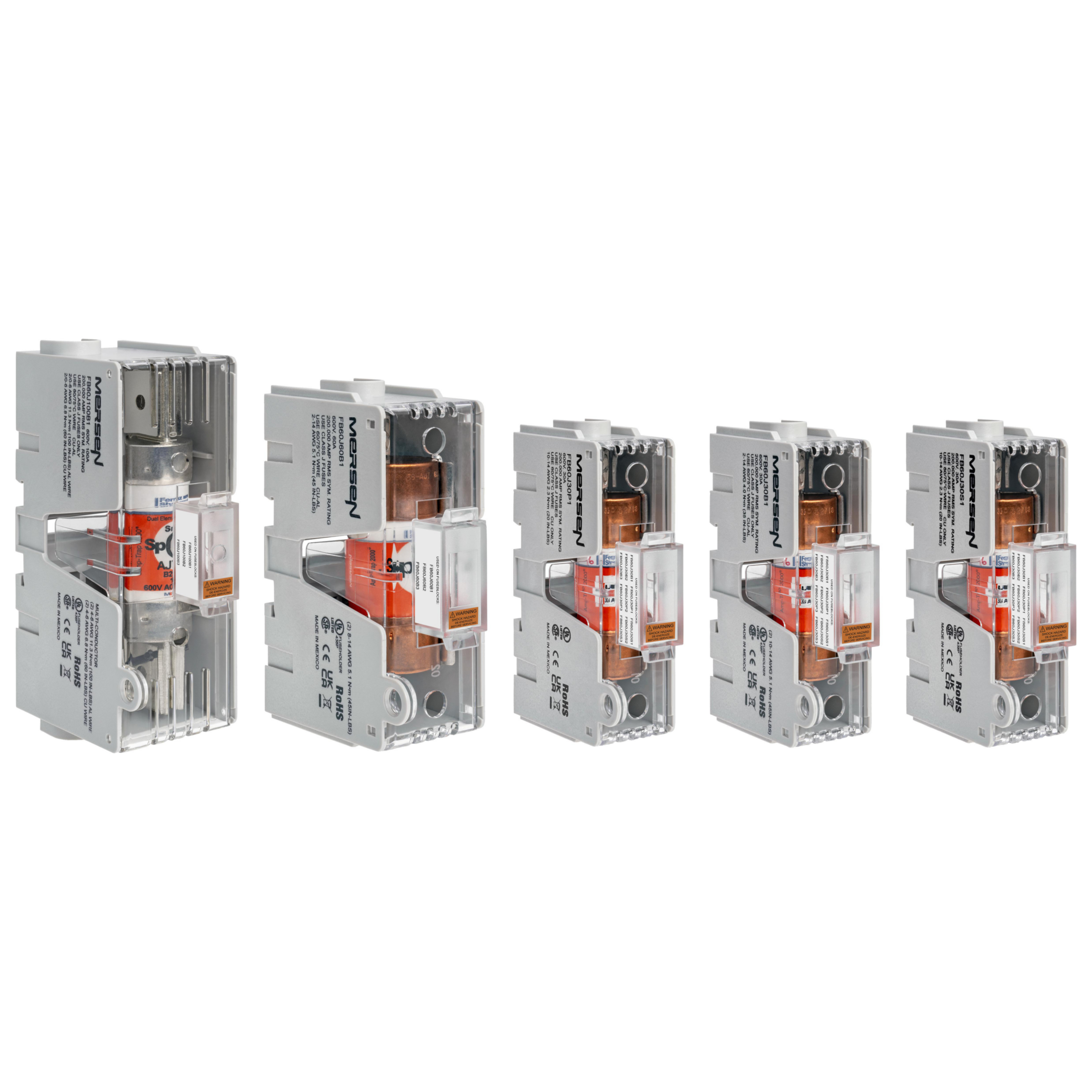

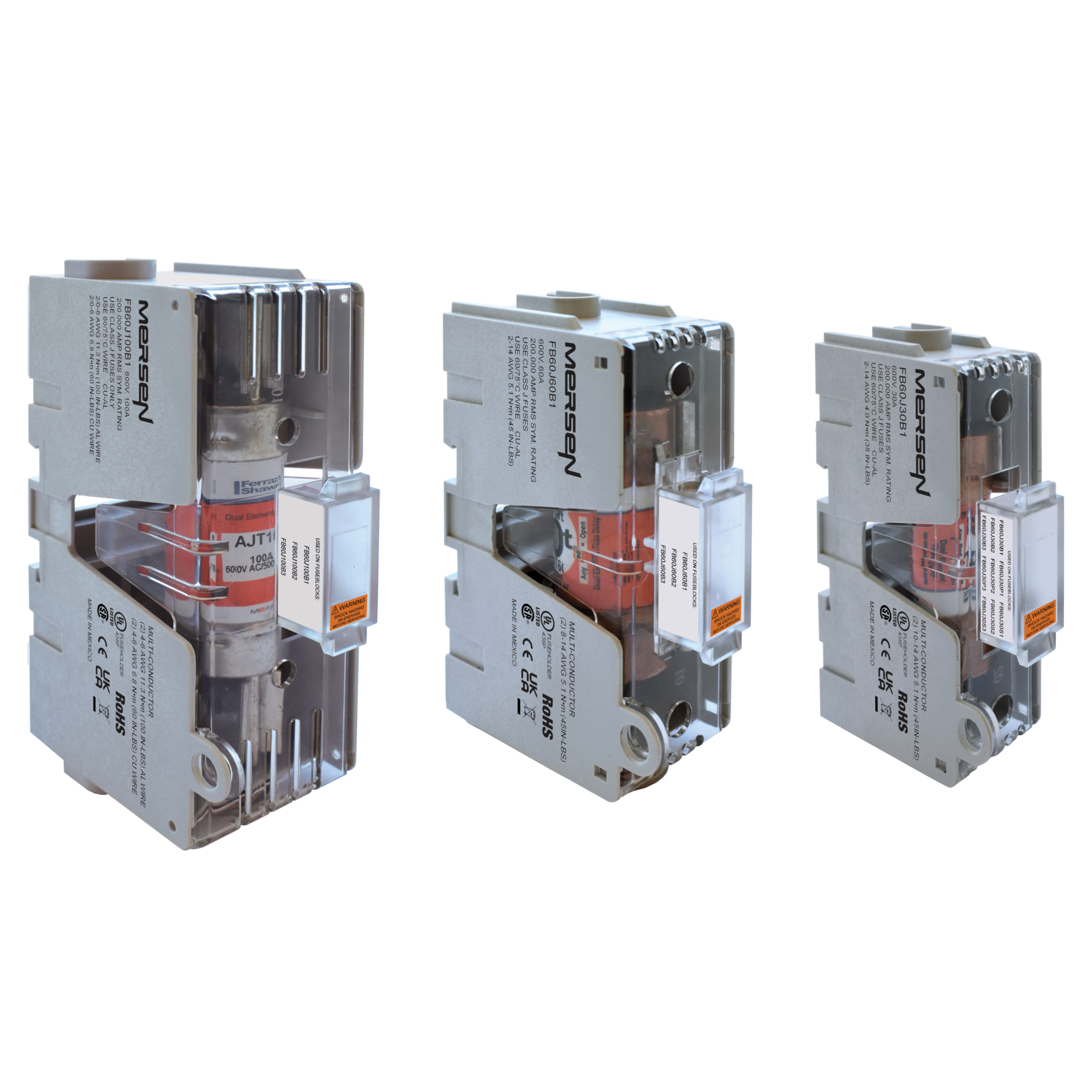

Mersen...s new Generation 2 open style class J fuse blocks accommodate class J fuses ranging from 0-100A, 600V. A choice of screw, pressure plate, and box connectors fit a wide range of stranded or solid wire. Gen2 fuse blocks are DIN-rail mountable, more compact than the traditional offering, and feature dovetail nesting for multipole field assembly. Fuse bases are IP20 rated when paired with Mersen...s newly designed dead front covers.

Technical Information

Connection Type
Box
Frequency
50/60 Hz
Fuse Type
Class J
Material
Glass Filled Polycarbonate
Number of Poles
3
Terminal Material
Tin-Plated Copper
Wire Size
6-2/0 AWG

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001505202
GTIN
00782001505202
Product UPC
78200150520
Weight
1.39 lb

Dimensions

Height
73.2 mm
Length
135.9 mm
Width
144.8 mm
