PANDUIT F4X4WH6 WIRING DUCT NARROW SLOT F 4X4 6'L PVC WHITE | Electrozad South

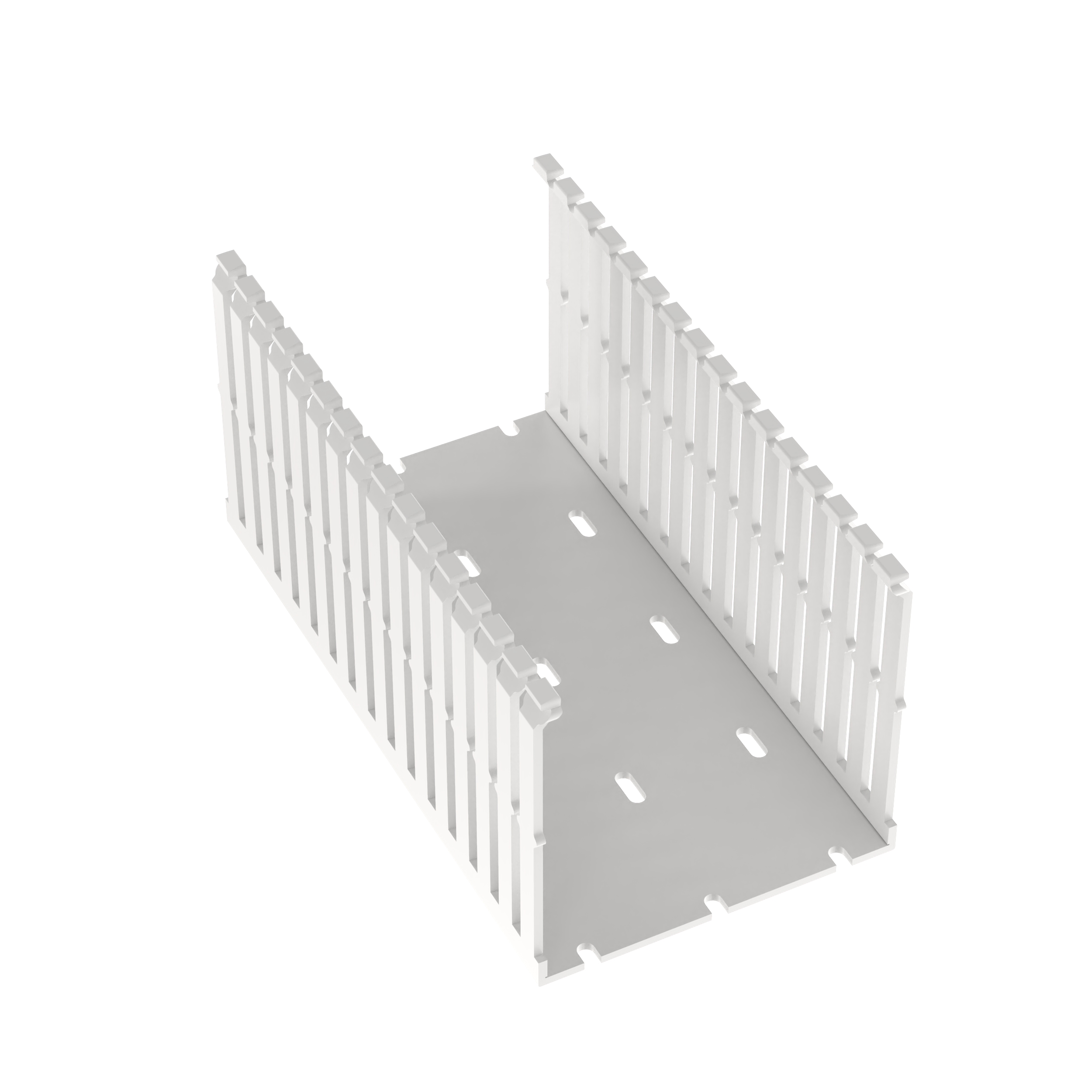

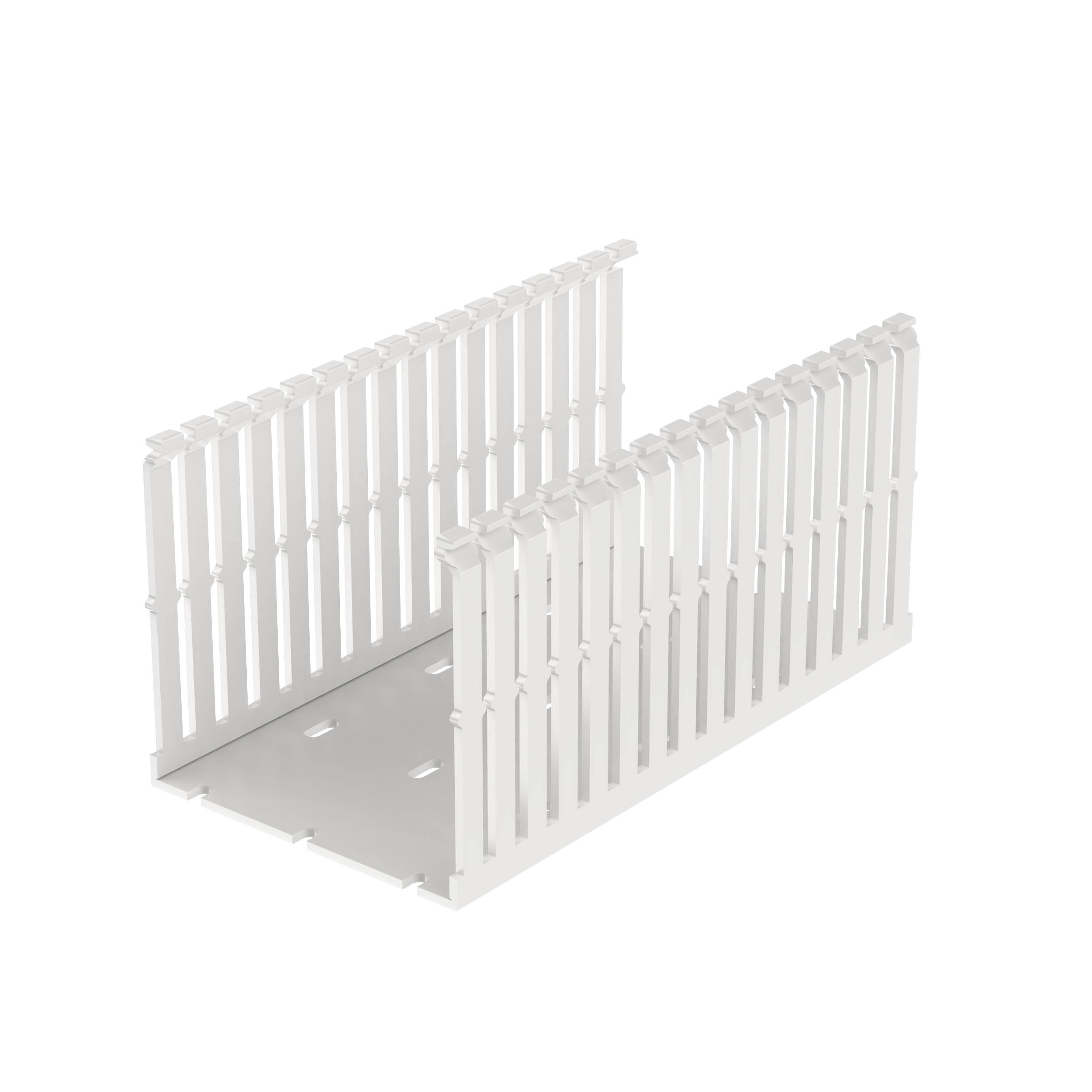

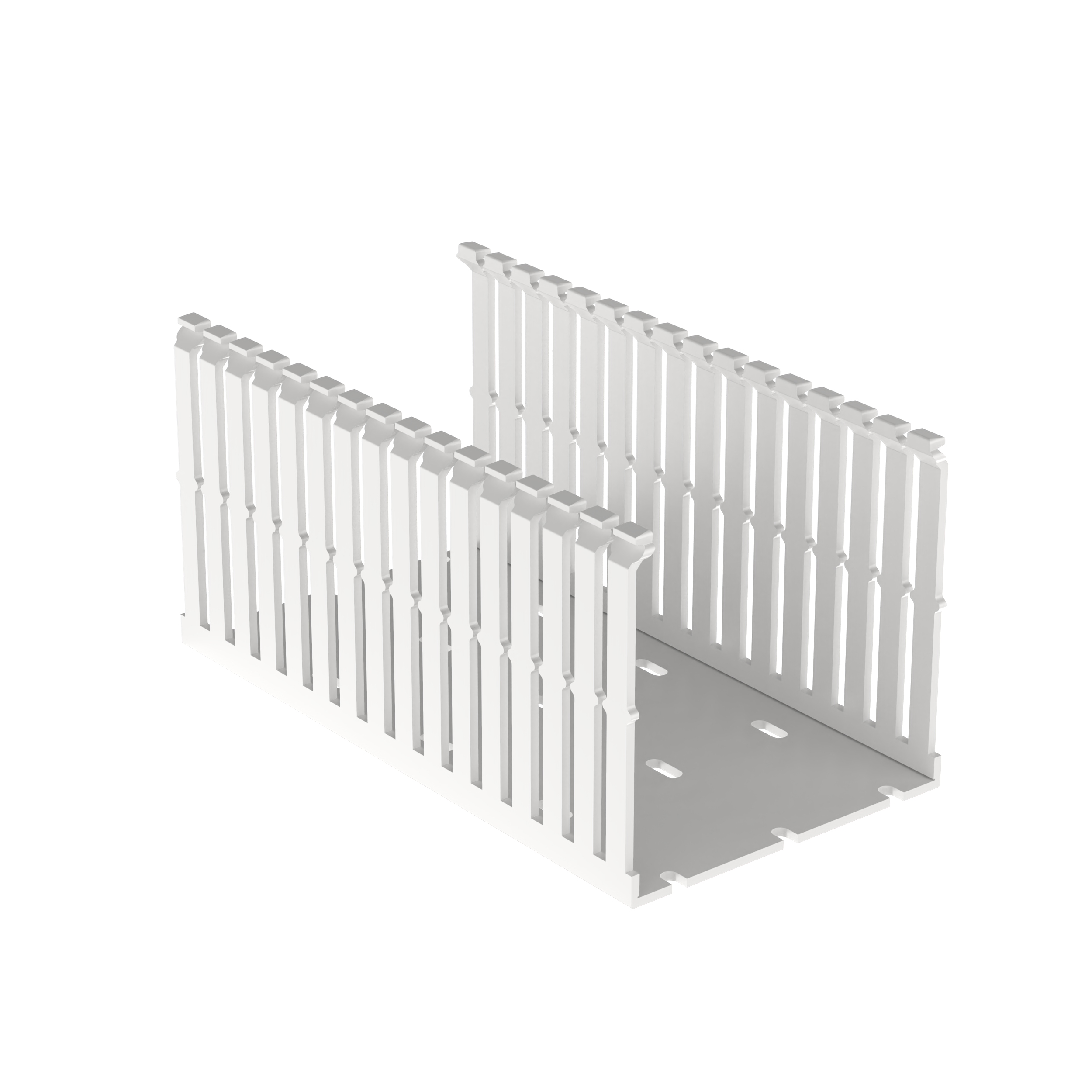

Product image for PANDUIT F4X4WH6 WIRING DUCT NARROW SLOT F 4X4 6'L PVC WHITE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT F4X4WH6 WIRING DUCT NARROW SLOT F 4X4 6'L PVC WHITE

Manufacturer: Panduit | Catalog # F4X4WH6 | Electrozad South Part # 40551
$16.62 /ft
ft
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure
The F4X4WH6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122..F (50..C). Mounting holes provided. Lead-free PVC. 4" x 4" (101.6 mm x 101.6 mm) and 6' (1.83 m) long. Cover sold separately. Color White.

Technical Information

Applications
For Indoor Applications
Material
PVC
Mounting Type
Standard Mounting Hole
Size
4.25 x 4.10
Slot Size
5 mm
TC Connection
Standard
Type
Type F

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983375967
Color
White
GTIN
00074983375967
Product UPC
07498337596

Dimensions

Depth
104.1 mm
Height
4.1 in
Length
1.8 m
Overall Length
6 ft
Thickness
0.11 IN
Width
4.252 in

Certifications & Compliance

Country of Origin
USA
