Pan-Lug™ LCB10-14W-L Copper Compression Connectors - Lugs

Manufacturer: Panduit | Catalog # LCB10-14W-L | Electrozad South Part # 407166
$507.91 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

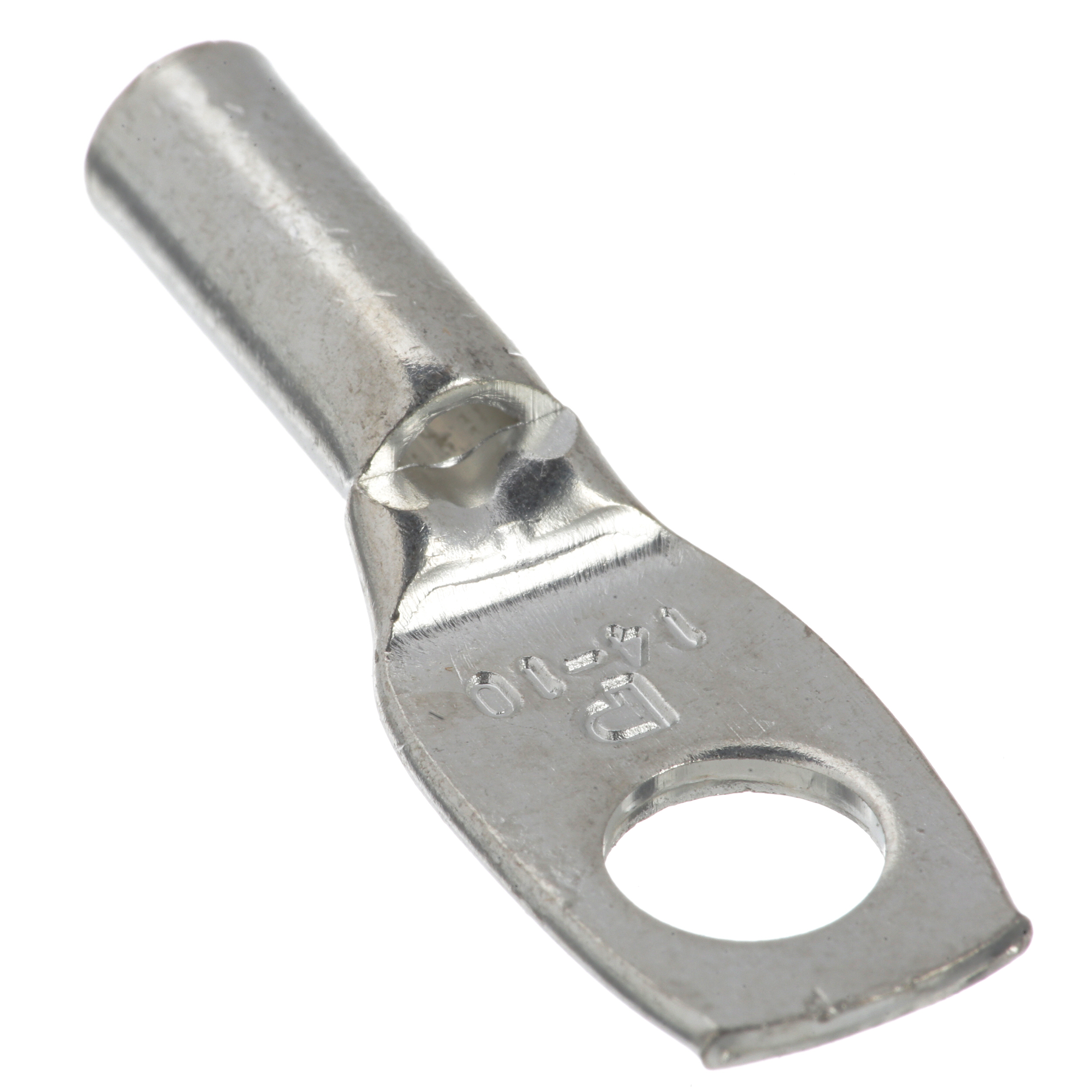

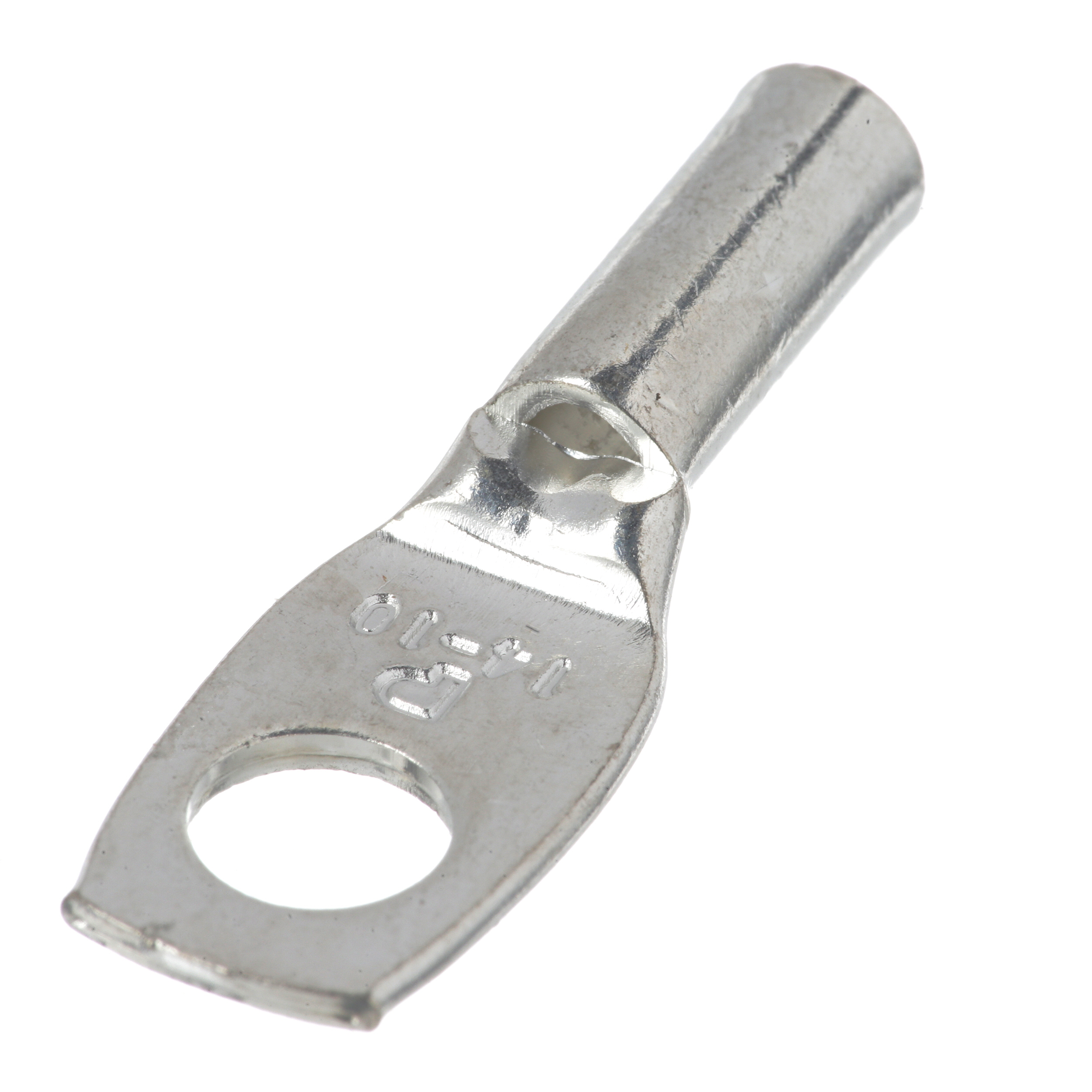

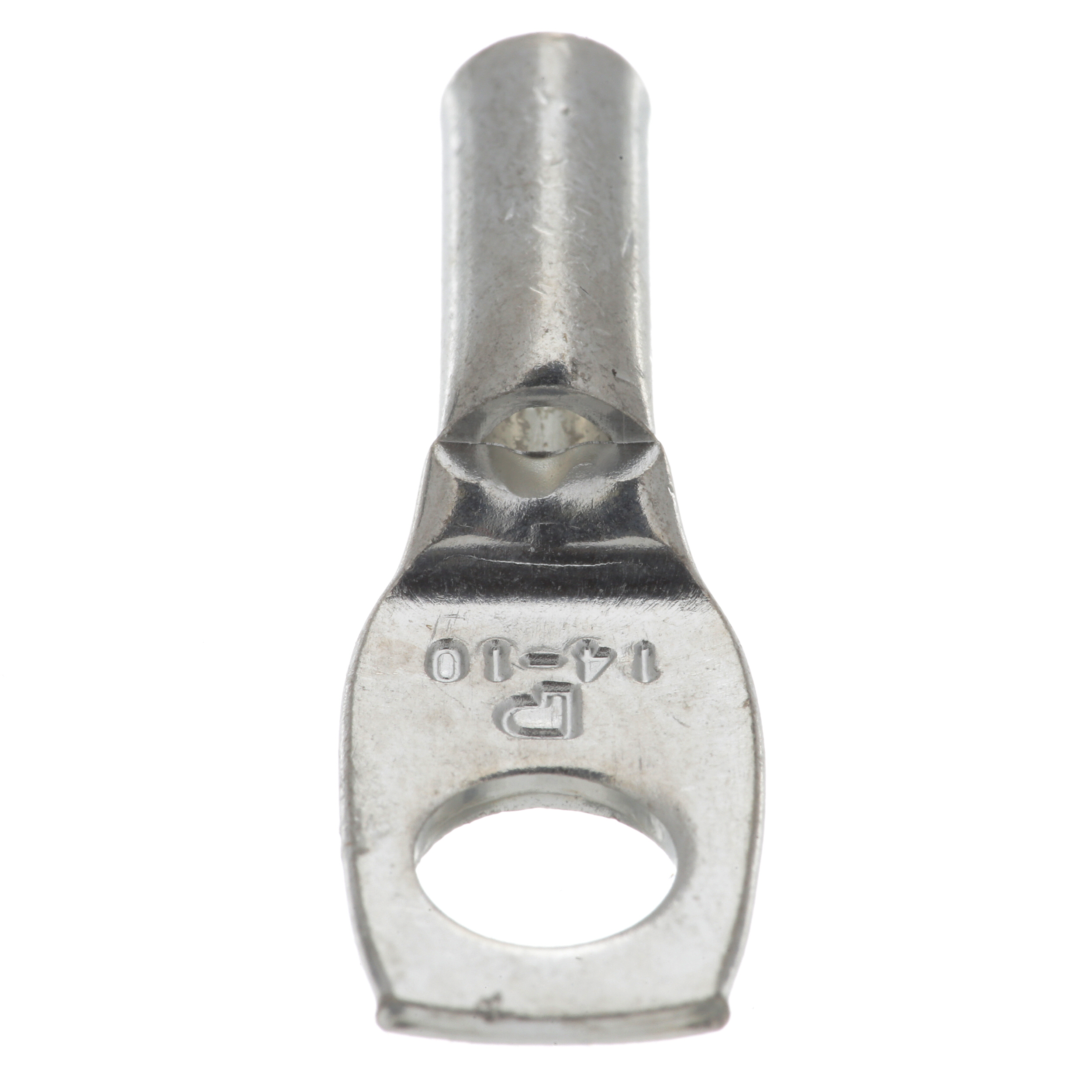

One-hole, long barrel lug with inspection window, #10 AWG wire, 1/4 stud hole.

Technical Information

Angle
Straight
Applications
1
Barrel Length
0.53 in
Barrel Type
Long with Inspection Window
Cable Size
AWG
Material
Copper
Number of Holes
1
Size
#14 #10 AWG Code STR, #12 #10 AWG Code SOL
Standard
ANSI C-73
Stud Size
1/4 in
Tongue Thickness
0.05 in
Tongue Type
Standard
Tongue Width
0.42 in
Type
Preterminated Copper Trunk, Category 6

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983972128
GTIN
00074983972128
Product UPC
07498397212
UNSPSC
39121405

Dimensions

Overall Length
1.31 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
