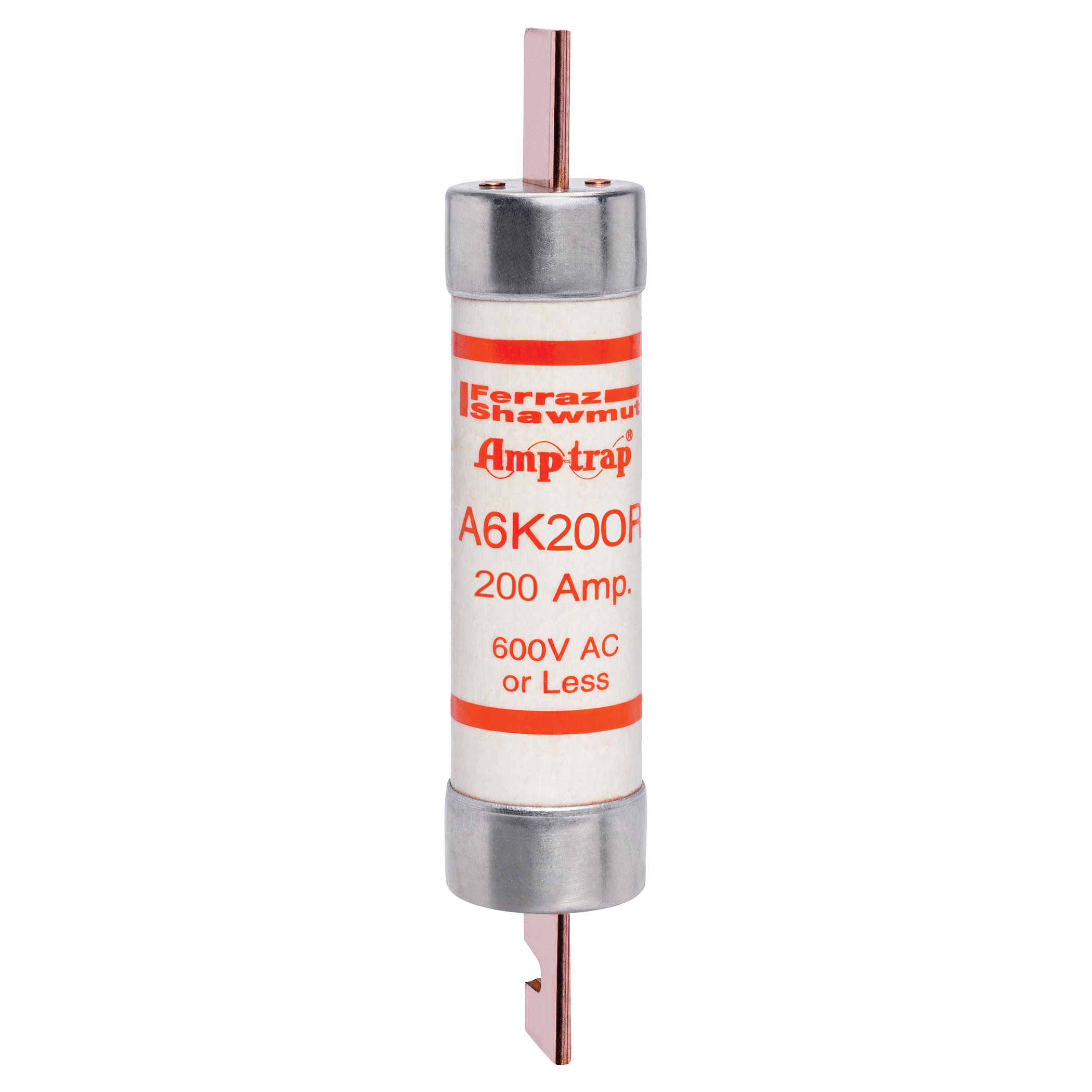

MERSEN A6K200R FUSE HRCI-R 200A 600V CLASS RK1 NON TIME DELAY

Manufacturer: Ferraz Shawmut Mersen | Catalog # A6K200R | Electrozad South Part # 40797
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Current-limiting Amp-Trap A6K-R fuses provide excellent protection where high available short-circuit currents exist. These fast-acting fuses are particularly good for branch/feeder circuits and back-up protection.

Technical Information

Amperage
200 A
Applications
For Load Centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Non-Inductive Loads, Lighting Circuits
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class RK1
Insulation Material
PolyTube
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
300 V
TC Connection
Blade
Terminal Material
Tin-Plated Copper
Terminal Type
Blade
Type
North American Power Fuses

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001915803
Class
RK-1
Construction
Fiberglass
GTIN
10782001915800
Product UPC
78200191580
Weight
1.46 lb

Dimensions

Diameter
1.81 in
Length
9.63 in
