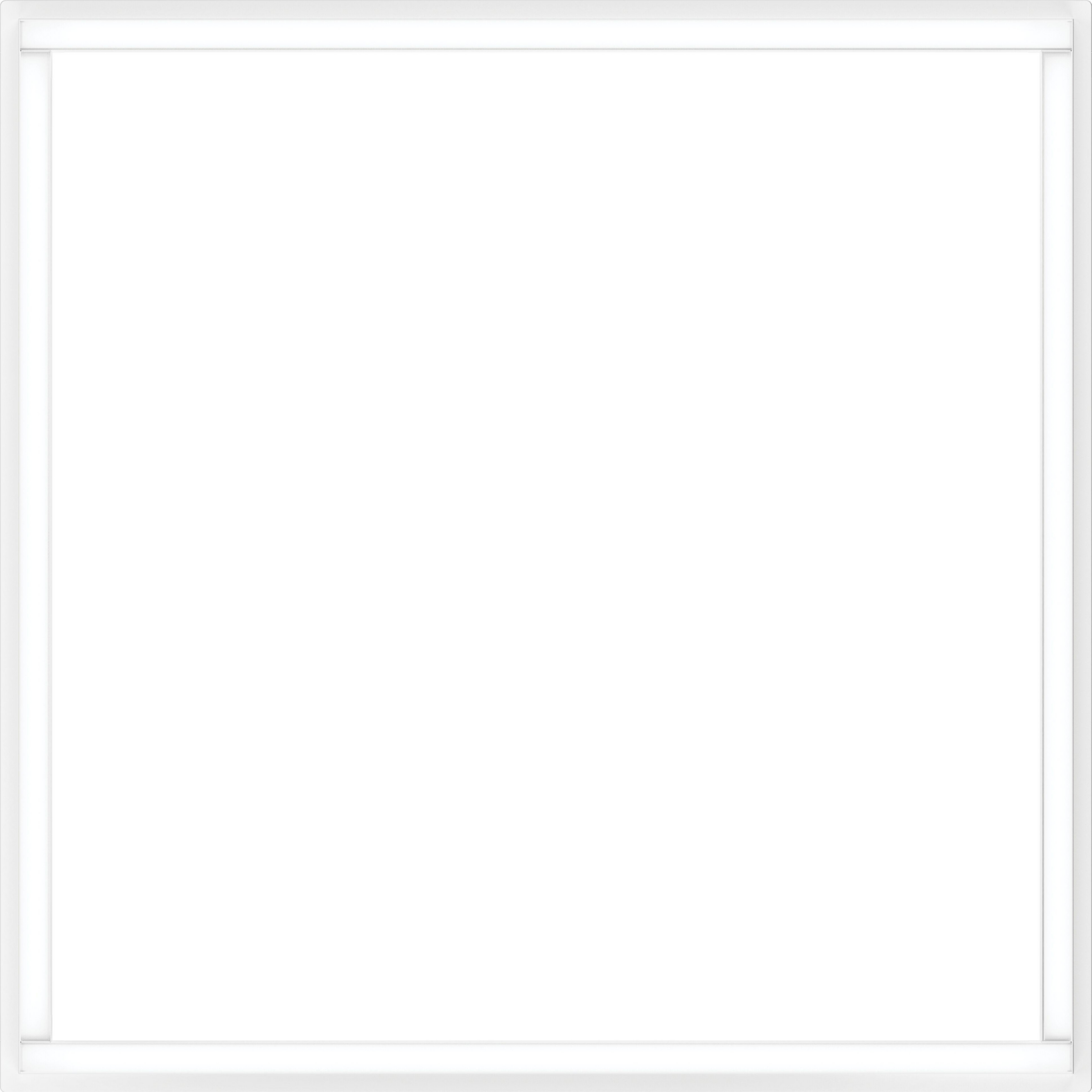

LAY-IN LED FRAME, 2FT X 2FT, SWITCHABLE

Manufacturer: Lithonia Lighting | Catalog # LFRM 2X2 ALO3 SWW7 MVOLT M6 | Electrozad South Part # 408498
$85.31 /ea
ea
Log in or register to view your price, purchase history, and more!
13 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL
The 2 ft. x 2 ft. Lithonia FRAME LED Lay in from Lithonia Lighting. The FRAME offers a modern, upscale aesthetic with functionality and performance to match. Featuring Switchable color temperature and adjustable lumen technology, the FRAME allows you to fine tune the look and feel of your space and designed with the latest optical technology, the FRAME provides the same efficiency and output as a traditional LED flat Panel, for a fraction of the weight and cost.

Technical Information

Applications
Common Areas,Decorative,Education,Entertainment,House Of Worship,Residential,Retail
Average Rated Life
80,000 hr
Color Rendering Index
80
Color Temperature
3500 K
Dimmable?
Yes
Lamp Type
LED - Dynamic
Lens Color
Clear
Lens Material
Polycarbonate
Material
Aluminum
Mounting Type
Recessed
Number of Lamps
4
Standard
CSAus

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
197589570403
Color
White
Environmental Conditions
Indoor
Finish
Matte
GTIN
00197589570403
Product Type
Flat Panel
Product UPC
19758957040
Shape
Square
Weight
2.4 lb

Dimensions

Height
1 in
Length
23.8 in
Warranty Length
5 yr
Width
23.8 in

Certifications & Compliance

Country of Origin
China
Overview
  • BATTERY: Emergency Battery Pack Option
  • RATINGS: Certified for damp locations, IC rated, DLC Premium and CSA certified
  • VOLTAGE: MVOLT 120-277 VAC
  • INSTALLATION: Simple 'snap' together design fits into standard 15/16\" and narrow 9/16\" T-grid ceiling systems; No cutting of ceiling panel necessary; Steel filler plate optional
  • TECHNOLOGY: Switchable Color Temperature (3500K, 4000K, 5000K) and Adjustable Lumen Technology (3000LM, 4000LM, 5000LM)
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • CONTROLS: 0-10 Volt Dimming
  • HOURS OF LIFE: 80% LED lumen maintenance at 60,000 hours (L80/60,000)
  • WARRANTY: 5-year limited warranty
  • DIMENSIONS: 23.8 in. x 23.8 in. x 0.99 in.
