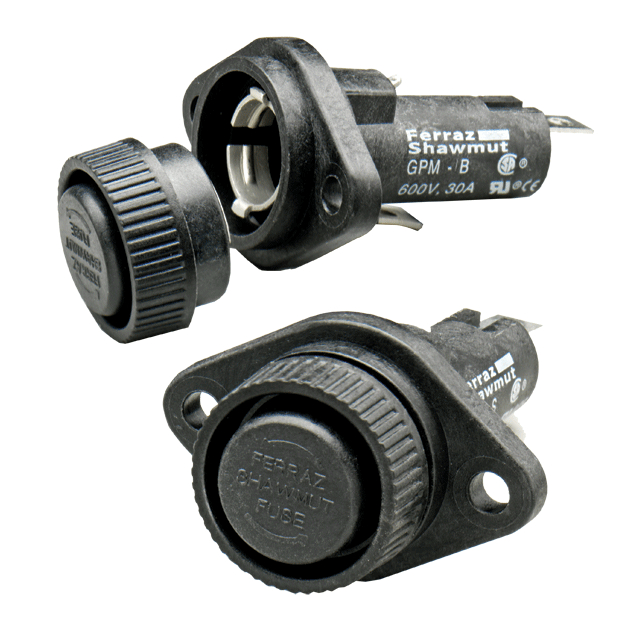

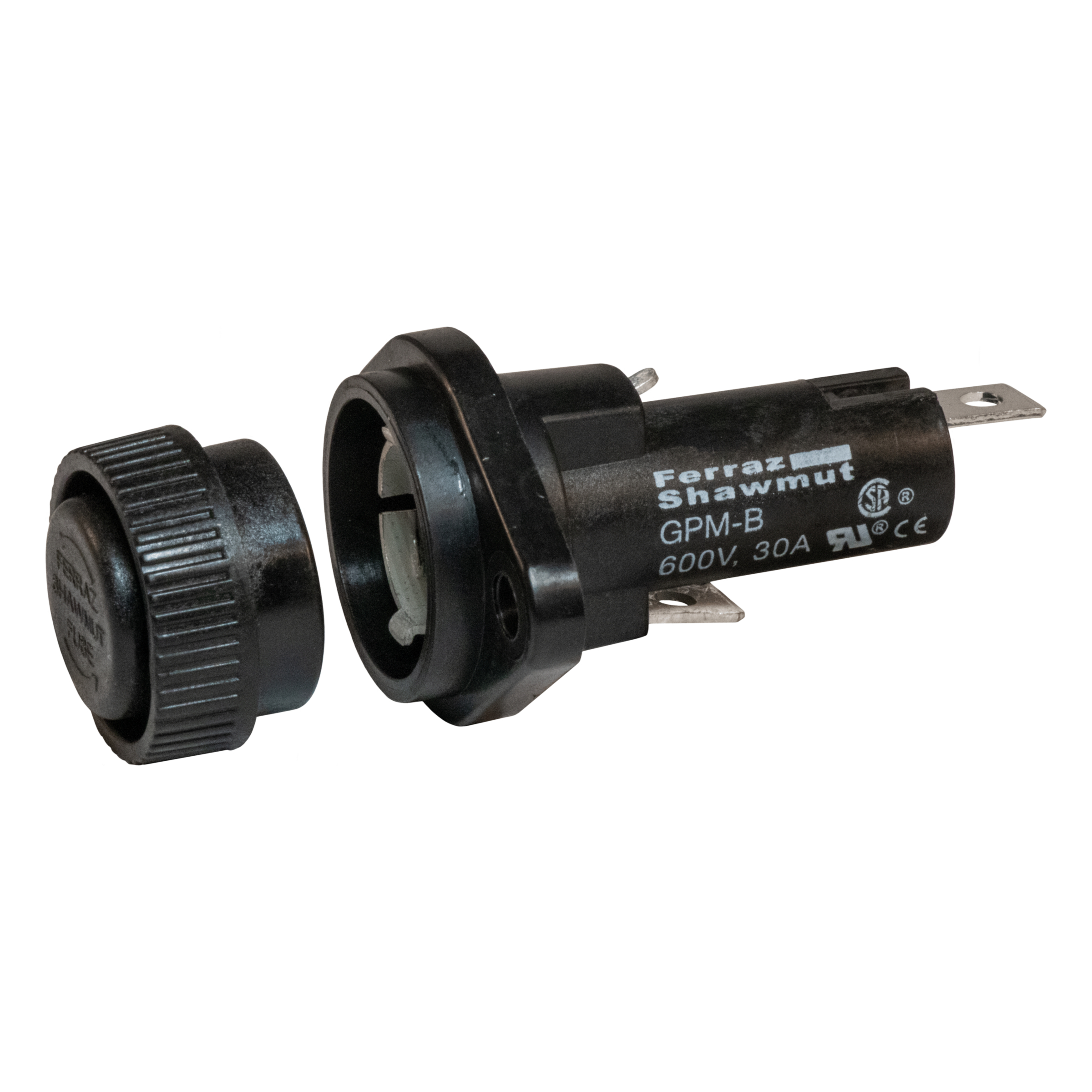

MERSEN GPM-B FUSEHOLDER 30A 600V PMNT 1/4TURN BAYONET KNOB 1-1/2"X13/32" F/ ATQ ATM TRM OTM GGU A13X A25Z

Manufacturer: Ferraz Shawmut Mersen | Catalog # GPM-B | Electrozad South Part # 40863
$11.18 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen GPM Panel Mount Fuse Holders are in sizes to acco mmodate 5x20 mm, 1/4"x1-1/4", Class CC and Midget (1-1/2"x13/32") fuses. All 30A holders have glass-filled polyester insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. Flange design allows front or rear mounting. The 10A and 15A holders are for front mounting only.

Technical Information

Amperage
30 A
Connector Type
1/4 in Quick Connect/Solder
Frequency
50/60 Hz
Fuse Class
Midget
Fuse Interrupt Rating
30 A
Fuse Type
10 x 38 mm Midget
Insulation Material
Thermoplastic
Max Operating Temperature
80 degrees C
Mounting Type
Panel Mount
Number of Poles
1
Rated Voltage AC
600 V
Rated Voltage DC
600 V
TC Connection
1/4" Quick Connect / Solder
Type
Panel Mount
Voltage
600 V

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001760199
Class
M
GTIN
00782001760199
Product UPC
78200176019
Weight
0.065 lb

Dimensions

Height
1.13 in
Length
2.42 in
Width
1.13 in

Certifications & Compliance

Country of Origin
Mexico
