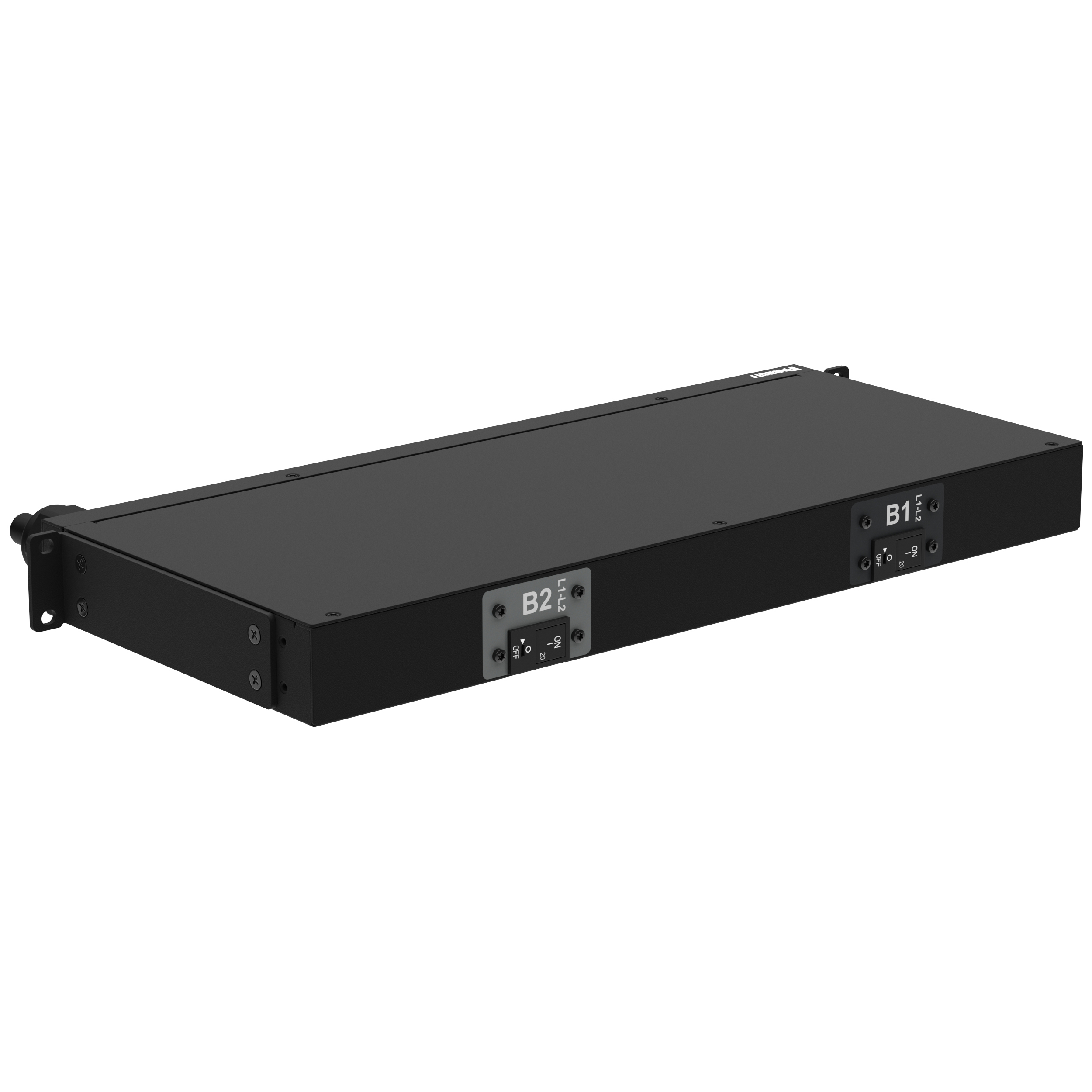

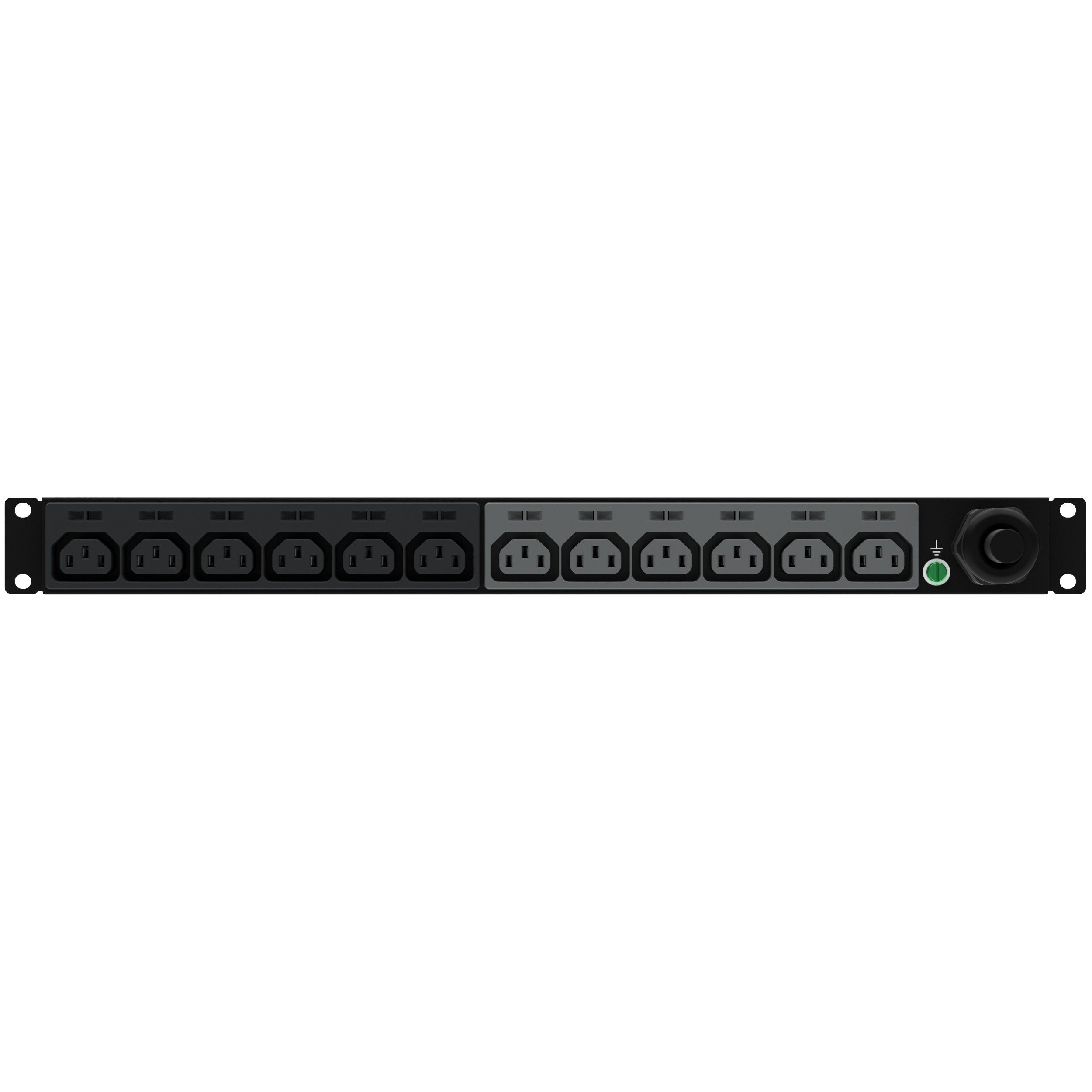

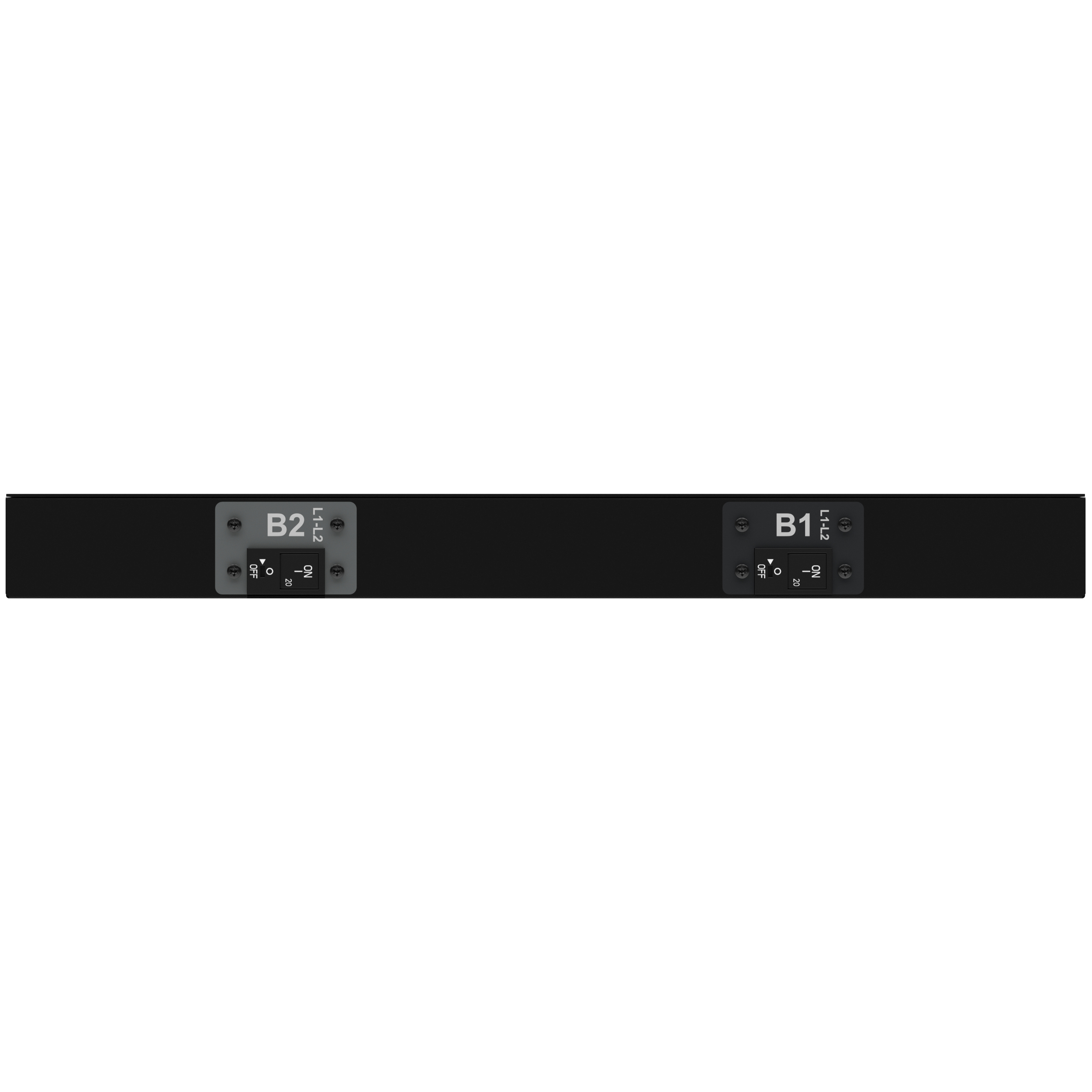

Product image for PANDUIT P12B47M BASIC PDU 30AMP 208 VOLT (12)C13 L6-30P
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT P12B47M BASIC PDU 30AMP 208 VOLT (12)C13 L6-30P

Manufacturer: Panduit | Catalog # P12B47M | Electrozad South Part # 409910
$410.02 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual
This Panduit™ G5 Basic PDU features (12) C13 outlets. It is a 30 amp, 208 V, single phase PDU with a NEMA L6-30P input plug and a 10 foot (3m) power cord. The PDU is black.

Technical Information

Material
Metal
Max Operating Temperature
140 degrees F
Minimum Operating Temperature
10 degrees C
Type
25% Fill, Vertical/Horizontal, Tapered FNPT
Wattage
5000 Watt

Manufacturer Information

Brand
Panduit
Sub Brand
G5

General Product Info

12-Digit UPC
613056263444
Color
Black
GTiN
00613056263444
Product UPC
61305626344

Dimensions

Cable Length
10 ft
Depth
7.8 in
Height
1.7 in
Length
NA In.
Width
444.5 mm

Certifications & Compliance

Country of Origin
India
