YA342N

Manufacturer: Burndy | Catalog # YA342N | Electrozad South Part # 41127
$50.16 /ea
pc
Log in or register to view your price, purchase history, and more!
21 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

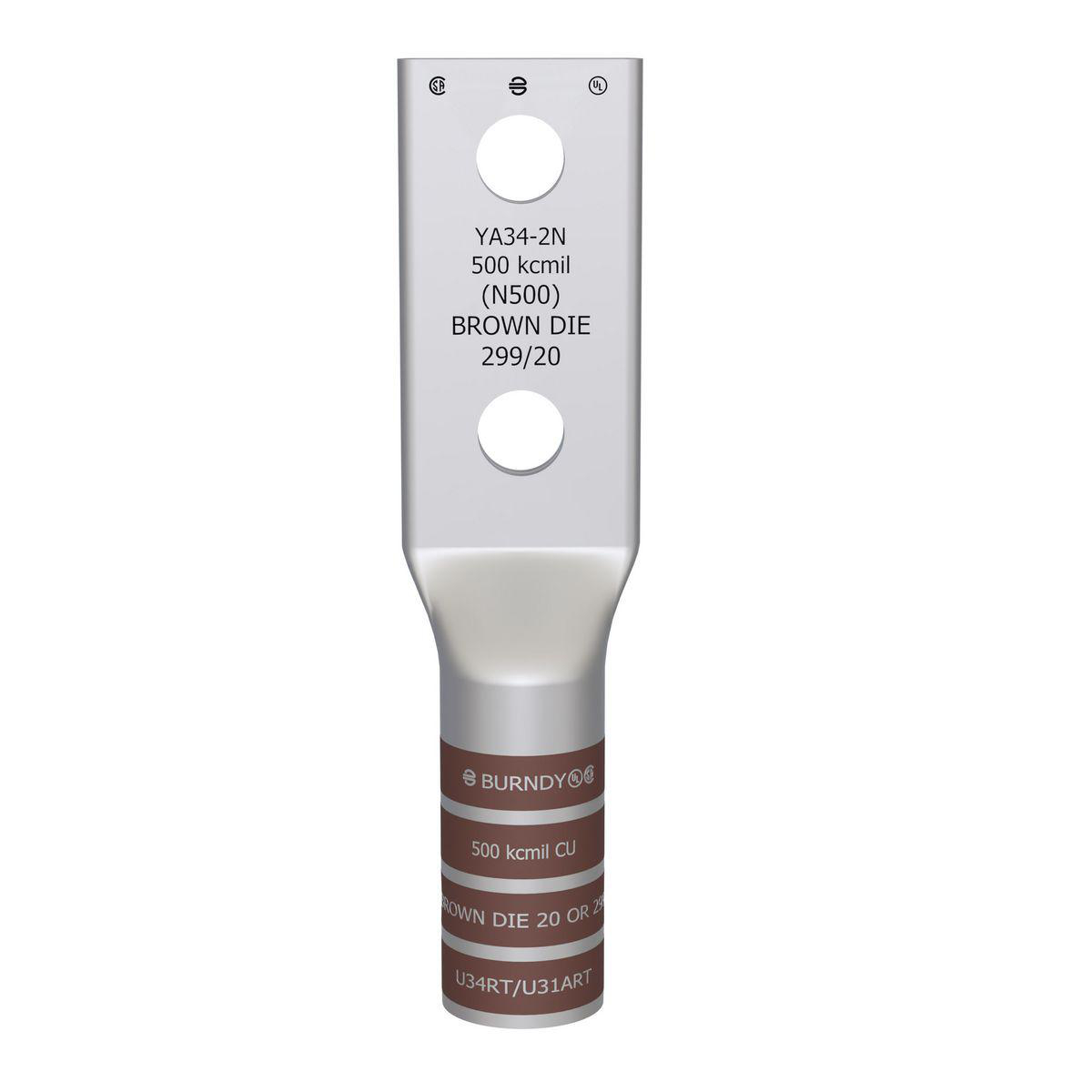

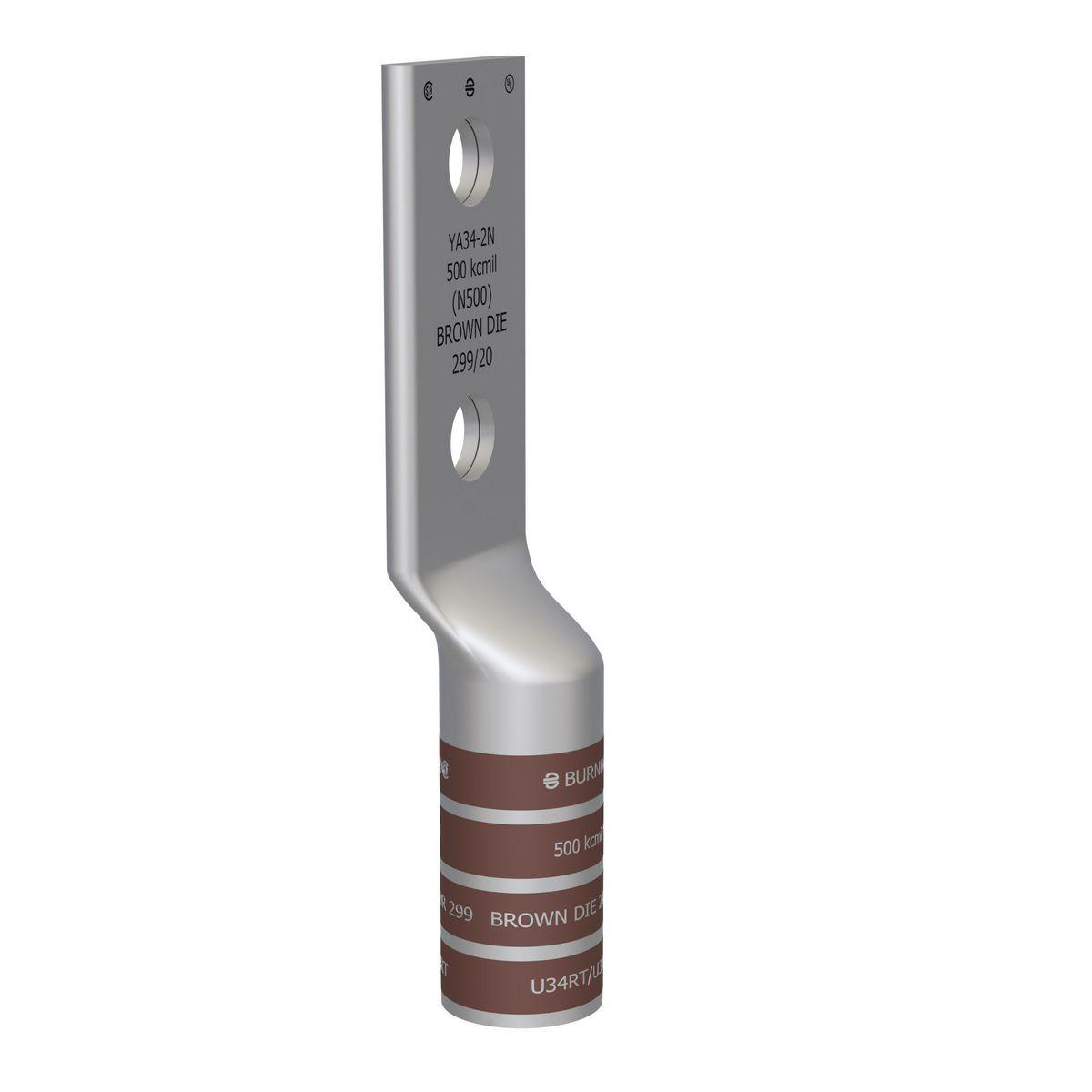

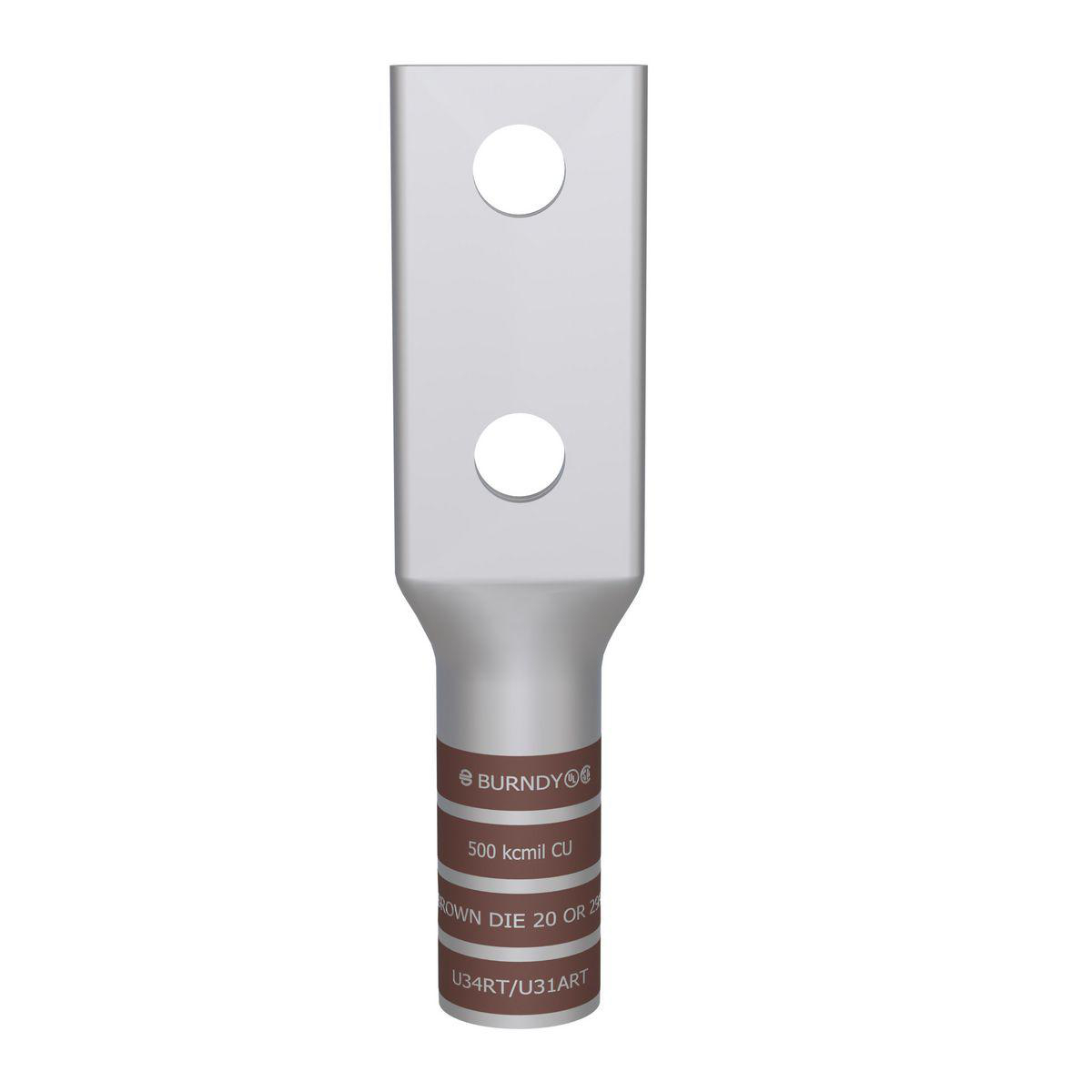

Copper Compression Lug, 2 Hole w/o Inspection Window, 500 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Long Barrel, Tin Plated.

Technical Information

Applications
For Code Conductor
Barrel Type
Long, Straight
Cable Size
500 KCMIL Stranded
Color Coding
Brown
Conductor Material
Copper
Conductor Size
500 kcmil
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
2
Plated?
Yes
Plating Type
Tin
Stud Size
1/2 in
Temperature Rating
90 degrees C
Type
YA-2N

Manufacturer Information

Brand
Burndy
Sub Brand
Hylug™

General Product Info

12-Digit UPC
781810506059
Color
Brown
Finish
Tin Plated
GTIN
00781810506059
Product UPC
78181050605
Used With
Code Conductor

Dimensions

Height
1.05 in
Hole Size
14 mm
Length
6.06 in
Overall Length
6.06 in
Width
1.55 in

Certifications & Compliance

Country of Origin
USA
CSA
Yes
