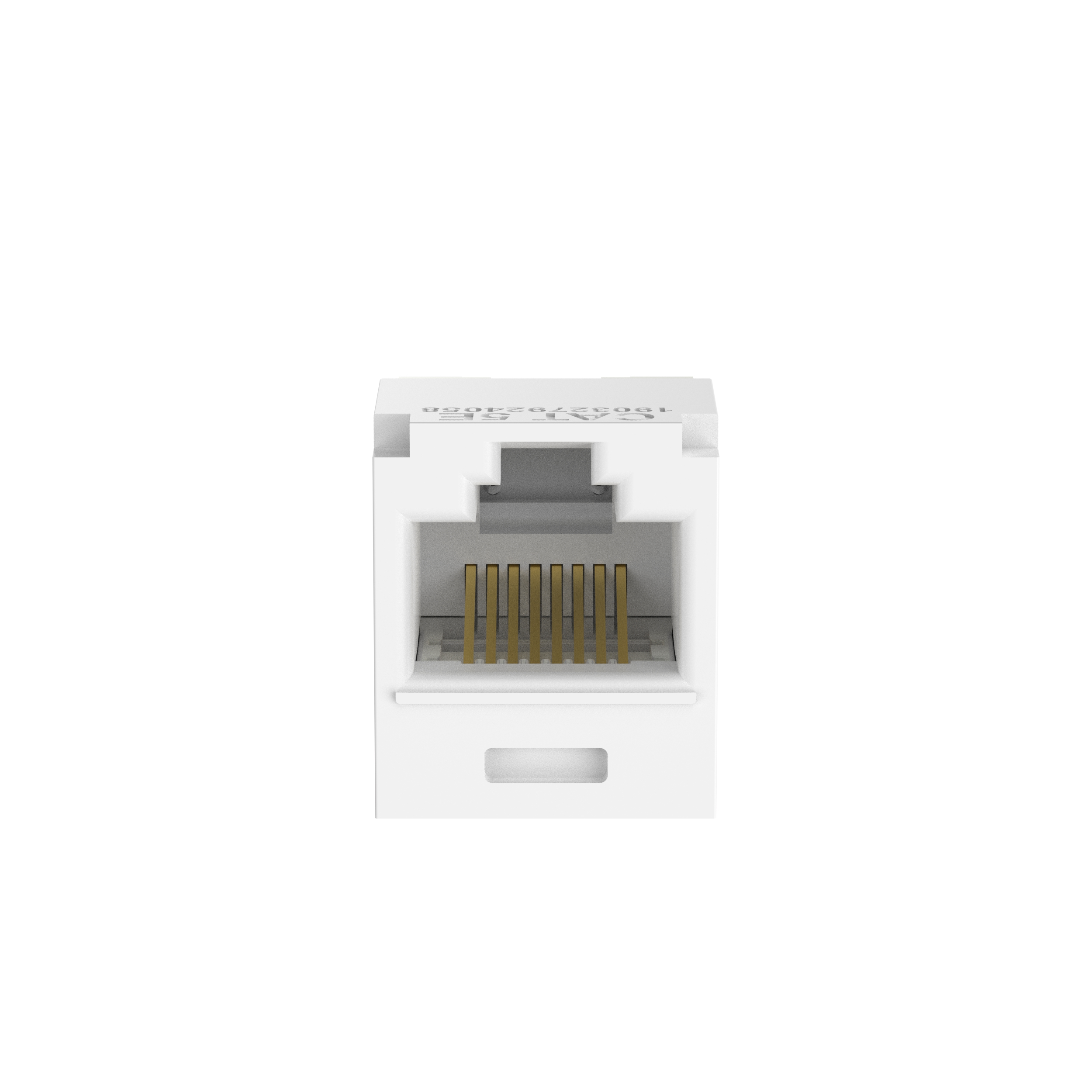

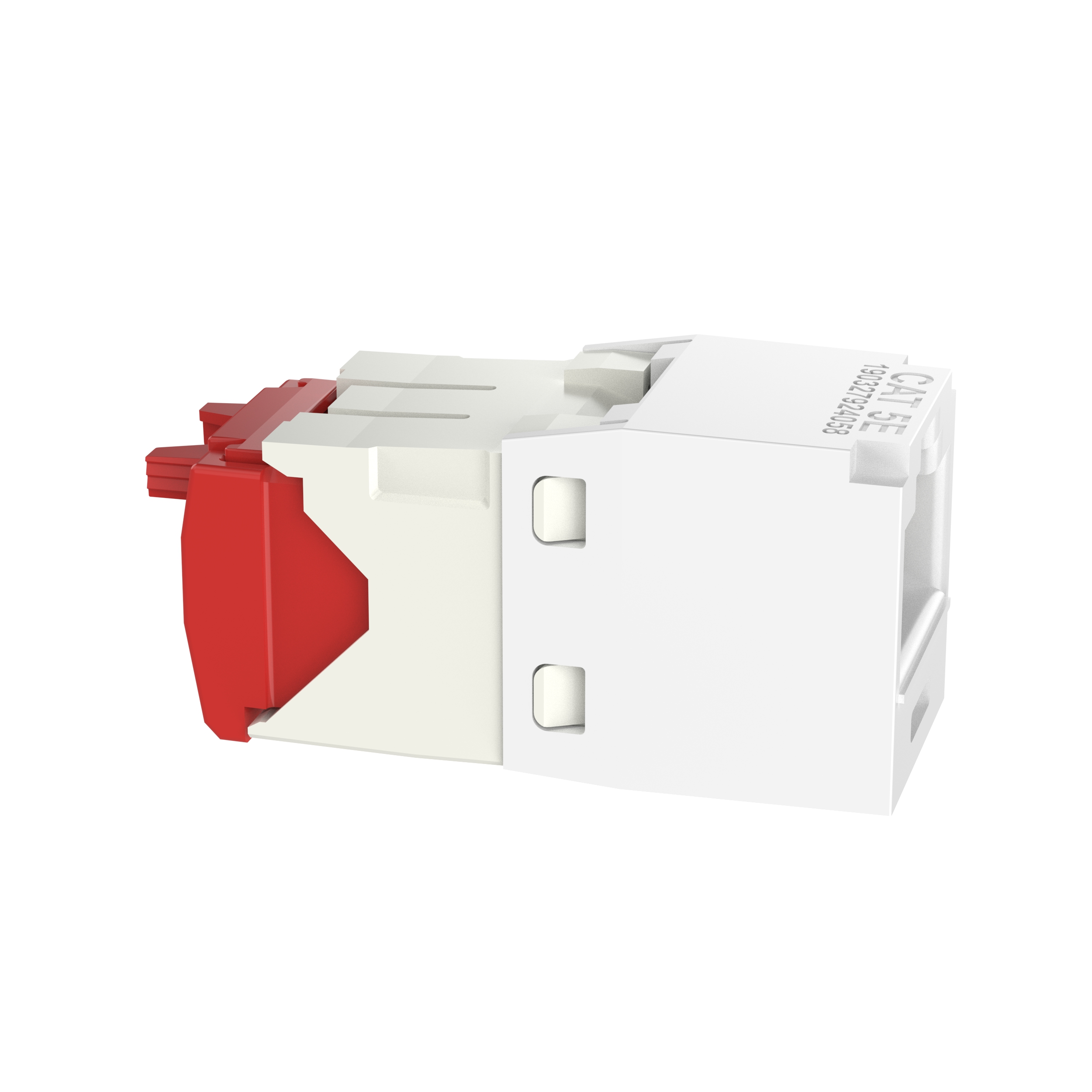

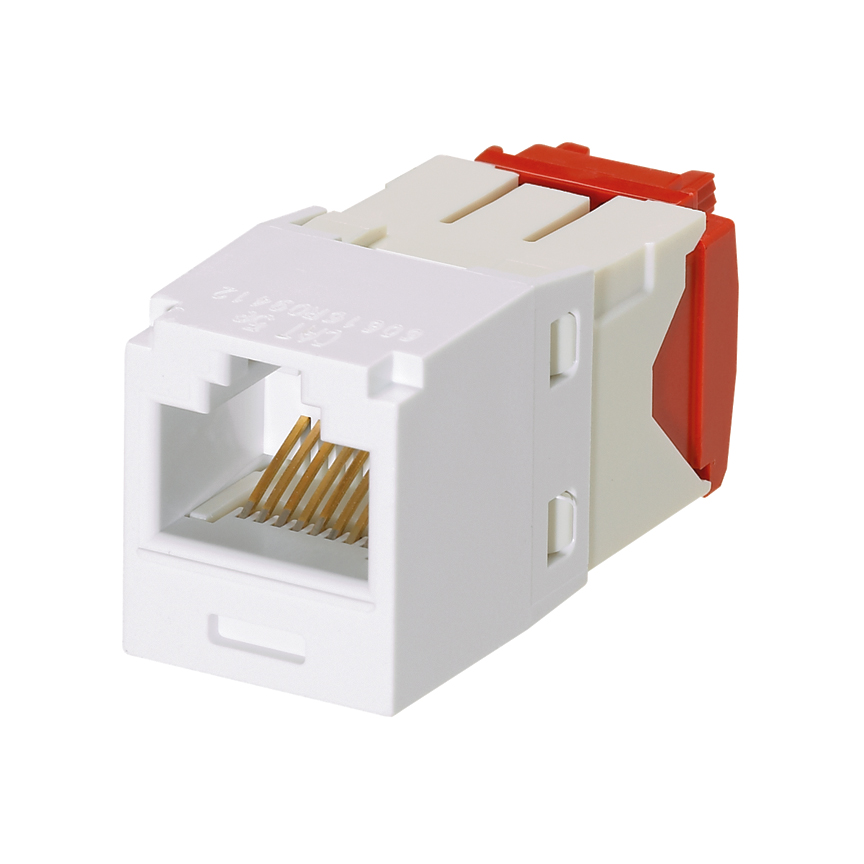

PANDUIT CJ5E88TGWH MINI-COM UTP RJ45 CAT 5E TG JACK MODULE WHITE

Manufacturer: Panduit | Catalog # CJ5E88TGWH | Electrozad South Part # 411447
$17.86 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual
Mini-Com® TX5e™ UTP jack module. Category 5e/class D, 8 position, UTP jack module shall terminate 4 pair, 22 to 26 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be colour-coded red to designate category 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Cable Type
Category 5E
Material
ABS
Max Operating Temperature
167 degrees F
Minimum Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 5e
Type
RJ45, Unshielded

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983395385
Color
White
GTiN
00074983395385
Product UPC
07498339538
UNSPSC
43223301
Used With
Round and Solid Cables

Dimensions

Depth
1.5 in
Height
0.71 in
Overall Length
1.5 in
Width
15.7 mm

Certifications & Compliance

Country of Origin
Costa Rica
