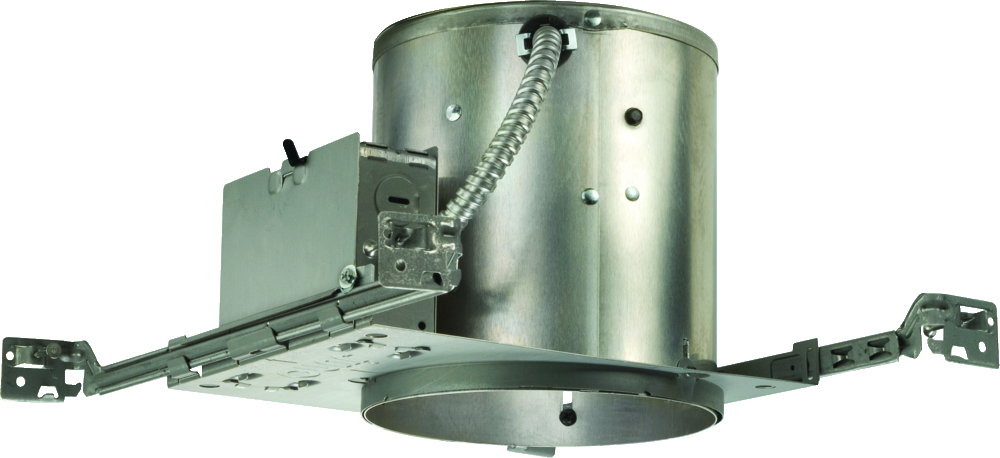

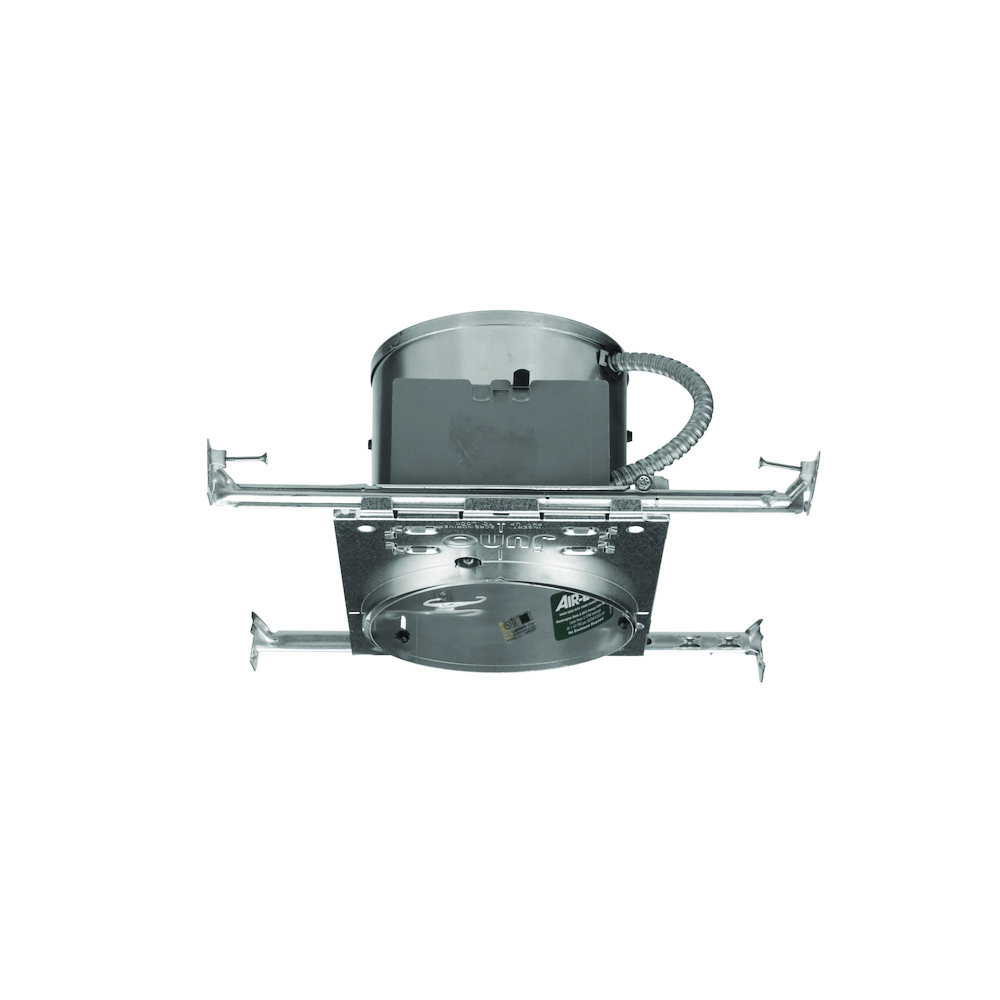

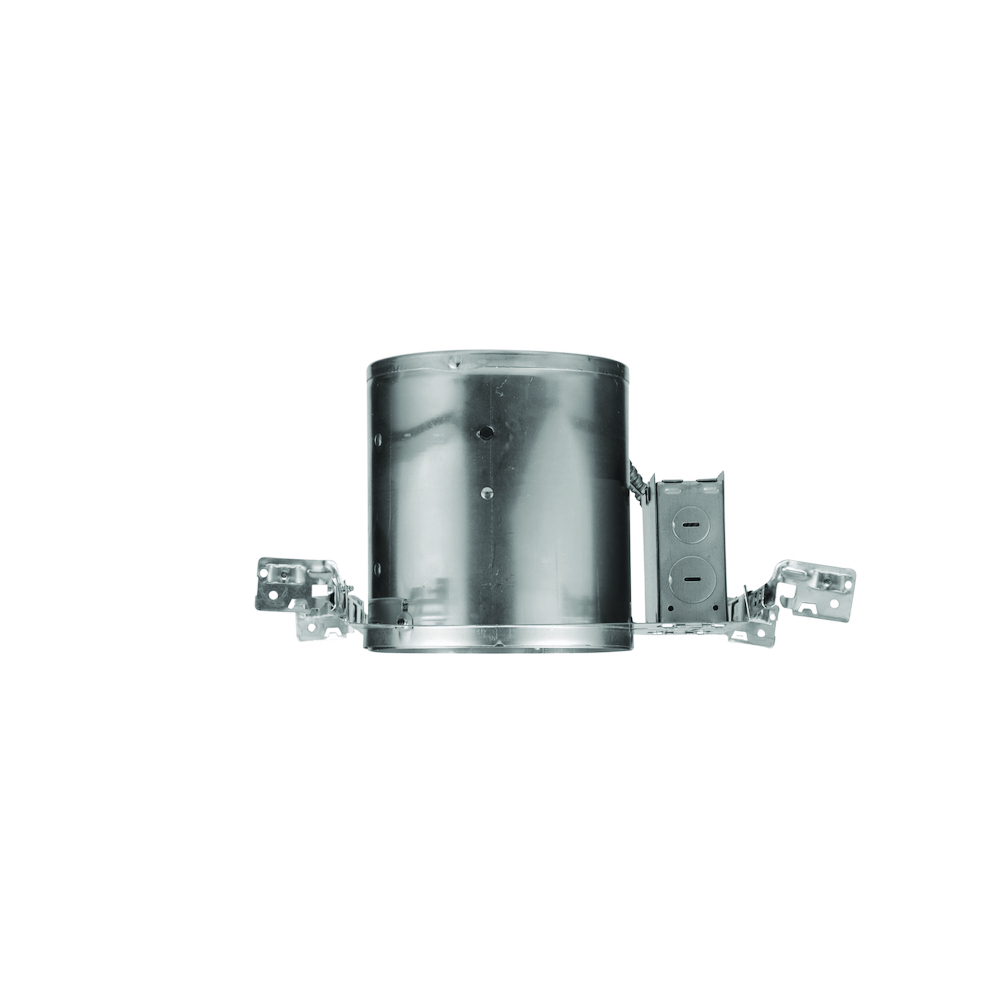

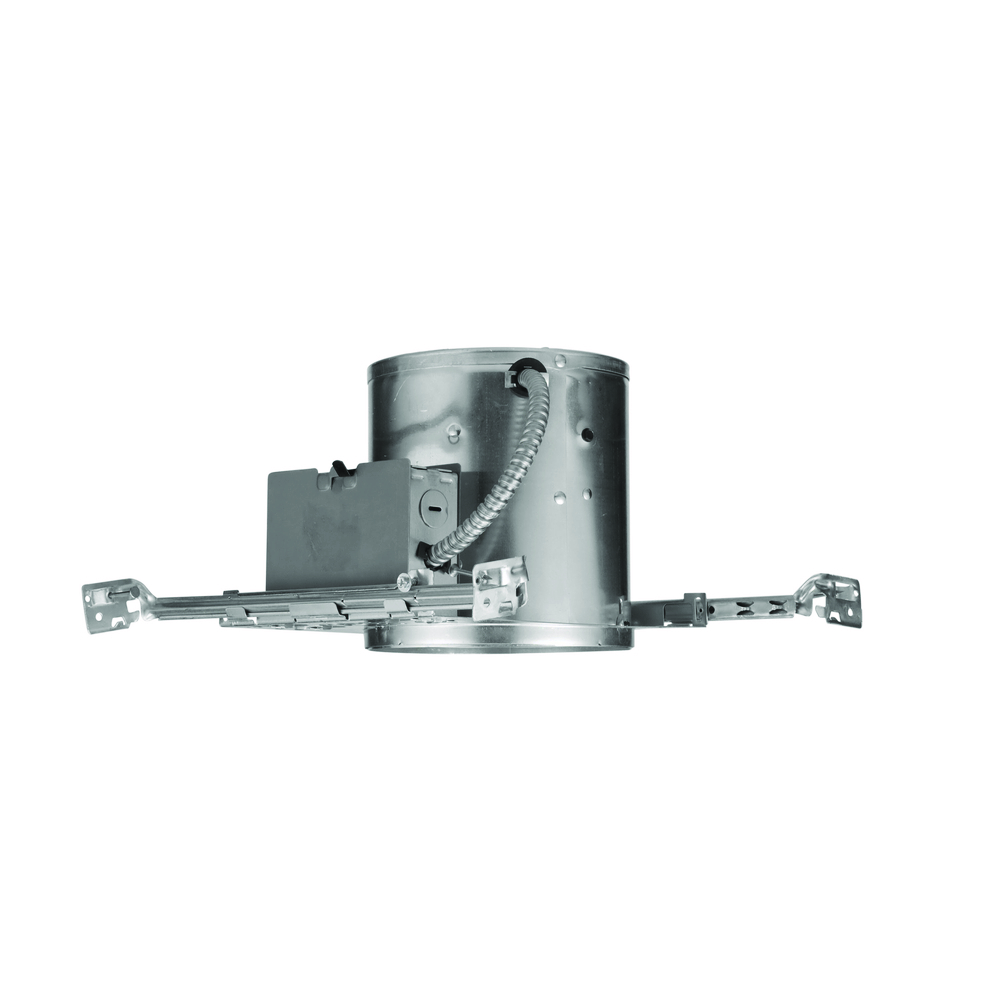

Recessed economy remodel housing INC 6in IC

Manufacturer: Juno Lighting | Catalog # IC22R | Electrozad South Part # 413209
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL
6IN ECON REMODEL IC HSG

Technical Information

Aperture Size
6 in
Applications
Residential
Lamp Type
Incandescent Line Voltage
Lamp Wattage
90 WTT
Mounting Type
Recessed
Number of Lamps
1
Type
Housing

Manufacturer Information

Brand
Juno Lighting
Sub Brand
Juno

General Product Info

12-Digit UPC
661209017673
Construction
Remodel
Environment
Indoor
Environmental Conditions
Indoor
Fixture Type
Incandescent Line Voltage
GTIN
00661209017673
Shape
Round
Weight
2 lb

Dimensions

Height
7.125 in
Length
13.75 in
Width
7.125 in

Certifications & Compliance

Country of Origin
Mexico,Mexico
Overview
  • 1-year limited warranty
  • Standard 120 volts used in most residential applications
  • Pre-wired junction box provided with (5) 1/2❠and (1) 3/4❠knockouts, (4) Non-metallic sheathed cable connectors and ground wire
  • Medium base porcelain with nickel-plated copper screw shell
  • Features a drop socket with spring to accommodate certain trim installation
  • IC22R, recommended lamps: A19/BR30/BR40/PAR16/PAR20/PAR30/PAR30L/PAR38/R20
  • Does not include light source
  • Emergency battery back-up not included in this version
  • Dimensions: Height 7-1/8-in. x Full Width 13-1/2-in. x Full Length 7-5/16-in.
  • UL Listed, CSA certified to US and Canadian standards, Listed for damp locations
