30A 600V 3 POLE DISC SW W/NEMA 1 PLAS

Manufacturer: Hubbell Wiring Devices | Catalog # HBL1389 | Electrozad South Part # 413404
$258.04 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL

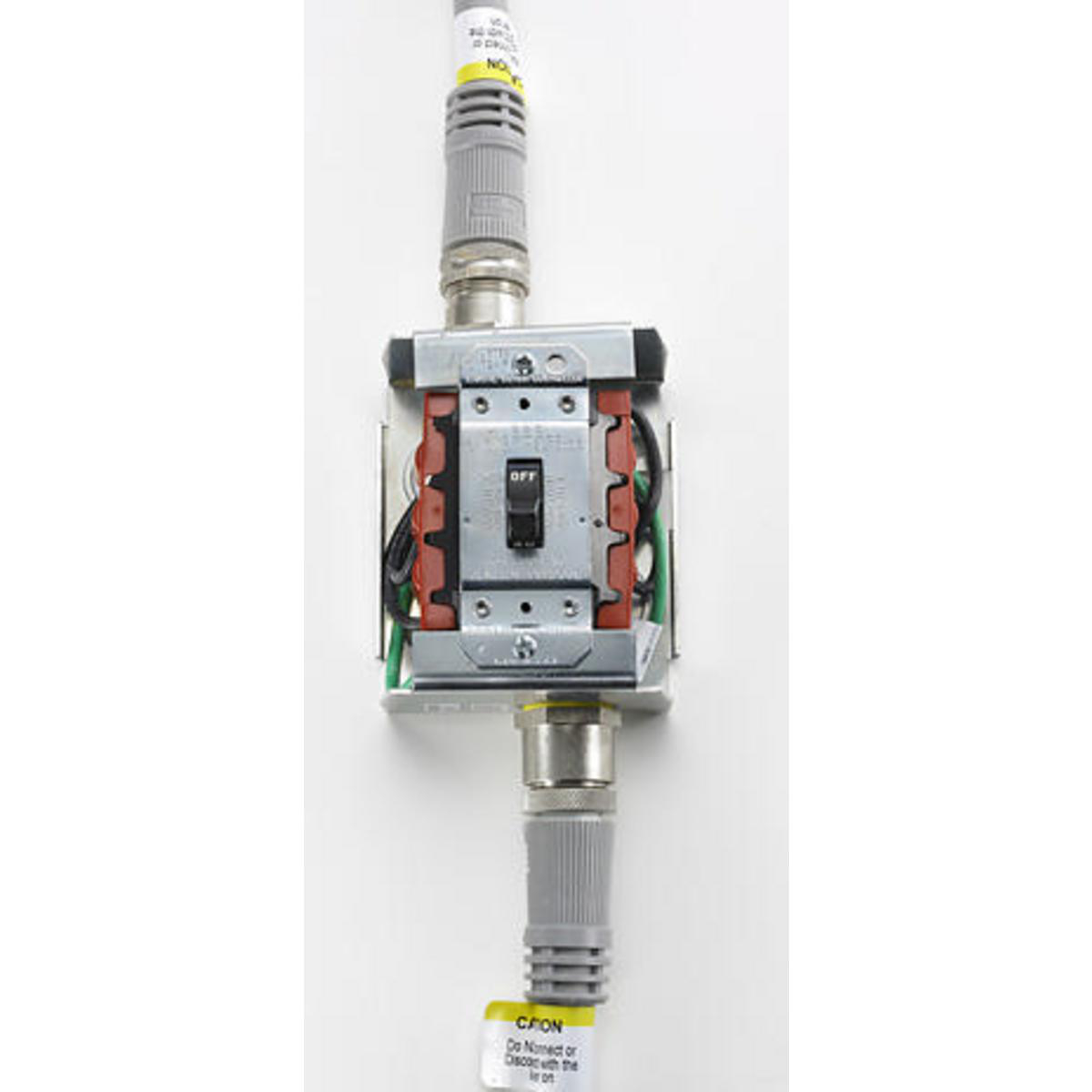

Circuit-Lock® NEMA 1 Enclosure Toggle Switch Disconnect, 3-Pole, 30A 600V AC, Thermoplastic

Technical Information

Actuator
Toggle
Amperage
30 A
Applications
For Motor Disconnect and Indoor Use
Conductor Size
10 AWG
Current
30 A
Grade
Industrial
Horsepower
20 hp
Number of Poles
3
Operating Cycles
10000
Type
Non-Fused, Standard-Duty
Wattage
18000 W
Wire Size
10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Circuit-Lock®

General Product Info

12-Digit UPC
783585680910
Color
Black
GTIN
00783585680910
Product UPC
78358568091
Weight
1.6 lb

Dimensions

Height
3.4 in
Length
4.52 in
Width
3.97 in

Certifications & Compliance

Country of Origin
China
Overview
  • Top, bottom or back wire entry points
  • Switch can be locked in the OFF position as a method of compliance with OSHA lockout/tagout
  • Wiring conduit knockouts
  • Thermoplastic cover on a plated steel base
  • Durable, non-conductive cover
  • Surface mount control
  • ½\" and ¾\" NPT
