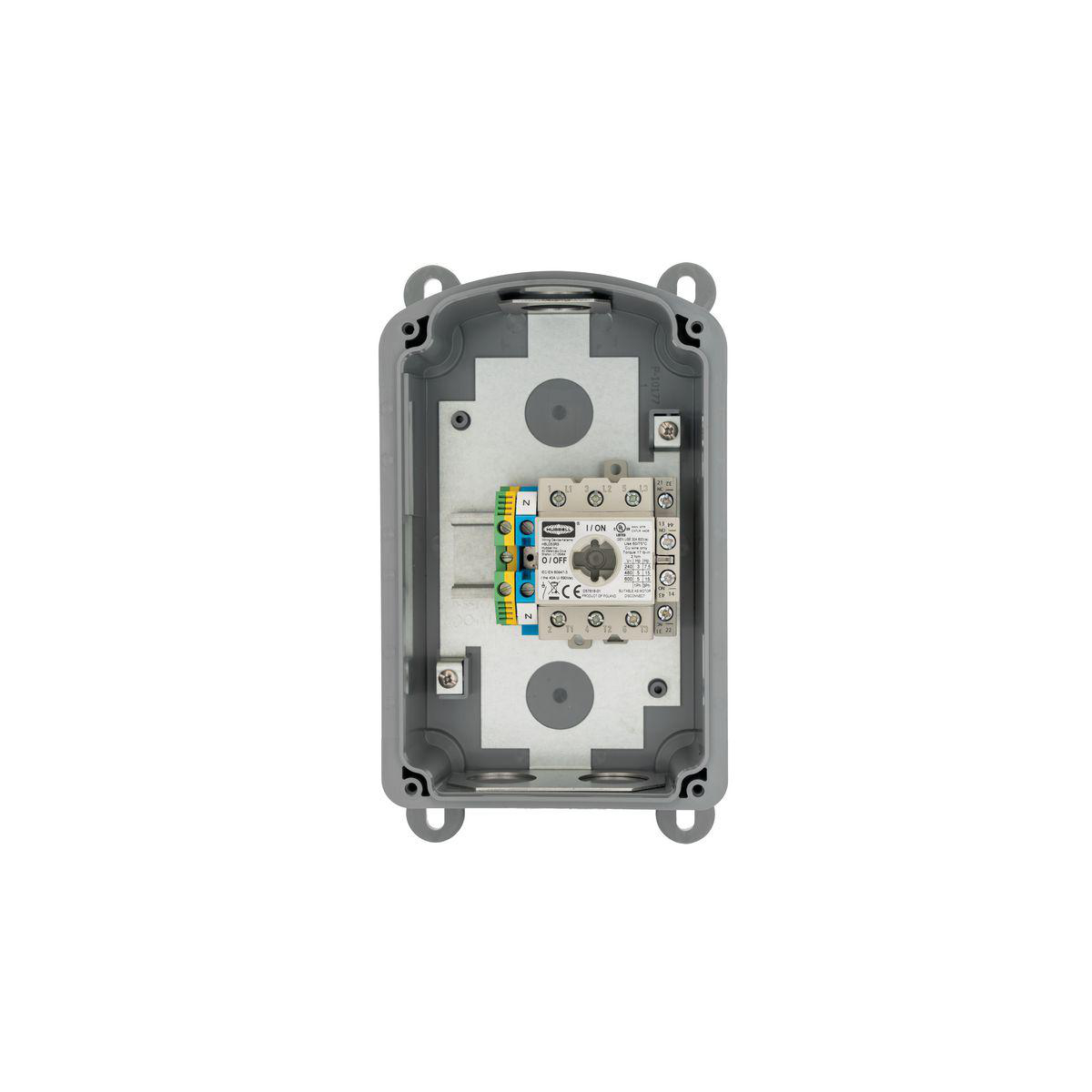

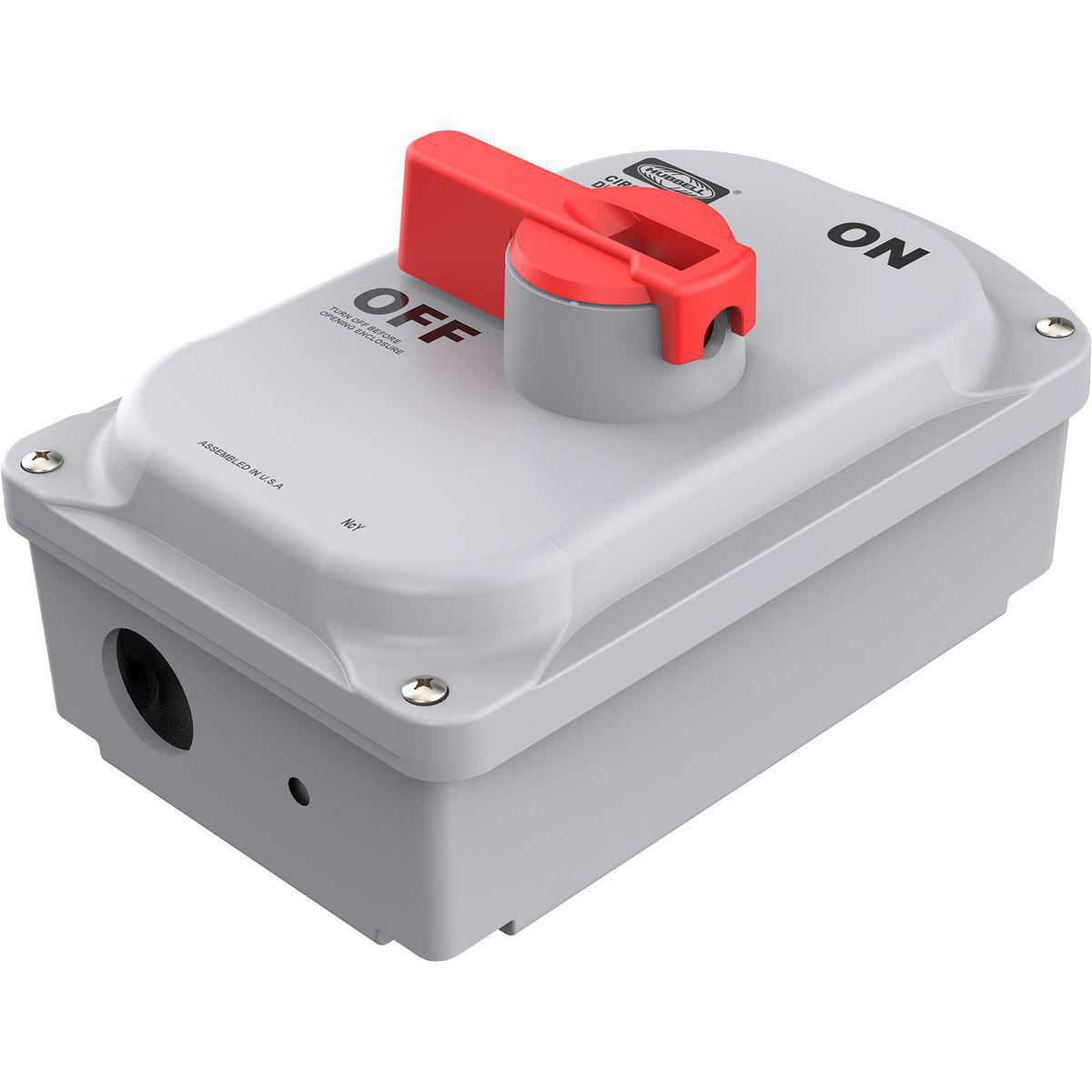

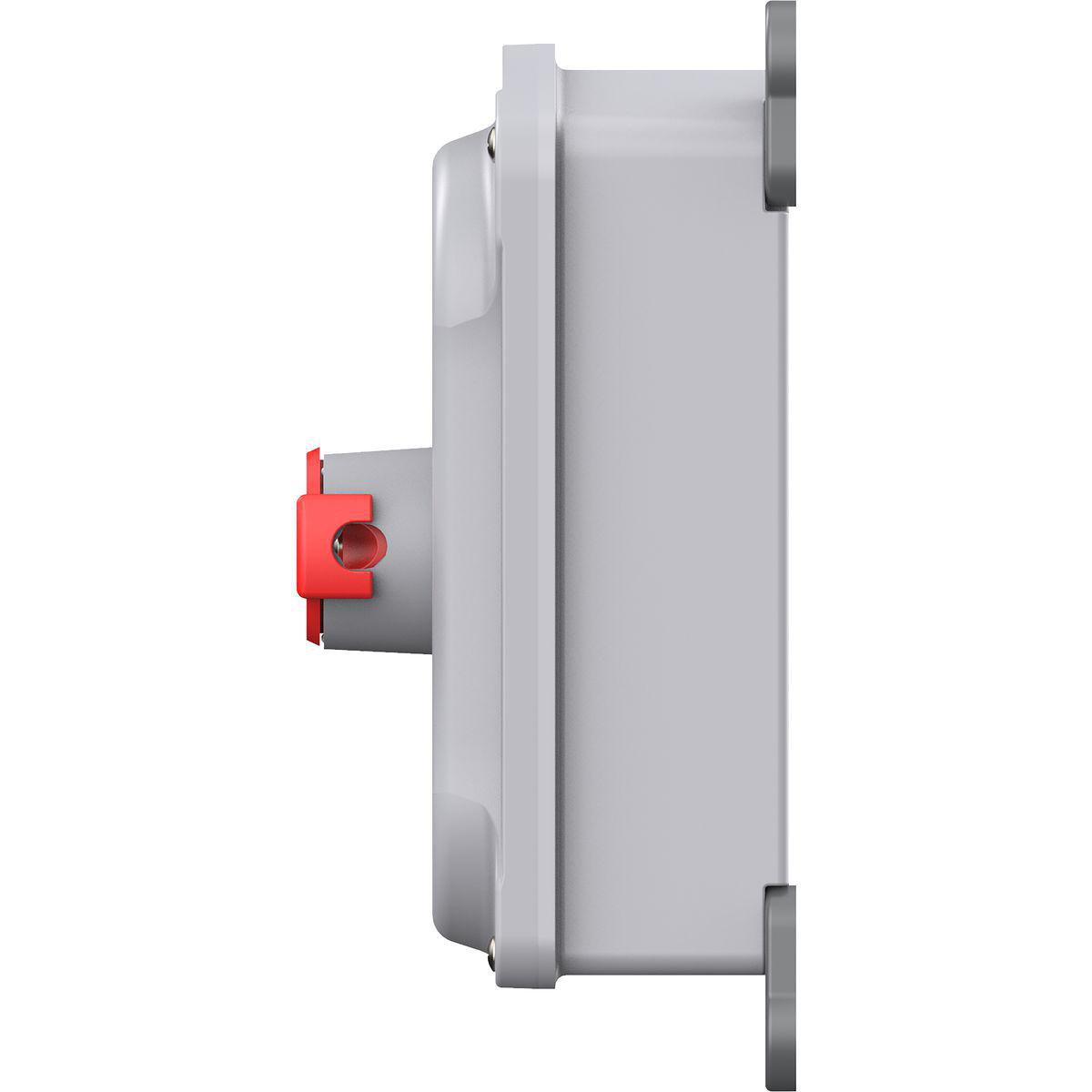

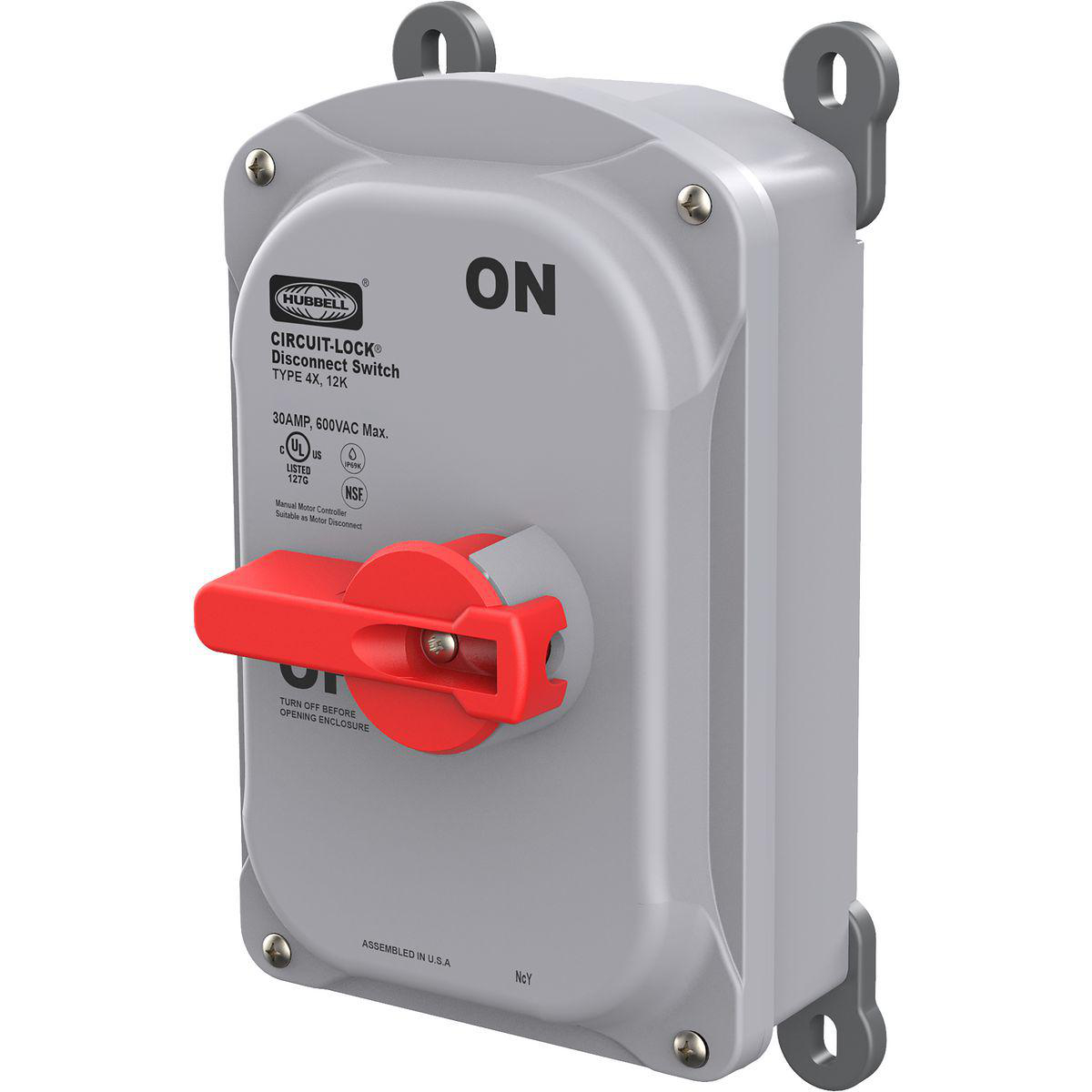

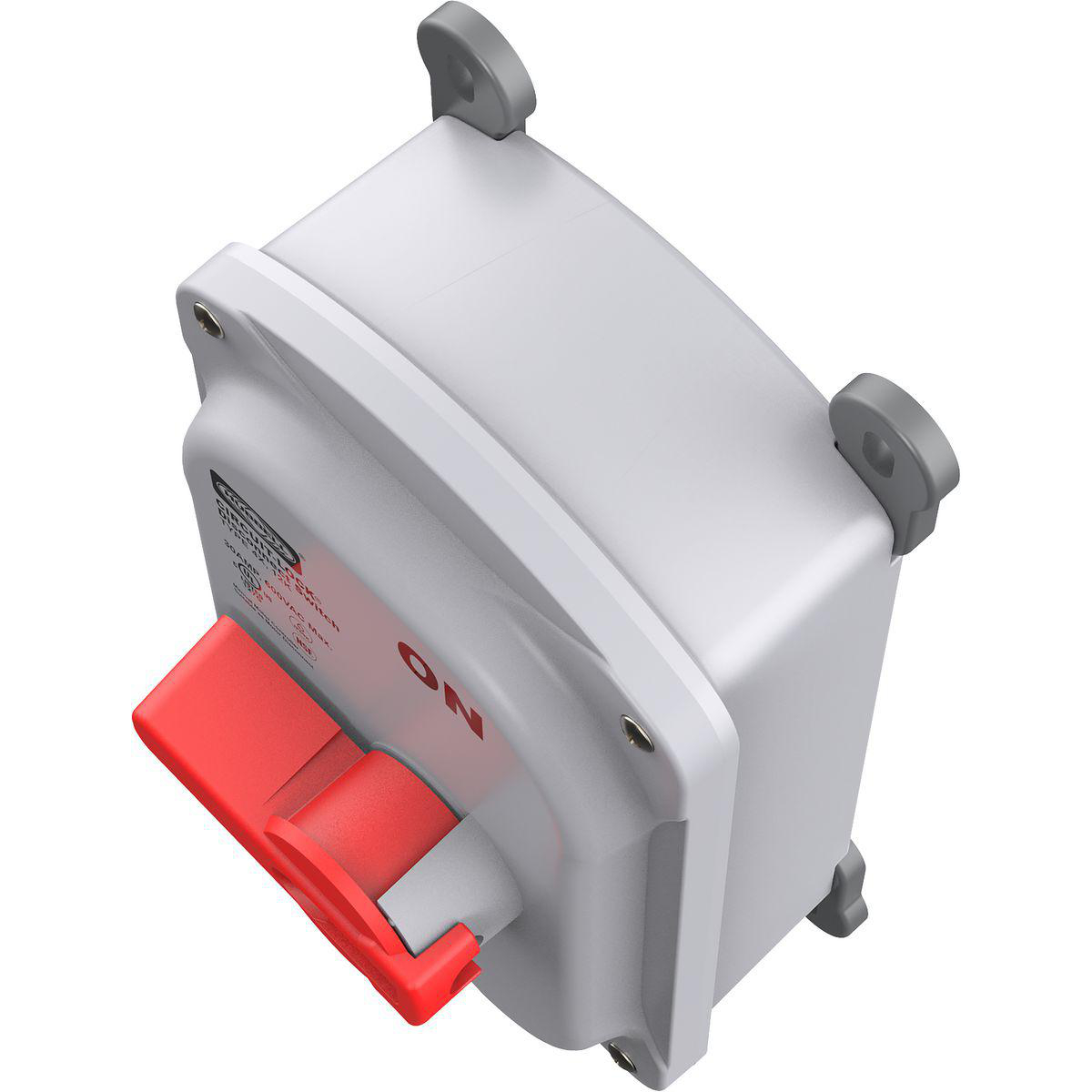

Product image for NM SLOPED DISC, 30A UNFUSED, 4X,VFD AUX
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

NM SLOPED DISC, 30A UNFUSED, 4X,VFD AUX

Manufacturer: Hubbell Wiring Devices | Catalog # HBLDS30VFD | Electrozad South Part # 413642
$528.59 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12, Non-Metallic Sloped Top Enclosure, HBLAC2 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A

Technical Information

Current
30 A
Horsepower
15 hp
Hub Size
3/4 in
Wire Size
14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585763064
Color
Gray
GTIN
00783585763064
Product UPC
78358576306
Shape
Rounded Top
Weight
2.8 lb

Dimensions

Height
4.12 in
Width
5.5 in

Certifications & Compliance

Country of Origin
Poland
