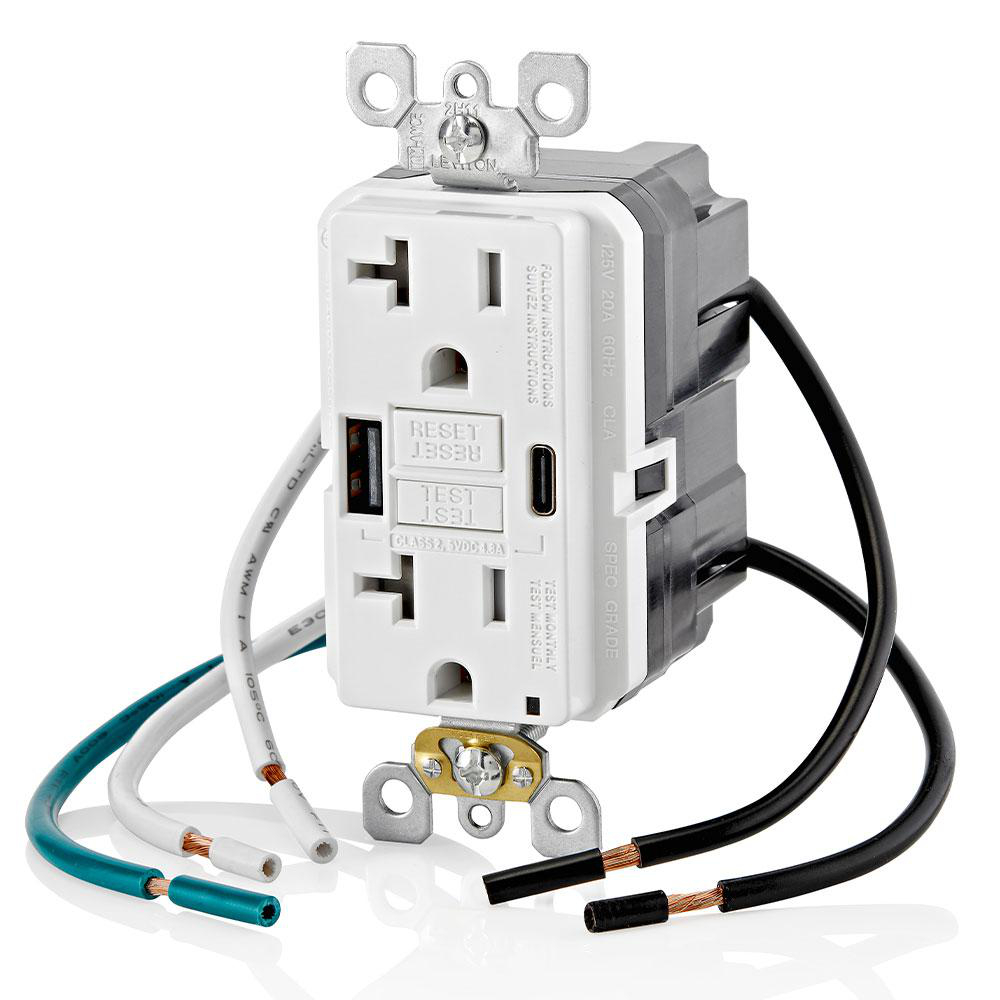

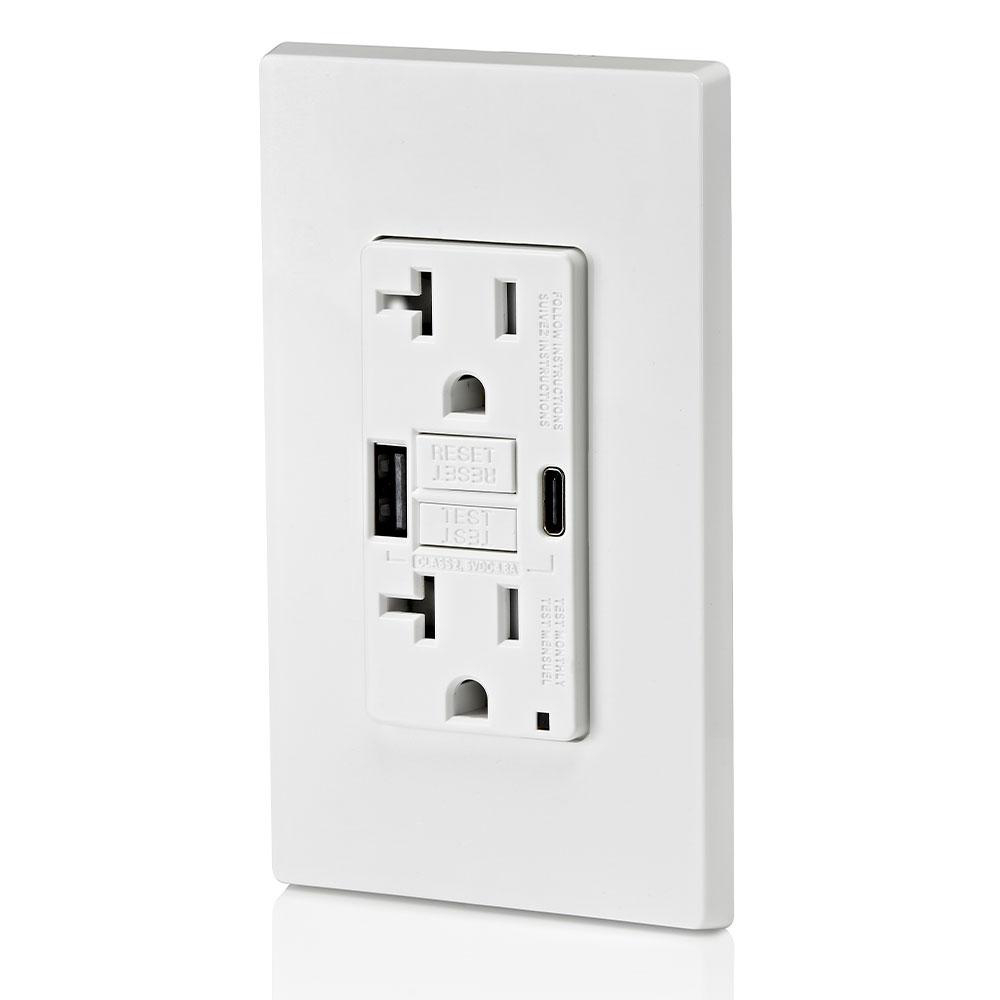

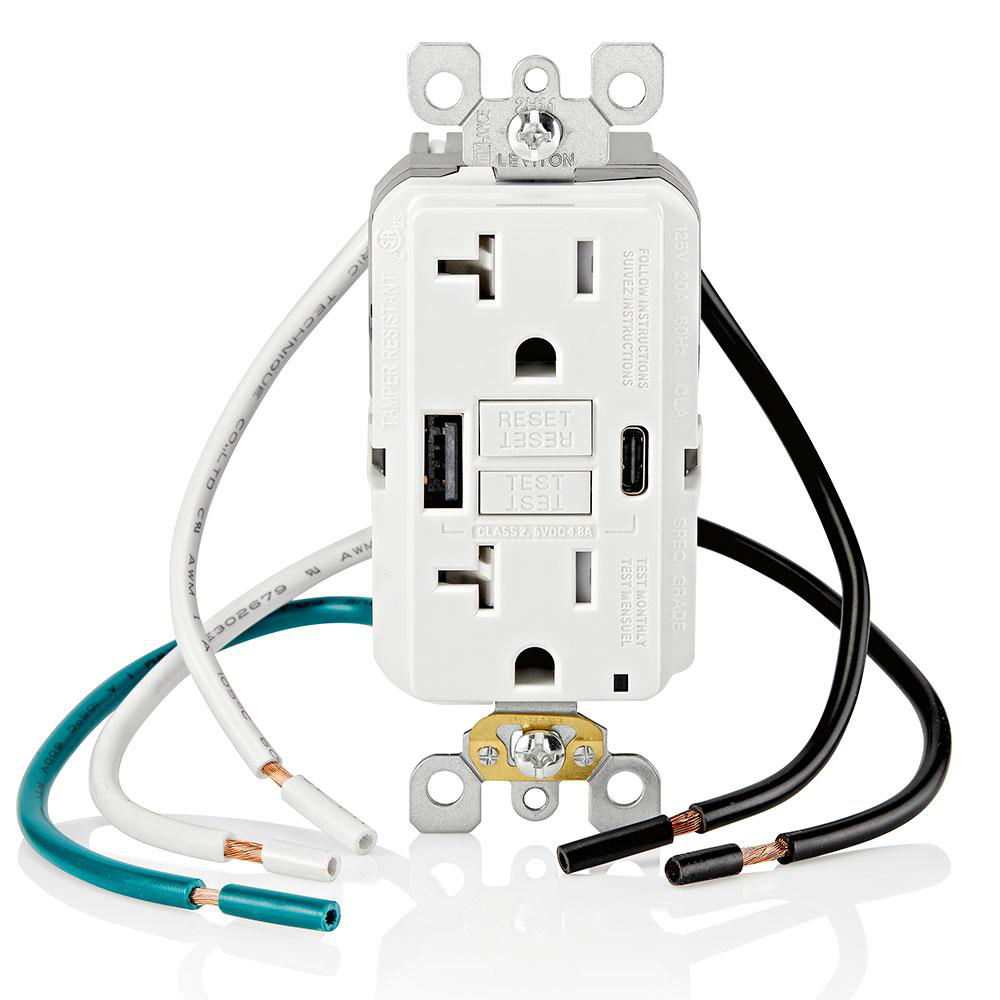

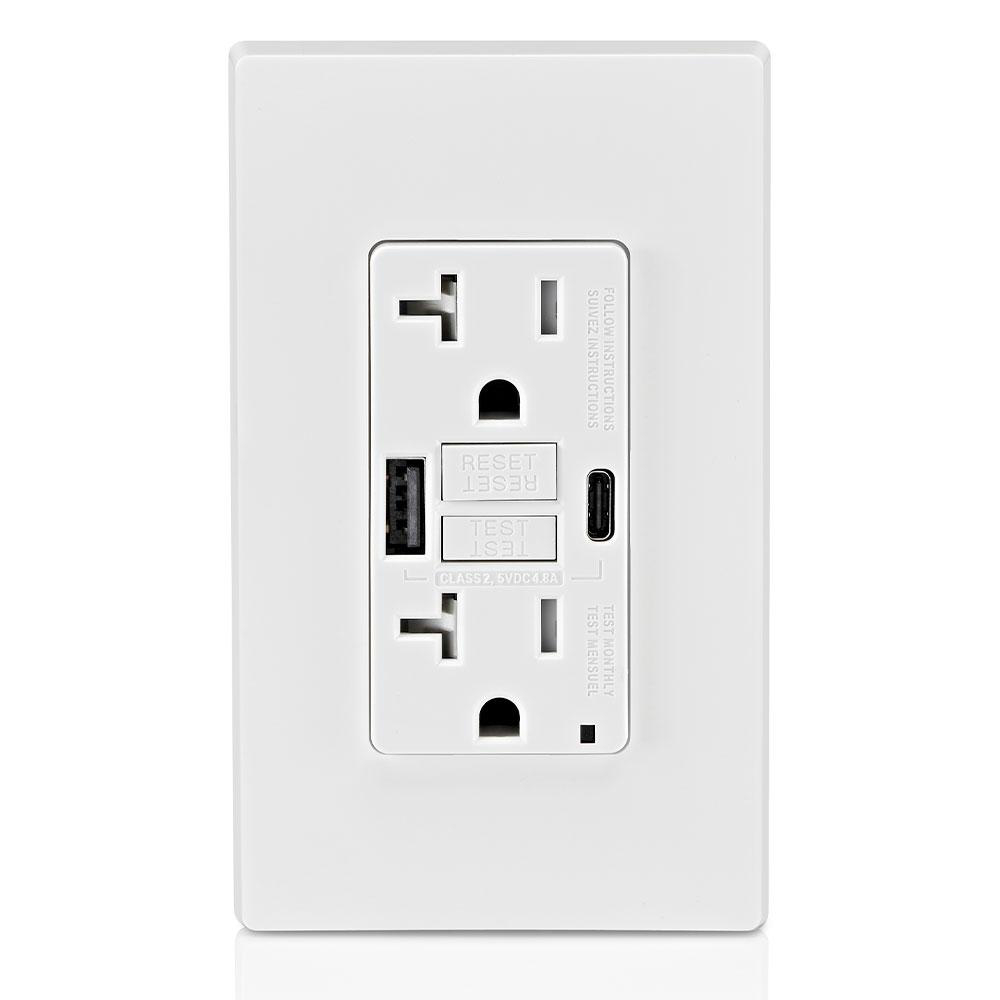

Product image for 20A SmartlockPro® Self-Test GFCI Combination 24W(4.8A) Type A/C USB In-Wall
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

20A SmartlockPro® Self-Test GFCI Combination 24W(4.8A) Type A/C USB In-Wall

Manufacturer: Leviton Manufacturing | Catalog # GUAC2-W | Electrozad South Part # 415371
$70.79 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
20 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-Test SmartlockPro® Self-Test GFCI Combination Type A/C USB In-Wall Charger, Wire Leads, NEMA 5-20R, 24W (4.8 Amps), Type-A/C USB Chargers, screws and self-grounding clip included ... White

Technical Information

Amperage
20 A
Body Material
Thermoplastic
Connection Type
Wire Lead
Dielectric
1250 V
Dielectric Strength
1250 V
Face Material
Thermoplastic
Flamability Class
UL94, 5VA
Grade
Commercial, Residential
Grounding
Self-Grounding
Material
Thermoplastic
NEMA
5-20R
Number of Poles
2
Number of Wires
5
Operating Temperature
-10 degrees C
Temperature Rating
-10 to 40 degrees C
Temperature Rise
150 %
Termination Type
Wire Leads
Type
Self-Test

Manufacturer Information

Brand
Leviton
Sub Brand
Smart-Lock Pro

General Product Info

12-Digit UPC
078477996119
Color
White
GTIN
00078477996119
Product UPC
07847799611

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
Mexico - Pending
