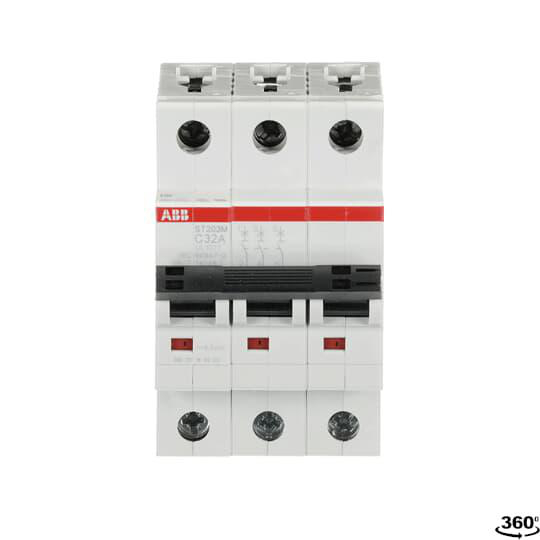

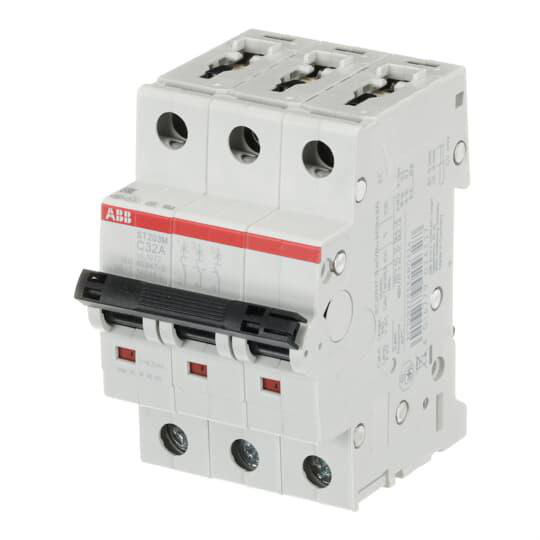

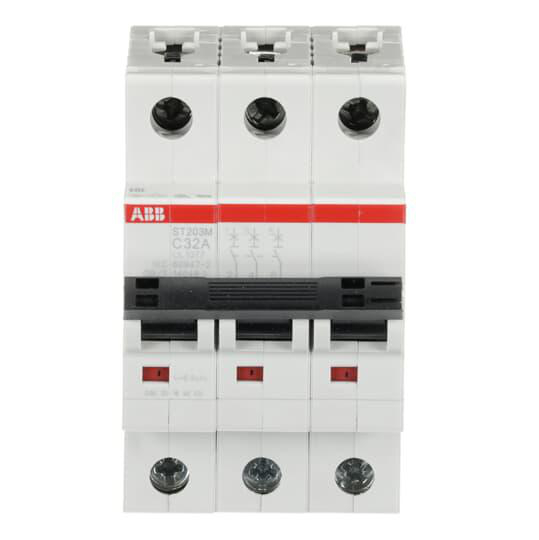

Product image for ABB ST203M-C32 BREAKER MCB ST200M 3P C CURVE 32A UL1077
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

ABB ST203M-C32 BREAKER MCB ST200M 3P C CURVE 32A UL1077

Manufacturer: ABB Inc | Catalog # ST203M-C32 | Electrozad South Part # 415730
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Miniature Circuit Breaker, Supplementary Protector, Rated Current 32 Amps, 3 Poles, Interrupt Rating 10 kA, Thermal Magnetic Trip Curve C, Voltage up to 277/Y480 VAC, 60/125 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 1077, CSA 22.2 No. 235

Technical Information

Actuator
Toggle
Amperage
32 A
Interrupt Rating
10 kA
Mounting Type
DIN Rail
Number of Poles
3
Temperature Rating
-25 to 55 degrees C
Trip Range
1.03 - 1.25 A Thermal, 5 - 10 A Electromagnetic
Trip Type
C-Curve, Thermal, Electromagnetic

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
888614807600
Environmental Conditions
28 Cycles with 90 - 96% at 55 °C and 95 - 100% at 25 °C
GTIN
04016779024327
Housing Material
Thermoplastic
Product UPC
16779032759
