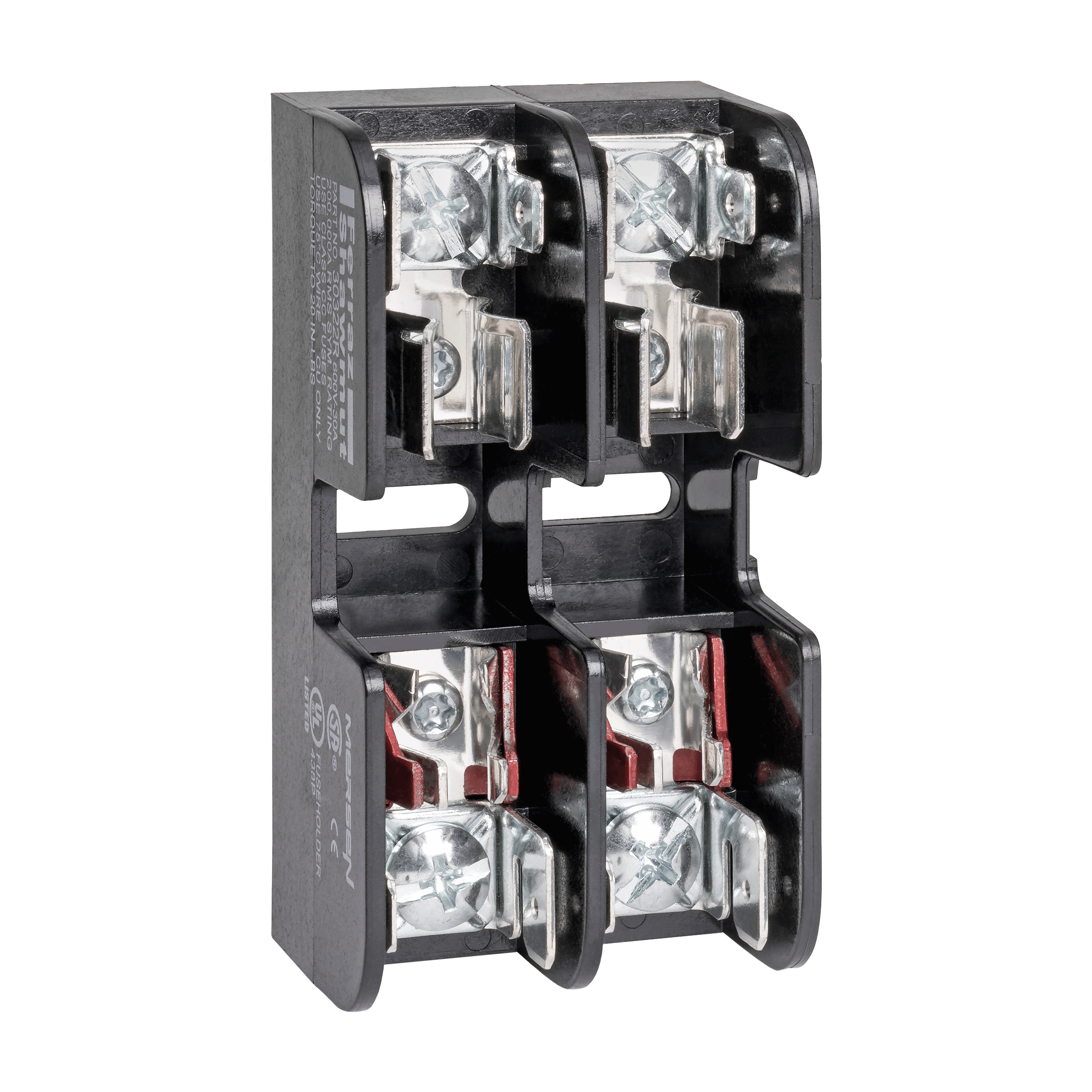

MERSEN 30322R FUSEBLOCK CLASS CC 30A 600V 2-POLE PPLATE #10G-#14G FOR USE W/ ATDR ATMR ATQR

Manufacturer: Ferraz Shawmut Mersen | Catalog # 30322R | Electrozad South Part # 41772
$15.82 /ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
Mersen midget fuse blocks accommodate all 30 ampere 1-1/2... x 13/32... midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.

Technical Information

Amperage
30 A
Connector Type
Pressure Plate with Double Quick Connects
Frequency
50/60 Hz
Fuse Class
Class CC
Fuse Interrupt Rating
30 A
Fuse Type
10 x 38 mm Class CC
Insulation Material
GFPC
Max Operating Temperature
80 degrees C
Mounting Type
DIN Rail,Screw Mount
Number of Poles
2
Rated Voltage AC
600 V
Rated Voltage DC
600 V
TC Connection
Pressure Plate With Double Quick Connects
Torque
20 lb-in
Torque Rating
20 lb-in
Type
Open-Style
Voltage
600 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001750404
Class
CC
GTIN
00782001750404
Product UPC
78200175040
Weight
0.23 lb

Dimensions

Height
1.31 in
Length
3.04 in
Width
0.85 in

Certifications & Compliance

Country of Origin
Mexico
