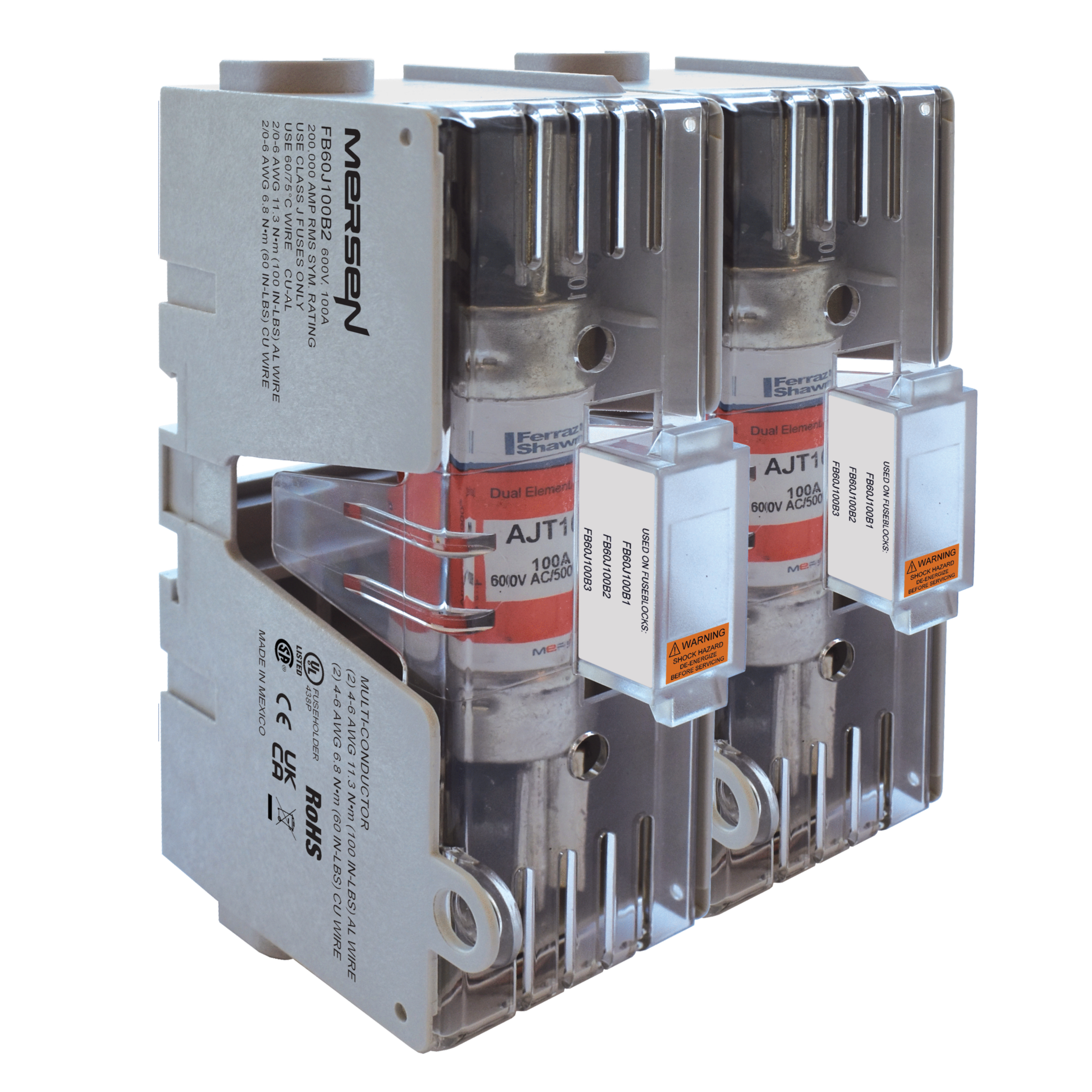

MERSEN FB60J100B2 FUSEBLOCK CLASS J 100A 2-POLE 600V SPRING REINFORCED BOX TYPE 2/0 - #6G WIRE RANGE ALUM COPPER

Manufacturer: Ferraz Shawmut Mersen | Catalog # FB60J100B2 | Electrozad South Part # 419798
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen...s new Generation 2 open style class J fuse blocks accommodate class J fuses ranging from 0-100A, 600V. A choice of screw, pressure plate, and box connectors fit a wide range of stranded or solid wire. Gen2 fuse blocks are DIN-rail mountable, more compact than the traditional offering, and feature dovetail nesting for multipole field assembly. Fuse bases are IP20 rated when paired with Mersen...s newly designed dead front covers.

Technical Information

Connection Type
Box
Frequency
50/60 Hz
Fuse Type
Class J
Number of Poles
2
Terminal Material
Tin-Plated Copper

General Product Info

12-Digit UPC
782001505196
GTIN
00782001505196
Weight
0.92 lb

Dimensions

Height
2.88 in
Length
5.35 in
Width
3.8 in
