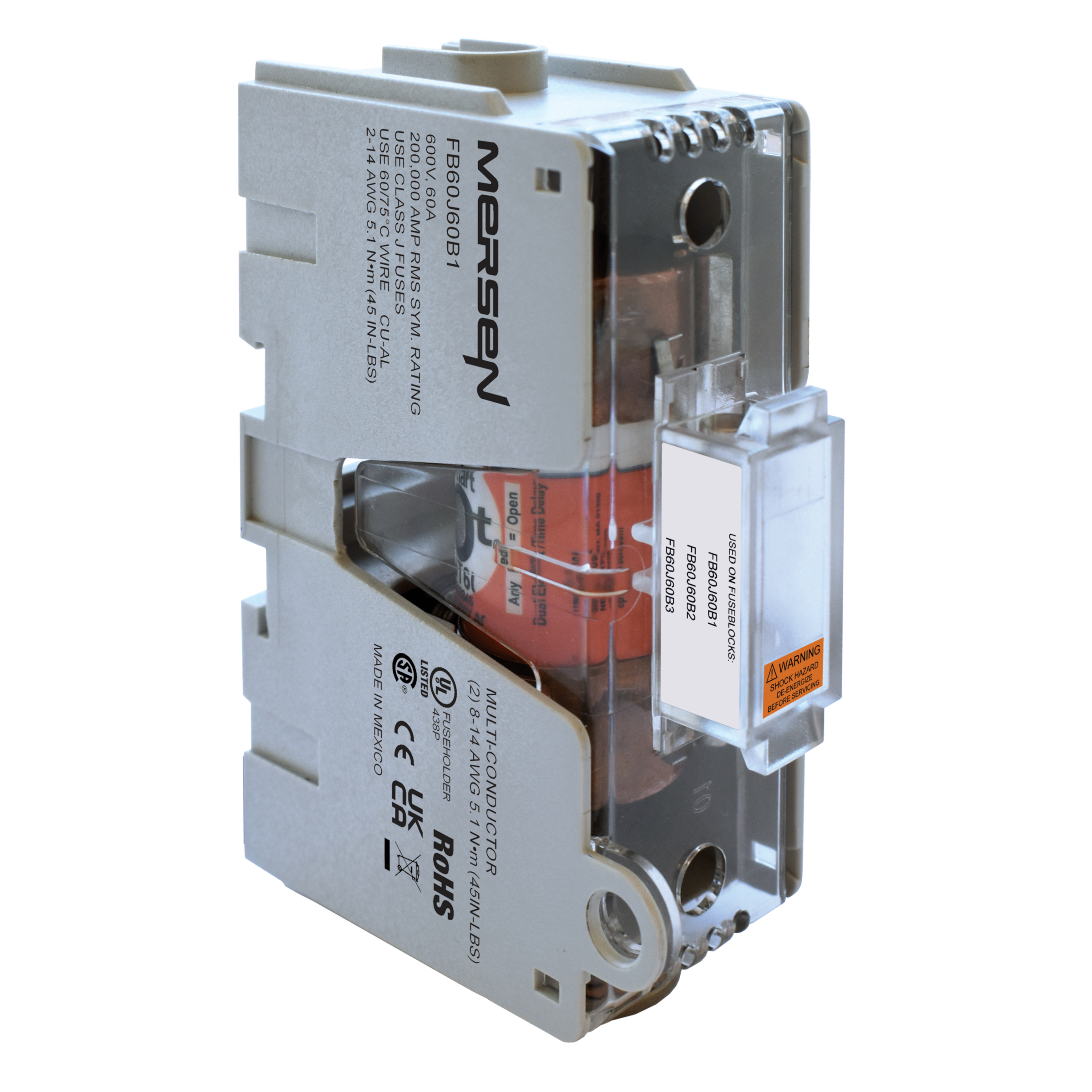

MERSEN FB60J60B1 FUSE BLOCK J TYPE 60A 600V 1POLE

Manufacturer: Ferraz Shawmut Mersen | Catalog # FB60J60B1 | Electrozad South Part # 420009
$21.23 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen...s new Generation 2 open style class J fuse blocks accommodate class J fuses ranging from 0-100A, 600V. A choice of screw, pressure plate, and box connectors fit a wide range of stranded or solid wire. Gen2 fuse blocks are DIN-rail mountable, more compact than the traditional offering, and feature dovetail nesting for multipole field assembly. Fuse bases are IP20 rated when paired with Mersen...s newly designed dead front covers.

Technical Information

Connection Type
Box
Frequency
50/60 Hz
Fuse Type
Class J
Number of Poles
1
Terminal Material
Tin-Plated Copper

General Product Info

12-Digit UPC
782001505158
GTIN
00782001505158
Weight
0.24 lb

Dimensions

Height
2.77 in
Length
4.25 in
Width
1.5 in
