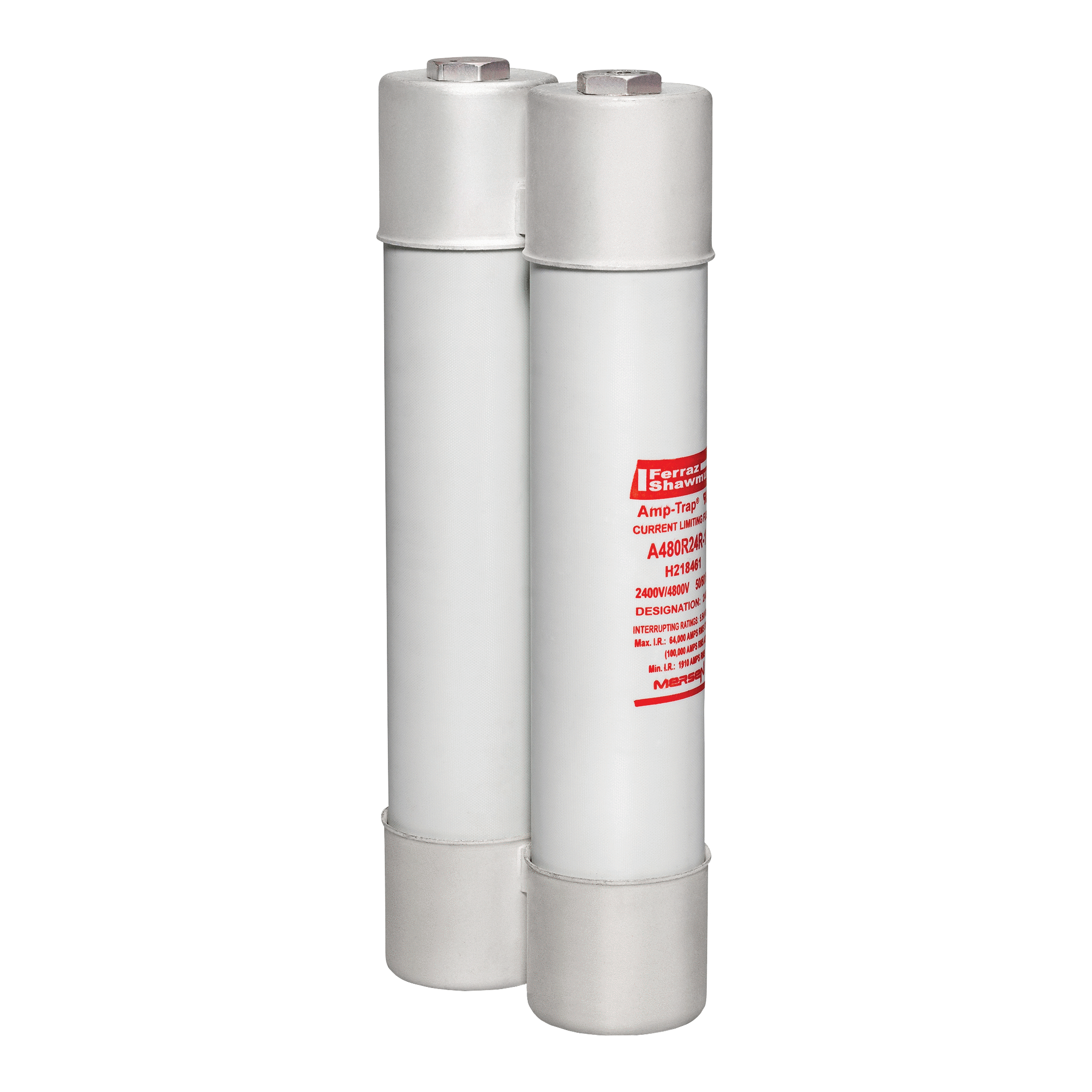

Back-Up R-Rated Medium Voltage Fuse 4800VAC 24R Mounting: Ferrule Visual Indicator Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # A480R24R-1 | Electrozad South Part # 420092
$5,666.56 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips

Technical Information

Applications
For Medium Voltage Motors and Motor Controllers
Connection Type
Ferrule
Frequency
50/60 Hz
Indicator
Visual Indicator
Insulation Material
Epoxy
Interrupt Rating
50 kA
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
4800 V
TC Connection
Ferrule
Terminal Material
Silver-Plated Copper
Terminal Type
Ferrule
Type
R-Rated, Back-Up
Voltage
4800 V

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001800666
GTIN
10782001800663
Weight
19.9 lb

Dimensions

Height
6.41 in
Length
15.88 in
Width
6.41 in

Certifications & Compliance

Country of Origin
Mexico
