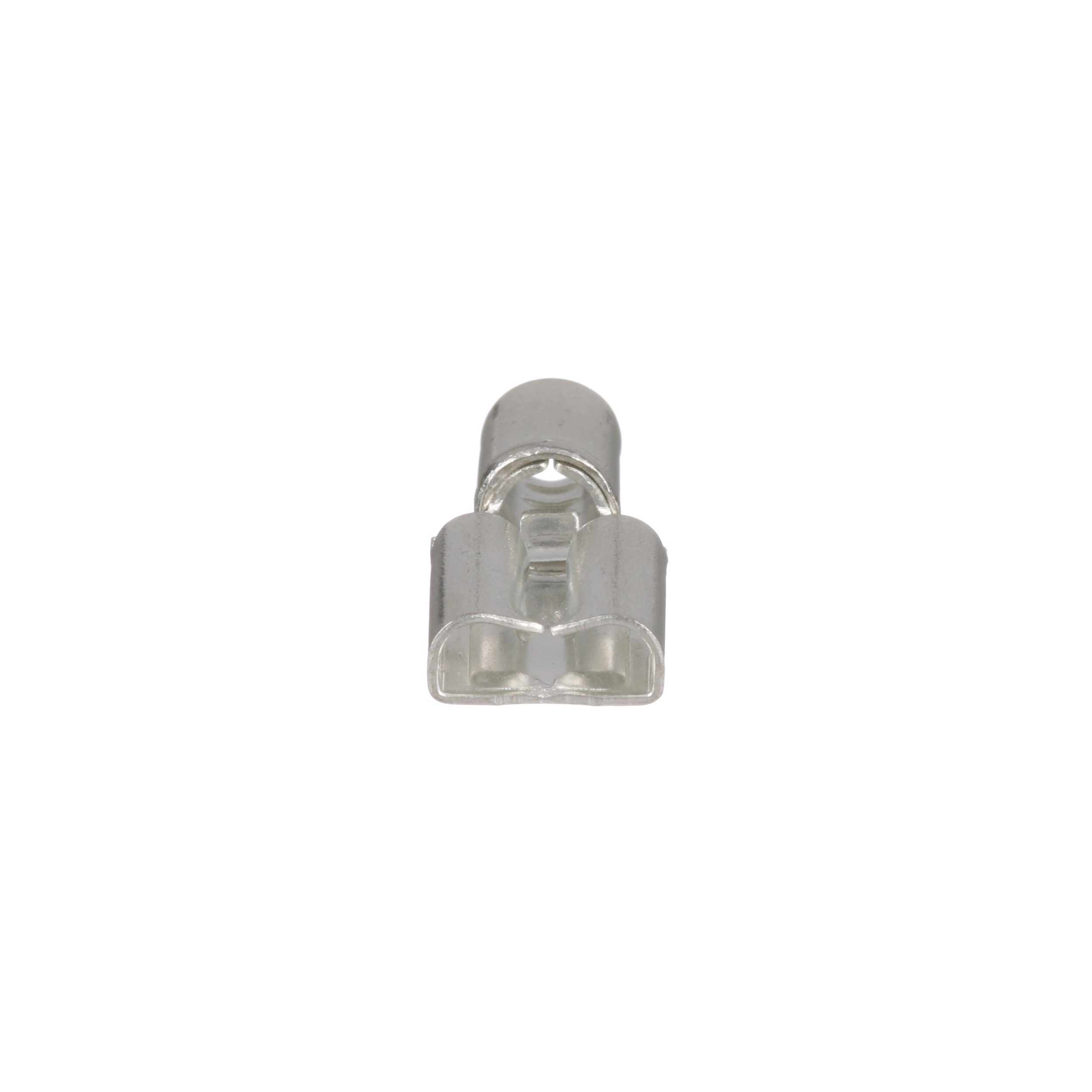

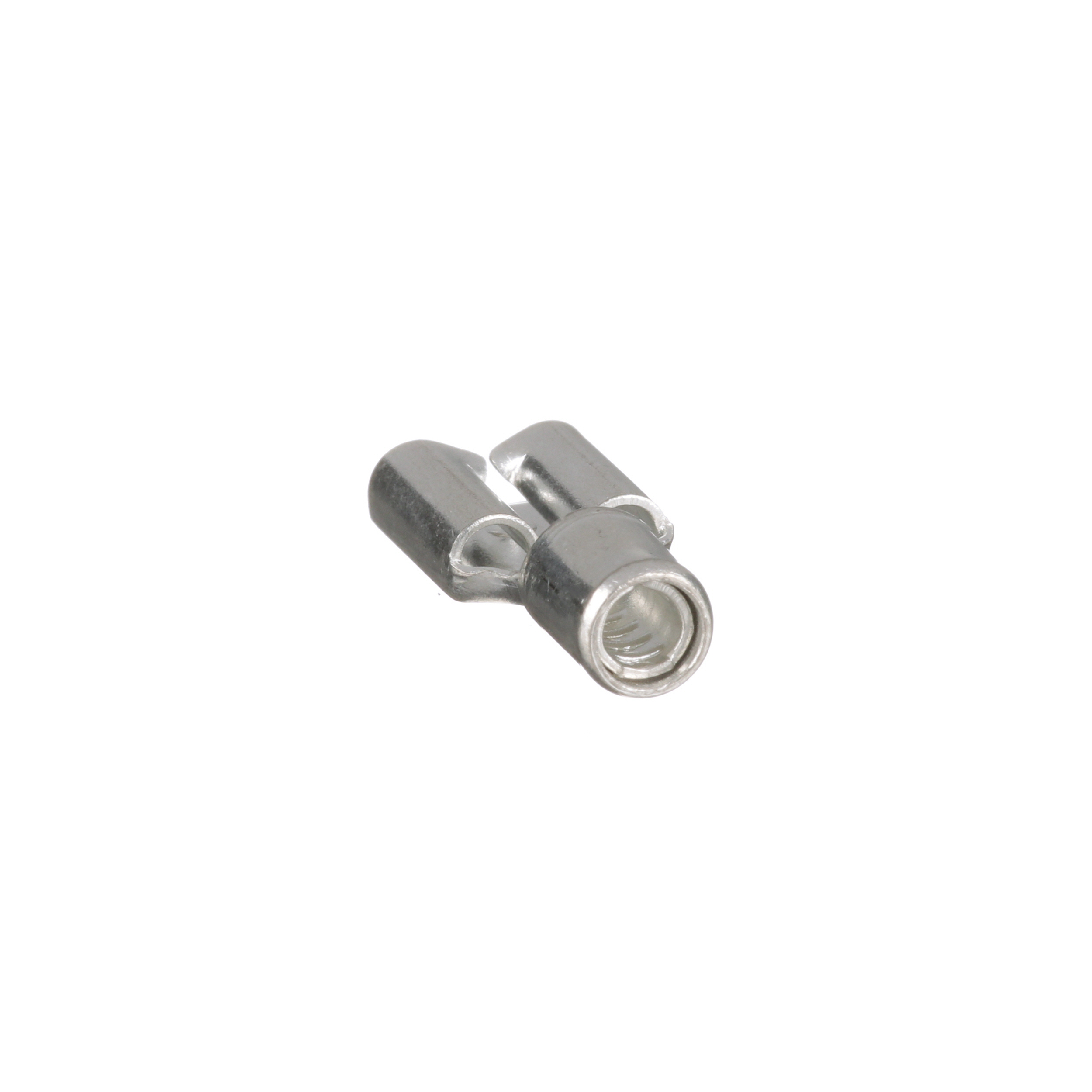

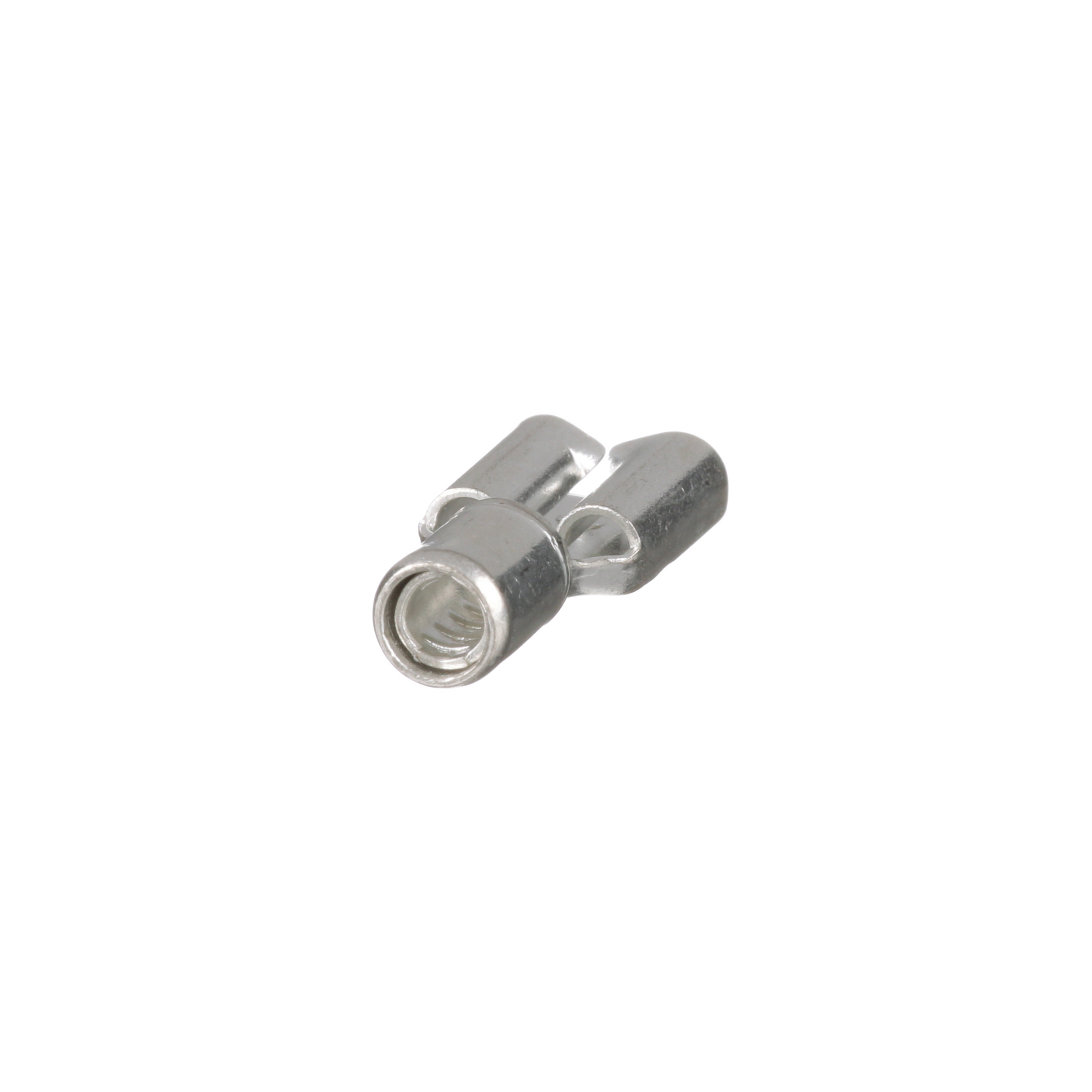

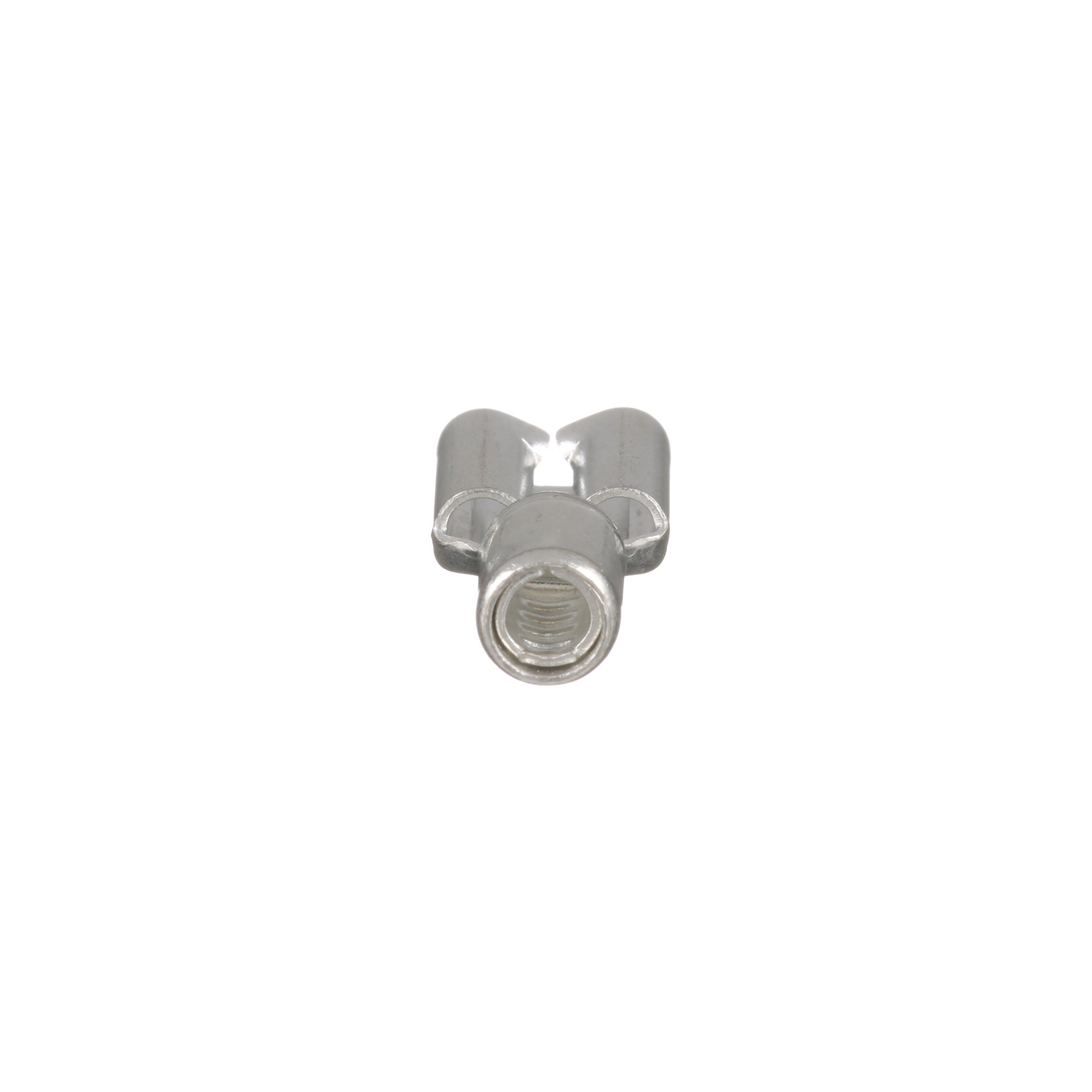

Pan-Term® D14-250-C Loose Piece Disconnect

Manufacturer: Panduit | Catalog # D14-250-C | Electrozad South Part # 42043
$82.56 /c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
200 available

For Delivery

Not in local stock *
Check another branch
D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
The vibration resistant female disconnect in metallic brass helps overcome the failures caused by high vibration. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm..). It is 0.66" (16.8 mm) long and 0.3" (7.6 mm) wide. The disconnect is non-insulated, tin-plated, has a standard barrel configuration and a sleeved barrel. It comes bottles of 100.

Technical Information

Barrel Type
Sleeved Barrel
Color Coding
Metallic
Material
Brass
Max Operating Temperature
150 degrees C
TC Connection
Standard
Temperature Rating
302 F
Type
Disconnect
Wire Size
#14 AWG

Packaging

Package Qty
100

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983822027
Finish
Tinned
GTIN
00074983822027
Product UPC
07498382202
UNSPSC
39121409

Dimensions

Height
0.12 in
Overall Length
0.66 in
Width
0.3 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
