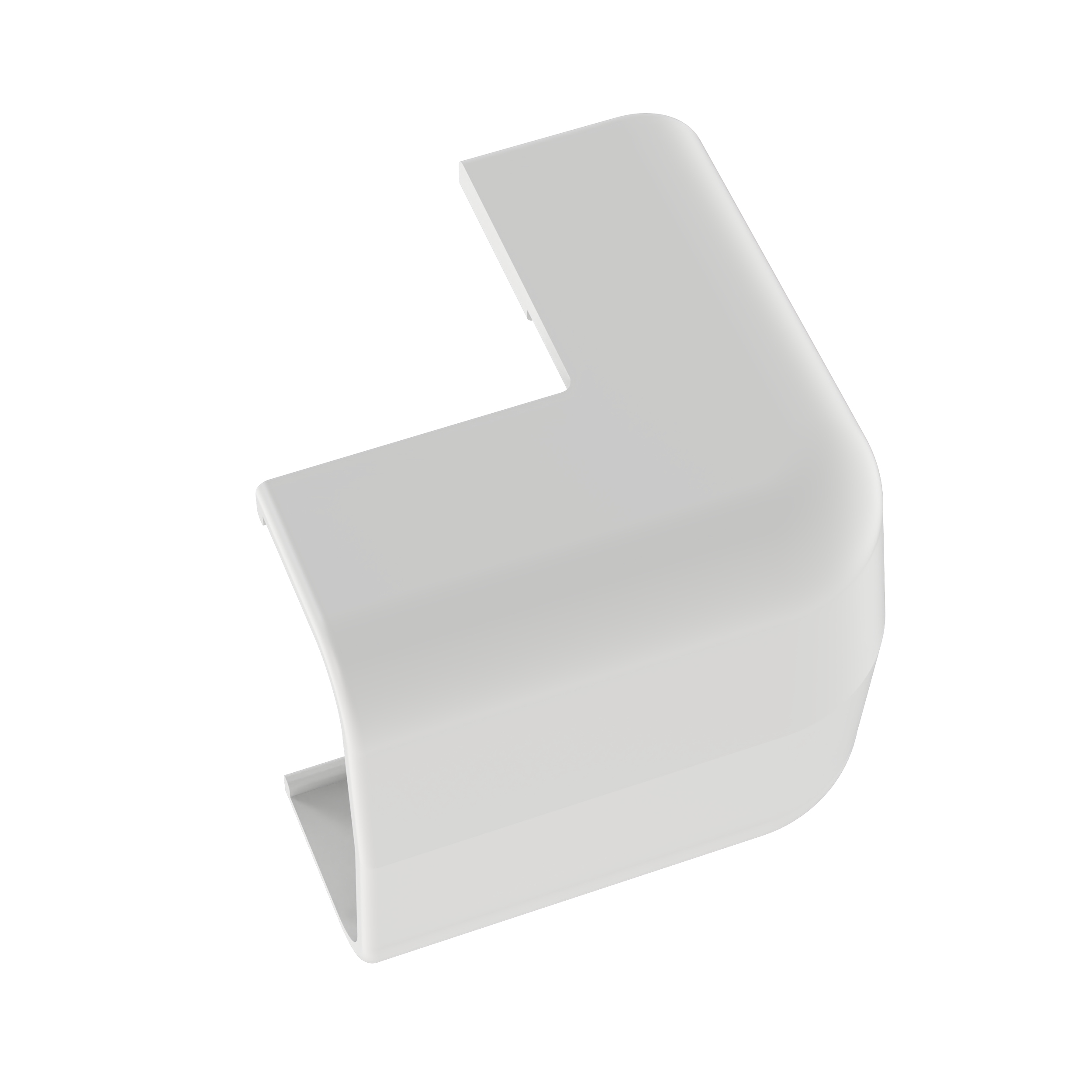

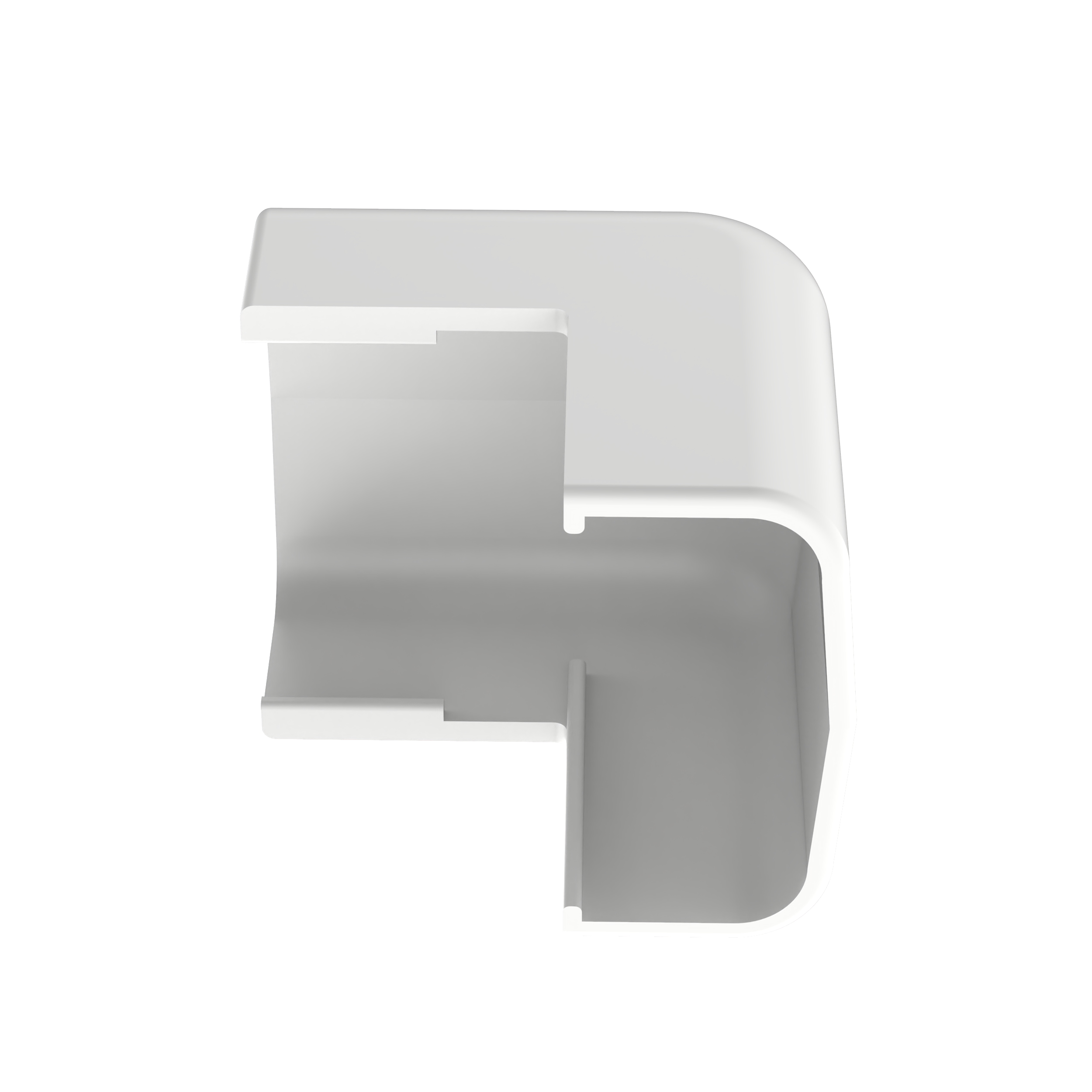

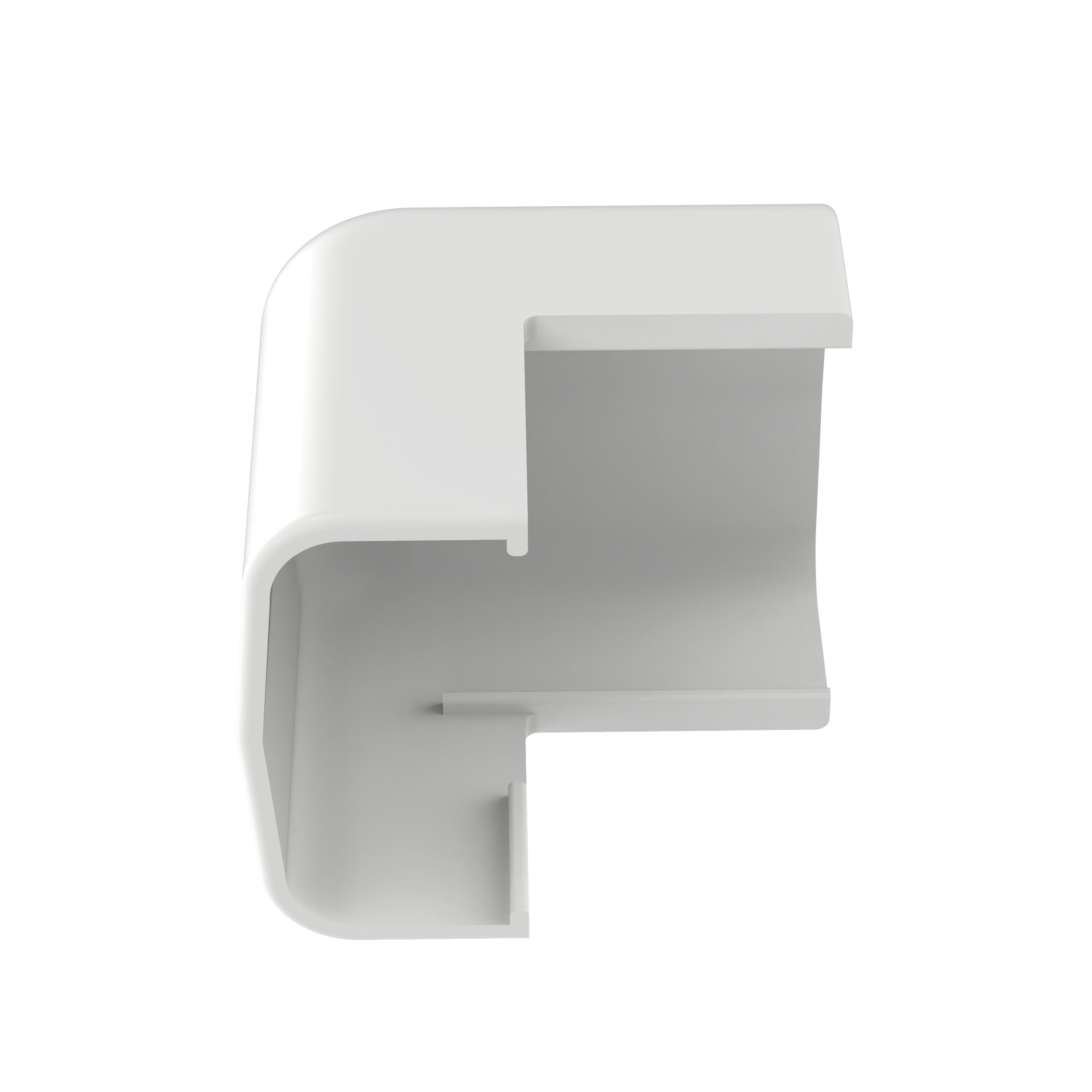

Surface Raceway, LD5 O/S Corner Fitting, Low Voltage, White

Manufacturer: Panduit | Catalog # OCF5WH-E | Electrozad South Part # 420987
$2.51 /ea
ea
Order in multiples of 20 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
The outside corner fitting is a Surface Raceway fitting designed to transition your raceway around an outside corner while maintaining a 1 inch bend radius. It is designed to be used with the LD5 raceway and features a snap-on installation. It meets TIA/EIA, used in applications up to 50 V, and is White.

Technical Information

Applications
For Routing of Power or Low Voltage Data and Fiber Optic Cabling Along Perimeter Walls
Cover Type
Outside Corner
Material
ABS
Mounting Type
Snap-On
Type
Low Voltage

Packaging

Package Qty
20

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Way

General Product Info

12-Digit UPC
074983585946
Color
White
GTIN
00074983585946
Product UPC
07498358594
Used With
LD5 Surface Raceway System

Dimensions

Height
0.58 in
Length
1.25 in
Overall Length
1.25 in
Width
31.8 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Costa Rica
