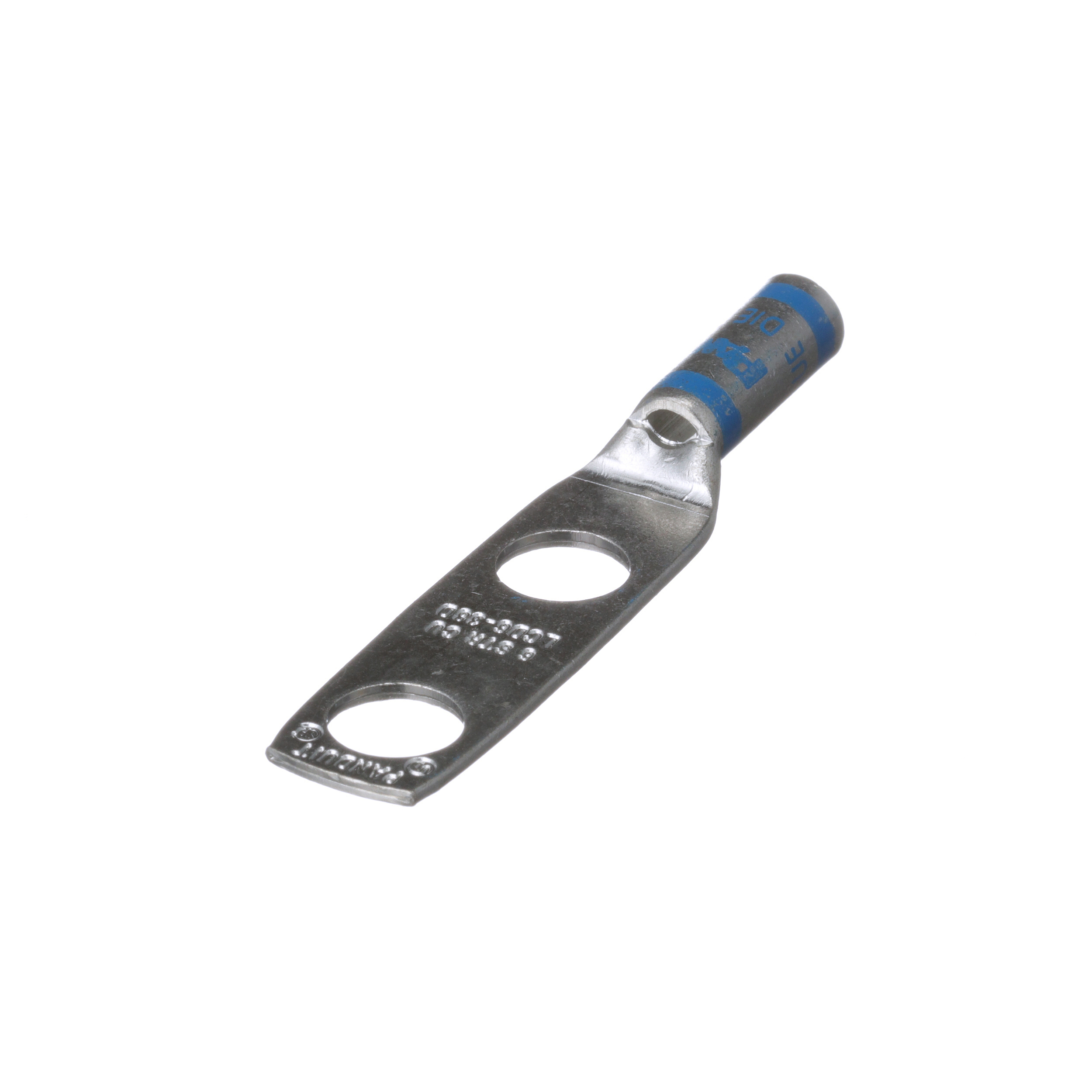

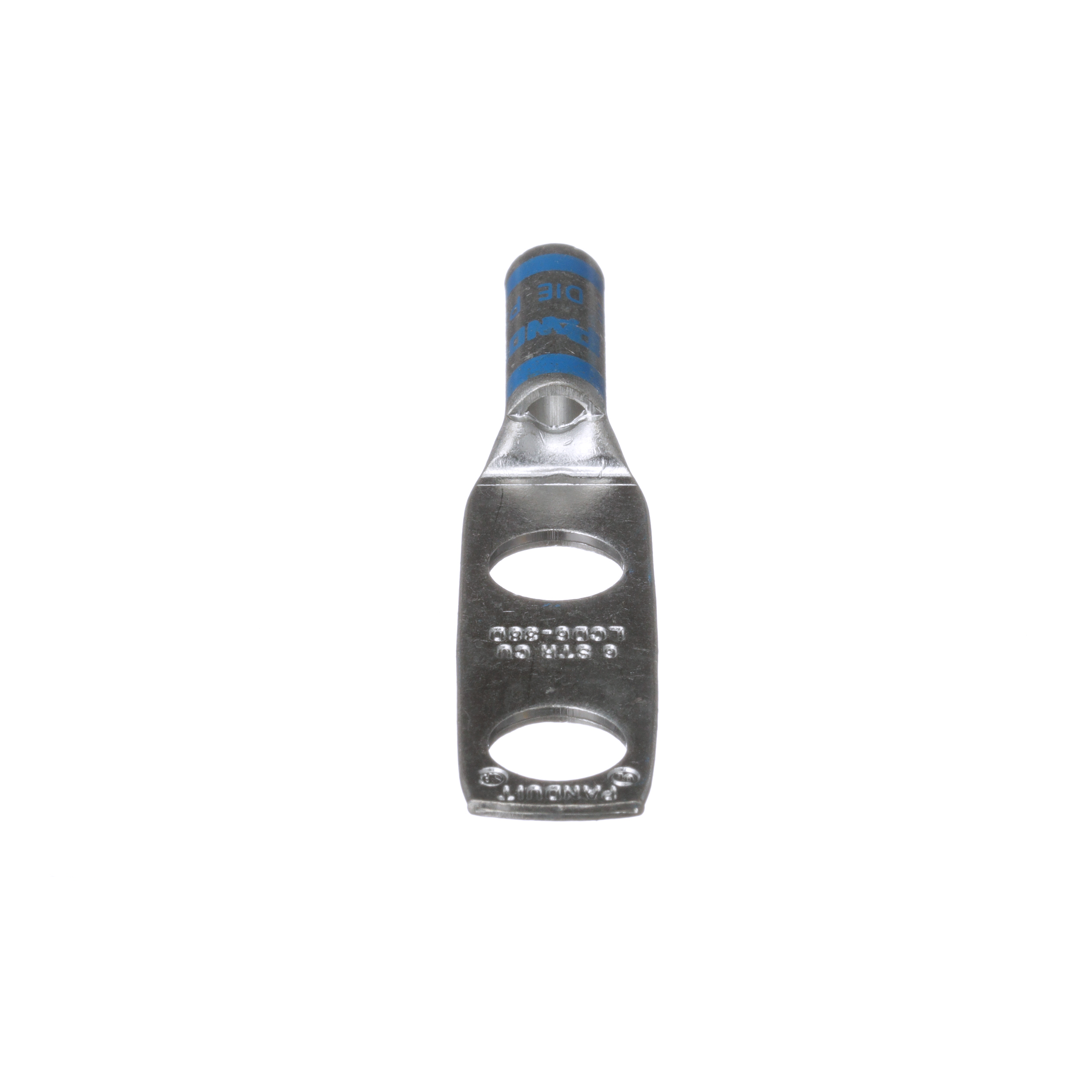

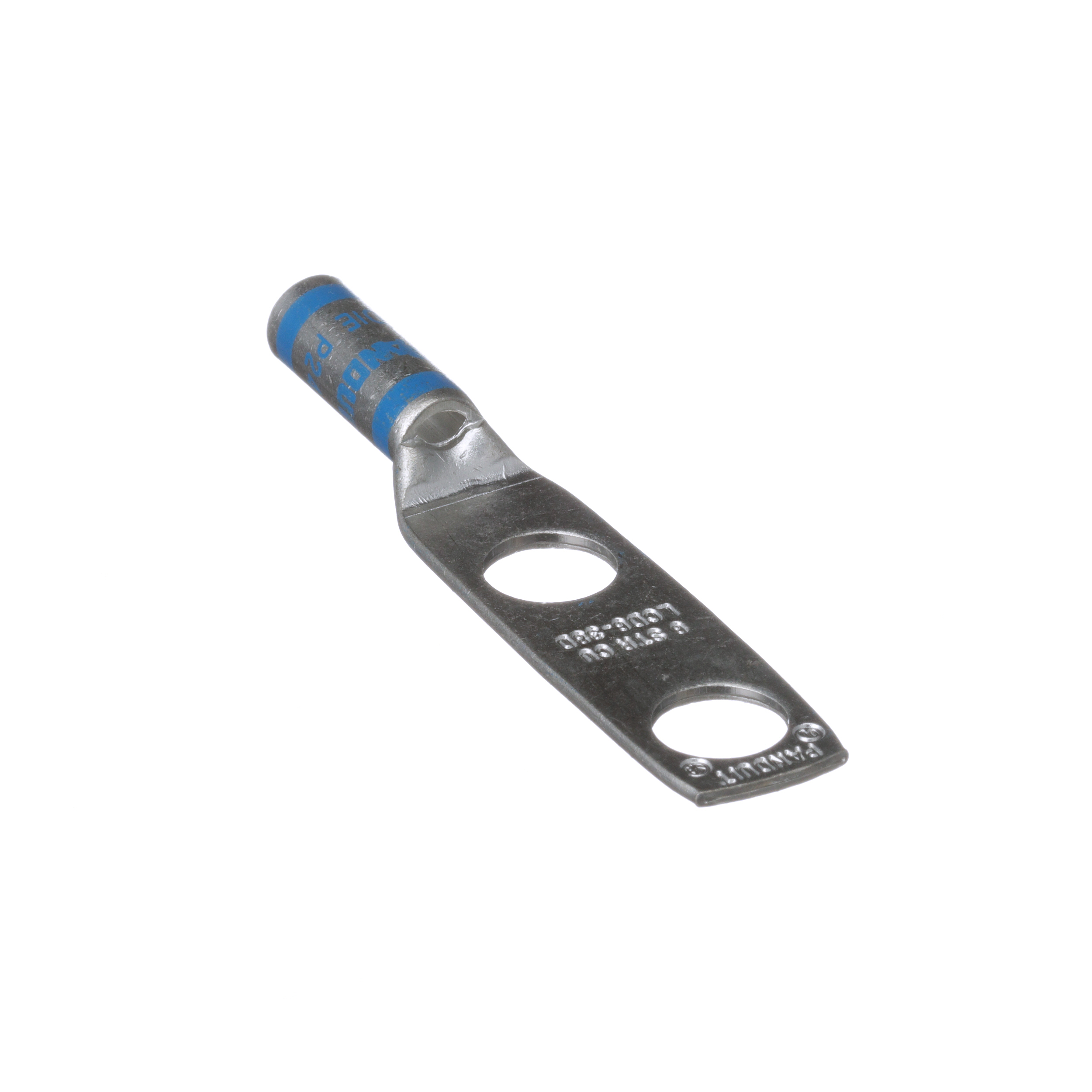

Pan-Lug™ LCD6-38D-L Copper Compression Connectors - Lugs

Manufacturer: Panduit | Catalog # LCD6-38D-L | Electrozad South Part # 421427
$940.94 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Two-hole, standard barrel lug with window, #6 AWG wire, 3/8 stud hole, 1 hole spacing.

Technical Information

Angle
Straight
Barrel Length
0.81 in
Barrel Type
Standard with Inspection Window, Straight
Cable Size
AWG
Conductor Size
6 AWG
Material
Copper
Mounting Type
Hole
Number of Holes
2
Size
#6 AWG Code
Standard
ANSI C-73
Stud Size
3/8 in
Tongue Thickness
0.06 in
Tongue Type
Standard
Tongue Width
0.62 in
Type
Type LCD

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983383139
Color
Olive, Orange, Royal Blue and Yellow
Finish
Tin Plated
GTIN
00074983383139
Product UPC
07498338313
UNSPSC
39121405

Dimensions

Overall Length
2.83 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
