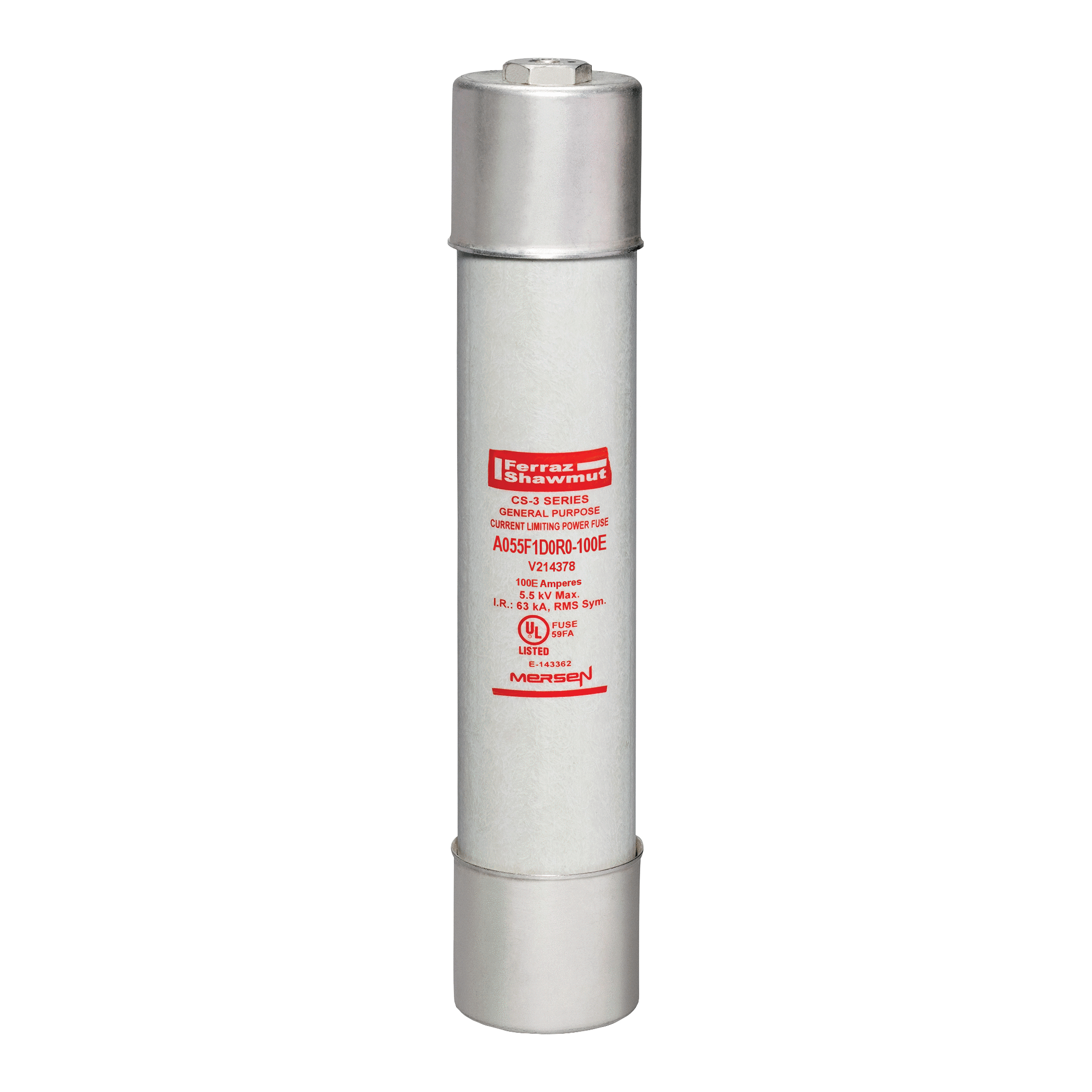

MERSEN A055F1D0R0-100E FUSE CS3 100E AMP E-RATED 5.5KV MAX 12"CC 3"BD

Manufacturer: Ferraz Shawmut Mersen | Catalog # A055F1D0R0-100E | Electrozad South Part # 42243
$1,687.12 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2" (size C), 3" (size D) and 2x3" (size DD) inch diameter barrels with ferrules and are mounted in spring reinforced clips.

Technical Information

Amperage
100 A
Applications
Protection for up to 5.5 kV Transformers or Distribution Systems
Connection Type
Ferrule
Frequency
50/60 Hz
Indicator
Visual Indicator
Insulation Material
PolyTube
Interrupt Rating
63 kA
Max Operating Temperature
80 degrees C
Mounting Type
Clips
Rated Voltage AC
5500 V
TC Connection
Ferrule
Terminal Material
Silver-Plated Copper
Terminal Type
Ferrule
Type
E-Rated, Current-Limiting
Voltage
5500 V

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001804237
GTIN
10782001804234
Product UPC
78200180423
Weight
10 lb

Dimensions

Diameter
3 in
Length
15.88 in
Width
3 in

Certifications & Compliance

Country of Origin
Mexico
