CYLINDRICAL FUSE 22 X 58 125A GG 500V AC | Electrozad South

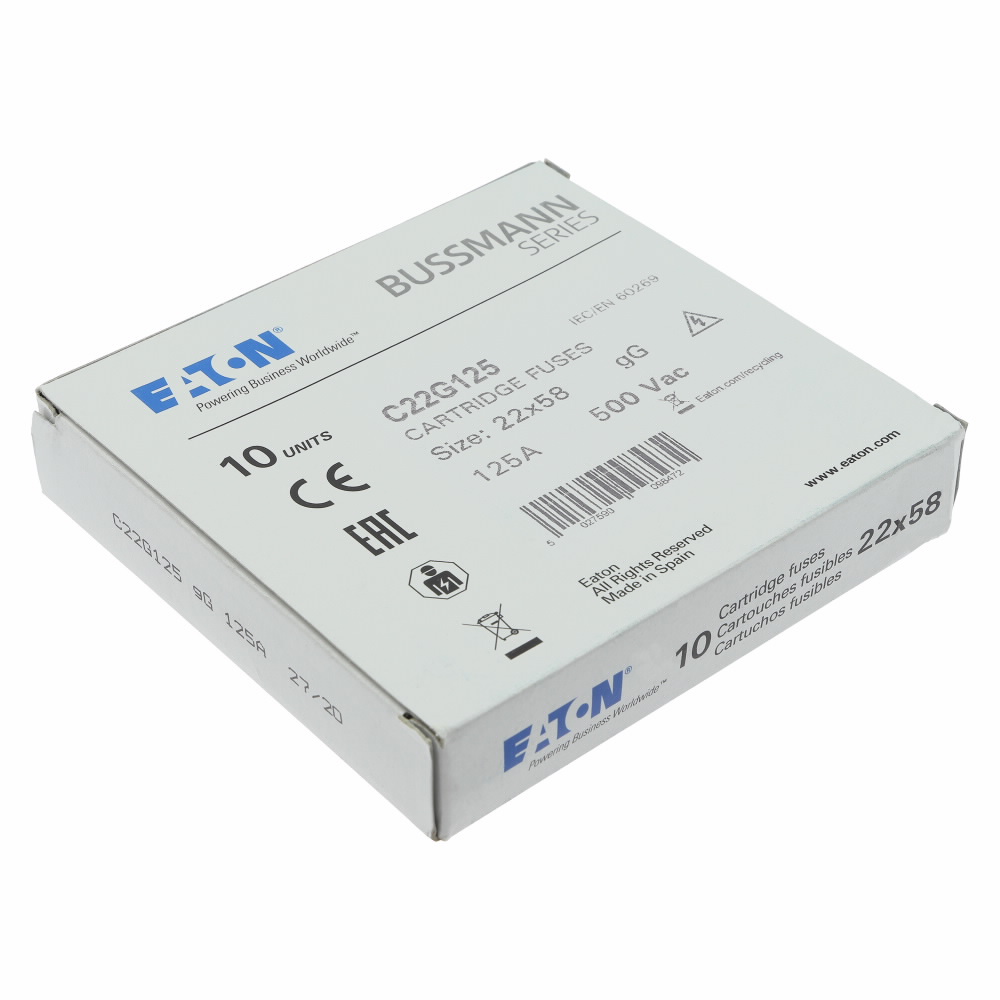

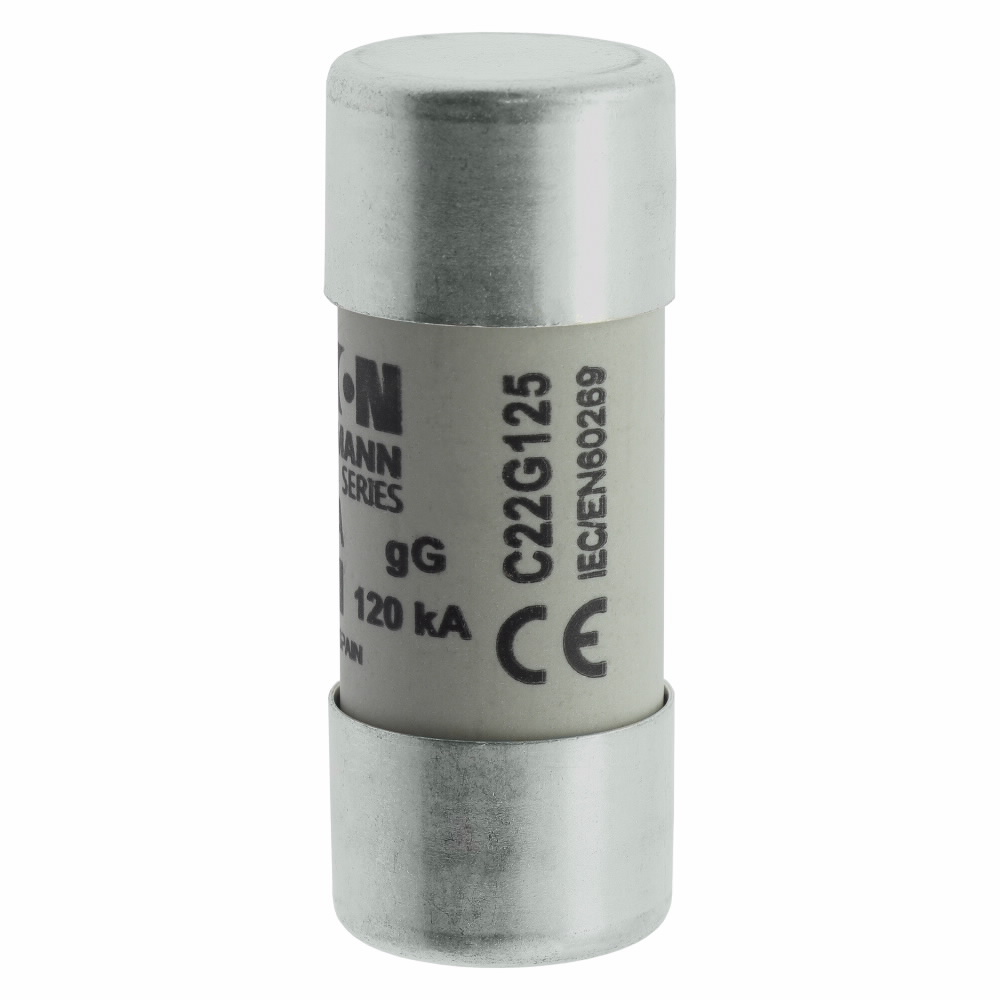

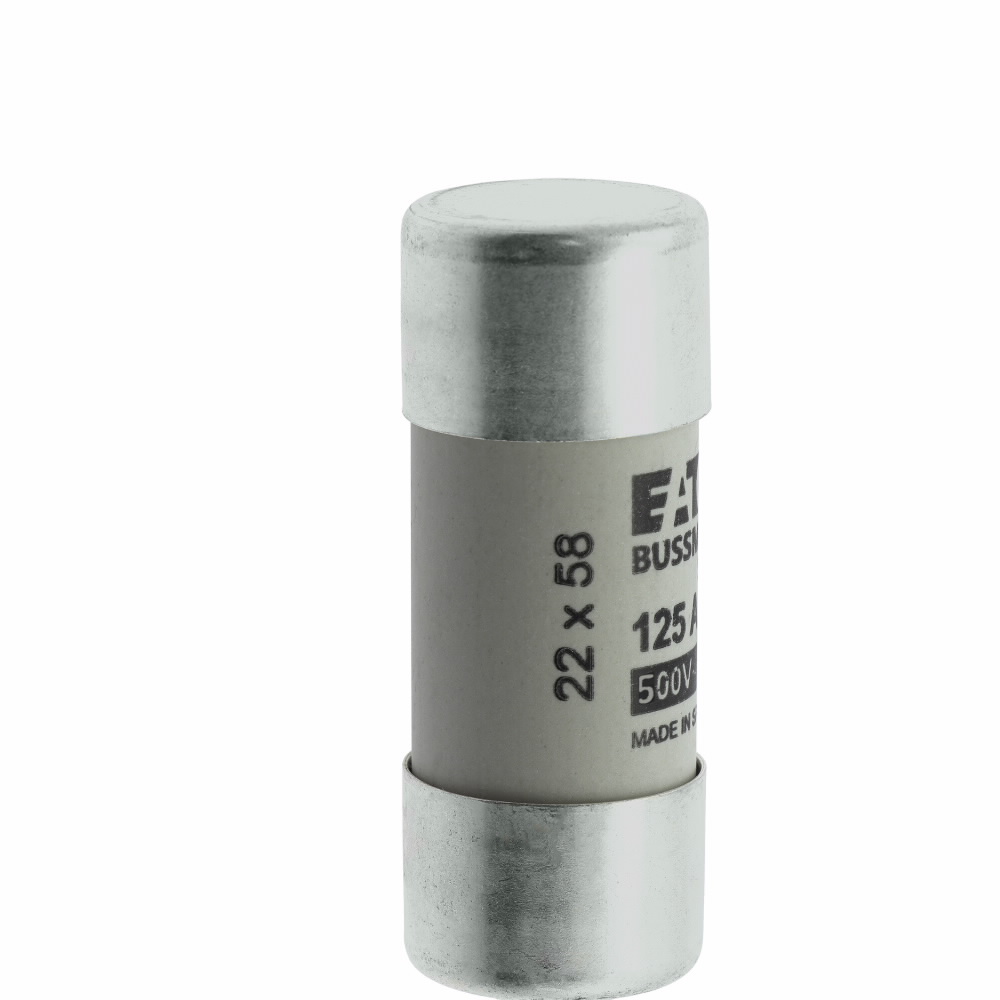

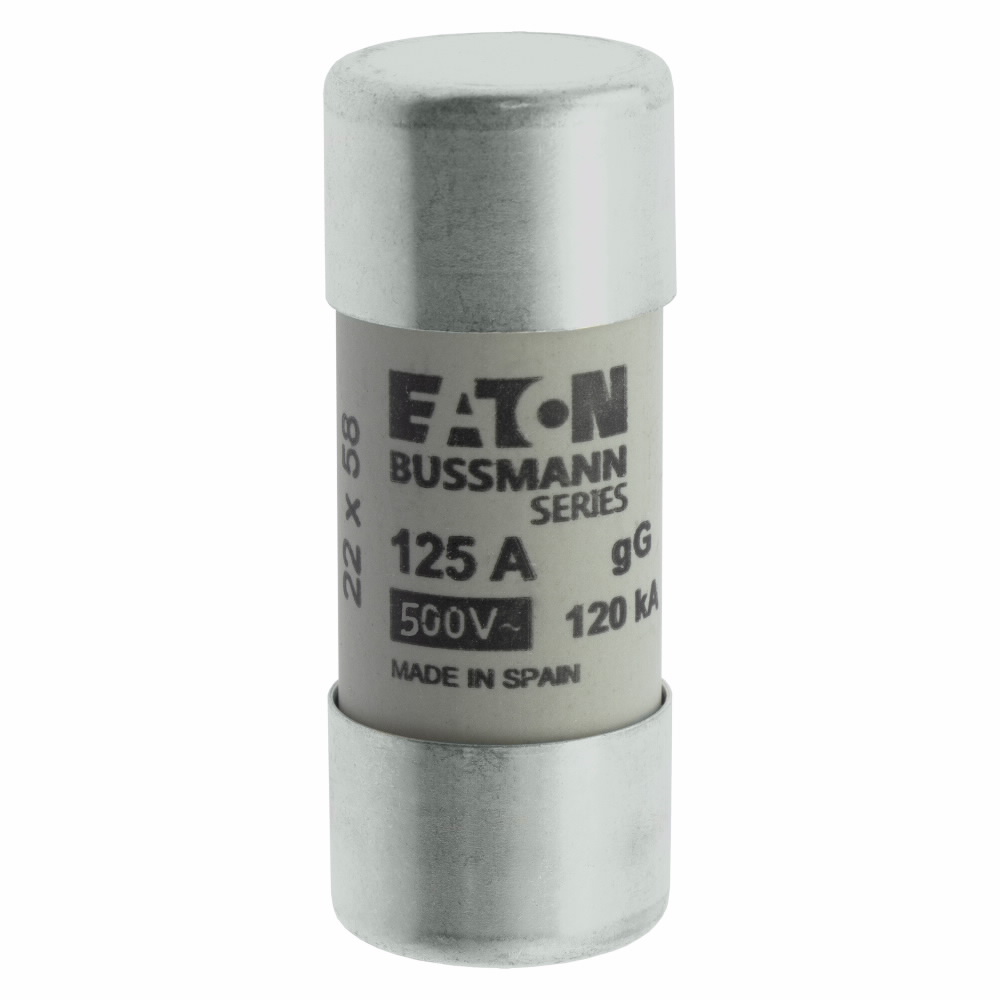

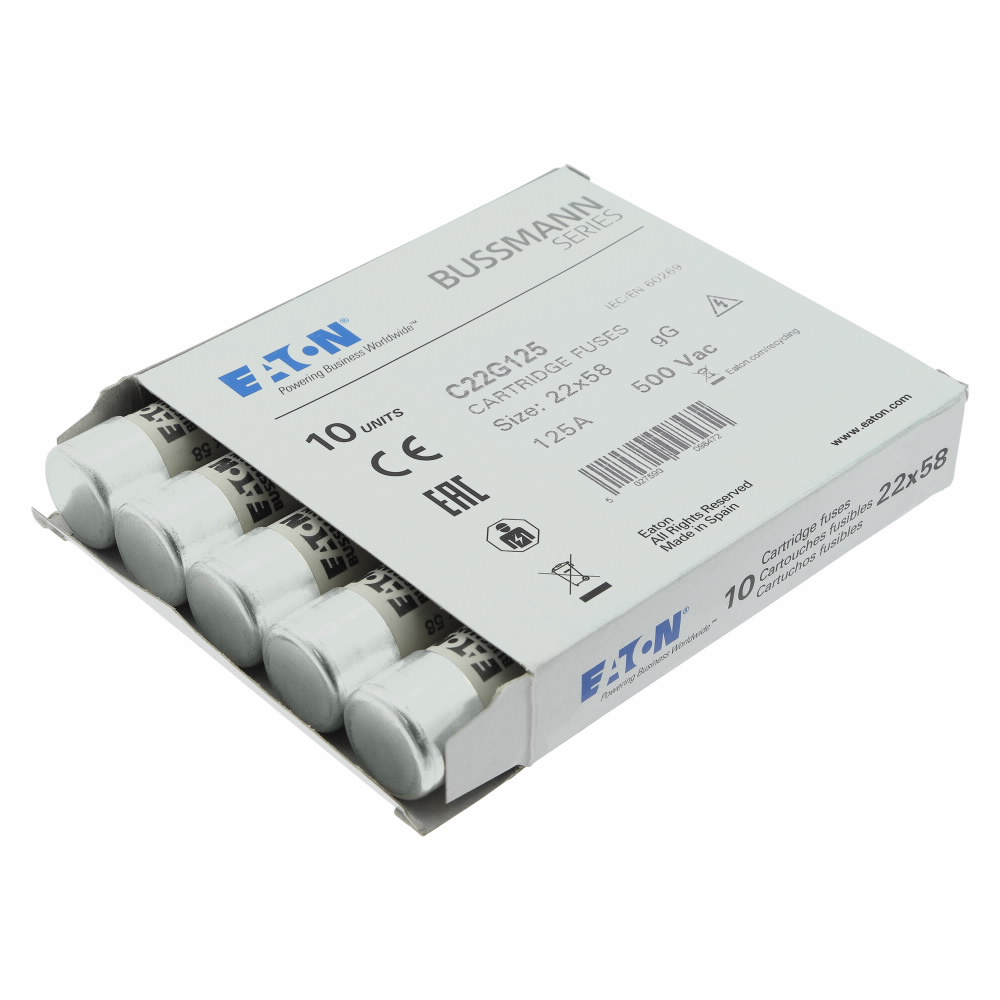

Product image for CYLINDRICAL FUSE 22 X 58 125A GG 500V AC
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

CYLINDRICAL FUSE 22 X 58 125A GG 500V AC

Manufacturer: Bussman Cooper Fuses | Catalog # C22G125 | Electrozad South Part # 422733
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet
Eaton Bussmann series low voltage 22 x 58 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 125 Amps, 120 kA Breaking capacity, class gG/gL, without indicator, compatible with a CH22 Modular fuse holder

Technical Information

Amperage
125 A
Applications
Stationary Mach Equip In Factory - RoboticsInd Facilities & Factories - Facility: Power Distribution and ControlElec Assemblies, Panels & EOEM - Control Panels for MachinesElec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMsElec Assemblies, Panels & EOEM - Elec Assemblies/Panels/EOEMs - AftermarketElec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - OtherElec Assemblies, Panels & EOEM - Panel Builders
Connection Type
Ferrule
End Type
Ferrule
Fuse Class
Class C;Class gG/gL
Interrupt Rating
120 kAIC
Material
Silver-plated Copper Endcap
TC Connection
Ferrule end x ferrule end
Type
Fuse
Voltage
500 V

Manufacturer Information

Brand
Bussmann
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712589932
Class
Class C GL/gG
GTIN
00051712589932
Product UPC
05171258993
Weight
55.9 g

Dimensions

Height
22.2 mm
Length
58 mm
