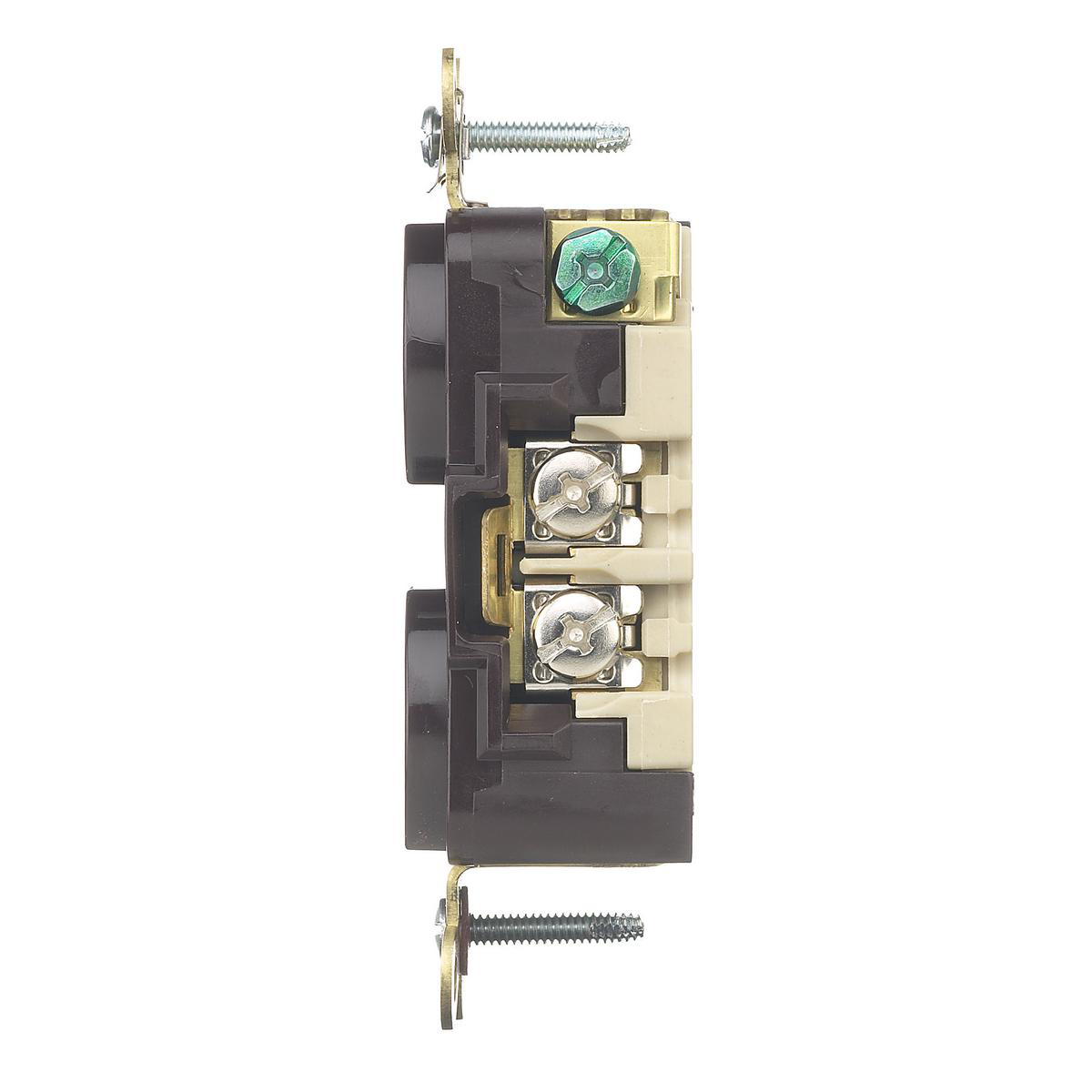

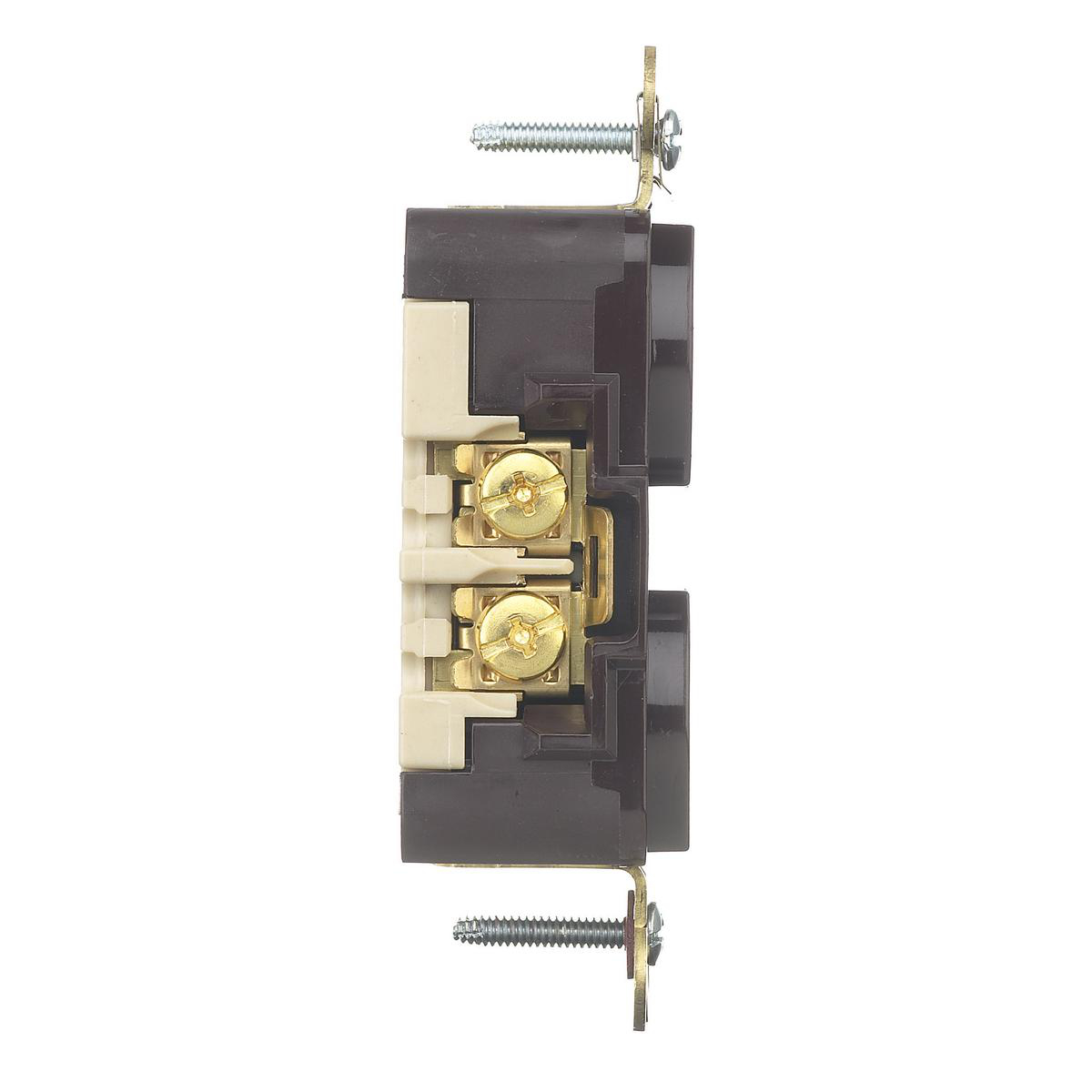

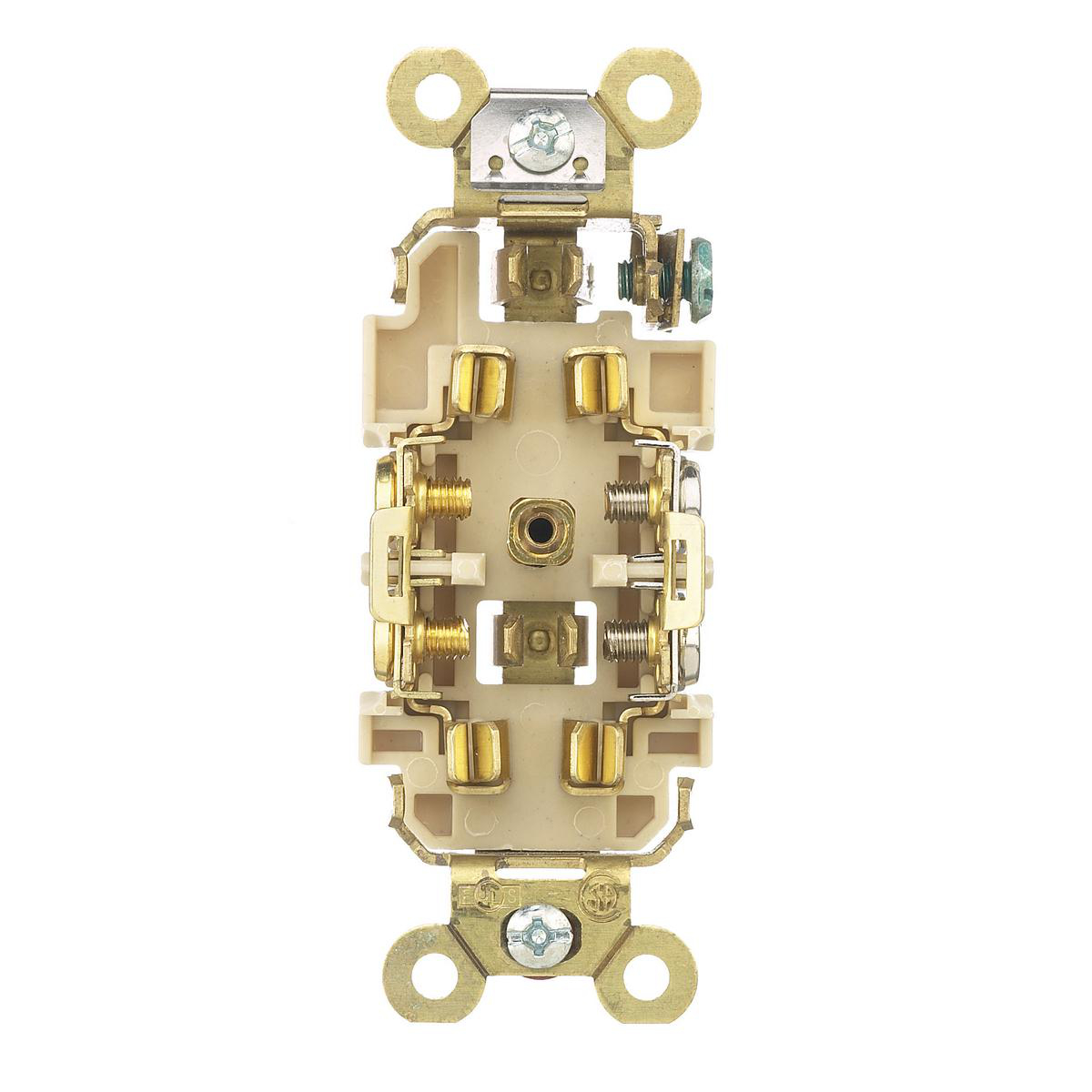

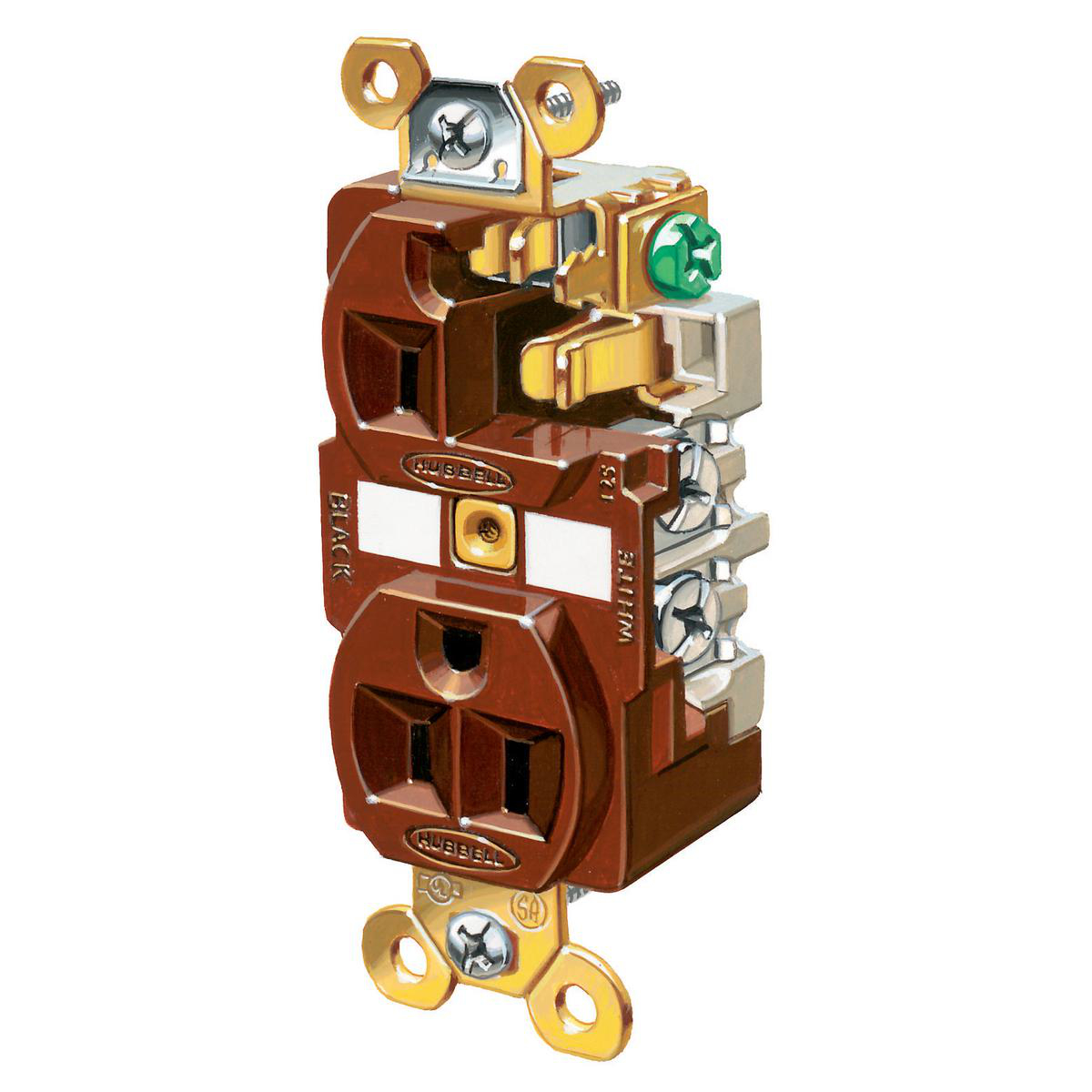

Receptacle duplex flush nyl 2P3W 15A 5-15R brown

Manufacturer: Hubbell Wiring Devices | Catalog # HBL5262 | Electrozad South Part # 4237
$27.74 /ea
pc
Log in or register to view your price, purchase history, and more!
20 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Extra heavy duty specification grade duplex receptacle made of nylon face with 2 pole, 3 wire grounding, 125 V, back and wire, traditional face shape, straight blade.

Technical Information

Amperage
15 A
Applications
For Conduit Bending
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
15 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Industrial
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Finder Groove Face
TC Connection
Back & Side Wired
Type
Extra Heavy Duty
Voltage
125 V
Wattage
1875 W
Wire Count
3
Wire Size
14 - 10 in

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585435107
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
GTIN
00783585435107
Product UPC
78358543510
Weight
0.25 lb

Dimensions

Height
1.19 in
Length
3.28 in
Width
1.65 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Finder Groove Face
  • Back wired ground terminal allows faster, easier installation
  • One-piece brass integral ground strap
  • Deep body design with circuit ID face
