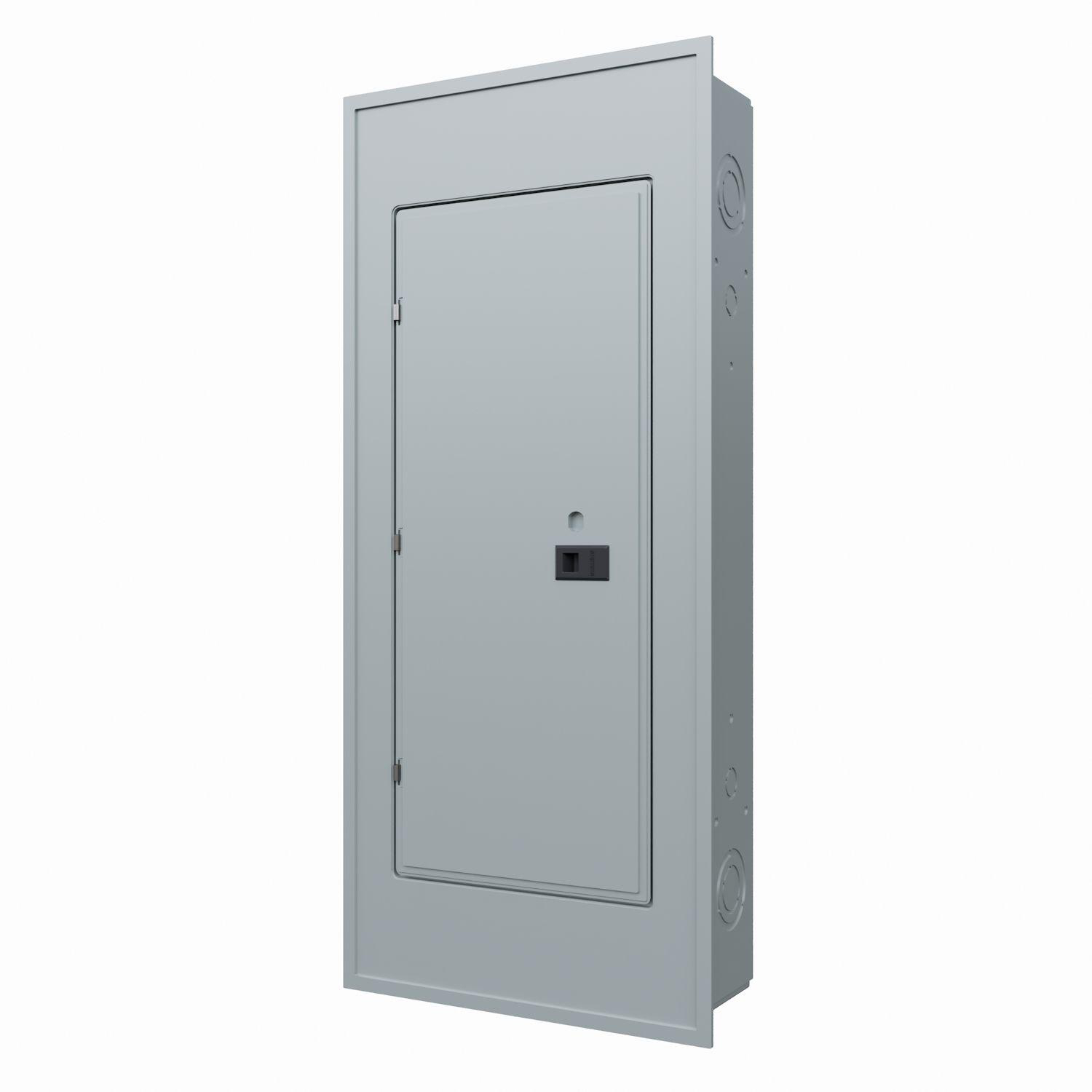

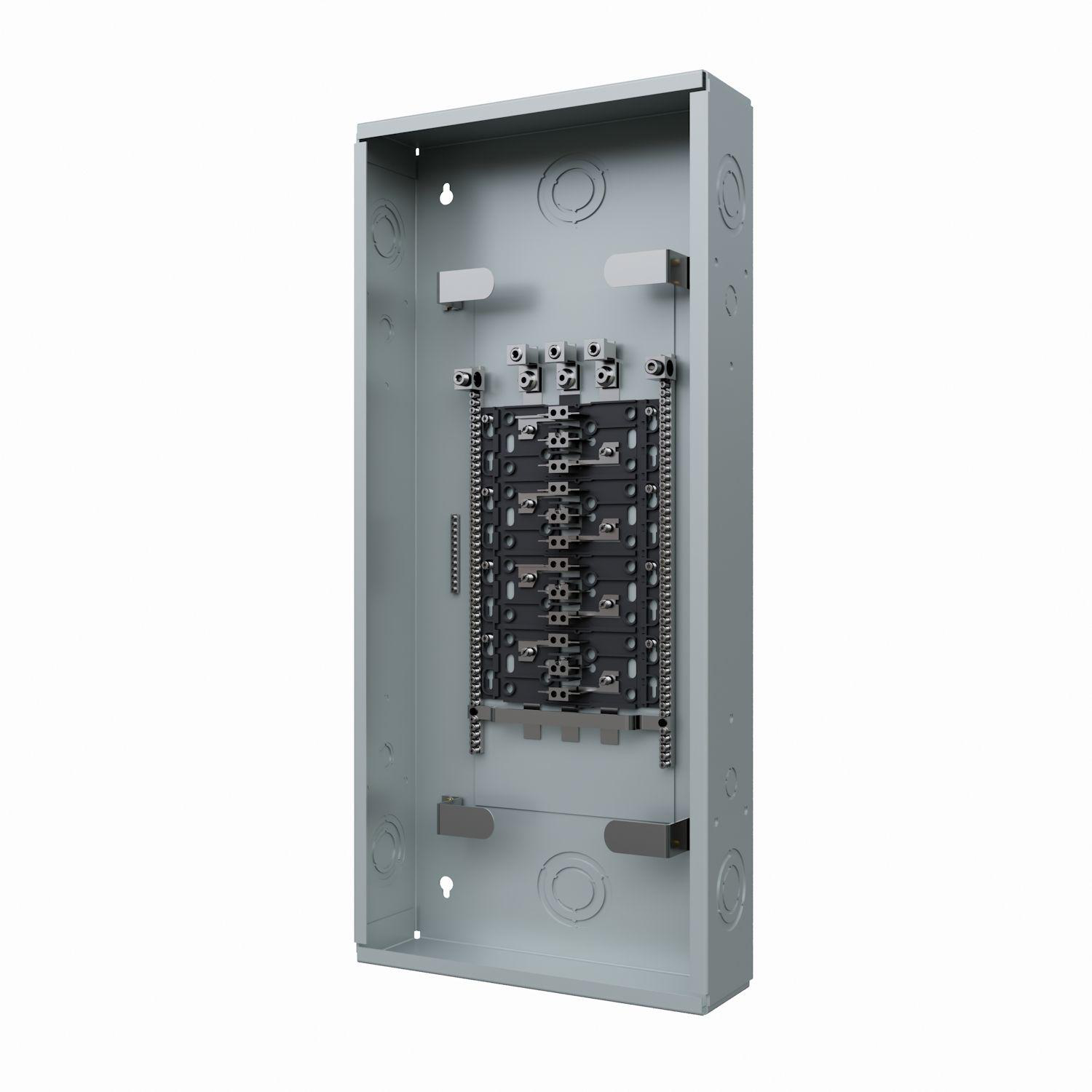

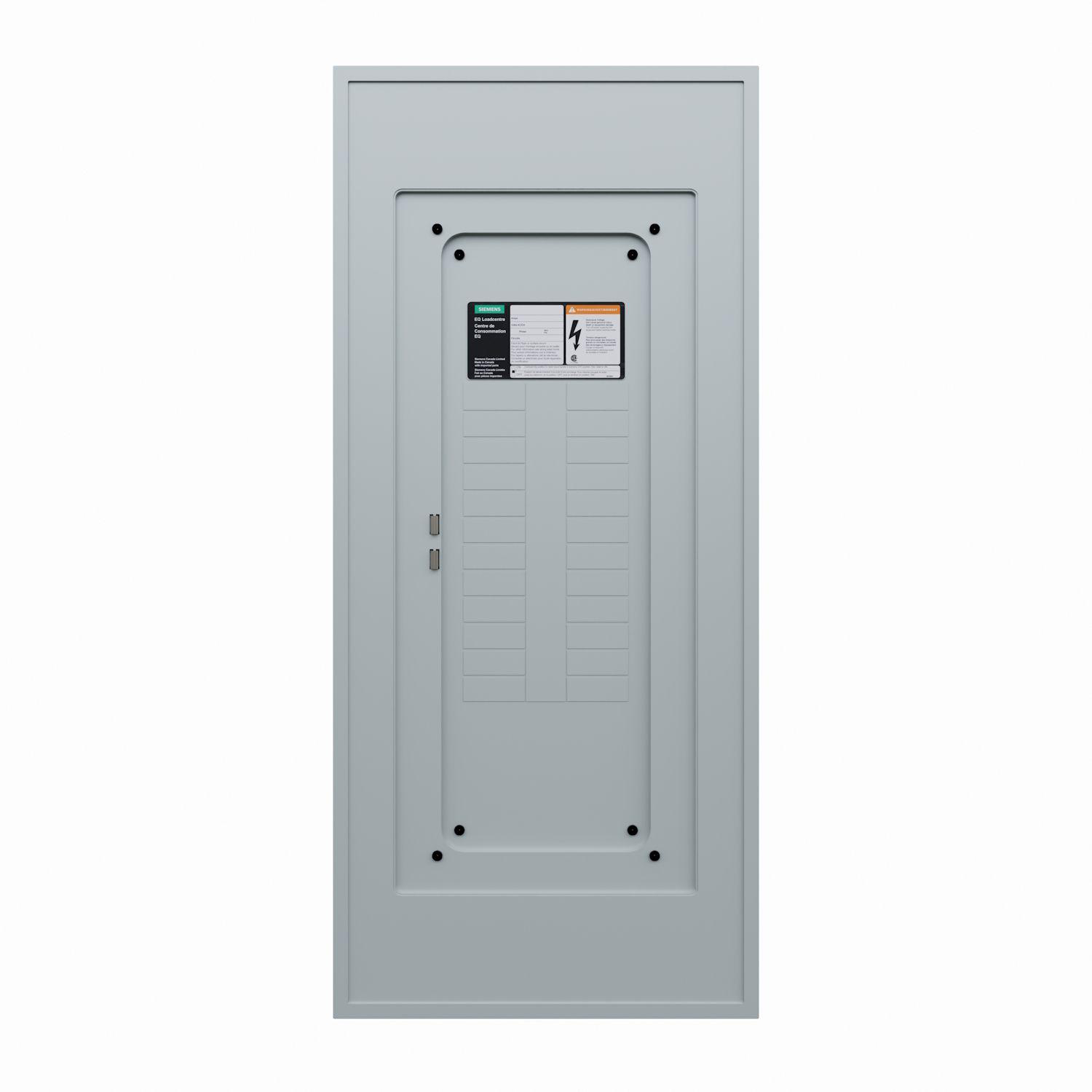

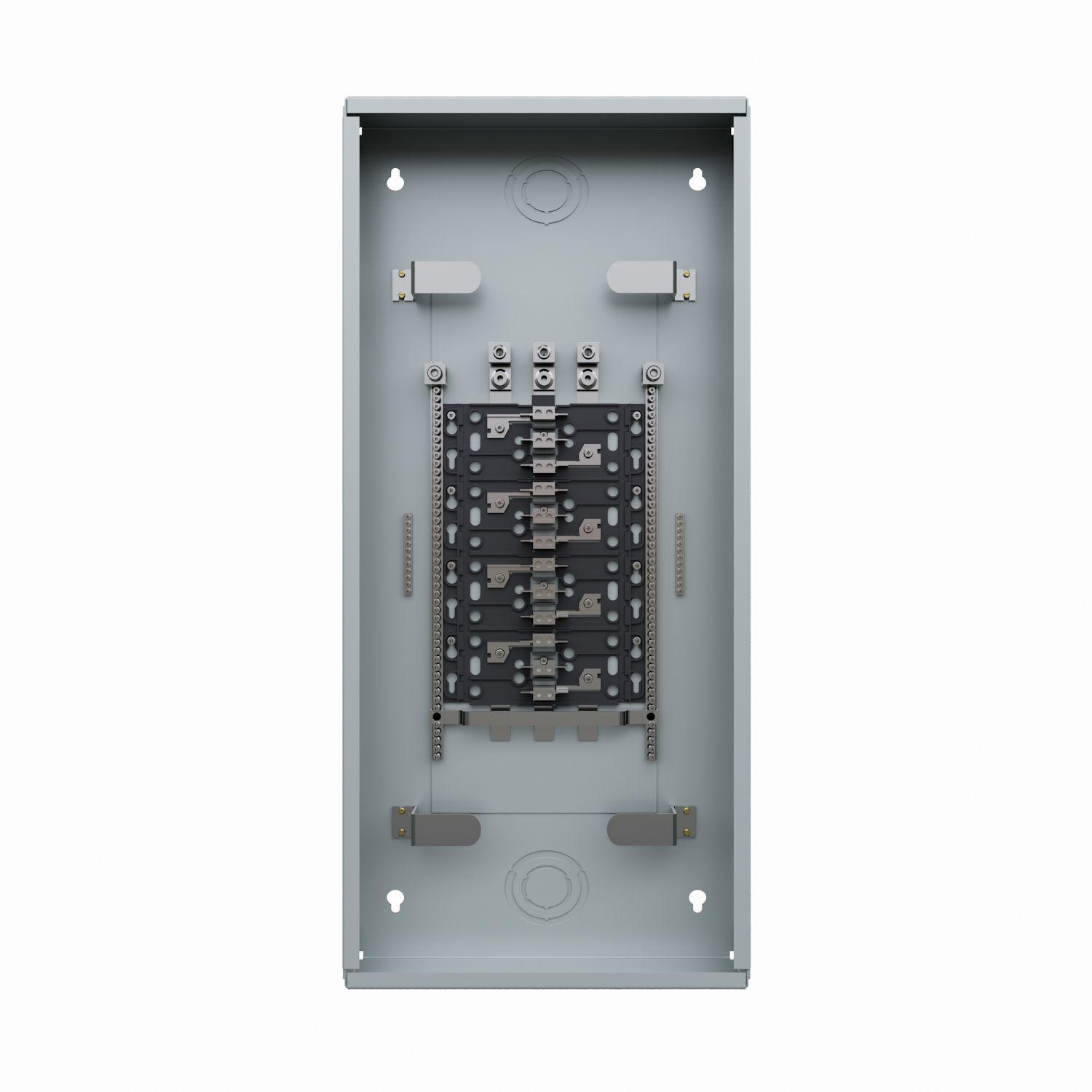

SIED EQ424225 225A 3PH 24CCT MLO LOADCENTER EQ SE 304W

Manufacturer: Siemens Distribution | Catalog # EQ424225 | Electrozad South Part # 42476
$485.04 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 21 to 35 days
Specification Sheet Product Brochure Product Catalog Page
Loadcenters are classified into 4 types EQL (1 phase main lug distribution no main), SEQ (1 phase with main breaker), EQ4 (3 phase with main breaker) and EQD(generator suuply) consists of the enclosure, the interior and the trim. Available in version 120/240vac 60/200A-40/80 circuits or 120/208vac 100/225A-12/42 circuits all type eemac 1 interior or 3R outdoor. Made of cold rolled gauge steel finished with gray paint, they are certified listed CSA.

Technical Information

Applications
For Residential
Bus Rating
225 A
Cable Size
6-300 MCM
Conductor Size
6-300 MCM
Enclosure
Type 1 Indoor
Enclosure Type
Type 1 Indoor
Interrupt Rating
10 kA
Mounting Type
Combination
Number of Circuits
24
Number of Spaces
48
Size
34x14.4x4.4 in HxWxD in
Type
EQ, Lockable

Manufacturer Information

Brand
Siemens
Sub Brand
Loadcentres

General Product Info

12-Digit UPC
662862003409
Construction
Steel Housing
Finish
Gray
GTiN
00662862003409
Product UPC
66286200340
