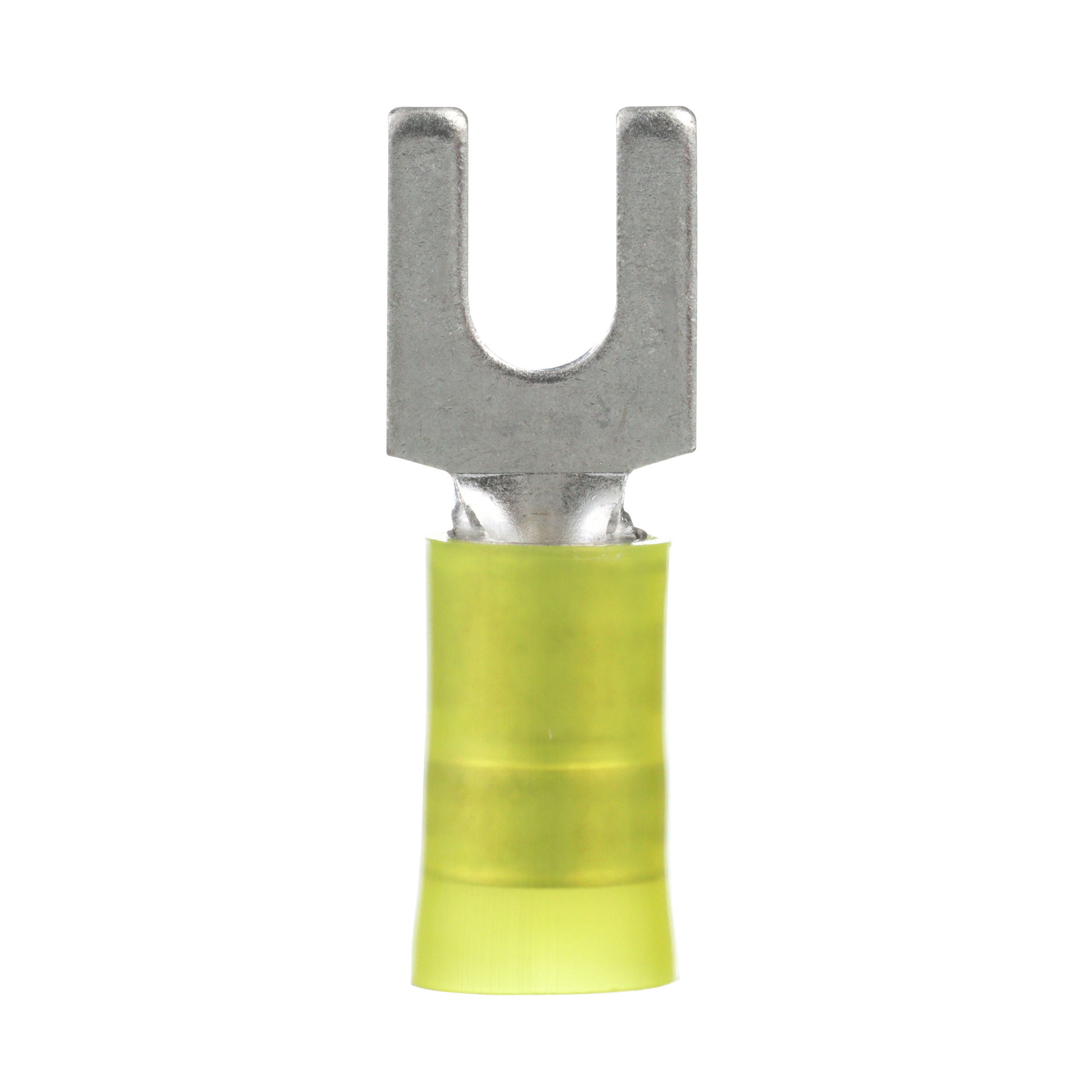

Pan-Term® PN10-8F-L Fork Terminal, Yellow, Nylon, 10-12 AWG, #8 Stud, PK50

Manufacturer: Panduit | Catalog # PN10-8F-L | Electrozad South Part # 42554
$150.48 /c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
The PN10-8F-L Pan-Term® Terminal is a nylon insulated, fork terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.52 in
Barrel Type
Grip Sleeve
Color Coding
Yellow
Enclosure
Fork shape
Material
High Conductivity Copper Alloy
Max Operating Temperature
105 degrees C
Size
8 in
Standard
CSA,E2186,UL
TC Connection
Standard
Temperature Rating
221 degrees F
Tongue Thickness
0.04 in
Tongue Width
0.37 in
Type
Open Jaw Fork
Wire Size
4.0 - 6.0 mm²

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983803187
Color
Black on Yellow
Finish
Rust-Proof Plating, Vinyl Coated
GTIN
00074983803187
Product UPC
07498380318

Dimensions

Overall Length
1.03 in
Width
9.4 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
