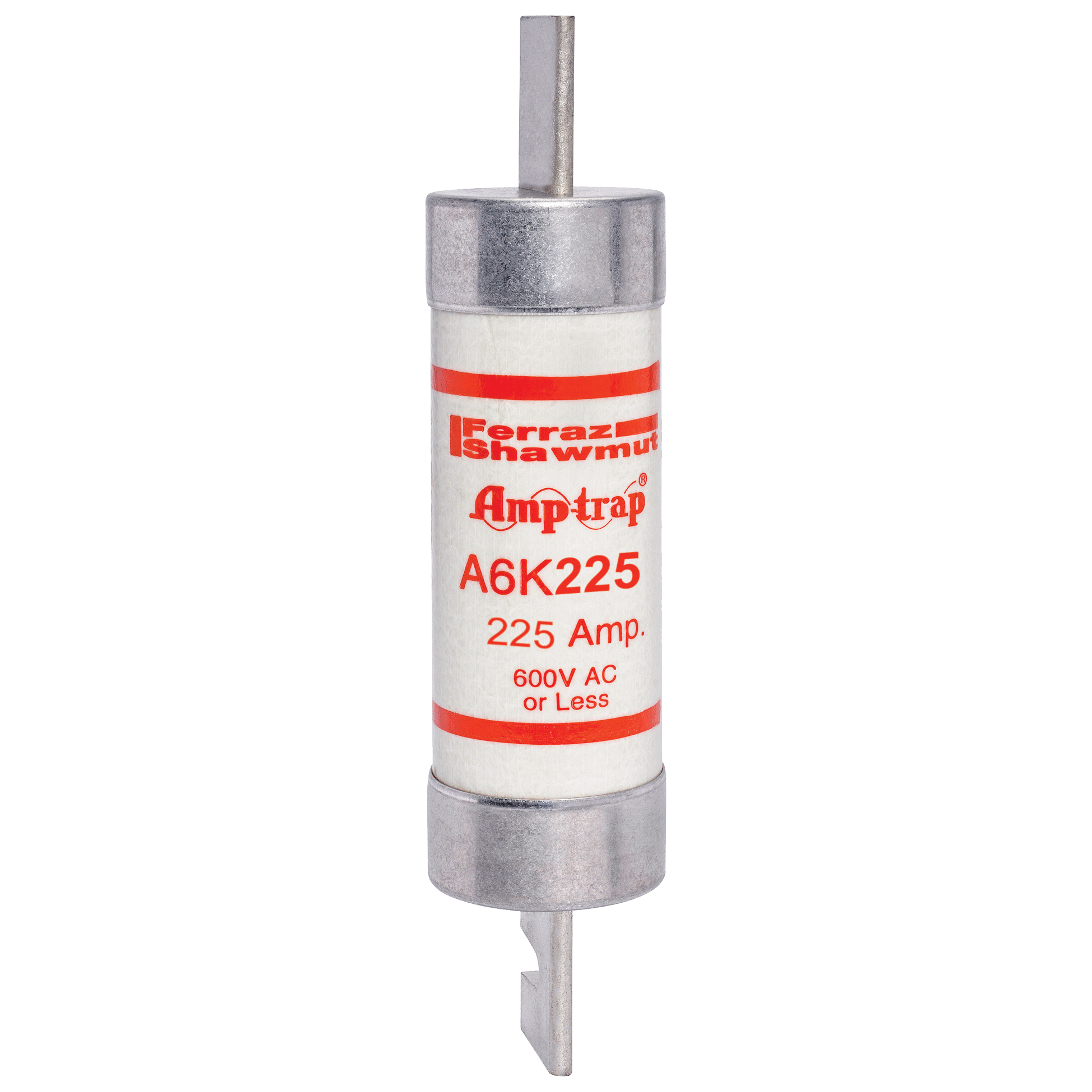

MERSEN A6K225R FUSE HRCI-R 225A 600V CLASS RK1 NON TIME DELAY

Manufacturer: Ferraz Shawmut Mersen | Catalog # A6K225R | Electrozad South Part # 42695
$382.29 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Current-limiting Amp-Trap A6K-R fuses provide excellent protection where high available short-circuit currents exist. These fast-acting fuses are particularly good for branch/feeder circuits and back-up protection.

Technical Information

Amperage
225 A
Applications
For Load Centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Non-Inductive Loads, Lighting Circuits
Connection Type
Blade
Contact Material
Tin Plated Copper
Frequency
50/60 Hz
Fuse Class
Class RK1
Insulation Material
PolyTube
Interrupt Rating
200 kA at AC, 20 kA at DC
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
300 V
TC Connection
Blade
Terminal Material
Tin-Plated Copper
Terminal Type
Blade
Type
Fast Acting

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001915834
Class
RK-1
Construction
Fiberglass
GTIN
10782001915831
Product UPC
78200191583
Weight
3.22 lb

Dimensions

Diameter
2.56 in
Length
11.63 in
