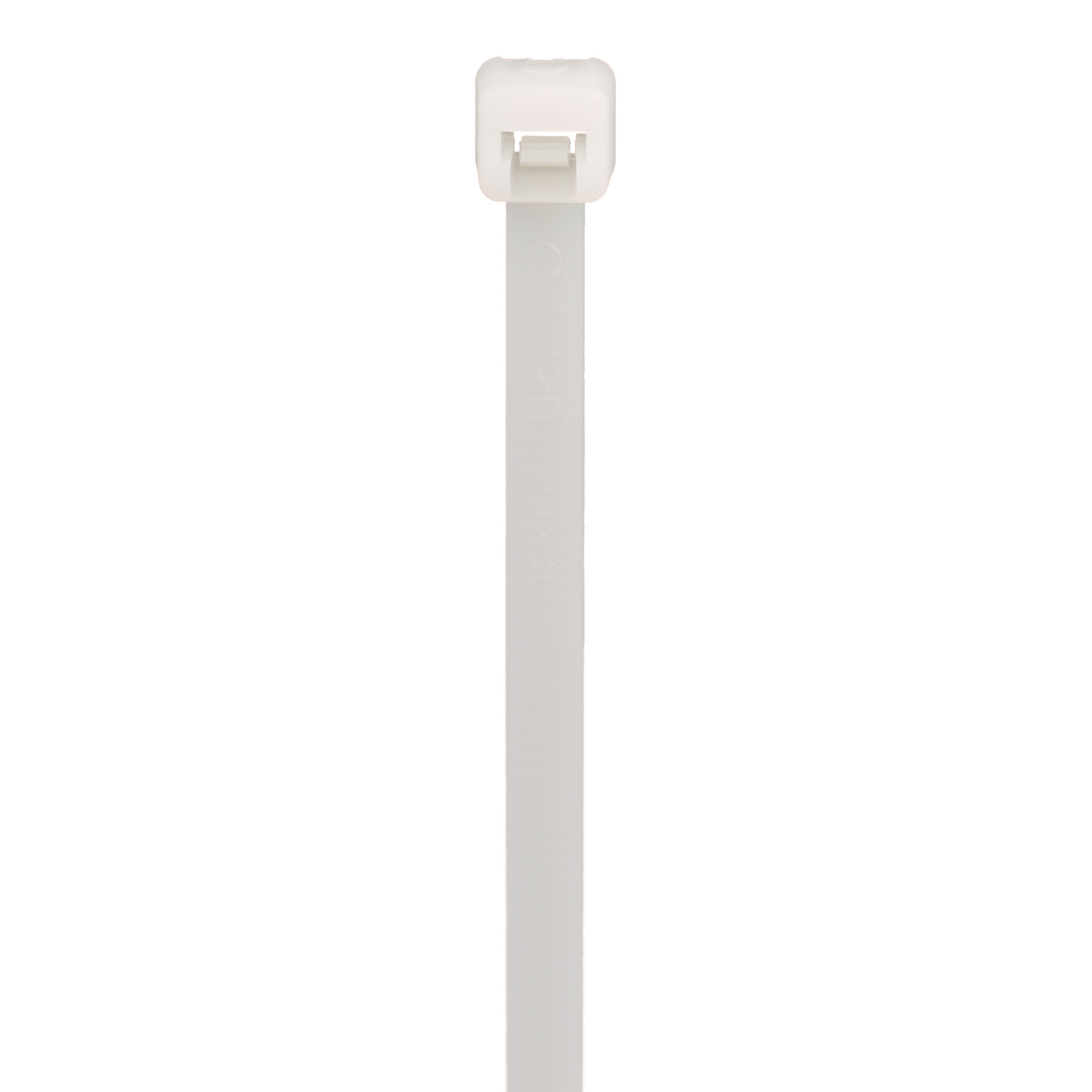

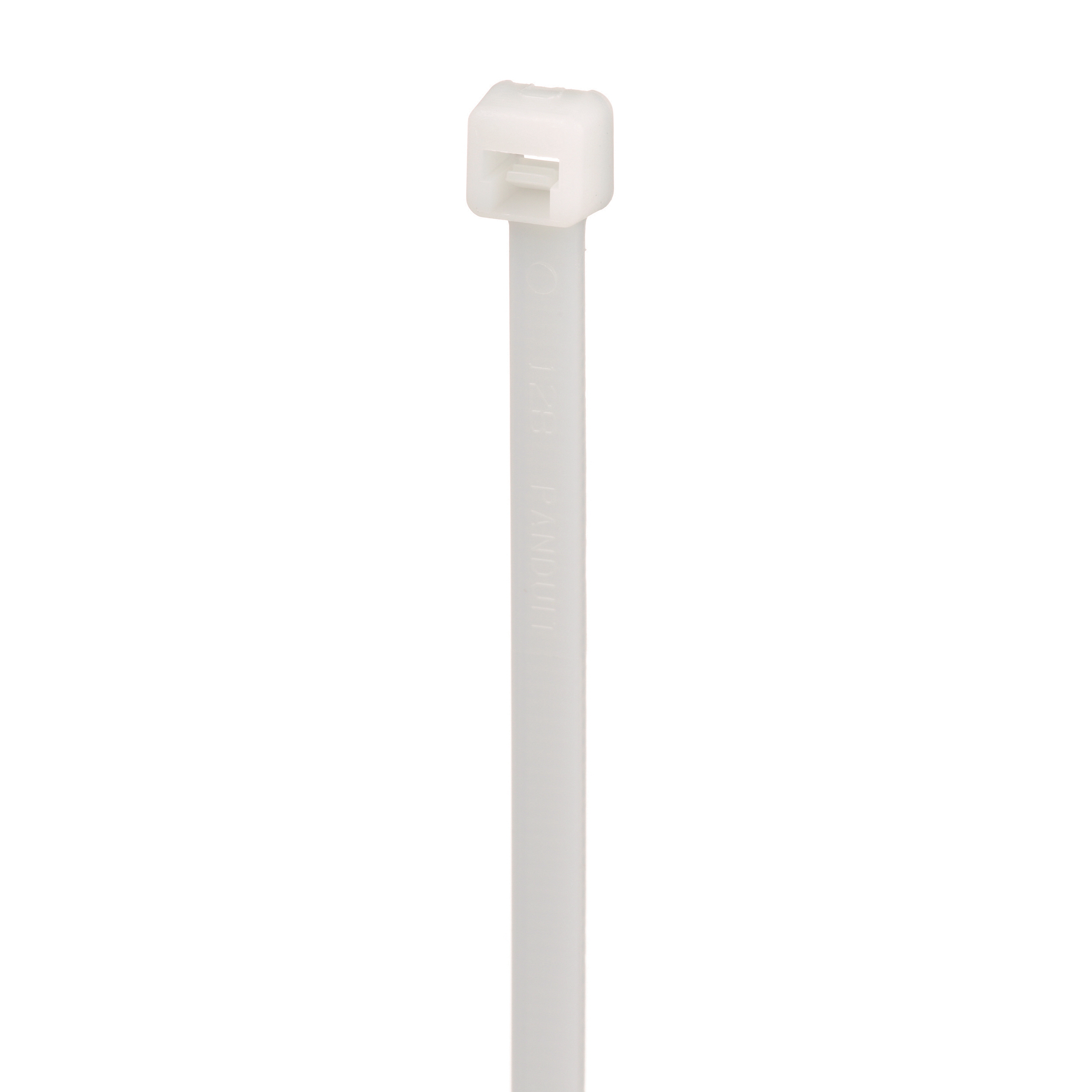

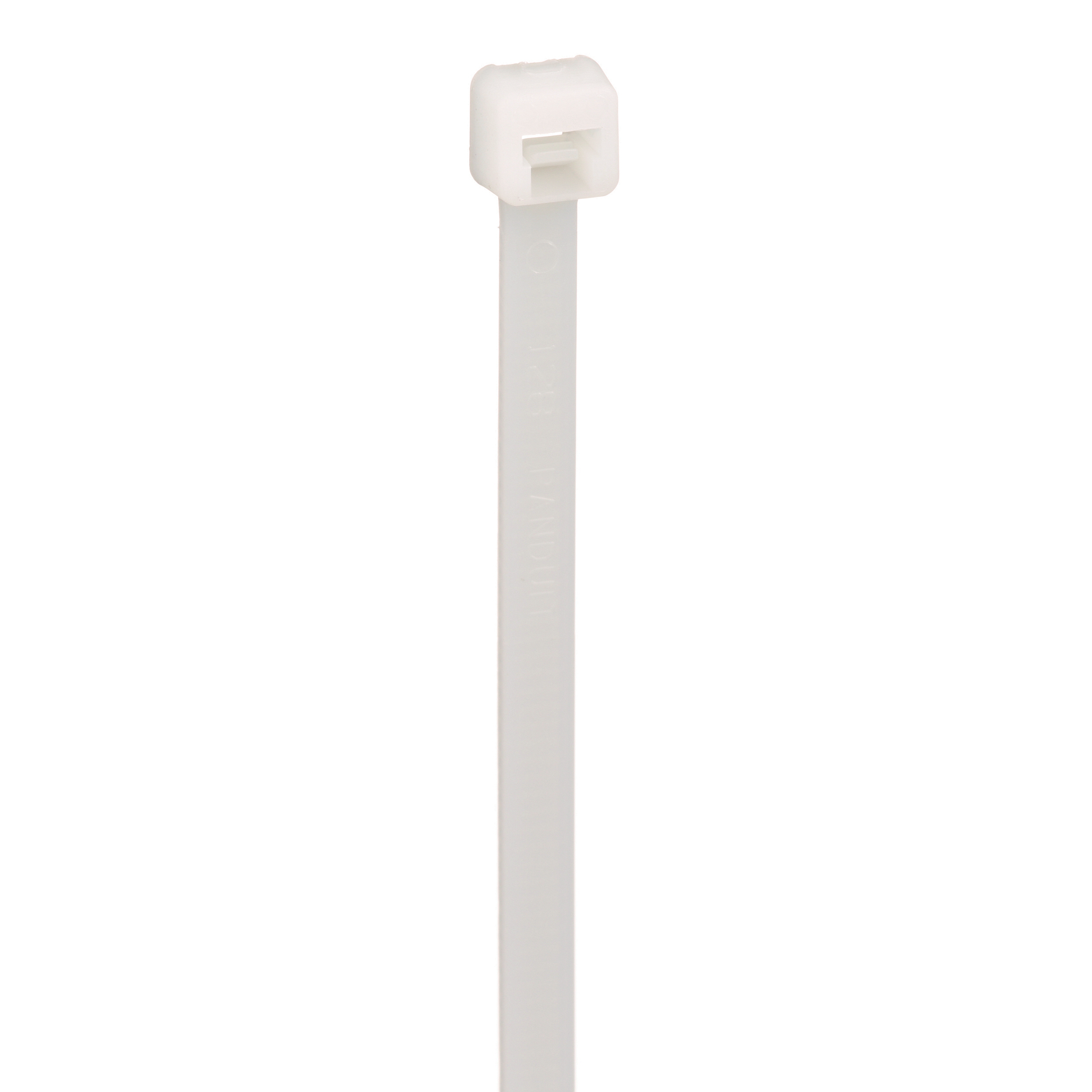

Tie locking intermediate nylon natural 5.6"

Manufacturer: Panduit | Catalog # PLT1.5I-C | Electrozad South Part # 45385

$25.56 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Dome-Top® Locking tie. Intermediate cross section. Nylon 6.6 material. Standard package. Minimum loop tensile strength 40 lb. Plenum-rated. Operating temperature -60 to -85..C. One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. For indoor use. Versatile cable ties can be used in countless applications. One-piece construction for consistent performance and reliability. Lowest threading force of any one-piece cable tie in the industry. Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation. A variety of materials and colours available for specific applications. UL Listed for use in plenum or air handling spaces per NEC except PLT.6SM and PLT5H/6H/8H/13H.

Technical Information

Applications
For General use
Body Thickness
0.045 in
Body Width
0.142 in
Bundle Diameter
35 mm
Material
Nylon 6/6
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Standard
CSA,E2186,UL
Temperature Rating
-60 to 85 degrees C
Tensile Strength
178 N
Type
Internal Toothing, Locking

Packaging

Package Qty
100
Standard Packaging Qty
100/Pack

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Ty

General Product Info

12-Digit UPC
074983540181
Color
Natural
Environment
Indoor
GTIN
00074983540181
Product UPC
07498354018

Dimensions

Length
142 mm
Overall Length
5.6 in
Thickness
1.1 mm
Width
3.6 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
CR,MY
