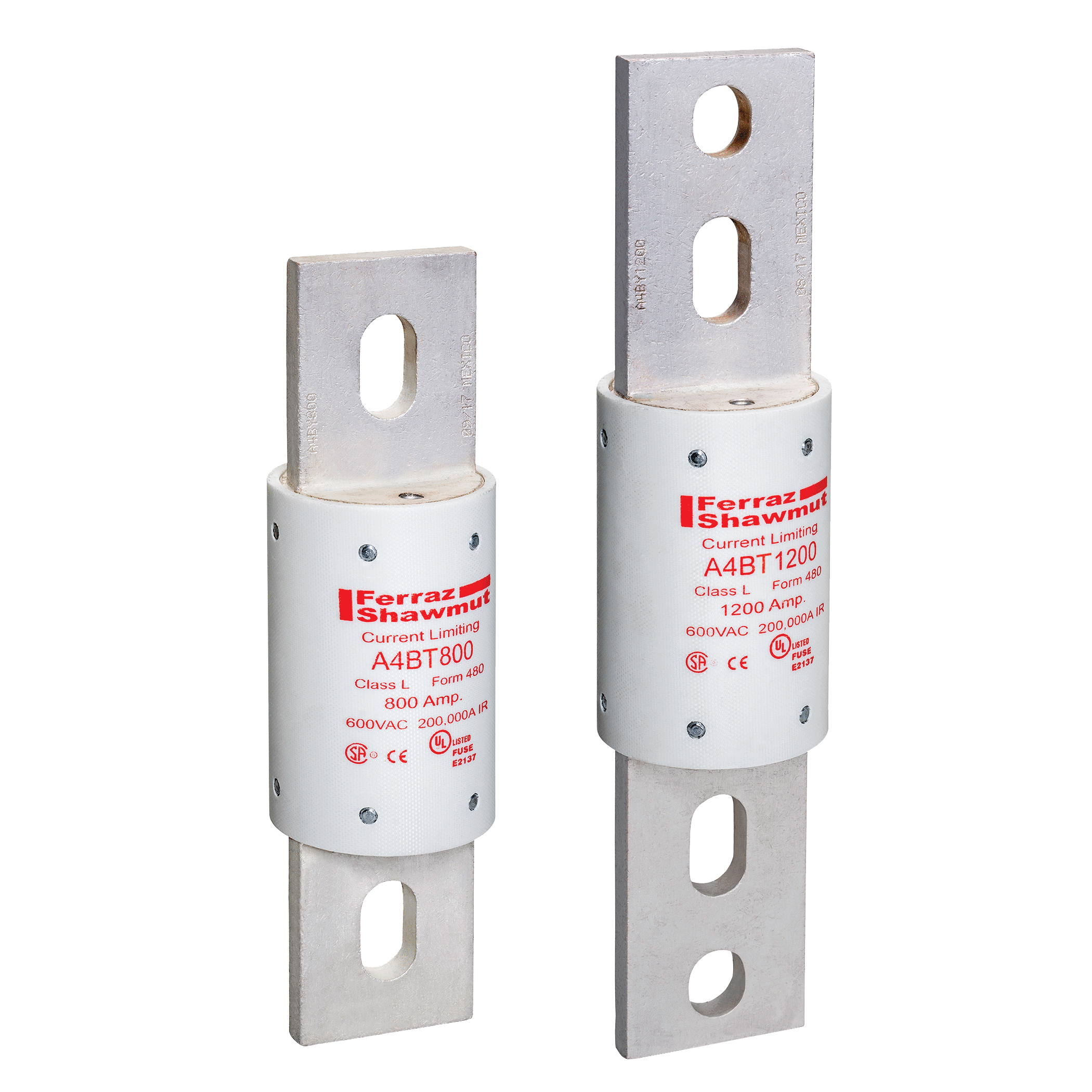

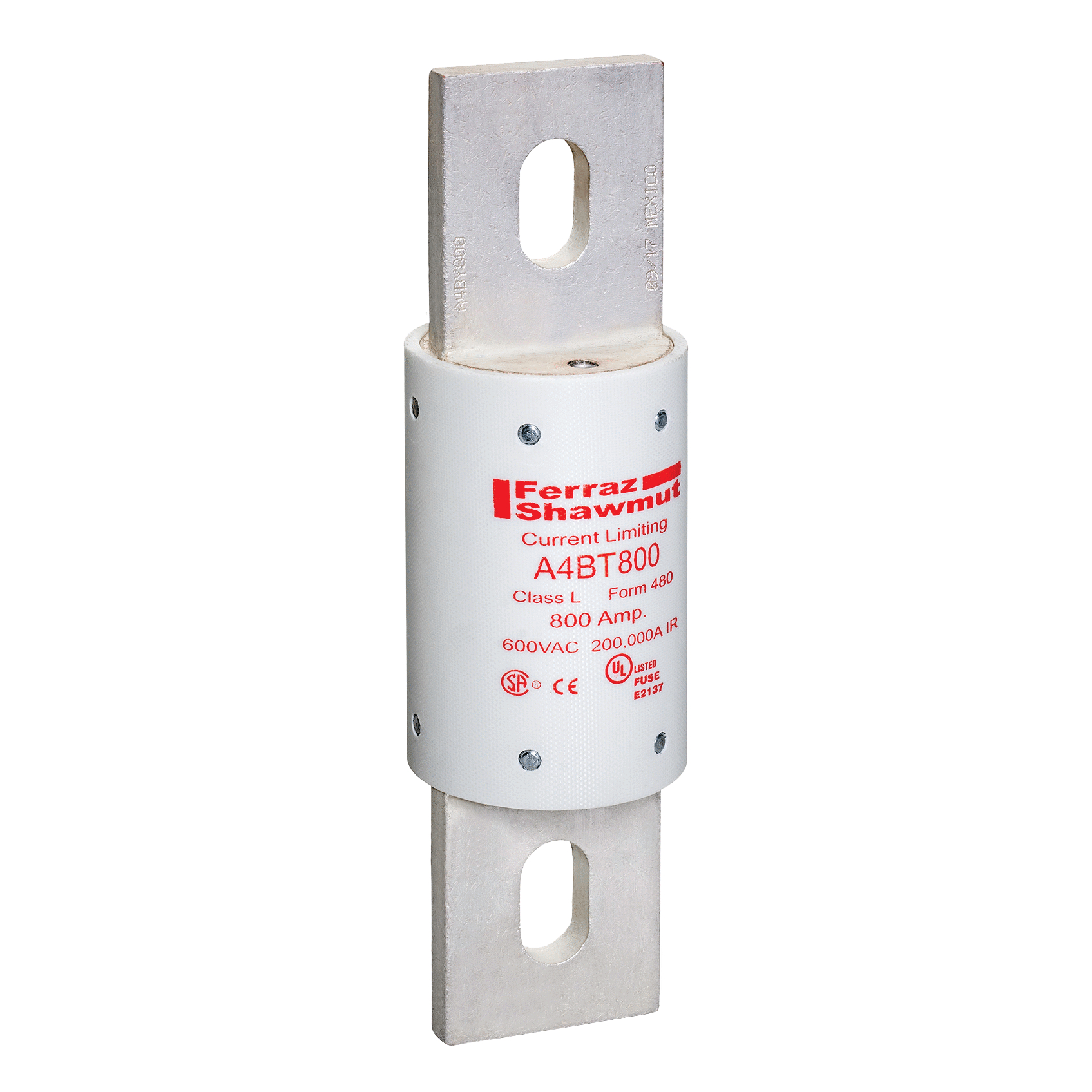

Product image for MERSEN A4BT800 FUSE HRC-L TD 800A 600VAC 500VDC 10SEC TIME DELAY CLASS L 800A BODYSIZE BLADE TYPE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN A4BT800 FUSE HRC-L TD 800A 600VAC 500VDC 10SEC TIME DELAY CLASS L 800A BODYSIZE BLADE TYPE

Manufacturer: Ferraz Shawmut Mersen | Catalog # A4BT800 | Electrozad South Part # 45785
$394.45 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
The high interrupting rating of the Amp-Trap A4BT current-limiting fuses makes it suitable for protecting mains, feeders, and general circuits. The 10-second time-delay at 500 percent of fuse rating is ideal for large motors and other loads with high inrush currents. A4BT fuses can be applied to normal loads up to its full ampere rating to allow 100percent rating of equipment.

Technical Information

Amperage
800 A
Applications
For Motors, Motor Controllers, Transformers, Mains, Feeders
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class L
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Bolt-On
Rated Voltage AC
600 V
Rated Voltage DC
500 V
TC Connection
Blade
Terminal Material
Silver-Plated Copper
Terminal Type
Blade
Type
Time-Delay

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001939908
Class
L
Construction
Glass Melamine
GTIN
10782001939905
Product UPC
78200193990
Weight
3.73 lb

Dimensions

Diameter
3 in
Length
8.63 in
