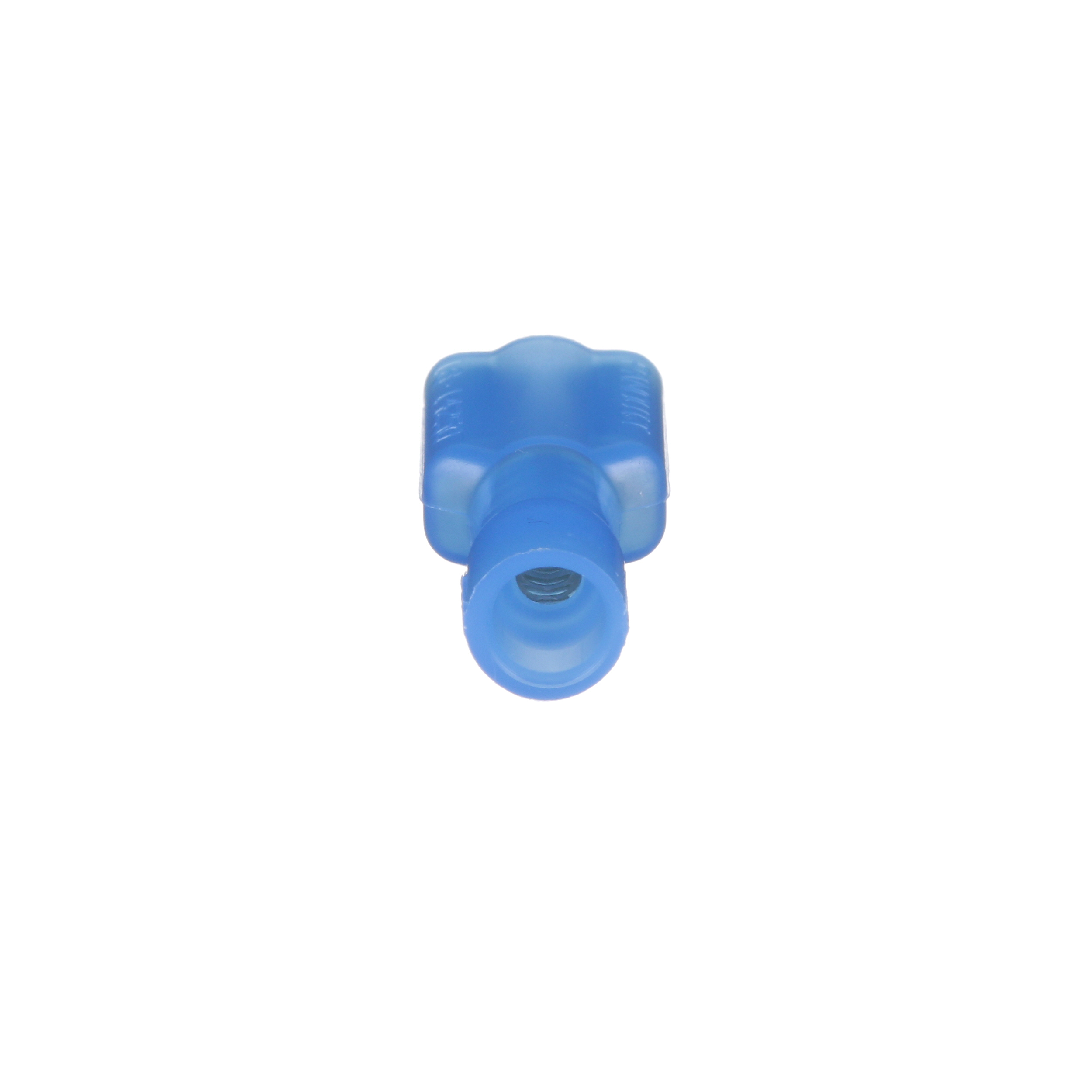

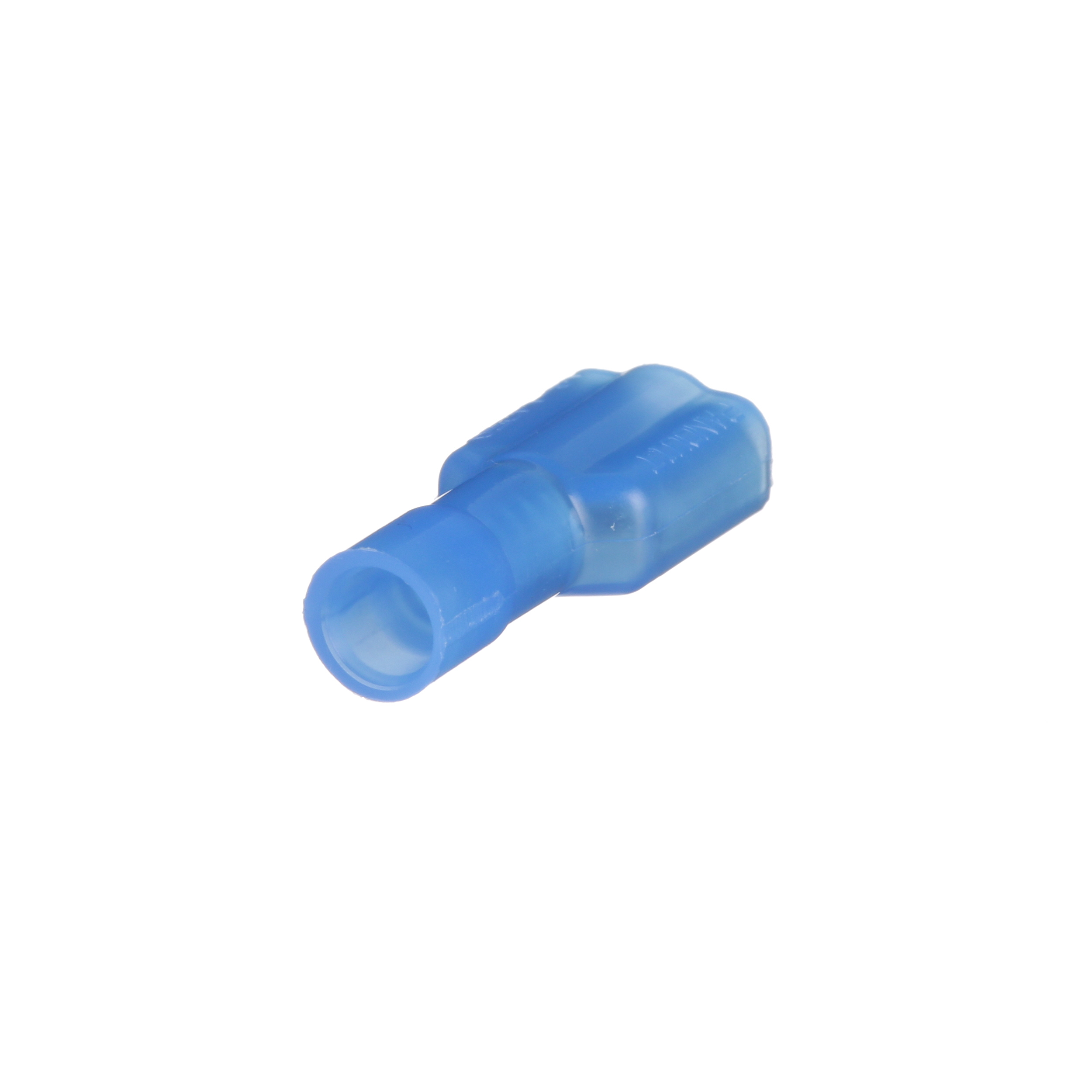

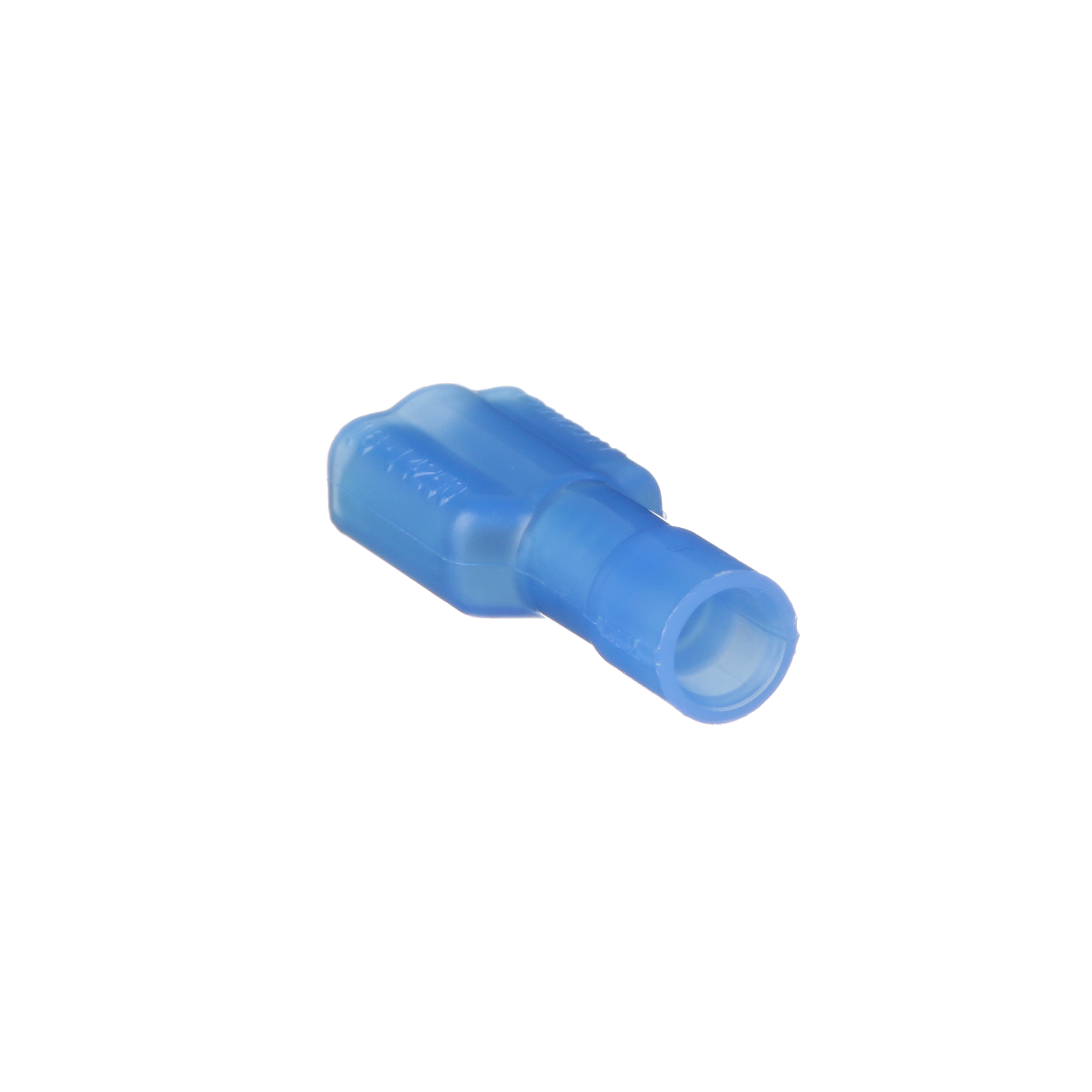

Product image for Pan-Term® DNF14-250FIB-M Disconnect, Blue, 14-16 AWG, 0.250 x 0.032" Tab,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Pan-Term® DNF14-250FIB-M Disconnect, Blue, 14-16 AWG, 0.250 x 0.032" Tab,

Manufacturer: Panduit | Catalog # DNF14-250FIB-M | Electrozad South Part # 46102
$447.94 /m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
1,433 available

For Delivery

Not in local stock *
Check another branch
Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
Panduit DNF14-250FIB-M Female Disconnect

Technical Information

Barrel Type
Butted Seam
Insulation Material
Nylon
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
Tab Size
0.25 x 0.032 in
TC Connection
Funnel
Temperature Rating
221 degrees F
Type
Insulated
Wire Size
1.5 - 2.5 mm²

Packaging

Package Qty
1000

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983827510
Color
Blue
Finish
Tin-Plated
GTIN
00074983827510
Product UPC
07498382751

Dimensions

Height
0.22 in
Length
0.84 in
Overall Length
0.84 in
Width
0.35 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
