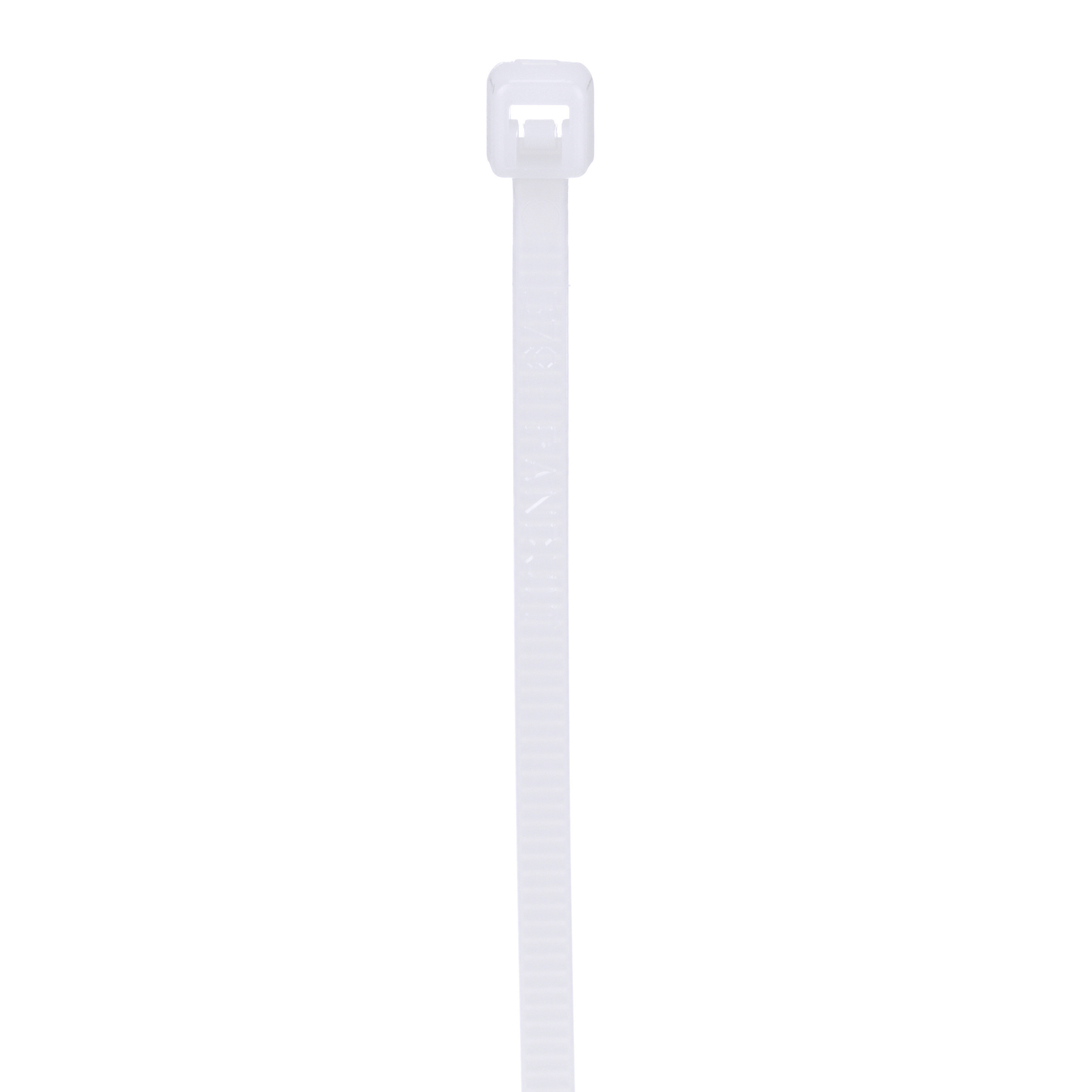

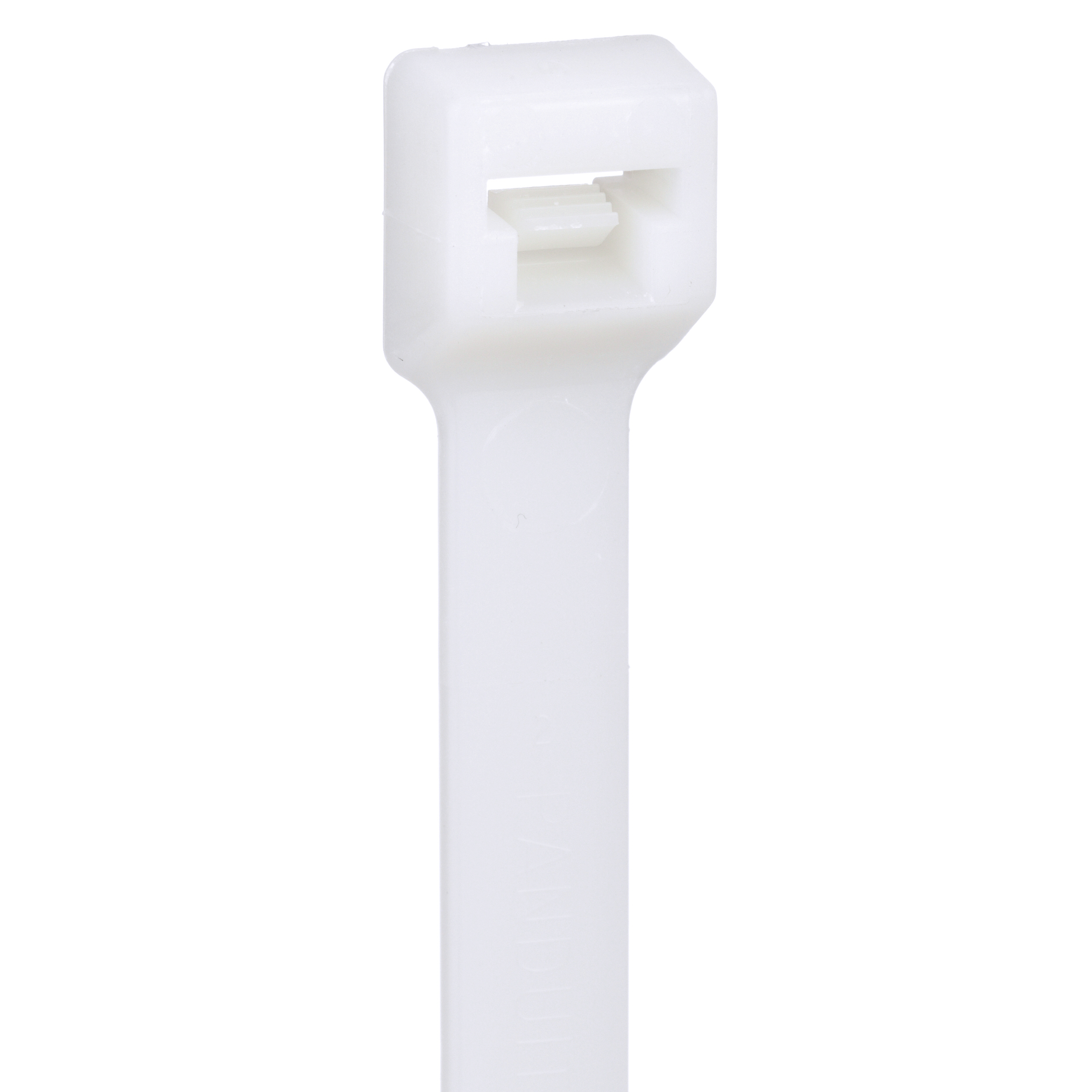

Product image for Tie locking miniature nylon natural 3.9"
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2

Email

Tie locking miniature nylon natural 3.9"

Manufacturer: Panduit | Catalog # PLT1M-C | Electrozad South Part # 46656

$22.97 /c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
800 available

For Delivery

Not in local stock *
Check another branch
Pan-Ty® Locking tie. Miniature cross section. Nylon 6.6 material. Standard package. Minimum loop tensile strength 18 lb. Plenum-rated. Operating temperature -60 to -85..C. One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. For indoor use. Versatile cable ties can be used in countless applications. One-piece construction for consistent performance and reliability. Lowest threading force of any one-piece cable tie in the industry. Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation. A variety of materials and colours available for specific applications. UL Listed for use in plenum or air handling spaces per NEC except PLT.6SM and PLT5H/6H/8H/13H.

Technical Information

Applications
For General use
Body Thickness
0.043 in
Body Width
0.098 in
Bundle Diameter
22 mm
Material
Nylon 6/6
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Standard
CSA,E2186,UL
Temperature Rating
-60 to 85 degrees C
Tensile Strength
80 N
Type
Locking

Packaging

Package Qty
100
Standard Packaging Qty
100/Pack

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Ty

General Product Info

12-Digit UPC
074983540044
Color
Natural
Environment
Indoor
GTIN
00074983540044
Product UPC
07498354004

Dimensions

Length
99 mm
Overall Length
99 mm
Thickness
1.1 mm
Width
2.5 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
CR,MY,US
