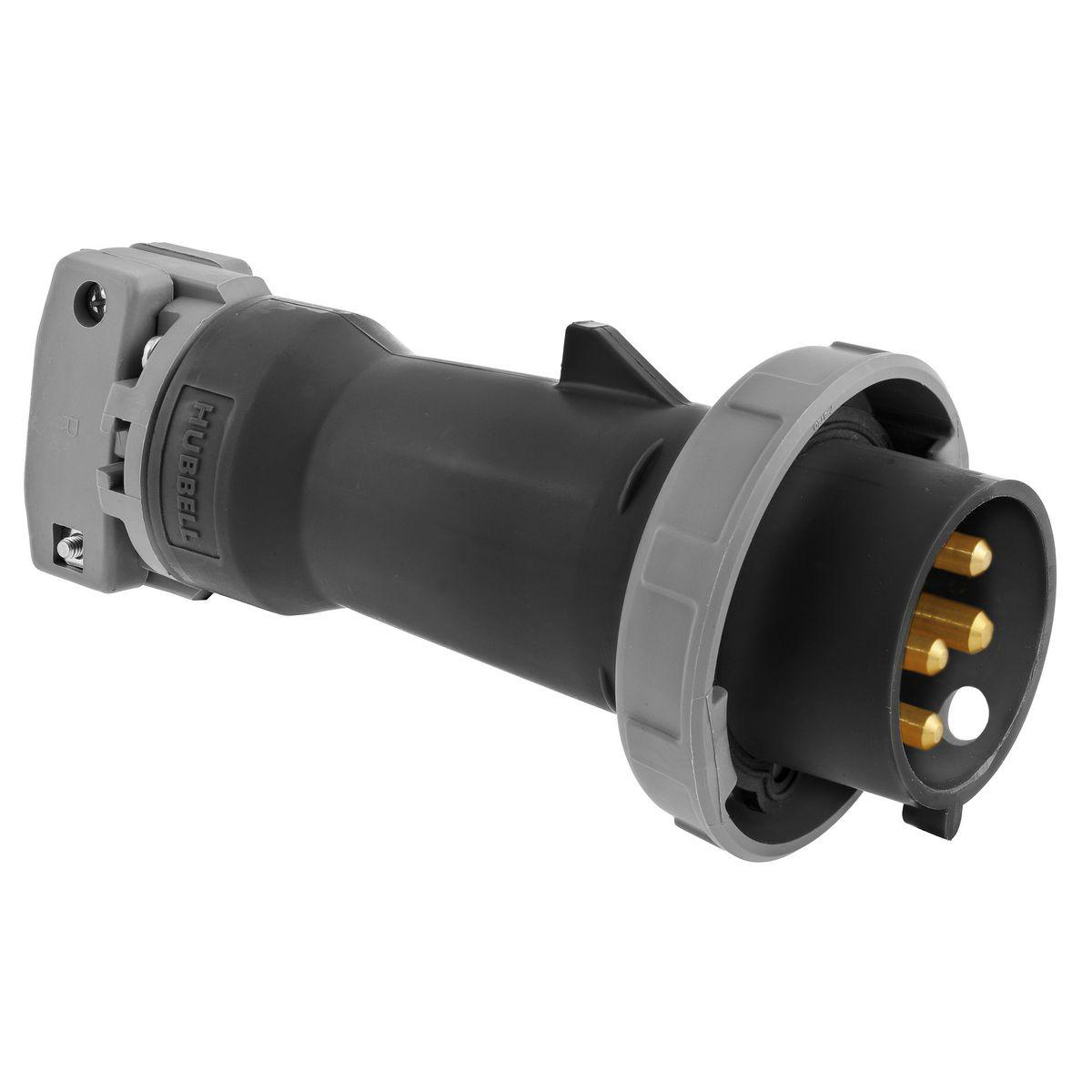

HUB HBL430P5W CONN 30A 3P4W PIN&SL 3PH 600V MALE PLUG WATERTITE 8.05"X3.74" .45-1.25"CORD RANG

Manufacturer: Hubbell Wiring Devices | Catalog # HBL430P5W | Electrozad South Part # 46804
$458.52 /ea
pc
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual
Watertight plug with 3 pole, 4 wire, 3 Phase 600V.

Technical Information

Amperage
30 A
Applications
High Ampacity Connections
Conductor Size
12-8 AWG
Cord Type
Portable
Current
30 A
Grounding
Yes
Material
Composite
Mounting Type
Cord
Number of Phases
3
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA Standard C22.2 No. 182.1,File E146032,IEC60309-1,UL
TC Connection
Pressure Terminal Screws
Type
Straight Angled, Standard Sized
Voltage
600 V
Wire Count
4
Wire Size
12-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585404578
Color
Black
Environmental Conditions
Watertight
GTiN
00783585404578
Product UPC
78358540457
Weight
1.45 lb

Dimensions

Height
4.250 in
Length
9.000 in
Width
4.6 in

Certifications & Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,Connectors And Inlets And LR285C For Receptacle CSA Standard C22.2 No. 182.2,E146033 Plugs And Connectors,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC 309-1 And,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard UL1682 & UL 1686C2,UL Standard UL1682 & UL1686C2
Country of Origin
USA
