Pan-Lug™ SCL4-L Compression Connectors - Splices

Manufacturer: Panduit | Catalog # SCL4-L | Electrozad South Part # 46882
$1,304.50 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
14 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

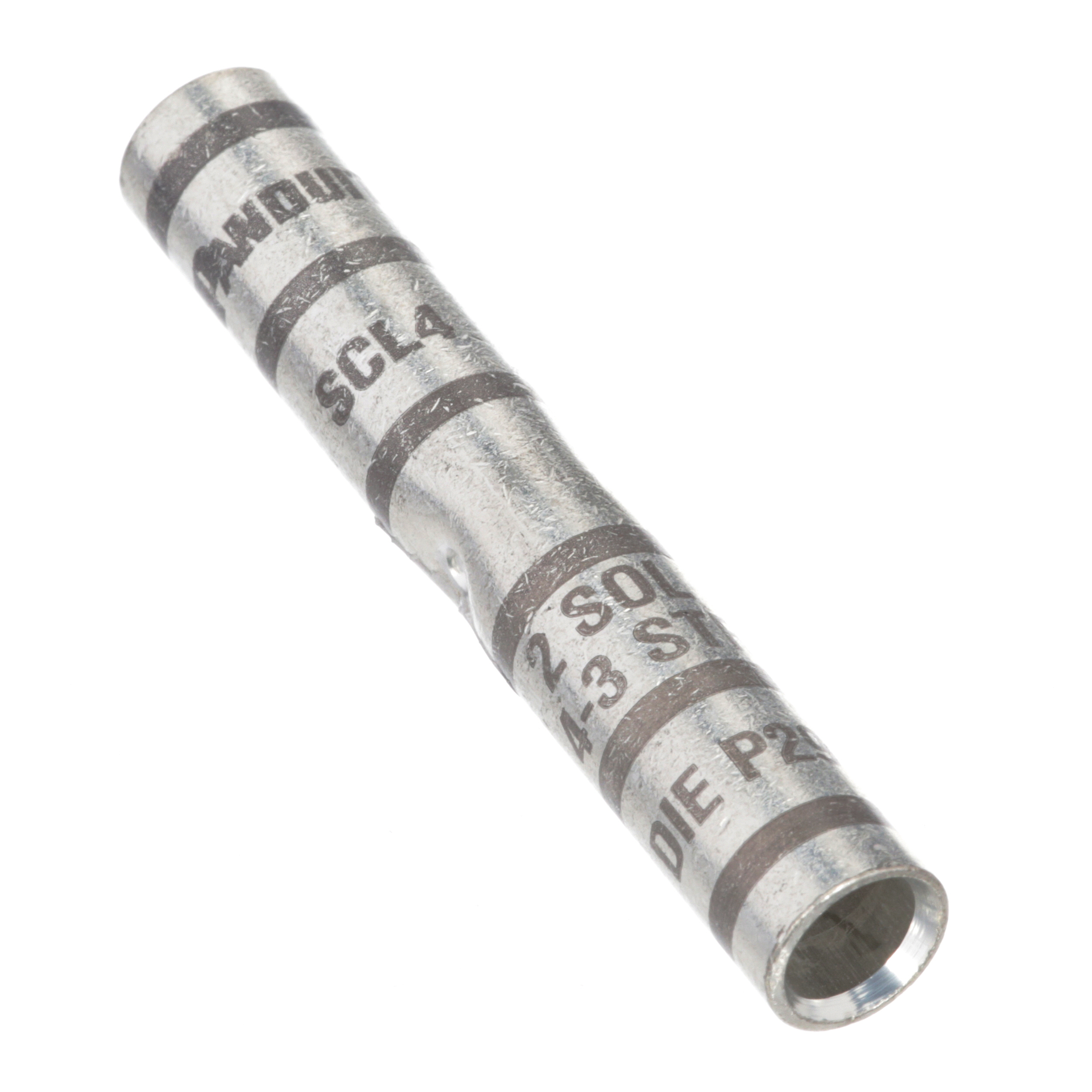

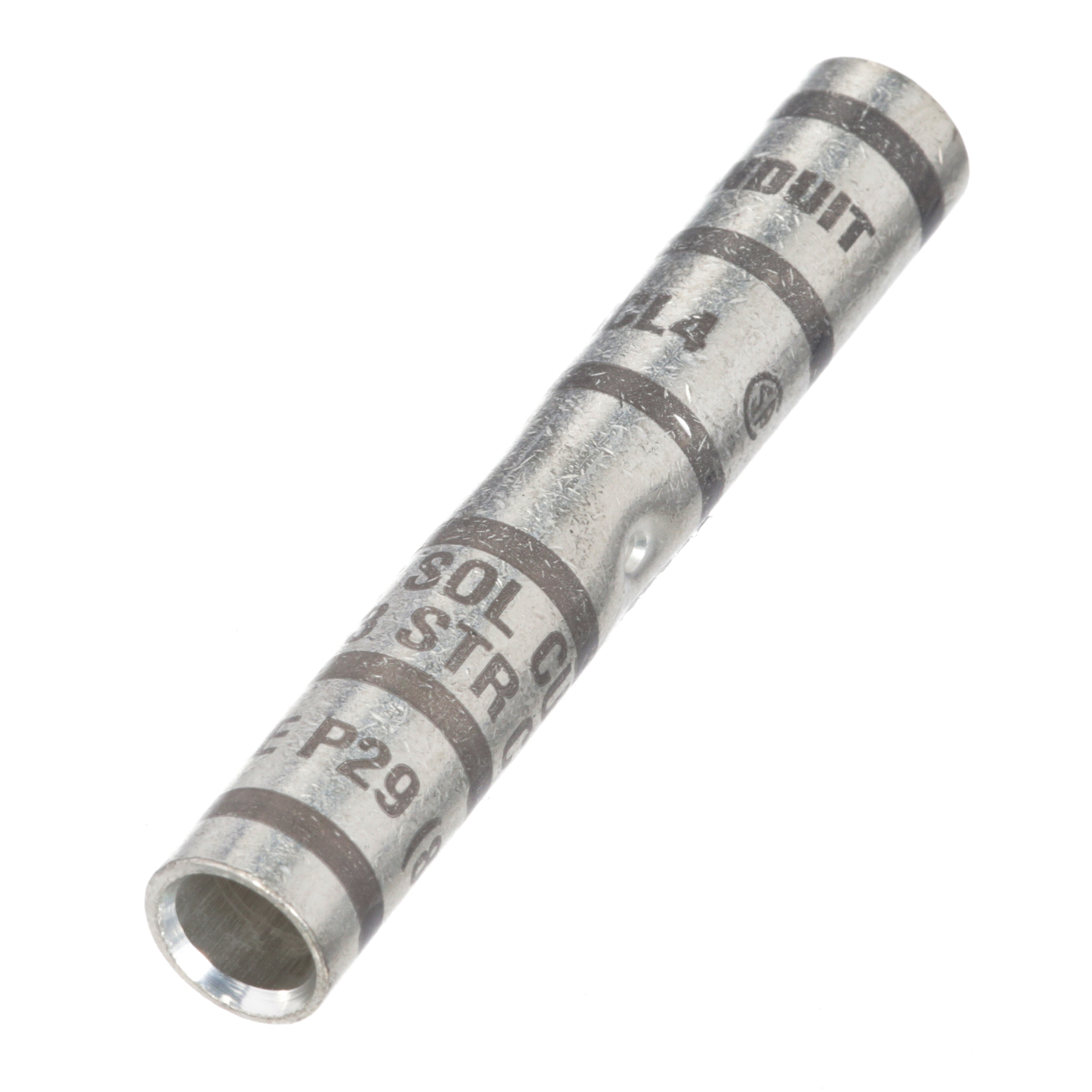

Copper butt splice, long barrel, #4 ... #3 AWG STR, #2 AWG SOL wire.

Technical Information

Barrel Type
Long
Conductor Size
4-3 AWG Stranded, 2 AWG Solid
Contact Material
Copper
Material
Copper
Size
4 - 3 mm
Standard
Yes
Strip Length
1-1/8 in
Temperature Rating
194 degrees F
Type
Compression Terminal Lug

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983904365
Color
Gray
Finish
Tin-Plated
GTIN
00074983904365
Product UPC
07498390436
UNSPSC
39121449
Used With
Stranded Copper Conductors

Dimensions

Overall Length
2.38 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
